1 ADAM-4542+ User Manual

ADAM-4542+

Fiber Optic to RS-232/422/485 Converter

User Manual

Before you begin installing your card, please make

sure that the following materials have been shipped:

If any of these items are missing or damaged, contact

your distributor or sales representative immediately.

Fiber optic transmission offers the benefits of wide

bandwidth, immunity to EMI/RFI interface, and secure

data transmission. The ADAM-4542+ can be used as

an RS-232/422/485 point-to-point or point-to-multi-

point connection for transmitting and converting full/

half-duplex signals and their equivalents within a fiber

optic environment. Fiber optics are the perfect solution

for applications where the transmission medium must

be protected from electrical exposure, lighting, atmo-

spheric conditions or chemical corrosion.

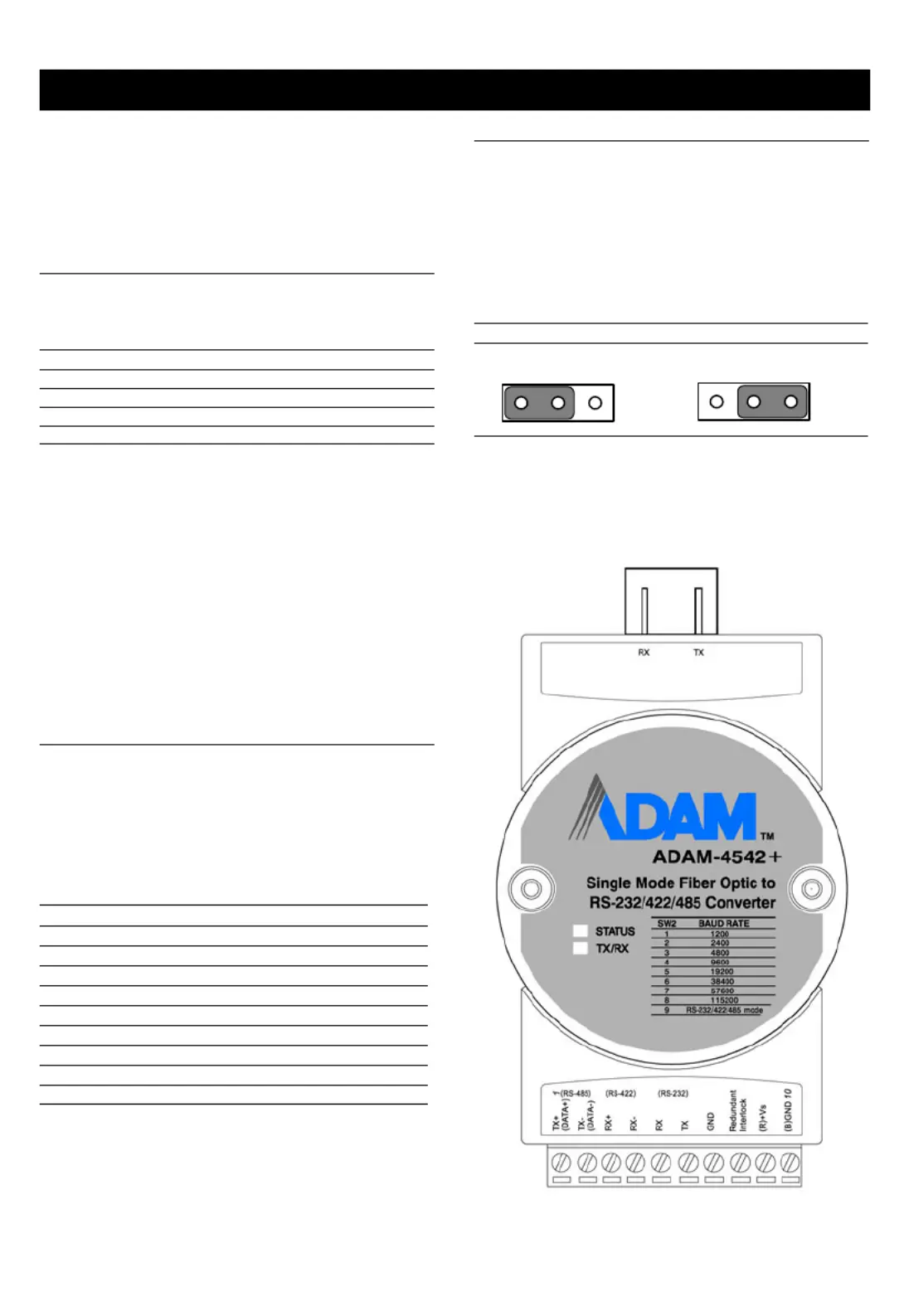

The ADAM-4542+ is specially designed to link various

machinery equipped with RS-232/422/485 communi-

cation ports (such as computer systems or manufac-

turing machines). Using standard SC connectors, the

module’s fiber optic port can accommodate a wide

range of fiber optic cable. ADAM-4542+ also supports

the redundancy requirement. You can use two pairs of

ADAM-4542+ for a redundant architecture. This spe-

cial design offers higher reliability.

• Compact size

• Direct plug-and-play

• Easily mounted on a DIN-rail, panel, or piggybacked

• Transmission speeds of up to 115.2kbps

• Optical fibers enable transmission of up to 15 km

• Half/Full-duplex, bidirectional transmission mode

• Avoid lightning strikes and EMI/RFI

• Prevents damage from electrostatic discharge

• Stable and error-free data transmission

• Automatic internal RS-485 bus supervision

• No external ow control signals required for RS-485

• Transient suppression and over-current protection on

RS-422/485 data lines

• LED for power and data flow indication

• Fiber Optic : Single Mode

• Wavelength : 1310 nm

• Transmission Distance : 15 km

• Optical Power Budget (attenuation) : min. 8.2 dB

• Casing : ABS with captive mounting hardware

• Communication Mode : Asynchronous

• Connector : Plug-in screw terminal

• Fiber port : SC

• Transmission Mode : Full/Half-duplex, bidirectional

• Transmission Rate : Up to 115.2 kbps

• Power Requirement : Unregulated +10 ~ +30 VDC

• Operating Temperature : -10 ~ 70° C (14 ~ 158° F)

• Operating Humidity : 5 ~ 95% (non-condensing)

• Accessories : DIN-rail mounting adapter, panel mount-

ing bracket

Advantech warrants to you, the original purchaser, that

this product will be free from defects in materials and

workmanship for two years from the date of purchase.

This warranty does not apply to any products which

have been repaired or altered by persons other than

repair personnel authorized by Advantech, or which

have been subject to misuse, abuse, accident or

improper installation. Advantech assumes no liability

under the terms of this warranty as a consequence of

such events.

If your product is defective, it will be repaired or

replaced at no charge during the warranty period.

package and ship it prepaid to your dealer.

Packing List Features

• 1 x ADAM-4542+ Module with DIN-rail mounting

bracket

• 1 x ADAM-4542+ User Manual

• 1 x Panel Mounting Bracket

• 1 x Cable for 9 pin to 3 pin

Introduction

For more information on this and other Advantech

products, please visit our website at:

http://www.advantech.com

http://www.advantech.com/eAutomation

For technical support and service, please visit our

support website at:

http://service.advantech.com.tw/eservice/

This manual is for ADAM-4542+.

Part No. 2004542001 2nd Edition

June 2004.

Specifications

Two Years Warranty

ADAM-4542+ Fiber Optic to RS-232/422/485 Converter
