AIIS-DIO32 Startup Manual 1

Before you begin installing your card, please make sure that

the following items have been shipped:

1. 1 x AIIS-DIO module

2. 1 x Cable

3. 2 x Screws

4. 2 x POST (Silver color)

5. 2 x POST (Golden color; 18mm for AIIS-1240)

6. 2 x POST (Golden color; 20mm for AIIS-1440)

7. 1 x Startup manual

8. 1 x China RoHS

9. 1 x Warranty

If any of these items are missing or damaged, please con-

tact your distributor or sales representative immediately.

AIIS-DIO32

DIO module, 32-bit, 9-pin USB interface

Startup Manual

General Features

• 16 isolated DI and 16 isolated DO channels

• High voltage isolation on all channels (2,500 V)

• Supports 5 ~ 60 Vdc isolated input channels

• Interrupt handling capability

• Timer/counter capability

Support List

AIIS-1240-00A1E

AIIS-1440-00A1E

Note: For more support list, please visit our website.

Mechanical and Environmental

• Dimensions: 95.9 mm x 46.2 mm

• Operating temperature: 0 ~ 45° C

• Operating humidity: 10 ~ 95% @40° C, Non-Condens-

ing

• Storage temperature: -40 ~ 70° C

• Storage humidity: 10 ~ 95% @60° C, Non-Condensing

• Weight: 0.3 kg

There is one connector on the module is used to connect

with AIIS Series Motherboard. The below table lists the

function of the connector.

Connectors

Label Function

USB1 Connecting module and MB

Specications

Packing List

For more information on this and other Advantech

products, please visit our website at:

http://www.advantech.com

http://www.advantech.com/eplatform

For technical support and service, please visit our

support website at:

http://support.advantech.com

This manual is for the IPMI-1000 Series.

Part No. 2006IO3200

Print in China

1st Edition

November 2013

Connector

2 AIIS-DIO32 Startup Manual

1. Remove top cover.

2. Install the AIIS-DIO32 with 2 stand-off and 2 screws.

3. Connecting main board USB12 connector with AIIS-DIO32 USB1 connector via DIO cable.

4. Reinstall top cover.

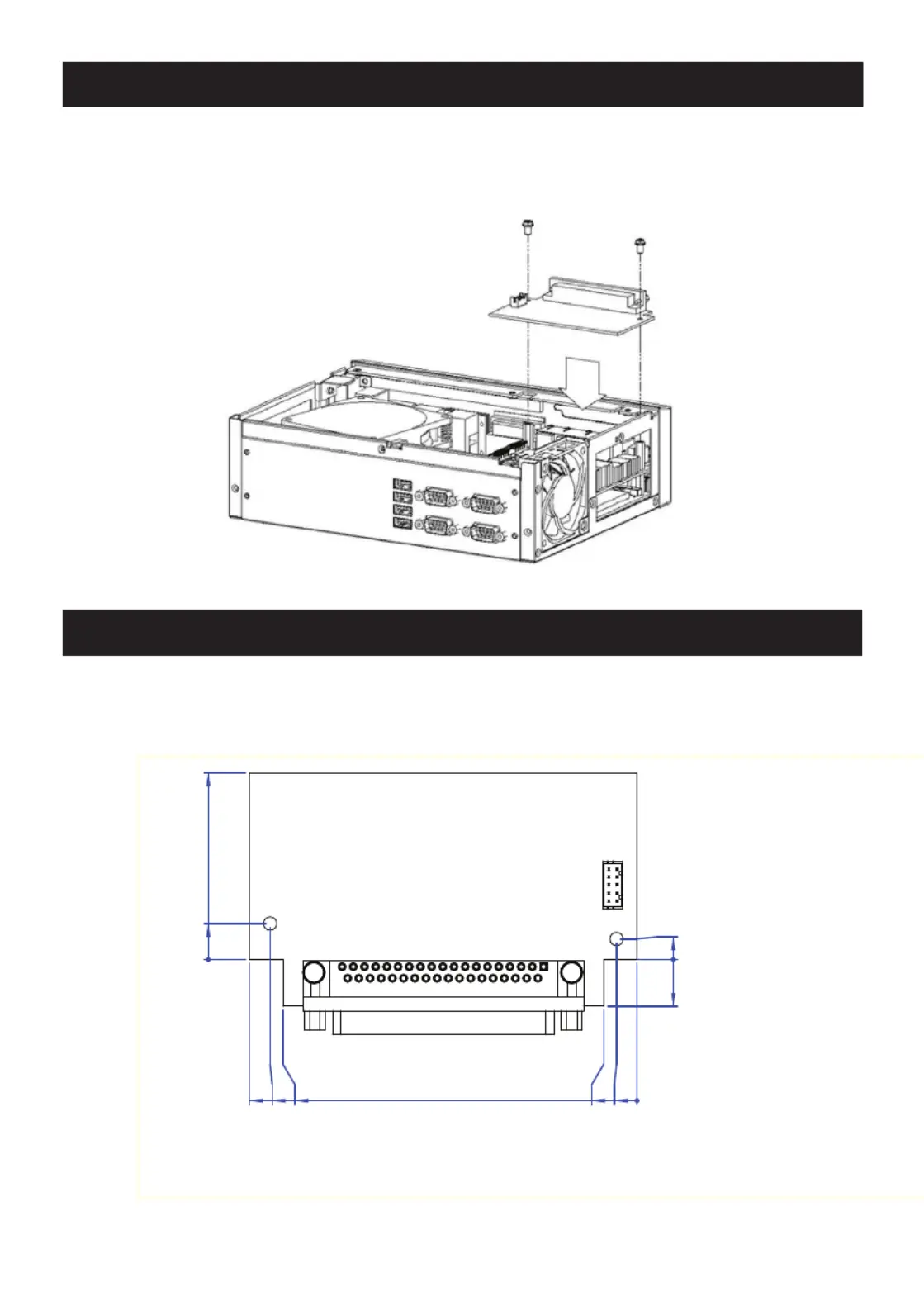

Figure 1: Installation Guide

Dimension

Figure 2: AIIS-DIO32 Dimension

8.89

46.15

11.56

5.08

8.26

87.63

90.81

95.89

Installation Guide
