Fast and easy on the web:
www.advantech.com

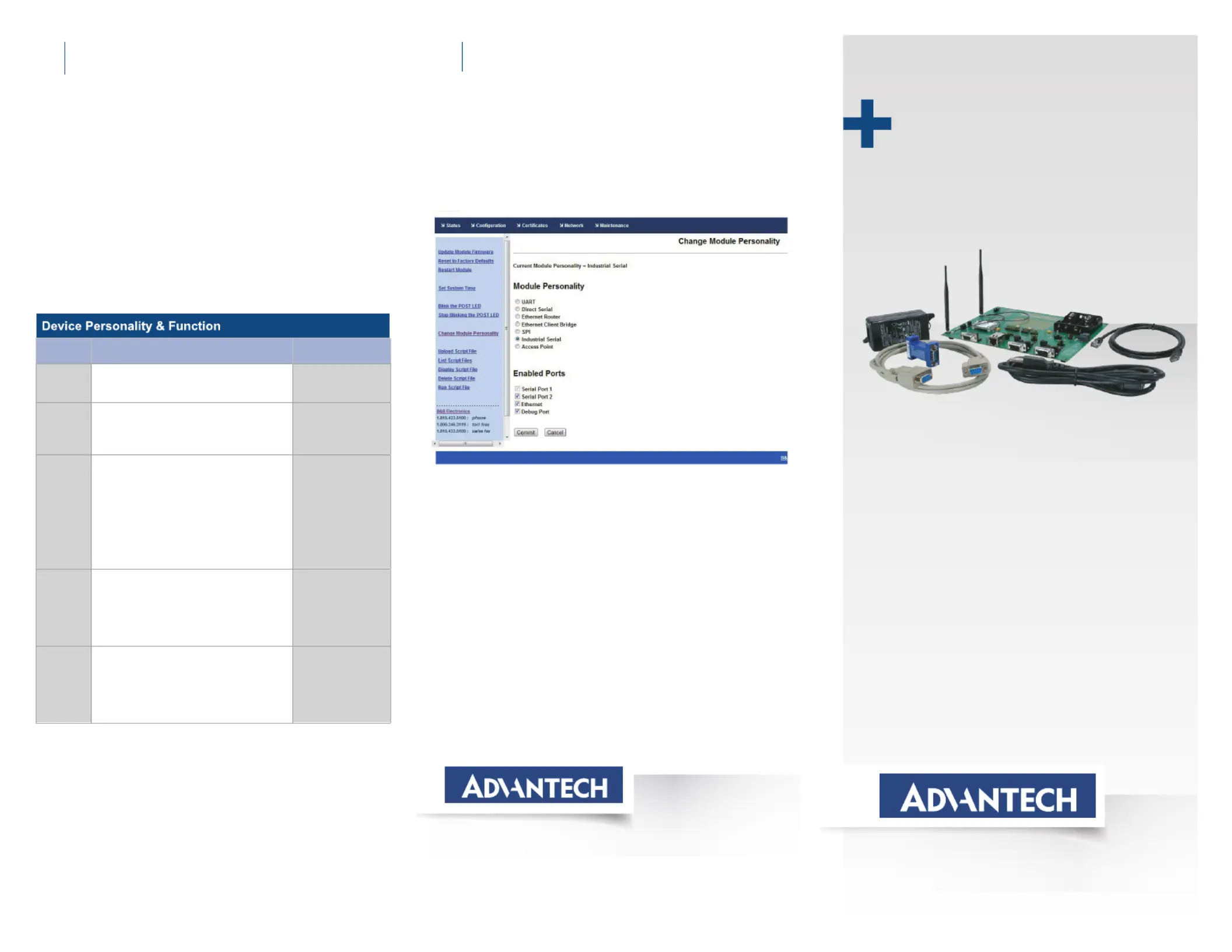

QUICK START
GUIDE
Device perso lities,na
configuration and set-up
Change module personality
8
9
Document Number: 710-10086-00_r4_WLNN-EK-DP551_0219qsg
WLNNA Series Evalua on Kitti
Design & Development
Personality Description Model# Series
UART
Serial device server with LVTTL I/O. Supports
dual UART, debug port, single Ethernet,
802.11a/b/g/n. Ethernet interface is a client.
WLNNA-AN-DP551
Direct
Serial
Serial device server with control signals to
support external RS232/422/485 drivers. Support
dual serial ports, debug port, single Ethernet,
802.11a/b/g/n.
WLNNA-SE-DP551
Ethernet
Router
Ethernet NAT3 router. Built-in DHCP server on
Ethernet port supports multiple Ethernet slients
on the Ethernet interface. Includes rule-based
Firewall and Port Forwarding.
Ethernet interface is set as a router. Suitable for
applications where there are multiple Ethernet
clients on the Ethernet network.
Also supports dual UARTs, debug port,
802.11a/b/g/n.
ABDNA-ER-DP55x
ABDNA-ER-IN501x
WLNNA-ER-DP551
Ethernet
Client
Bridge
Ethernet bridge designed to connect wireless
(802.11a/b/g/n) to an existing Ethernet port.
Suitable for applications where there is a single
Ethernet client to be connected to a wireless
network.
Also supports dual UARTs, debug port.
ABDNA-ER-DP55x
ABDNA-ER-IN501x
WLNNA-ER-DP551
These units can easily be
converted to bridge-mode
using AMC templates.
Industrial
Ethernet
Ethernet NAT3 router. Built-in DHCP server on
Ethernet port supports multiple Ethernet clients
on the Ethernet interface. Includes rule-based
Firewall and Port Forwarding. Also supports dual
UARTs, debug port, 802.11a/b/g/n.
ABDNA-ER-IN501x
Model WLNNA-EK-DP551
(1) Airborne Enterprise Module Evaluation Circuit Board
Assembly (“EVB”)
(1) Airborne WLNN-EK-DP551 module (mounted to EVB)
(1) 5VDC power supply, 2.1mm barrel jack, cable
(2) 2dBi, 2.4GHz/5Ghz, 50 Ohm, omni-directional antenna
(1) DB9/-DB9 serial cable (null modem)
(1) USB to serial adapter (Model# 232USB9M-LS)
(1) CAT5 Ethernet cable
(1) Quick Start Guide
Before you begin, be
sure you have the following:
The WLNNA Series EVB can support all device
personalities available within the Advantech product line.
A device personality is a specific configuration of the
Airborne™ device which performs a certain function.
Examples include Ethernet Router, Serial Device Server
etc. The EVB is shipped with the default personality set
as an Industrial Serial Devices Server.
Changing the personality to match your application is the
first thing you should do when working with the EVB.
It is important to select the appropriate personality. The
following table outlines the personalities and their
specific functionality:
The web page displays Change Module Personality
theavailable device personalities.
After selecting the appropriate personality, you must
press the button and restart the module to save Commit
and apply the change.
Note: The web interface is context sensitive. Not all of the fields
will be visible without a context change.

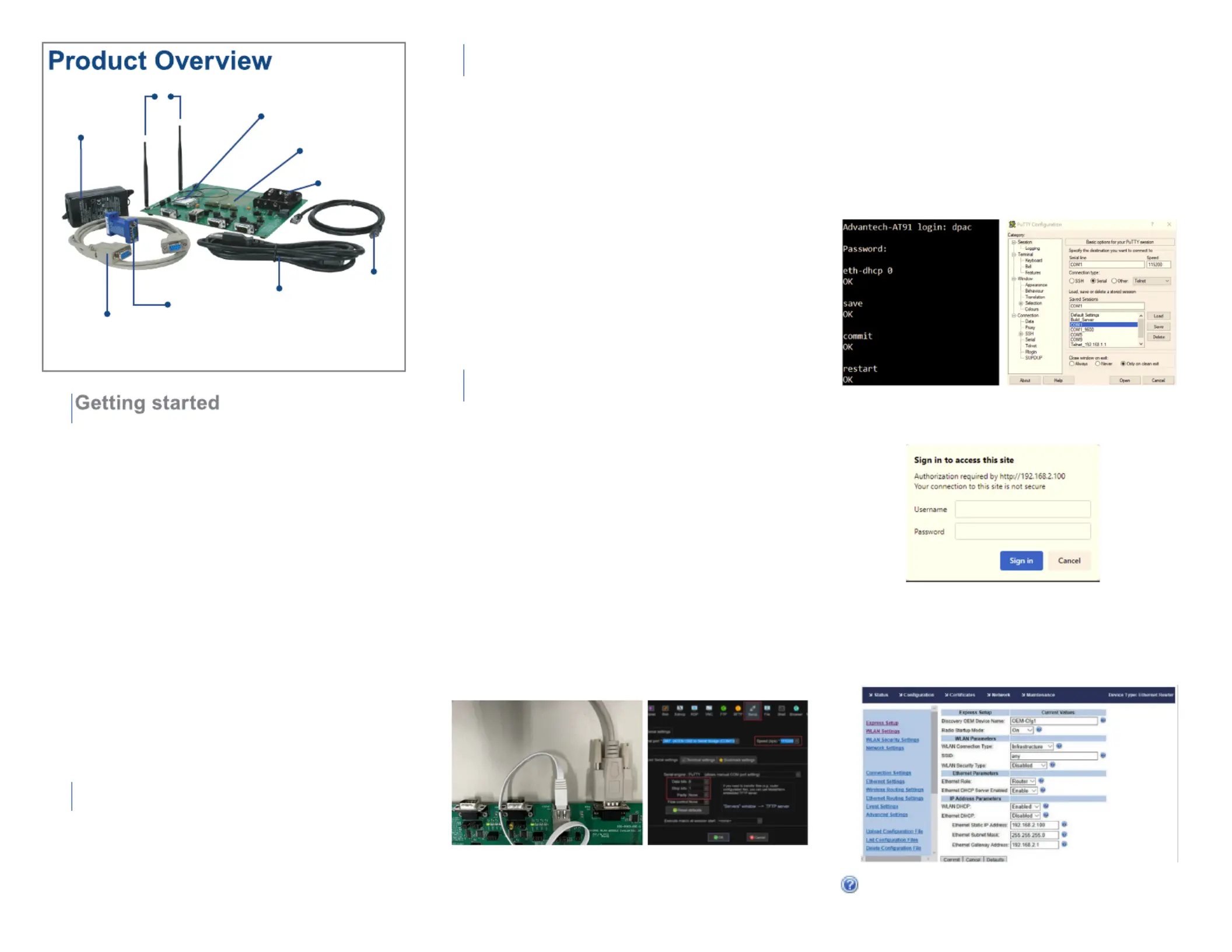

1
Ethernet connection
Power
2
3
Ante asnn
DB9/DB9
Null Mo mde
Cable
5 VDC
Power Supply
Eva ation Circuitlu
Board Assembly
USB/Serial
A pterda
WiFi OEM Open
Board Module
(Power
Supply
Cord)
Cat5
Ethernet
Cable
Battery
Power
Connect the Ethernet cable to the Ethernet port on the EVB
and to an Ethernet port on the laptop or desktop system.
Change the IP configuration of the laptop/desktop Ethernet
interface to .Obtain an IP Address Automatically
To evaluate the unit, you will need the following
components and facilities:
• EVB unit with included antenna attached.
• Laptop or desktop system with an Ethernet port.
• Power outlet for power supply.
• 802.11b/g/n or 802.11a/n network for testing the unit,
Infrastructure (access points) mode. The test network
configuration must be known. Required information will
include:
o SSID (wireless network name).
o Security settings (WEP, WPA, WPA2, etc.).
o Security credentials (passphrase, key or certificates).
o Static IP address, Subnet Mask, Gateway address if static
IP addresses are used on the test network.
• A web browser on the laptop/desktop are supported.
(Internet Explorer, Firefox, Opera, Chrome v4.0)
Apply power to the Evaluation Kit by moving the Power
switch (SW1) to the Power On position.
The EVB will boot. Confirm that the POST LED is
illuminated (orange), indicating the module is ready to be
configured.
If the POST LED is not illuminated, do the following:
• Check the power connections and reapply power.
• Make sure that SW1 is in the correct position (Power On).
• Even though the module is ready to be configured, you
may have to wait a minute for the module and
laptop/desktop to fall back to the 169.254.x.x IP address.
If the POST LED still does not illuminate, contact Advantech
Technical Support.
Configuration
4
WLNNA-EK-DP551 default status is DHCP client, there’re
3 accesses for beginning setting:
1. Access over web
PC manually setup 192.168.2.0/24 (ex. 192.168.2.200),
then ethernet cable connect between PC and eval kit,
then access http://192.168.2.100:80(wired) via browser,
then input user name and password (dpac/dpac) to sign
in.
2. Access over Telnet
PC manually setup 192.168.2.0/24 (ex. 192.168.2.200),
then ethernet cable connect between PC and eval kit,
then access 192.168.2.100:23(Ethernet) via Telnet
Client, then input command “auth user/pass” (ex. auth
dpac/dpac) to login.
3. Access over Debug port
PC with COM port (ex. PuTTY), Serial Cable connect
between PC and eval kit, then access via Terminal Client
(Serial)115200/8(data bit)/N/1(Stop bit), then input
command “auth user/pass” (ex. auth dpac/dpac) to login,
or type command via telnet:
eth-dhcp 0
save
commit
restart
After Restart ->> Link 192.168.2.100 via website
(dpac/dpac)
Then we can startup WLNNA series configuration, most
configurations can be completed by changing settings on
the Express setup page. A Commit and Restart is
required for your changes to take effect.
Note: After committing changes, if your device boots up and the Post
LED is Amber, and Link is Red, this can indicate that the security
selected is incorrect.
