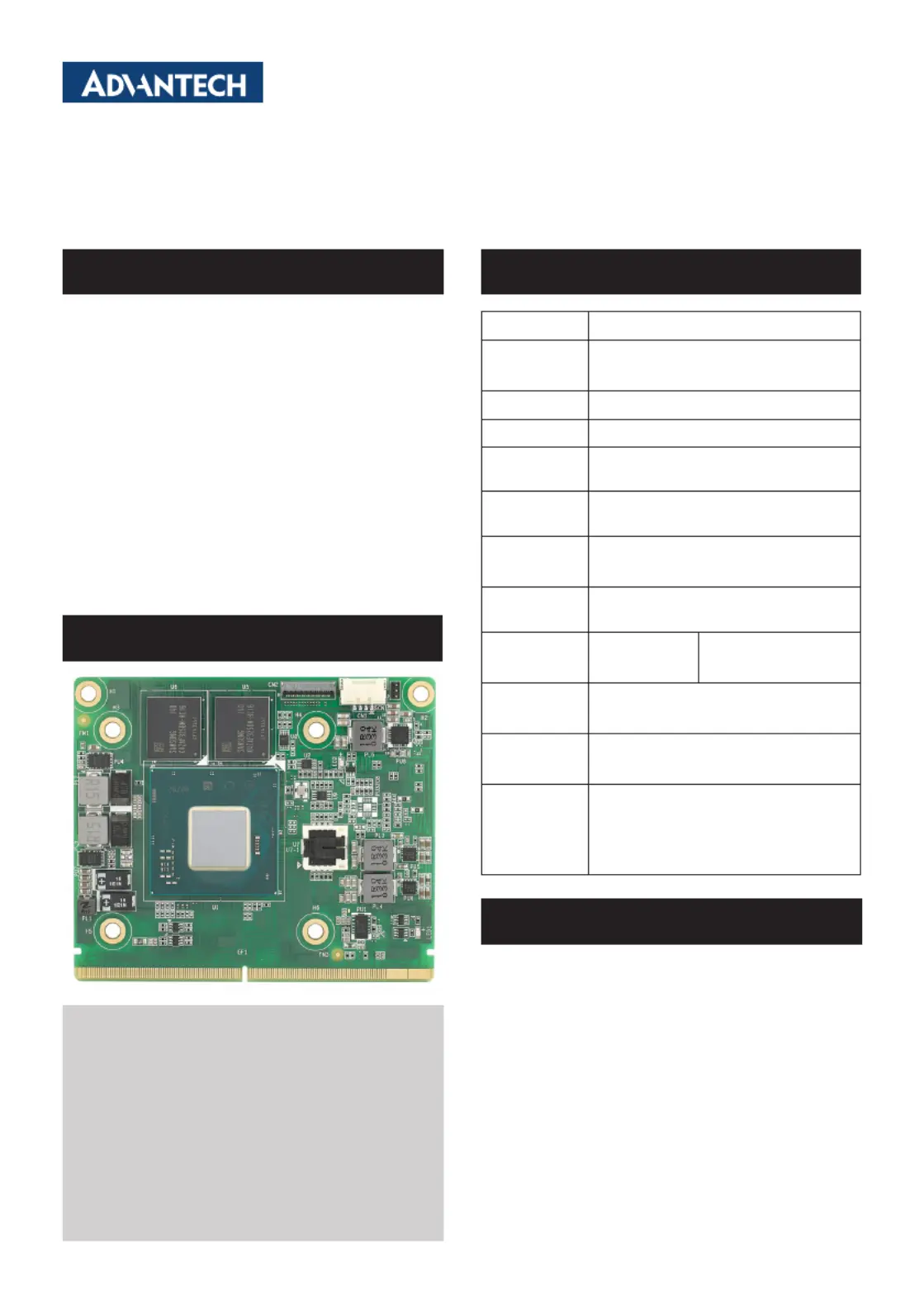

VEGA-X110 Startup Manual 1

Before you start installing your card, please make sure that

the following items have been shipped:

• 1 x VEGA-X110 GPU card

• 1 x Startup Manual

• 1 x China RoHS

Optional: Thermal Kit

• 1 x Fansink or 1 x Heat spreader attachment

(Based on the customer’s order requirement)

Note: Regarding OpenVINO, you can go to:

https://www.intel.com/content/www/us/en/devel-

oper/tools/openvino-toolkit/overview.html

to download the latest version.

If any of these items are missing or damaged, please con-

tact your distributor or sales representative immediately.

VEGA-X110

MXM 3.1 Intel® Arc™ A-Series A370M

Embedded GPU Card

Specications Packing List

For more information on this and other Advantech

products, please visit our website at:

http://www.advantech.com

For technical support and service, please visit our

support website at:

http://support.advantech.com

This manual is for VEGA-X110.

Part No. 2046X11000

Printed in Taiwan

Edition 1

July 2023

Product Picture

Product VEGA-X110-00A1

Form Factor

Mobile PCI Express Module

(MXM 3.1 Type-A)

GPU Intel® Arc™ A370M

Memory GDDR6 4GB

Dimensions

(W x D)

82 x 70 mm

Signal

Interface

MXM 3.1 PCI Express Gen 4 p1-x8 with

3.0 Backwards Compatibility

Temperature

0~60 °C

(Depends on the GPU and cooler)

Max. Power

Consumption

Up to 40 watts

Thermal

Solution

Fansink

(optional)

Heat spreader

(optional)

Power Range

9-20V

(Fan control: 12V only)

Dislay I/O

Ports

Reserved 4 x DisplayPort 1.4a,

7680 x 4320 @60Hz, 8K

Graphics

Engine

DirectX 12, OpenGL 4.6, OpenCL 3.0

HW Encoding: H.264/H.265(HEVC)/AV1

HW Decoding: H.264/H.265(HEVC)/

AV1/VP9

• Above 4G decoding enabled

• Resizable (Re-Size) BAR support enabled

• Compatibility Support Module (CSM) or Legacy Mode

must be disabled and UEFI boot mode must be Enabled.

Notes: The procedure to enable resizable BAR may be

di󰀨erentforeachsystemmanufacturer.Please

checkwithyoursystemmanufacturerforspecic

instructions as necessary.

The Resizable BAR option may be described as

Re-Size BAR, Smart Access Memory, or Clever

Access Memory.

Visit the Intel website to get more information:

https://www.intel.com/content/www/us/en/sup-

port/articles/000091128/graphics.html

Motherboard Requirements

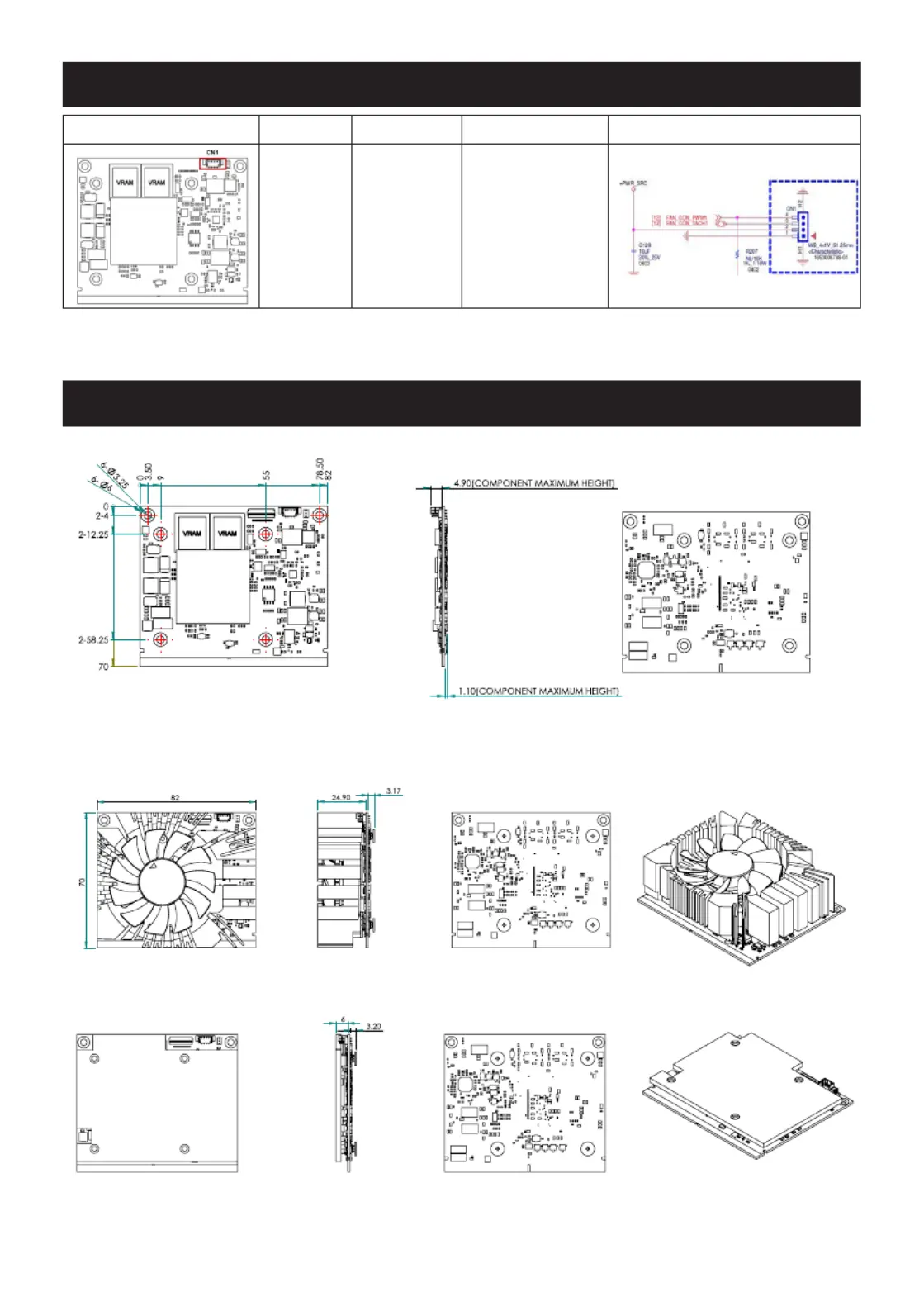

2 VEGA-X110 Startup Manual

Connector Location Connector Description Pin Denitions Symbol

CN1

4-Pin Fan

Connector

PIN1: GND

PIN2: +12V

PIN3: FAN TACH

PIN4: FAN PWM

Notes: Insert the fan plug into the fan connector on the VEGA-X110 GPU card.

VEGA-X110

VEGA-X110 with Fansink (optional)

VEGA-X110 with Heat Spreader (optional)

Connectors

Dimensions
