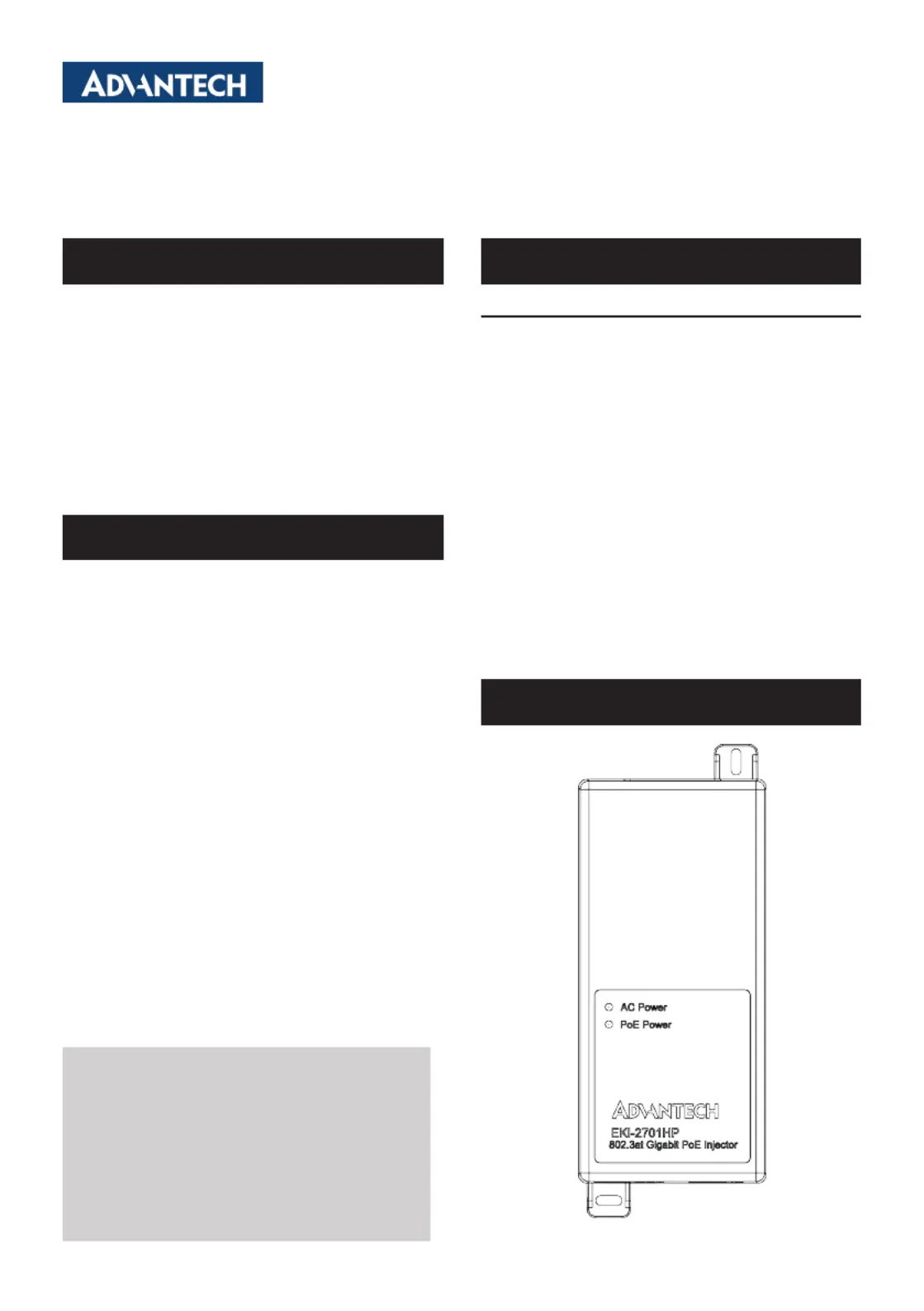

EKI-2701HP-AC Series Startup Manual 1

The EKI-2701HP-AC is a single port IEEE 802.3at/af PoE

injector with internal power supply, able to transfer Ethernet

data and deliver up to 30 watts electrical power to remote

PoE compliant powered devices (PDs) through the Cat.5e

Ethernet cable. It is specically designed for high-power

network equipment, o󰀨ering a simple, cost-e󰀨ective, safe, and

reliable power solution for locations where connecting power

supplies is challenging.

Capable of supplying up to 30 watts of power through its

Ethernet port, it can e󰀩ciently power IEEE 802.3af/at PoE

compliant devices such as wireless access points and IP

cameras, thereby eliminating the need for additional wiring.

Packing List

Before installation, please make sure that you have re- ceived

the following:

• 1 x EKI-2701HP-AC PoE Injector

• 2 x Rubber feett

• 1 x EKI-2701HP-AC Startup Manual

• 1 x Power cord (only for EKI-2701HP-US/EKI-2701HP-

EU/EKI-2701HP-JP)

If anything is missing or damaged, contact your distributor or

sales representative immediately.

EKI-2701HP-AC Series IEEE 802.3at Gigabit PoE

Injector

Startup Manual

General

• Compatibility: IEEE 802.3, 802.3u, 802.3ab, 802.3af,

802.3at

• LAN: 10/100/1000Base-T(X)

• Transmission Distance: Up to 100 m

• Connectors: 2 x 10/100/1000Base-T(X) (DATA IN p1-x1 +

PoE OUT X1)

• Power Input: 100~240Vac,50~60Hz, 0.72A

• Power Consumption: Max. 36W (Full PoE Load)

• Dimensions (W x H x D): 65 x 36 x 140 mm (2.56” x

1.42” x 5.51”)

• Enclosure: IP30

• Operating Temperature: 0 ~ 40°C (32 ~ 104°F)

• Storage Temperature: -20 ~ 70°C (-4 ~ 158°F)

• Operating Humidity: 10 ~ 95% (non-condensing)

• Storage Humidity: 10 ~ 95% (non-condensing)

• Safety: UL62368

• EMC: CE, FCC Class A

• Warranty: 5 year

Overview

Introduction

For more information on this and other Advantech

products, please visit our website at:

http://www.advantech.com/products/

For technical support and service:

http://www.advantech.com/support/

This manual is for EKI-2701HP-AC.

Part No. 2002270110 2nd Edition

August 2024

Specications

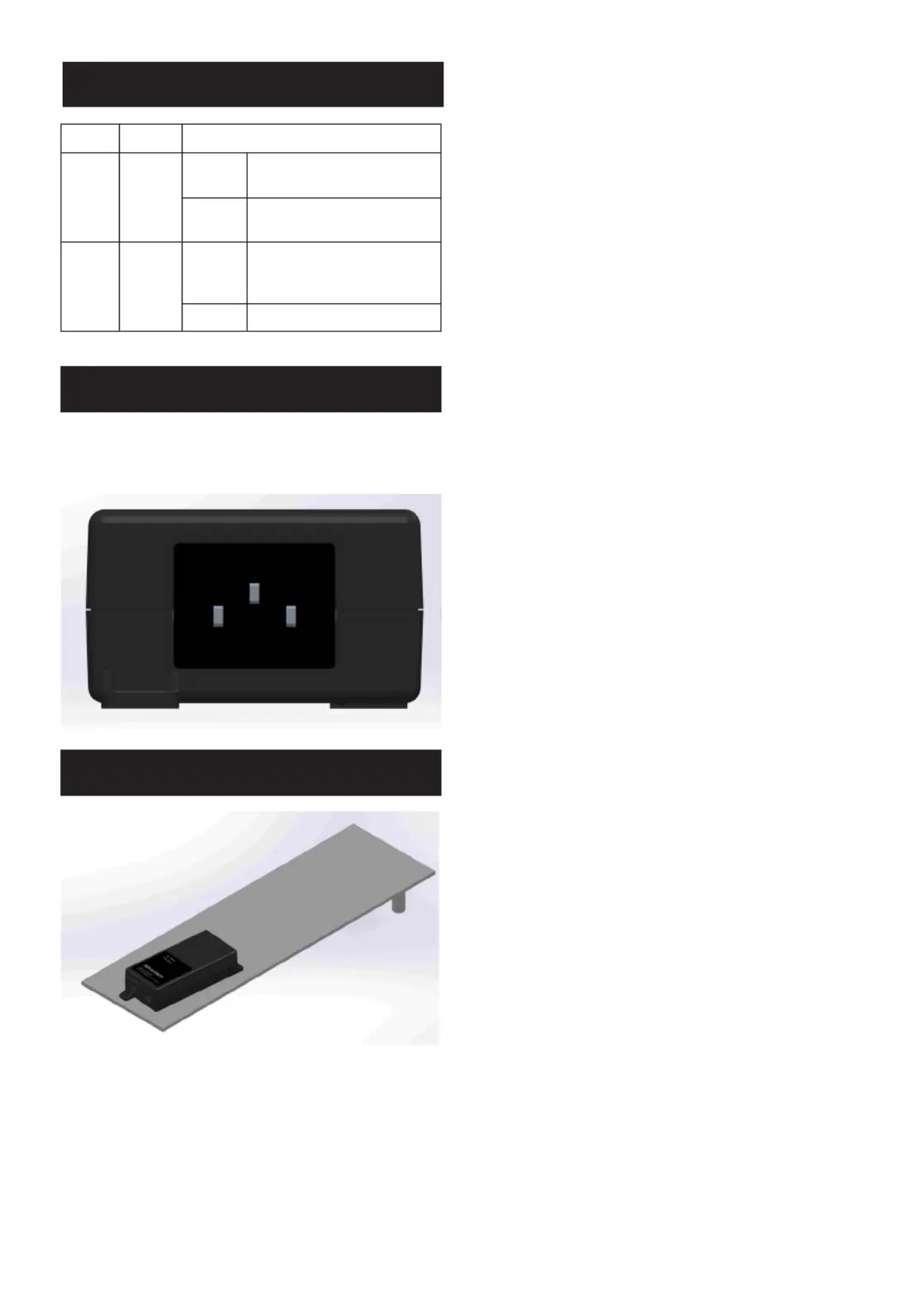

2 EKI-2701HP-AC Series Startup Manual

LED Color Description

Power

Green

Power is being supplied to

power input.

O󰀨

Power is not being sup-plied

to power input.

PoE

Power

Green

PoE power is being sup-

plied to the Powered Device

(PD).

O󰀨 No PoE output

Power Connection

AC Power Input Connector:

This connector connects the AC power source to the EKI-

2701HP-AC PoE Injector.

Mounting

LEDDenition
