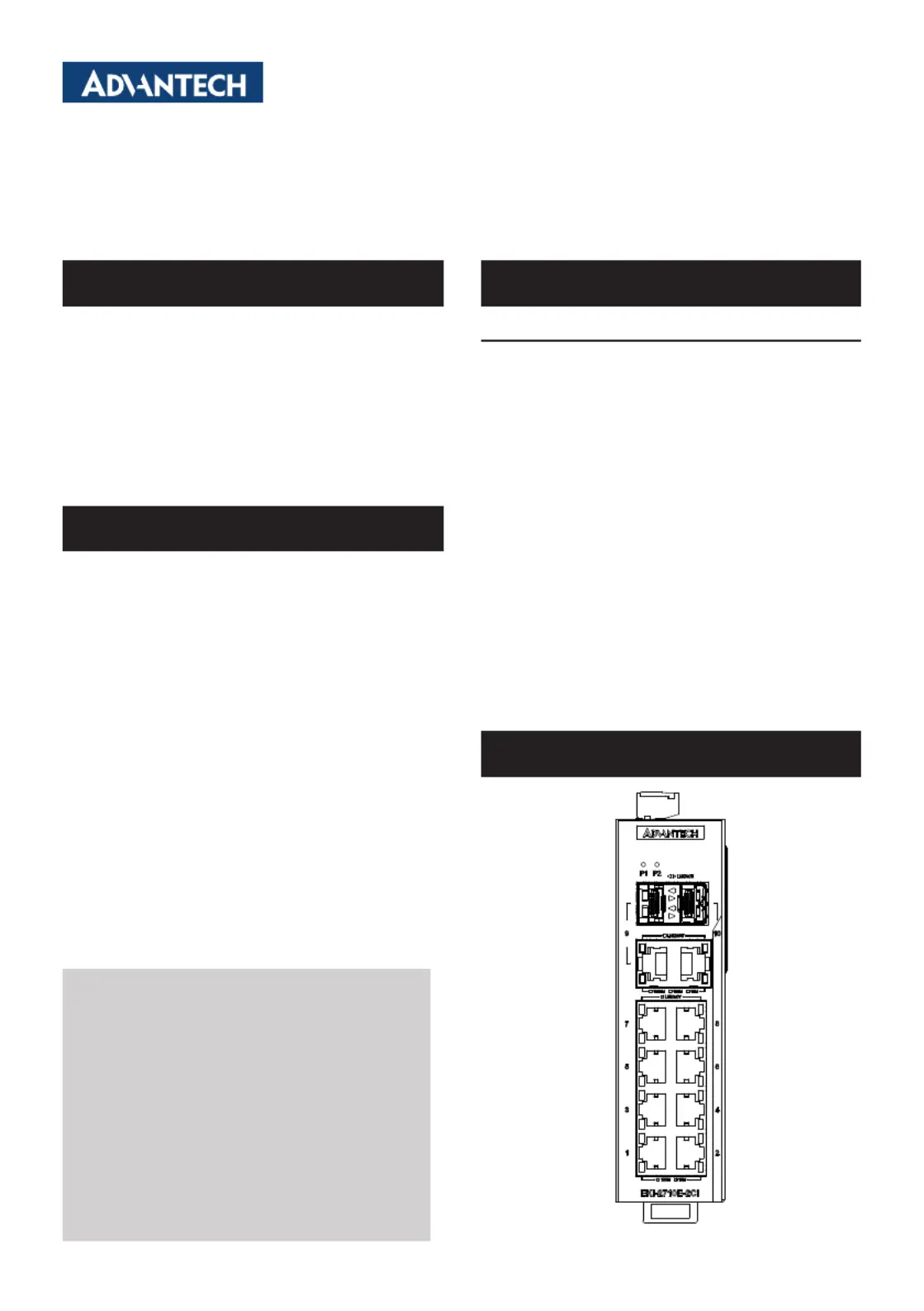

EKI-2710E-2CI Startup Manual 1
The EKI-2710E-2CI industrial Ethernet switch provides 8 x
10/100M + 2GE Combo ports, o󰀨ering versatile connectivity
for diverse applications. Users can conveniently enable or
disable Quality of Service (QoS), broadcast storm protec-
tion, and VLAN settings using DIP switches. Equipped with
12~48 VDC redundant power inputs and DIN-rail mounting,
these switches are designed for reliable performance in
resists electromagnetic interference, ensuring stable opera-
tion in harsh conditions.
Before installation, please make sure that you have re-
ceived the following:
• 1 x EKI-2710E-2CI Ethernet switch
• 1 x DlN-rail mounting bracket with 4 screws (M3 x 5L)
• 2 x Wall mounting brackets with 4 screws (M3 x 5L)
• 1 x EKI-2710E-2CI startup manual
If anything is missing or damaged, contact your distributor
or sales representative immediately.
EKI-2710E-2CI
8FE + 2GE Combo Unmanaged Switch
Startup Manual
General
• Compatibility:IEEE 802.3, 802.3u, 802.3ab, 802.3z,
802.3x, 802.1p
• LAN: 8 x 10/100BaseT(X) + 2 x 10/100/1000Base-T(X) or
100/1000Base-FX SFP
• EthernetRJ-45:Up to 100 m
• Connectors:8 x Fast Ethernet (RJ45) + 2 x Giga (RJ45/
SFP) combo ports
• SwitchArchitecture:Store and Forward
• PowerInput:12~48 V
DC
, redundant power
• PowerConsumption:5.8 W
• Dimensions(WxHxD):40 x 140 x 105 mm
• Enclosure:IP30
• OperatingTemperature:-40 ~ 75°C (-40°F ~ 167°F)
• StorageTemperature:-40 ~ 85°C (-40 °F ~ 185°F)
• OperatingHumidity:5 ~ 95% (non-condensing)
• StorageHumidity:5 ~ 95% (non-condensing)
• Safety:UL62368
• EMC:CE, FCC Class A, BSMI
• Warranty:5 year
SpecicationsOverview
For more information about this or other Advantech
products, visit the Advantech website at
http://www.advantech.com
For technical support and customer service, visit the
Advantech support website at
http://support.advantech.com.tw
This manual is for EKI-2710E-2CI.
Part No. 2049271000 Edition 1
November 2024
PackingList
Overview

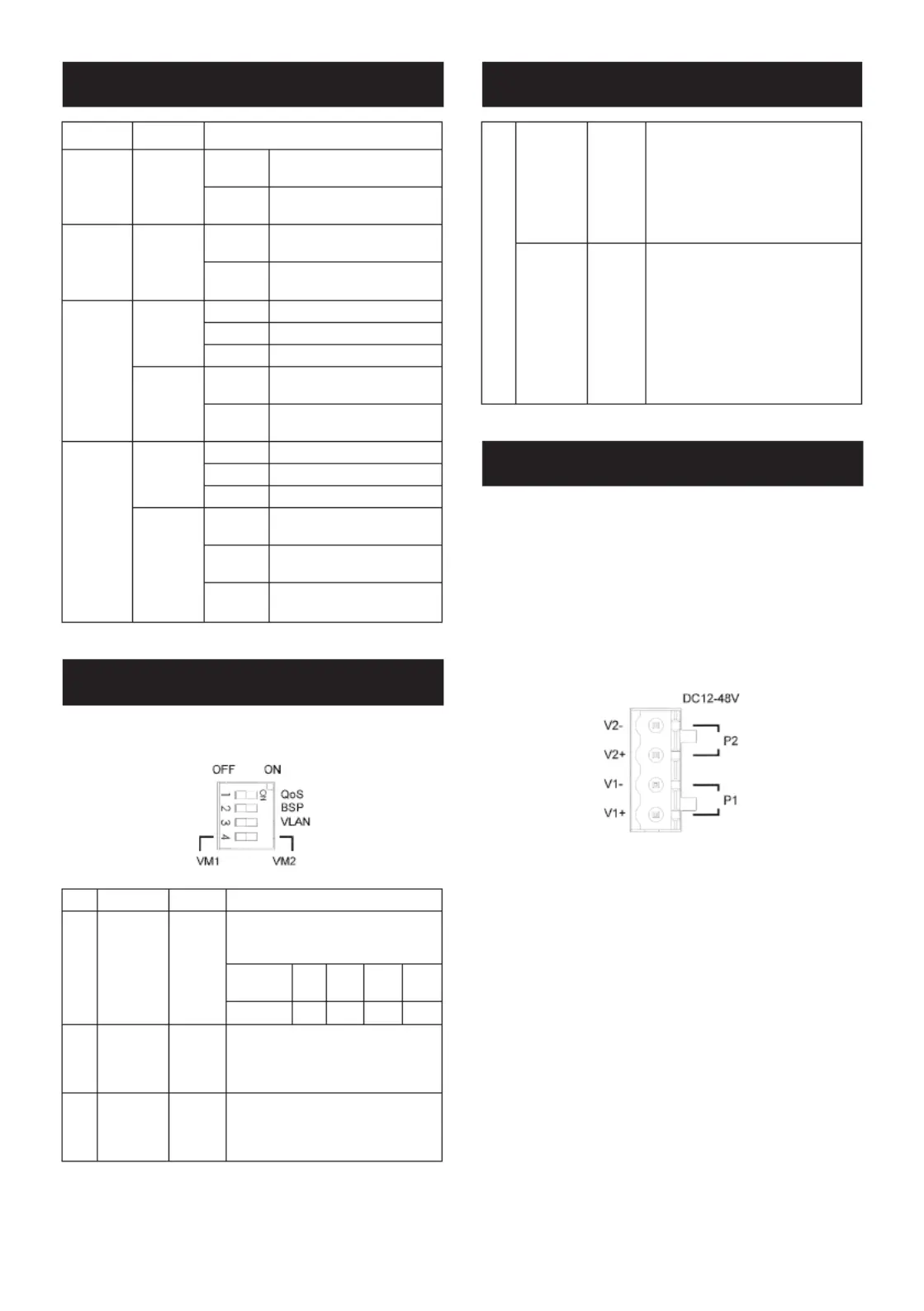

2 EKI-2710E-2CI Startup Manual
4
VLAN
Mode 1
VM1
Switch the DIP to the ‘left’ posi-
tion to activate VLAN Mode 1,
Port Isolated Mode.
All ports are isolated from each
other, with only Uplink Ports 9
& 10 interconnected with other
ports.
VLAN
Mode 2
VM2
Switch the DIP to the ‘right’ posi-
tion to activate VLAN Mode 2,
2-Grouping Mode.
This divides all ports into two
separate groups, ensuring no
interconnection between them.
Group 1 comprises Ports 1-4
with uplink port 9, while Group 2
comprises Ports 5-8, with uplink
port 10.
The EKI-2710E-2CI switch supports dual +12~48 V
DC
power inputs. For operation, connecting either power V1
or V2 to the switch is su󰀩cient. If both sets are connected,
it enhances redundancy. In the event of a power resource
failure in one set, it will automatically switch to the other set
of power resources.
1. Insert the positive and negative wires into the V+ and
V- contacts on the terminal block connector
2. Tighten the wire-clamps screws to prevent the DC wires
coming loose.
Warning: This product is intended to be supplied by an UL
certied power supply or DC source suitable for
use at minimum Tma 75°C whose output meets
SELV or ES1 and is rated 12-48 Vdc, 0.6A min.,
if need further assistance, please contact Advan-
tech for further information.
Warning: Ensure that the voltage of the power source is
correct before connecting the equipment to a
power outlet. By means of a power cord con-
nected to a socket-outlet with earthing connec-
tion.
Warning: Never open the equipment. For safety reasons,
the equipment should be opened only by quali-
ed skilled person.
Warning: Laser Class 1 optical transceiver shall be used
only.
Avertissement: Ce produit est destiné à être alimenté par
une alimentation certiée UL ou une source de
courant continu adaptée à une utilisation à au
moins Tma 75 °C dont la sortie satisfait les con-
ditions SELV ou ES1 et est évaluée à 12-48Vdc,
0.6A min-imum. Si vous avez besoin d’une aide
LED Color Description
P1 Green
On
P1 is being supplied to
power input.
O󰀨
P1 is not being supplied to
power input.
P2 Green
On
P2 is being supplied to
power input.
O󰀨
P2 is not being supplied to
power input.
Copper
Ports
(P1~P8)
Green
(top)
On Ethernet port link
Blinking Ethernet port active
O󰀨 No link
Amber
(bottom)
On
When the port’s data is be-
ing transmitted at 100M
O󰀨
When the port’s data is be-
ing transmitted at 10M
Combo:
Fiber/
Copper
Ports
(P9~P10)
Green
(Fiber/
top)
On Ethernet port link
Blinking Ethernet port active
O󰀨 No link
Green/
Amber
(Copper/
bottom)
Green
On
When the port’s data is be-
ing transmitted at 1000M
Amber
On
When the port’s data is be-
ing transmitted at 100M
O󰀨
When the port’s data is
being transmitted at 10M
This series provide 4-pin DIP switches for function setting.
DIP switch denition is listed as follows:
Pin Setting DescriptionFunction
1 ONQoS
Switch the DIP to “ON” to activate
Quality of Service for managing
packet priorities.
CoS
Priority
7,6 5,4 3,2 1,0
WRR 8 4 2 1
2 ONBSP
Switch the DIP to “ON” to activate
broadcast storm protection for all
ports, limiting the threshold to be
2000 broadcast packets/second.
3VLAN ON
Switch the DIP to “ON” to activate
VLAN.
(running by the following mode
options.)

DIPSwitch

LEDDenition

PowerConnection

DIPSwitch(Cont.)
