EKI-2708G/2710G Series Startup Manual 1
EKI-2708G-PI&EKI-2710G-2FPI
Industrial Unmanaged PoE Switch
Startup Manual
Specications
Overview
For more information on this and other Advantech
products, please visit our website at:
For technical support and service, please visit our
support website at:
http://www.advantech.com/support
This manual is for EKI-2708G-PI & EKI-2710G-2FPI.
Part No. 2049270800
Printed in Taiwan
1st Edition
Feb 2024
General
• Compatibility: IEEE 802.3, 802.3u, 802.3z, 802.3ab,
802.3x, 802.3at/af
• LAN:
EKI-2708G-PI:
- 8 x 10/100/1000BASE-T/TX RJ-45 PoE Ports
EKI-2710G-2FPI:
- 8 x 10/100/1000BASE-T/TX RJ-45 PoE Ports
- 2 x SFP (mini-GBIC) 100/1000Mbps port
• Ethernet RJ-45: Up to 100 m
• SFP: Up to 110 Km (depends on SFP)
• Connectors:
- EKI-2708G-PI: 8 x RJ-45
- EKI-2710G-2GPI: 8 xRJ45, 2 x SFP
• Switch Architecture: Store and Forward
• Power Input: 12~48VDC, redundant power
• Power Consumption: Max 5.28W (system)
• Power Budget:
- 240W@48VDC
- 120W@24VDC
- 80W@12VDC
• Dimensions (W x H x D): 54 x 140 x 120 mm
• Enclosure: IP30
• Operating Temperature: -40 ~ 75°C (-40 ~ 167°F)
• Storage Temperature: -40 ~ 85°C (-40°F ~ 185°F)
• Operating Humidity: 5 ~ 95% (non-condensing)
• Storage Humidity: 5 ~ 95% (non-condensing)
• Safety: LVD EN62368
• EMC: FCC Class A, CE
• Warranty: 5 year
The EKI-2708G and EKI-2710G PoE Switch: These
unmanaged Ethernet switches support 8 PoE+ (Power over
Ethernet) ports and comply with IEEE 802.3at/af standards.
Each port provides up to 30 watts of power, with a total
power budget of 240 watts for the system. The switch
includes a relay output for event alarms, notifying adminis-
trators when activated. Designed for harsh environments, it
features robust construction, din rail mounting, and a quick
startup with plug-and-play functionality.
The EKI-2708G and EKI-2710G support IEEE
802.3/802.3u/802.3z/802.3ab/802.3x with 10/100/1000
Mbps, full/half-duplex, auto-negotiation and MDI/MDI-X
auto-sensing to provide an economical solution for your
industrial Ethernet network.
Packing List
Before installation, please make sure that you have re-
ceived the following:
• 1 x EKI-2708G/EKI-2710G Ethernet Switch
• 1 x DlN-rail mounting brackets with screws
• 1 x EKI-2708G/EKI-2710G Startup Manual
If anything is missing or damaged, contact your distributor
or sales representative immediately.
User Manual
For more detailed information, please refer to the full
manual which can be found on the Advantech’s website.
2 EKI-2708G/2710G Series Startup Manual

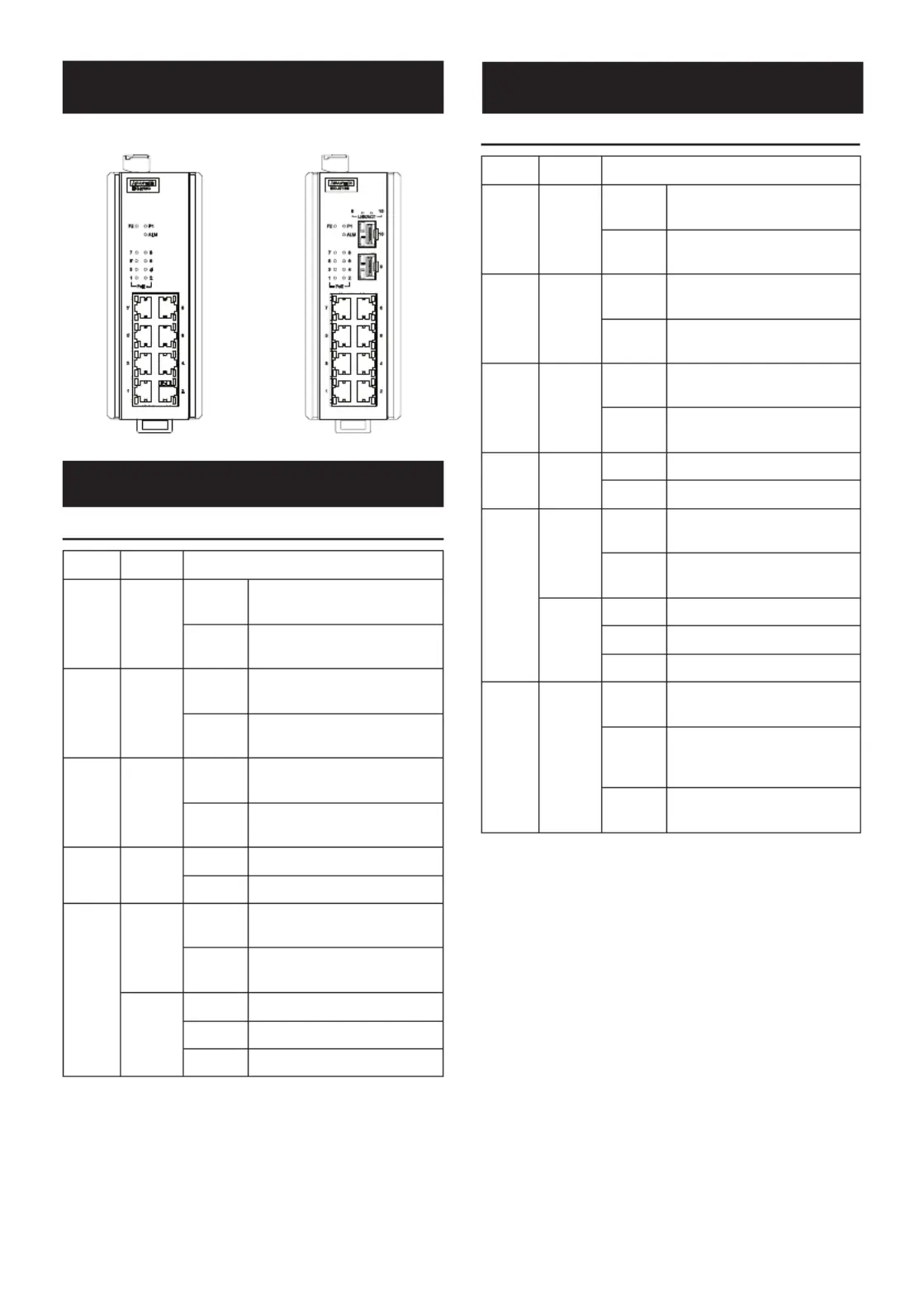

EKI-2708G-PI EKI-2710G-2FPI
E KI-2525/I
LED Denition
EKI-2708G-PI
LED Color Description
P1 Green
On
P1 is being supplied to
power input.
O󰀨
P1 is not being supplied to
power input.
P2 Green
On
P2 is being supplied to
power input.
O󰀨
P2 is not being supplied to
power input.
ALM Green
On
When P1 or P2 is discon-
nected, the LED lights
O󰀨
When P1 or P2 is con-
nected,theLEDiso󰀨
PoE
(1~8)
Green
On PoE activated
O󰀨 PoE non-working
Copper
Ports
(1~8)
Green
(top)
On
When the port’s data is being
transmitted at 1000Mbps
O󰀨
When the port’s data is being
transmitted at 10/100Mbps
Green
(bottom)
On Ethernet port link
Blinking Ethernet port active
O󰀨 No link
EKI-2710G-2FPI
LED Color Description
P1 Green
On
P1 is being supplied to
power input.
O󰀨
P1 is not being supplied to
power input.
P2 Green
On
P2 is being supplied to
power input.
O󰀨
P2 is not being supplied to
power input.
ALM Green
On
When P1 or P2 is discon-
nected, the LED lights
O󰀨
When P1 or P2 is con-
nected,theLEDiso󰀨
PoE
(1~8)
Green
On PoE activated
O󰀨 PoE non-working
Copper
Ports
(1~8)
Green
(top)
On
When the port’s data is being
transmitted at 1000Mbps
O󰀨
When the port’s data is being
transmitted at 10/100Mbps
Green
(bottom)
On Ethernet port link
Blinking Ethernet port active
O󰀨 No link
SFP
Port
(9~10)
Green
On
The port has established
a link
Blinking
When Fiber port’s data
is being transmitted at
100M/1000Mbps
O󰀨
When Fiber port linked
down/inactive
Overview
