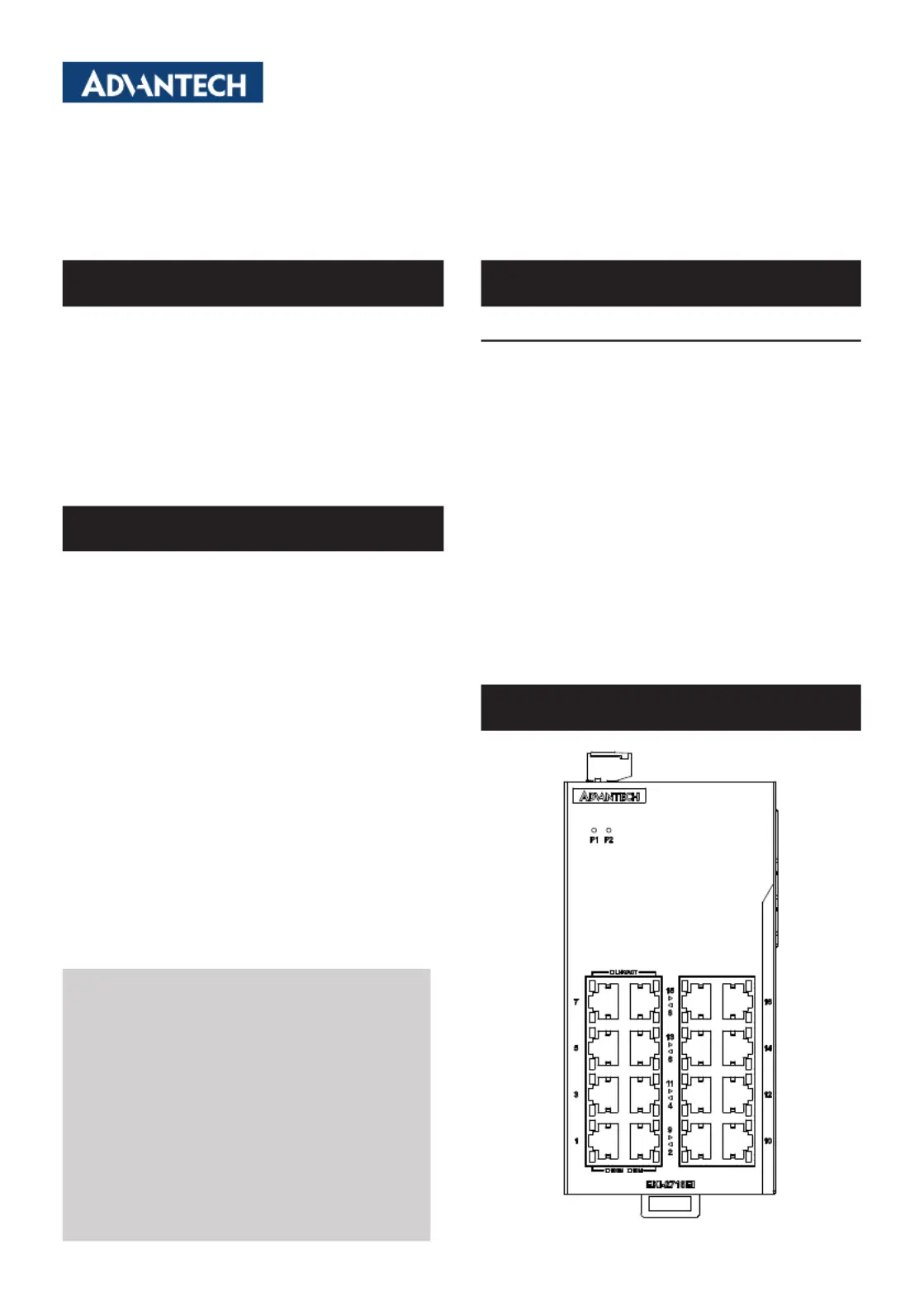

EKI-2716EI Startup Manual 1
The EKI-2716EI industrial Ethernet switch provides 16 x
10/100M copper ports, o󰀨ering versatile connectivity for
diverse applications. Users can conveniently enable or
disable Quality of Service (QoS), broadcast storm protec-
tion, and VLAN settings using DIP switches. Equipped with
12~48 VDC redundant power inputs and DIN-rail mounting,
these switches are designed for reliable performance in
resists electromagnetic interference, ensuring stable opera-
tion even in harsh conditions.
Before installation, please make sure that you have re-
ceived the following:
• 1 x EKI-2716EI Ethernet Switch
• 1 x DlN-rail mounting bracket with 4 screws (M3 x 5L)
• 2 x Wall mounting brackets with 4 screws (M3 x 5L)
• 1 x EKI-2716EI Startup Manual
If anything is missing or damaged, contact your distributor
or sales representative immediately.
EKI-2716EI
16-port Fast Ethernet Unmanaged Switch
Startup Manual
General
• Compatibility:IEEE 802.3, 802.3u, 802.3x, 802.1p
• LAN:16 x 10/100 BASE-T/TX RJ-45 ports
• EthernetRJ-45:Up to 100 m
• Connectors: 16 x RJ45
• SwitchArchitecture:Store and Forward
• PowerInput: 12~48 V
DC
, redundant power
• PowerConsumption: 4.5 W
• Dimensions(WxHxD):72 x 140 x 105 mm
• Enclosure:IP30
• OperatingTemperature:-40 ~ 75°C (-40 ~ 167°F)
• StorageTemperature:-40 ~ 85°C (-40 ~ 185°F)
• OperatingHumidity:5 ~ 95% (non-condensing)
• StorageHumidity:5 ~ 95% (non-condensing)
• Safety:UL62368
• EMC:CE, FCC Class A, BSMI
• Warranty:5 years
SpecicationsOverview
For more information about this or other Advantech
products, visit the Advantech website at
http://www.advantech.com
For technical support and customer service, visit the
Advantech support website at
http://support.advantech.com.tw
This manual is for EKI-2716EI.
Part No. 2049271600 Edition 1
November 2024
PackingList
Overview
2 EKI-2716EI Startup Manual

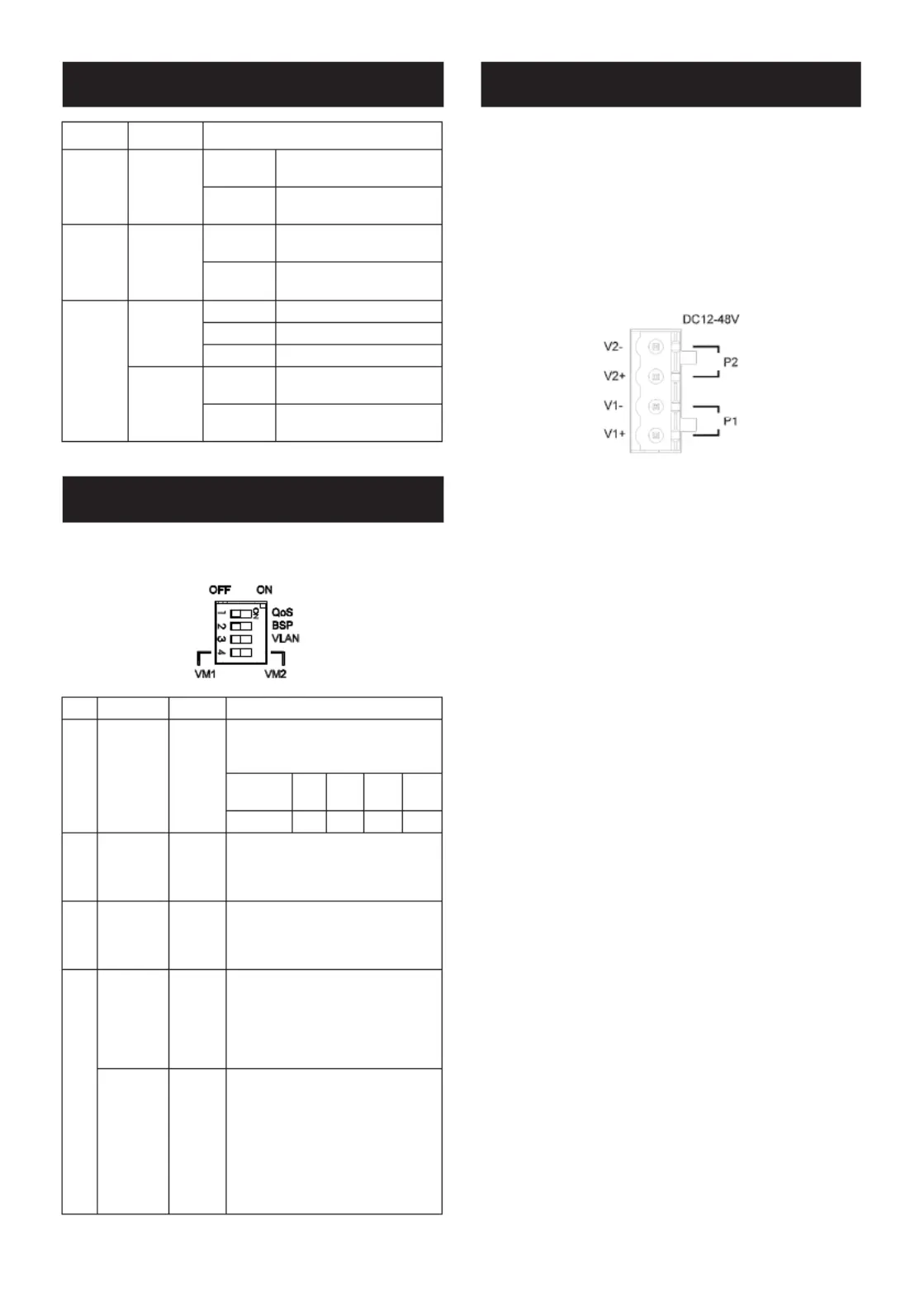

The EKI-2716EI switch supports dual +12~48 V
DC
power
inputs. For operation, connecting either power V1 or V2
to the switch is su󰀩cient. If both sets are connected, it
enhances redundancy. In the event of a power resource
failure in one set, it will automatically switch to the other set
of power resources.
1. Insert the positive and negative wires into the V+ and
V- contacts on the terminal block connector
2. Tighten the wire-clamps screws to prevent the DC
wires coming loose
Warning: This product is intended to be supplied by an UL
certied power supply or DC source suitable for
use at minimum Tma 75°C whose output meets
SELV or ES1 and is rated 12-48 Vdc, 0.5A min.,
if need further assistance, please contact Advan-
tech for further information.
Warning: Ensure that the voltage of the power source is
correct before connecting the equipment to a
power outlet. By means of a power cord con-
nected to a socket-outlet with earthing connec-
tion.
Warning: Never open the equipment. For safety reasons,
the equipment should be opened only by quali-
ed skilled person.
Avertissement:Ce produit est destiné à être alimenté par
une alimentation certiée UL ou une source de
courant continu adaptée à une utilisation à au
moins Tma 75 °C dont la sortie satisfait les con-
ditions SELV ou ES1 et est évaluée à 12-48Vdc,
0.5A min-imum. Si vous avez besoin d’une aide
supplémentaire, veuillez contacter Advantech
pour plus d’informations.
Avertissement: Assurez-vous que la tension de la source
d’alimentation est correcte avant de connecter
l’équipement à une prise de courant. Utilisez un
cordon d’alimentation connecté à une prise avec
connexion à la terre.
Raisons de sécurité, l’équipement ne doit être
ouvert que par une personne qualiée.
LED Color Description
P1 Green
On
P1 is being supplied to
power input.
O󰀨
P1 is not being supplied
to power input.
P2 Green
On
P2 is being supplied to
power input.
O󰀨
P2 is not being supplied
to power input.
Copper
Ports
Green
(top)
On Ethernet port link
Blinking Ethernet port active
O󰀨 No link
Amber
(bottom)
On
When the port’s data is
being transmitted at 100M
O󰀨
When the port’s data is
being transmitted at 10M
This series provide 4-pin DIP switches for function setting.
DIP switch denition is listed as follows:
Pin Setting DescriptionFunction
1 ONQoS
Switch the DIP to “ON” to activate
Quality of Service for managing
packet priorities.
CoS
Priority
7,6 1,05,4 3,2
WRR 8 4 2 1
2 ONBSP
Switch the DIP to “ON” to activate
broadcast storm protection for all
ports, limiting the threshold to be
4Mbps.
3VLAN ON
Switch the DIP to “ON” to activate
VLAN.
(running by the following mode
options.)
4
VLAN
Mode 1
VM1
Switch the DIP to the ‘left’ position
to activate VLAN Mode 1, Port
Isolated Mode.
All ports are isolated from each
other, with only Port 16 intercon-
nected with other ports.
VLAN
Mode 2
VM2
Switch the DIP to the ‘right’ posi-
tion to activate VLAN Mode 2,
2-Grouping Mode.
This divides all ports into two
separate groups, ensuring no
interconnection between them.
Group 1 comprises Ports 1-8,
while Group 2 comprises Ports
9-16.

DIPSwitch

LEDDenition

PowerConnection
