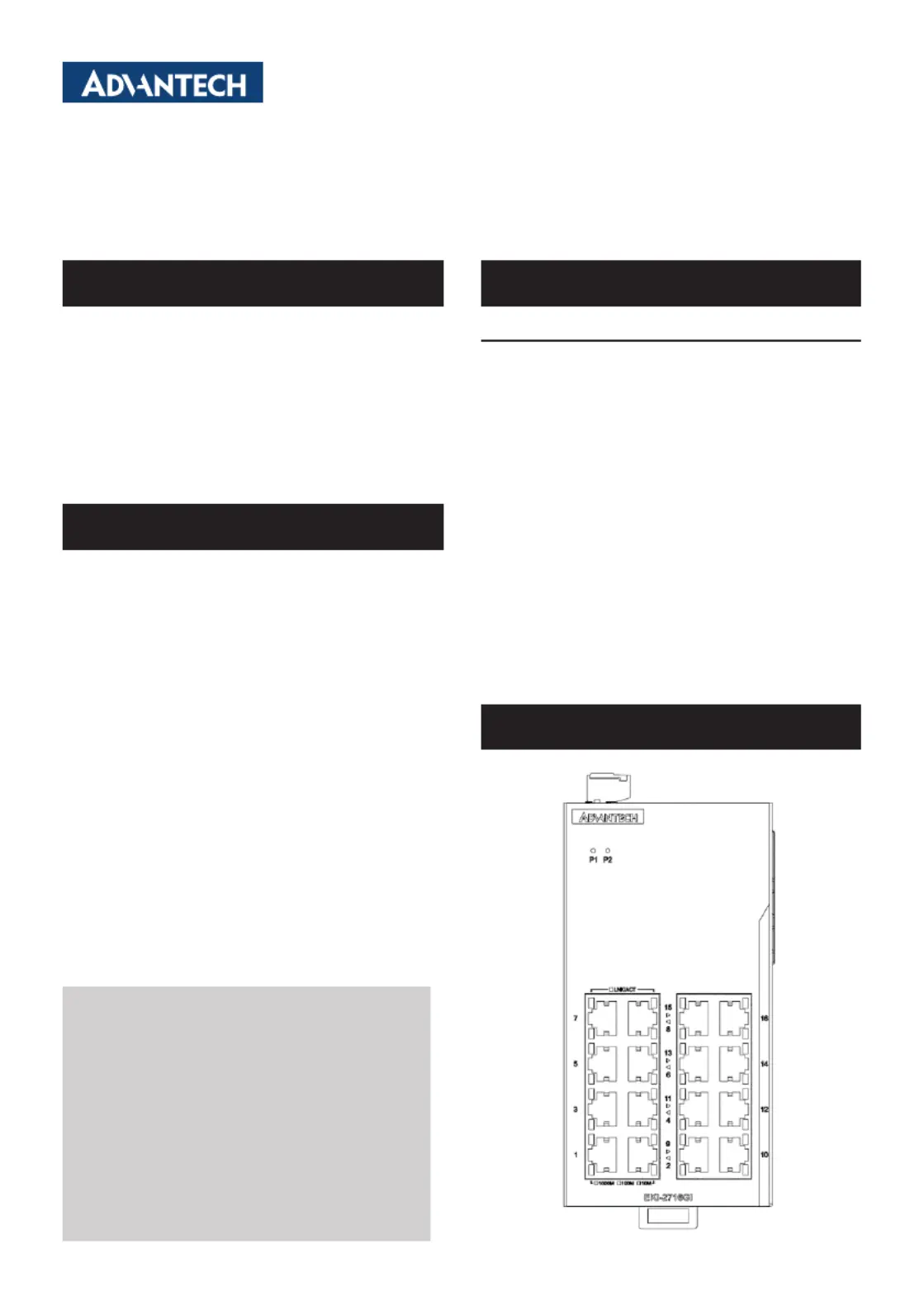

EKI-2716GI Startup Manual 1
Before installation, please make sure that you have re-
ceived the following:
• 1 x EKI-2716GI Ethernet Switch
• 1 x DlN-rail mounting bracket with 4 screws (M3 x 5L)
• 2 x Wall mounting brackets with 4 screws (M3 x 5L)
• 1 x EKI-2716GI Startup Manual
If anything is missing or damaged, contact your distributor
The EKI-2716GI industrial Ethernet switch provides 16 x
10/100/1000Mcopperports,o󰀨eringversatileconnectivity
for diverse applications. Users can conveniently enable or
disable Quality of Service (QoS), broadcast storm protec-
tion, and VLAN settings using DIP switches. Equipped with
12~48 VDC redundant power inputs and DIN-rail mounting,
these switches are designed for reliable performance in
industrial environments. With EMC Level 4 protection, it
resists electromagnetic interference, ensuring stable opera-
tion even in harsh conditions.
EKI-2716GI
16-port Gigabit Unmanaged Switch
Startup Manual
General
• Compatibility:IEEE 802.3, 802.3u, 802.3ab, 802.3x,
802.1p
• LAN:16 x 10/100/1000 BASE-T/TX RJ-45 ports
• TransmissionDistance:Up to 100 m
• Connectors:16 x RJ45
• SwitchArchitecture:Store and Forward
• PowerInput:12~48 VDC, redundant power
• PowerConsumption:9.6W
• Dimensions(WxHxD):72 x 140 x 105 mm
• Enclosure:IP30
• OperatingTemperature:-40 ~ 75°C (-40 ~ 167°F)
• StorageTemperature:-40 ~ 85°C (-40 ~ 185°F)
• OperatingHumidity:5 ~ 95% (non-condensing)
• StorageHumidity:5 ~ 95% (non-condensing)
• Safety:UL62368
• EMC:CE, FCC Class A, BSMI
• Warranty:5 years
Specications
Overview
For more information about this or other Advantech
products, visit the Advantech website at
http://www.advantech.com
For technical support and customer service, visit the
Advantech support website at
http://support.advantech.com.tw
This manual is for EKI-2716GI.
Part No. 2049271630 Edition 1
July 2025
PackingList
Overview

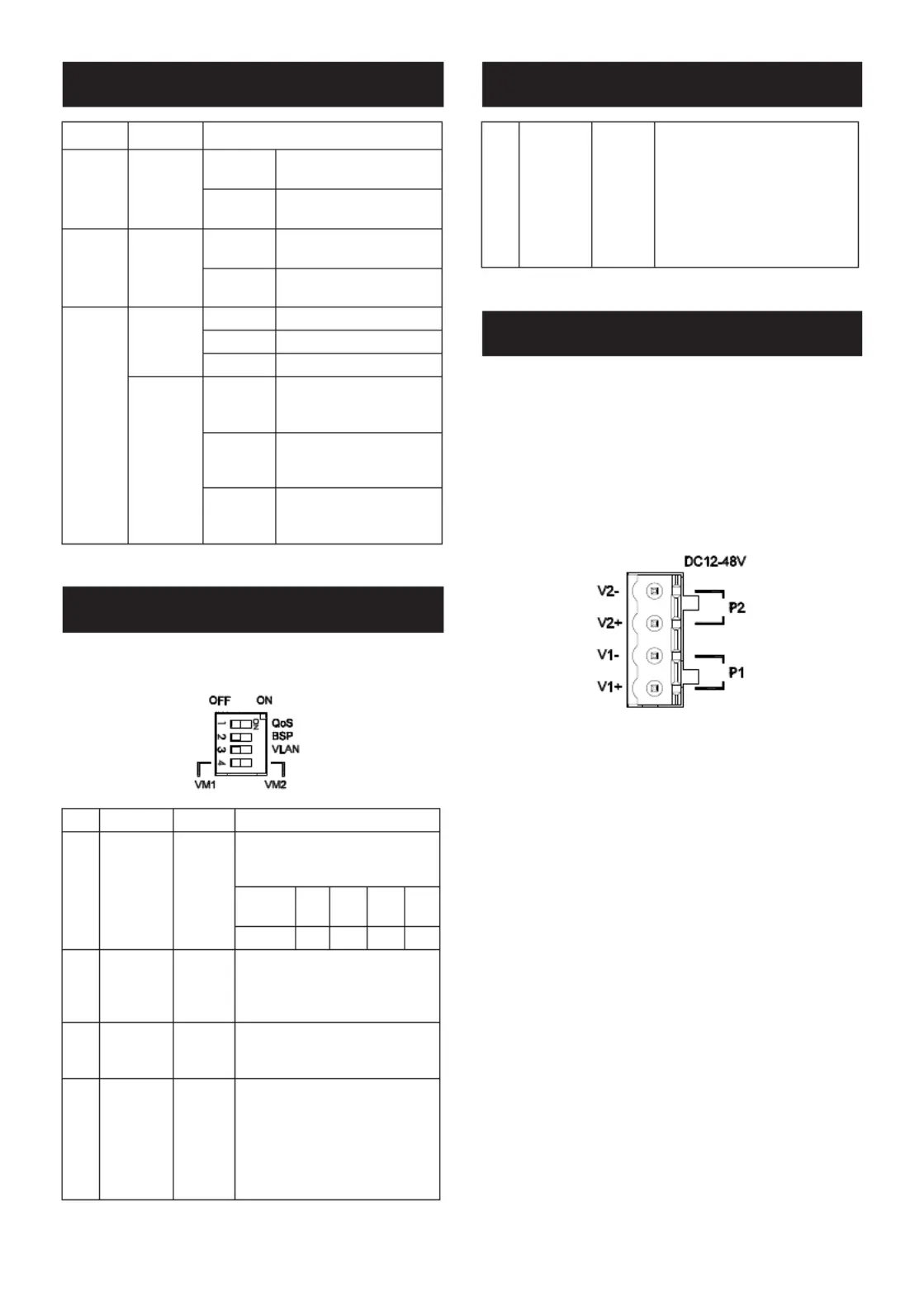

2 EKI-2716GI Startup Manual
4
VLAN
Mode 2
VM1
Switch the DIP to the ‘right’
position to activate VLAN Mode
2, 2-Grouping Mode.
This divides all ports into two
separate groups, ensuring no
interconnection between them.
Group 1 comprises Ports 1-8,
while Group 2 comprises Ports
9-16.
The EKI-2716GI switch supports dual +12~48 V
DC
power in-
puts. For operation, connecting either power V1 or V2 to the
switchissu󰀩cient.Ifbothsetsareconnected,itenhances
redundancy. In the event of a power resource failure in one
set, it will automatically switch to the other set of power
resources.
1. Insert the positive and negative wires into the V+ and V-
contacts on the terminal block connector.
2. Tighten the wire-clamps screws to prevent the DC wires
coming loose.
Warning: This product is intended to be supplied by an UL
certiedpowersupplyorDCsourcesuitablefor
use at minimum Tma 75°C whose output meets
SELV or ES1 and is rated 12-48 Vdc, 1.2 A min.,
if need further assistance, please contact Advan-
tech for further information.
Warning: Ensure that the voltage of the power source is
correct before connecting the equipment to a
power outlet. By means of a power cord connect-
ed to a socket-outlet with earthing connection.
Warning: Never open the equipment. For safety reasons,
theequipmentshouldbeopenedonlybyqualied
skilled person.
Avertissement: Ce produit est destiné à être alimenté par
unealimentationcertiéeULouunesourcede
courant continu adaptée à une utilisation à au
moins Tma 75°C dont la sortie satisfait les con-
ditions SELV ou ES1 et est évaluée à 12-48 Vdc,
1.2 A minimum. Si vous avez besoin d’une aide
supplémentaire, veuillez contacter Advantech
pour plus d’informations.
Avertissement: Assurez-vous que la tension de la source
d’alimentation est correcte avant de connecter
l’équipement à une prise de courant. Utilisez un
cordon d’alimentation connecté à une prise avec
connexion à la terre.
Avertissement: N’ouvrez jamais l’équipement. Pour des Rai-
sons de sécurité, l’équipement ne doit être ouvert
queparunepersonnequaliée.
LED DescriptionColor
P1 Green
On
P1 is being supplied to
power input.
O󰀨
P1 is not being supplied
to power input.
P2 Green
On
P2 is being supplied to
power input.
O󰀨
P2 is not being supplied
to power input.
Copper
Ports
Green
(top)
On Ethernet port link
Blinking Ethernet port active
O󰀨 No link
Green/
Amber
(bottom)
Green
On
When the port’s data
is being transmitted at
1000M
Amber
On
When the port’s data
is being transmitted at
100M
O󰀨
When the port’s data
is being transmitted
at 10M
This series provide 4-pin DIP switches for function setting.
DIPswitchdenitionislistedasfollows:
Pin SettingFunction Description
1 QoS ON
Switch the DIP to “ON” to
activate Quality of Service for
managing packet priorities.
CoS
Priority
7,6 5,4 3,2 1,0
WRR 8 4 2 1
2 BSP ON
Switch the DIP to “ON” to
activate broadcast storm
protection for all ports, limiting
the threshold to be 4Mbps.
3 VLAN ON
Switch the DIP to “ON” to ac-
tivate VLAN. (Running by the
following mode options.)
4
VLAN
Mode 1
VM1
Switch the DIP to the ‘left’ po-
sition to activate VLAN Mode
1, Port Isolated Mode.
All ports are isolated from
each other, with only Port
16 interconnected with other
ports.

DIPSwitch

LEDDenition

PowerConnection

DIPSwitch(Cont.)
