FWA-1211 Startup Manual 1

Before installation, ensure that the following materials have

been received:

• One FWA-1211 din-rail Platform

• One box of accessories

• Onewarrantycerticate

If any of these items are missing or damaged, please con-

tact your distributor or sales representative immediately.

Note 1:AcrobatReaderisrequiredtoviewanyPDFle

Acrobat Reader can be downloaded at: www.

adobe.com/Products/acrobat/readstep2.html

(Acrobat is a trademark of Adobe).

Note 2:Suppliedbycertiedpowersupply:

FSP040-RHAN2

ADP-40GD BH

Industrial Grade Cyber Security Appliance based on

Intel® Atom™ x5-E3940/ x5-E3930 Processor Platform

Startup Manual

Main Board Functions

• CPU: Intel Atom™ E3940/E3930

• BIOS: AMI™

• Memory: 1 x DDR3L 1333/1600/1867 MHz SODIMM, up

to 8 GB

• Ethernet:

- 5 x 10/100/1000 Mbps RJ45 via Intel i210-IT with 2

segment bypass

- 2 x10/100/1000 Mbps SFP via Intel i210-IS

• Storage: 1 x 2.5” internal SSD; 1 x mSATA slot (half size)

• Peripherals:

- USB:12x USB2.0 on front panel

- 2 x Power LED

- 1 x HDD LED

- 1 x Alarm LED

- 1 x Micro-HDMI

- 1 x Reset

- 1 x Console

- 2 x DB9 RS-232/422/485 seriel port (SKU option)

• Dimensions (W x L x H): 88 mm x 127 mm x 150 mm

• Weight: 3 Kg

• Environment: Operating Non-operating

• Temperature: -40 °C ~ 70 °C -40 °C ~ 85 °C

(-40 °F ~ 158 °F) (-40 °F ~ 185 °F)

• Altitude: Below 5000 m

• Humidity: 5% ~ 95%

• IP Rating: IP40

Specications Packing List

For more information on this and other Advantech

products, please visit our website at:

http://www.advantech.com.tw/support

http://www.advantech.com

For technical support and service, please visit our

support website at:

http://www.advantech.com/support

This manual is for the FWA-1211 series Rev. A.

Part No. 2002121100 1 st Edition

December 2020

Warning:

Pleasepowero󰀨themachineanddisconnectitfrom

all power source before you disassemble FWA-1211

machine.

This product is intended to be supplied by an UL Listed

power supply or dc source suitable for use at minimum

Tma 40 degree C whose output meets ES1, LPS, and

is rated 9-36Vdc, 4-1A. If need further assistance,

please contact Advantech for further information.

2 FWA-1211 Startup Manual

FWA-1211

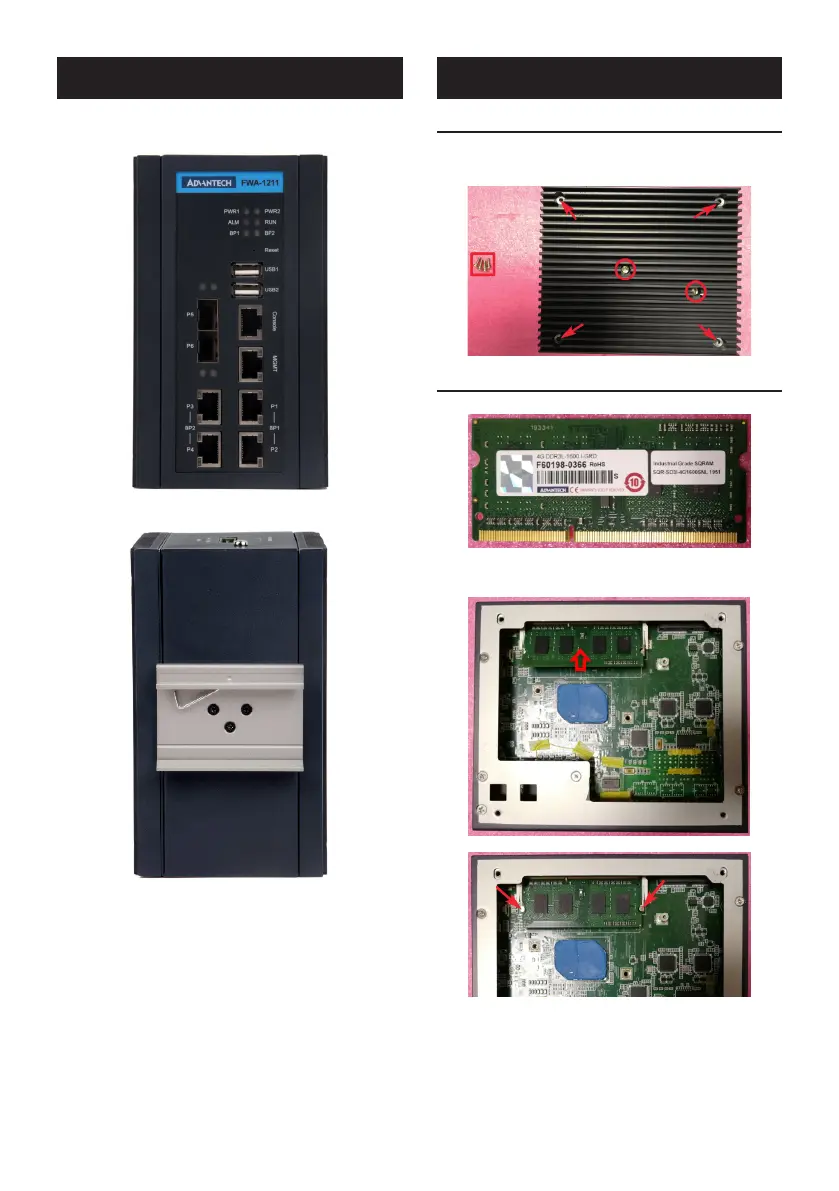

Front view:

Back view:

Specication

Installation

Installing

1. Unfasten the screws (red arrows), take out and keep for

later, then loosen the screws circled in red and remove

the heatsink.

Installing the memory

1. Prepare the memory.

2. Insert into the slot as below and press the memory until

locked.

Produkt Specifikationer

Mærke:	Advantech
Kategori:	Ikke kategoriseret
Model:	FWA-1211
