Side 1/7

ITA-2231 Startup Manual 1

Before installing the board, please ensure that the following

items have been shipped:

1. 1 x ITA-2231 IPC

2. 1 x ITA-2231 Accessory Box

3. 1 x ITA-2231 Warranty Card

If any of the above items are missing or damaged, please

contact your distributor or sales representative immediately.

Note: Adobe Acrobat Reader is required to view PDF

les. Adobe Acrobat Reader can be downloaded at www.

adobe.com/Prodindex/acrobat/readstep2.html (Acrobat is a

trademark of Adobe).

ITA-2231 Intel® 6th Generation Core™ i Processor 2U

Fanless System with 3 ITA-EM Slots

Startup Manual

Standard Functions

• Chip & Chipset: Intel Core™ i7-6822EQ processor and

QM170 Chipset

• BIOS: AMI SPI 128 Mb

• Memory: Onboard 16GB DDR4-2133

• Display:

Intel HD530, frequency 350 MHz,

Shared system memory up to 512MB SDRAM

• Dual display mode:

Display resolution up to 1920 x 1200 @ 60 Hz,

1 x DVI-I + 1 x DVI-D

• Storage:

- 1 x 3.5”HDD or 2 x 2.5”HDD

- 1 x 2260 size M.2 (only supports SATA interface)

• Expansion slot:

- 3 x ITA-EM slot

- 1 x PCI104

- 1 x Mini PCIe slot

System Speciﬁcations

• Ethernet: 2 x 10/100/1000M Ethernet

• USB: 4 USB 3.0, 3 USB 2.0

• DVI: 1 x DVI-D, 1 x DVI-I

• Serial port: 2 DB9 ports, supports RS-232/422/485

• Audio: 1 Speaker Out (supports 4W Amp),1 Mic-in

• ITA-EM module (optional): ITA-EM modules can be

optionally inserted into three ITA-EM slots to make up to

24 additional LAN or COM ports for expansion needs.

Mechanical and Environment

• Dimensions (W x H x D): 427 x 88 x 325 mm

• Voltage input: AC 100-240 or DC 110V

• Working temperature:

- 0 -40 °C (32 ~ 104 °F , with HDD)

- 25 - 60 °C (-13 ~ 140 °F, with SSD)

• Weight:

- Single power: 7.7 kg

- Dual power: 8 kg

Specications Packing List

For more information on this and other Advantech

products, please visit our website at:

http://www.advantech.com

http://www.advantech.com/eplatform

For technical support and service, please visit our

support website at:

http://www.advantech.tw/support

This manual is for the ITA-2231 Series.

Part No. 2001223112

Printed in China

3rd Edition

April 2018

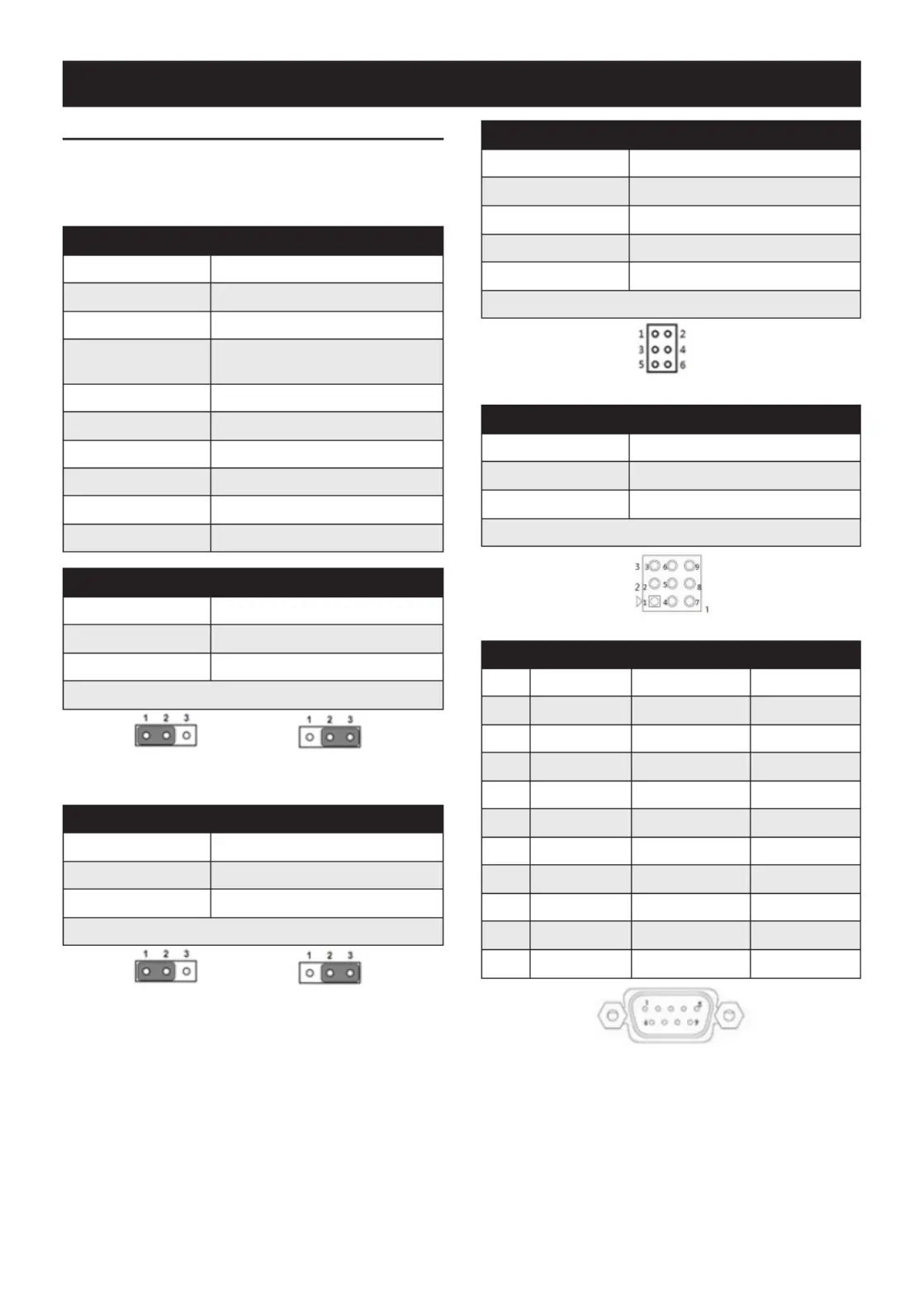

2 ITA-2231 Startup Manual

Jumper/Connector Setting

The board has a number of jumpers and connectors that

allow you to congure your system to suit your application.

The table below lists the function of each of the jumpers

and connectors.

Name / Function

JCMOS1 Clear CMOS setting

PSON1 Power on mode setting

VCCGPIO1 GPIO voltage setting

VIO1

PC/104-Plus Connector VI/O

Voltage setting

COM 1~2 Serial ports

DVI-D DVI-Digital connector

DVI-I DVI-Integrated connector

USB 1~2 USB3.0 connector

USB 3~6 USB2.0 connector

Audio Audio ports

JCMOS1: Clear CMOS Setting

Pins Setting

1-2 Default*

2-3 Clear CMOS setting

*Default setting

Default Clear CMOS

PSON1: Power On Mode Setting

Pins Setting

1-2 AT mode

2-3 ATX mode*

*Default setting

AT Mode ATX Mode

VCCGPIO1: GPIO Voltage Setting

Pins Setting

1-3 Normal(+V5_SB)*

2-4 +V3.3_SB

3-5 +V5

4-6 +V3.3

*Default setting

VIO1: PCI VIO Voltage Setting

Pins Setting

1-6 +3.3V

4-9 Normal(+5V)*

*Default setting

COM 1~2: Serial Ports

RS232 RS422 RS485

Pins Signal Name Signal Name Signal Name

1 DCD Tx- DATA-

2 RxD Tx+ DATA+

3 TxD Rx+ NC

4 DTR Rx- NC

5 GND GND GND

6 DSR NC NC

7 RTS NC NC

8 CTS NC NC

9 RI NC NC

Jumpers and Connectors
