Side 1/6

ITA-5831 Startup Manual 1

The ITA-5831 series of compact fanless systems are

fully compliant with the EN 50155 standards for railway and

industrial applications. These powerful computing platforms

can withstand 24/7 operation under harsh conditions.

Before card installation, ensure that the following items

have been shipped:

1. 1 x ITA-5831 series IPC

2. 1 x ITA-5831 accessory box

3. 1 x ITA-5831 warranty card

If any of the above items are missing or damaged, contact

your distributor or sales representative immediately.

Note 1:  FordetailedITA-5831specications,refertothe

Advantech website http://www.advantech.com.

Note 2: Acrobat Reader is required to view any PDF

le.AcrobatReadercanbedownloadedfrom

http://get.adobe.com/reader/ (Acrobat is a trade-

mark of Adobe)

ITA-5831 Series of Compact Fanless Systems with

6th Generation Intel® Core™ i Processor and

EN 50155 Certication for Railway Applications

Startup Manual

Standard Functions

• Chip and Chipset: Intel® Core™ i BGA1023 processor

with QM170, CPU frequency 2.8 GHz max.

• BIOS: AMISPI128MBash

• Memory: Onboard 8 GB/16 GB DDR4, 2133 MHz

• Display: Intel Integrated Graphics GT2

Up to 512 MB shared memory, supports Direct x11

• Display Mode:

- DVI: 1920x1200 @ 60 Hz

- VGA: 1920x1200 @ 60 Hz (optional)

• Storage: Supports 3 x 2.5” SSD (hot-pluggable, RAID

0,1,5,10), 1 x internal mSATA slot

• Expansion: 3 x Mini PCIe slots (2 with SIM slot)

SystemSpecications

• Ethernet: 3 x 10/100/1000M Ethernet, M12 x-coded,

8-pin, Female

• USB:

1 x USB 2.0, M12 A-coded, 4-pin, Female

2 x USB 3.0, Type A

• Display: 1 x DVI-I connector

• Serial Port:2xDB9withRS-232/422/485automaticow

control

• Digital I/O: 4 x DI and 4 x DO with 2kV isolation, DB9/

Female

• Audio: 1xAudioOut(supports2-ch4W4Ωspeaker),

1 x Line In, DB9/Female

Mechanical and Environmental

• Dimensions (W x H x D):

- 220 x 88 x 197.2 mm (8.66 x 3.46 x 7.76 in)

- 256 x 93.5 x 197.2 mm (10.0 x 3.68 x 7.76 in) with mount kit

• Input Voltage: Compliant with EN 50155/EN 50121-3-2

24V

, 4.16A

48V

, 3.18A

72V

, 2.12A

110V

, 1A

• Operating Temperature: -40 ~ 70 °C (-40 ~ 158 °F) with

wide-temperature SSD, EN50155 Tx level

• Safe Operating Temperature: 50 °C (122 °F) max.

• Storage Temperature: -40 ~ 85 °C (-40 ~ 185 °F)

• Weight: 4.5 kg (9.92 lb)

Specications Packing List

For more information about this or other Advantech

products, visit the Advantech website at

http://www.advantech.com

For technical support and customer service, visit the

Advantech support website at

http://support.advantech.com.tw

This manual is for the ITA-5831 series.

Part No. 2041583111

Printed in China

Edition 2

June 2021

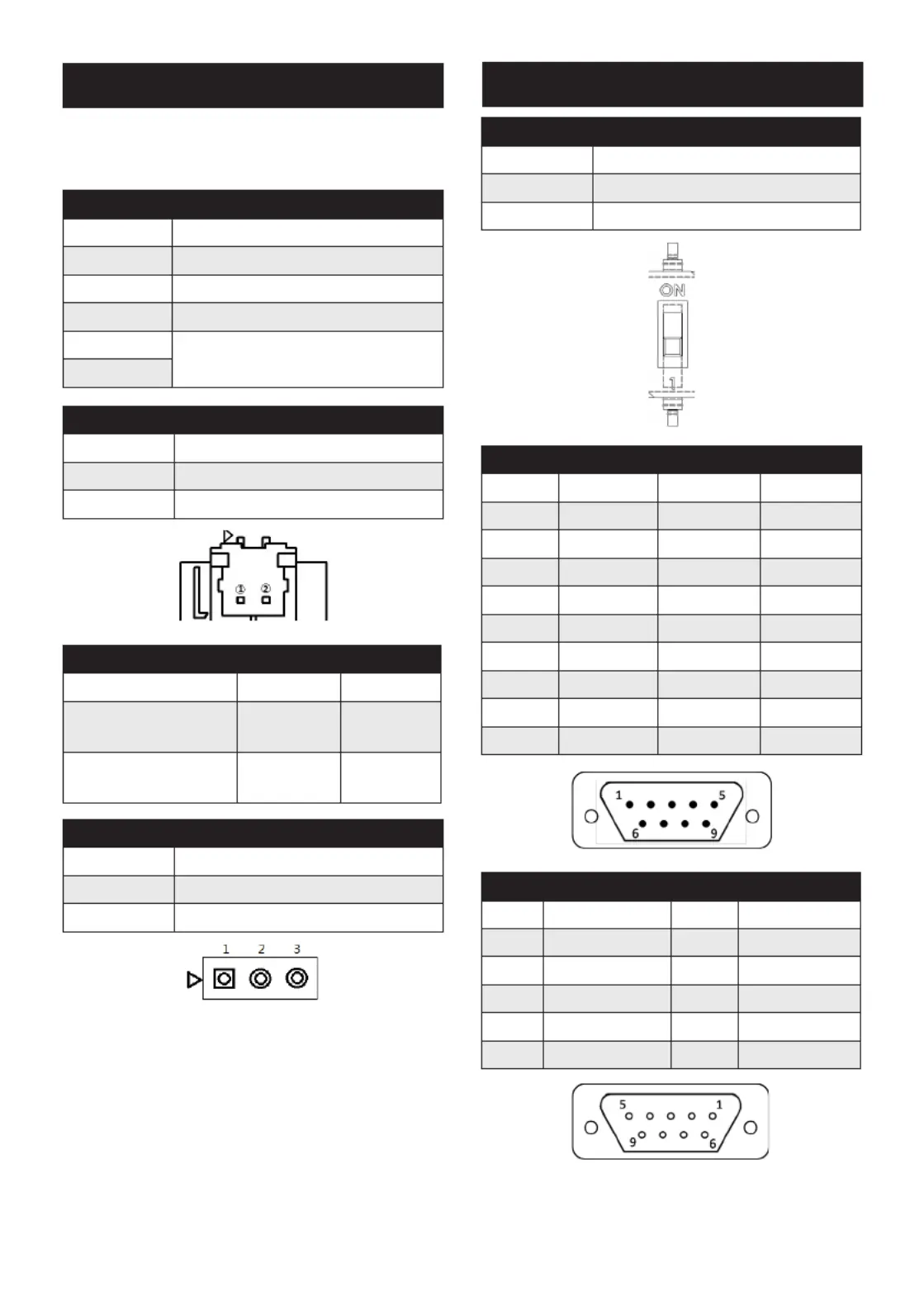

2 ITA-5831 Startup Manual

PMODE1: ATX, AT Mode Switch

Pin Setting

ON AT

OFF ATX (default)

COM: RS232/422/485, DB9/Male

Pin RS232 RS422 RS485

1 DCD TXD(-) DATA(-)

2 RXD TXD(+) DATA(+)

3 TXD RXD(+) /

4 DTR RXD(-) /

5 GND GND GND

6 DSR / /

7 / /RTS

8 CTS / /

9 RI

Audio: Mic In and Audio Out, DB9/Female

Pin Signal Name Pin Signal Name

1 MICR 6 LOUTR

2 GND_AUD 7 GND_AUD

3 GND_AUD 8 Front_JD

4 MIC_JD 9 LOUTL

5 MICL

The

ITA-5831

board features several jumpers that allow the

systemtobeconguredaccordingtospecicapplication

requirements. The function of each jumper and connector is

listed in the tables below.

Interfaces (ITB-231R_CPU Board)

Name Function

BAT1 RTC battery pin header

JCMOS1 Clear CMOS setting

PMODE1 ATX, AT Mode switch

AMPR1

Audioampliersetting

AMPL1

BAT1: RTC Battery Pin Header

Pin Setting

1 Power (3.3V)

2 GND

AMPR1/AMPL1:AudioAmplierSetting

Conn AMPL1 AMPR1

Withamplier(default)

(1-2)

(4-5)

(1-2)

(4-5)

Withoutamplier

(2-3)

(5-6)

(2-3)

(5-6)

JCMOS1: Clear CMOS Setting

Pin Setting

1-2 Default

2-3 Clear CMOS

Jumpers and Connectors

Jumpers and Connectors (Cont.)
