MIC-75M13 Startup Manual 1

Before you begin installing your card, please make sure

that the following items have been shipped:

1. MIC-75M13 Module p1-x1 P/N:

MIC-75M13-00A1E

2. MIC-75M13 Startup Manual p1-x1 P/N: 20015M1300

3. Warranty Card P/N: 2190000902

4. SATA Cable x 1 P/N: 1700014518

5. SATA Power Cable x 1 P/N: 1700023566-02

6. Card Clamp Pad x 4 P/N:1990024989T000

7. Wall-Mount BKT (Left) p1-x1 P/N:

1960070545N001

8. Wall-Mount BKT (Righ) p1-x1 P/N:

1960070543N001

If any of these items are missing or damaged, please

contact your distributor or sales representative immediately.

Note: Acrobat Reader is required to view any PDF ﬁle.

Acrobat Reader can be downloaded at: get.

adobe.com/reader (Acrobat is a trademark of

Adobe)

MIC-75M13

PCIE/PCI Expansion Module for MIC-7 Series

Embedded System

Startup Manual

PCIe Slots

• One PCIe x16 socket

Note 1: PCIEx16 power consumption supports to 35W.

Note 2: For MIC-73 series products (ATOM CPU), only

supports PCIEx4 or PCIEx1 signal.

32-bit PCI

• Three 32 Bit/33Mhz PCI socket

Note 1:

Each PCI socket suppots 15W power consumption.

Storage

• Internal SATA connector: 1

Note 1: MIC-75M13 supports 2x2.5’ HDD space and

one SATA signal is from main system.

Environment

• Operation Temperature:

-20 ~ 60° C with 0.7 m/sec air ﬂow: with 1 x Industrial SSD

without PC expansion boards

0 ~ 45° C with 0.7 m/sec air ﬂow: with 1 x 2.5” HDD

without PC expansion boards

• Storage Temperature: - 40 ~ 85° C (-40 ~185° F)

• Relative Humidity: 95% @ 40° C (non-condensing)

Mechanical

• Dimensions (H x W x D): 92 x 90 x 230 mm

Note 1: Please add FAN into i-module, when add-on

card total power consumption is over 45W.

Specications Packing List

For more information on this and other Advantech

products, please visit our website at:

http://www.advantech.com

http://www.advantech.com/eplatform

For technical support and service, please visit our

support website at:

http://support.advantech.com.tw/support/default.

aspx

This manual is for the MIC-75M13 Series Rev. A1.

Part No. 20015M1300

Printed in China

1st Edition

January 2016

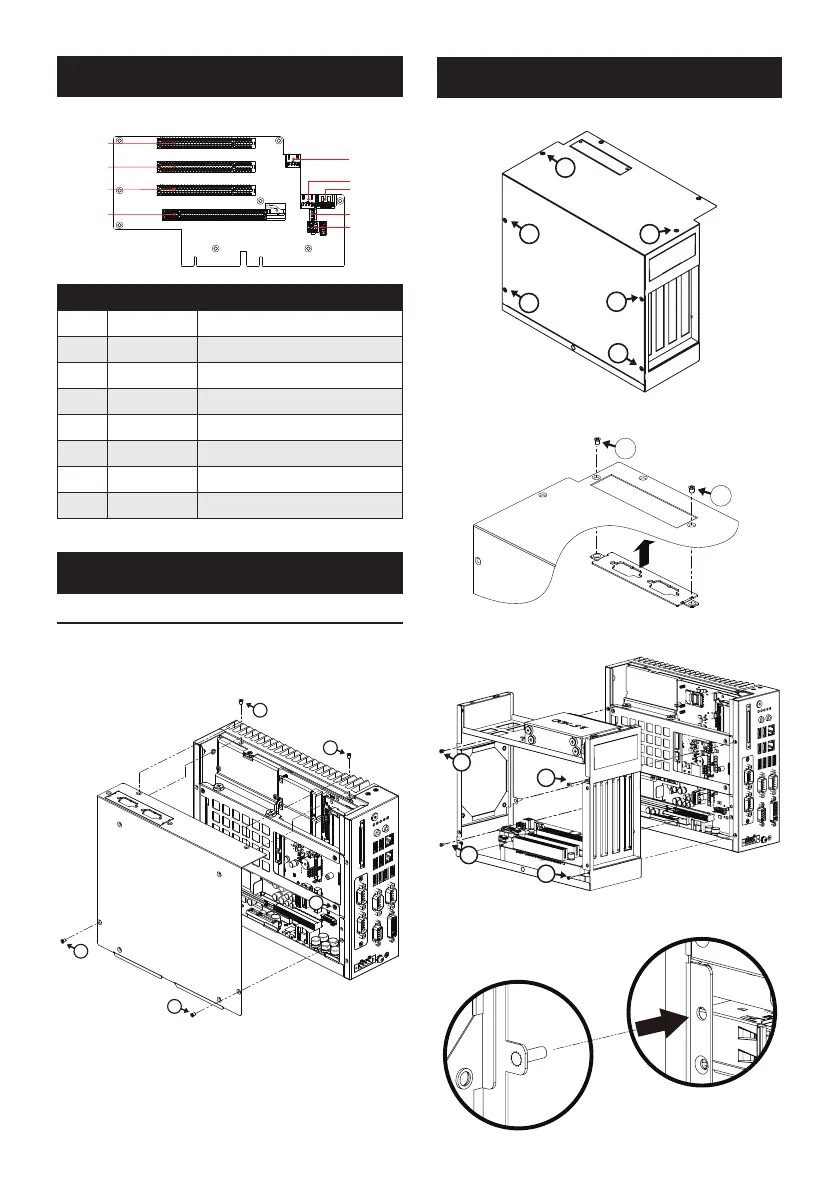

2 MIC-75M13 Startup Manual

2. Undo 6x screws of MIC-75M13.

3. Remove i-door cover by MIC-7500 bottom cover and

assemble and secure cover in i-module’s bottom cover.

4. Assemble MIC-75M13 and MIC-7 series device and

secure 4x screws to integrate system.

Note: MIC-75M13 has 2 bolts and it must be aligned

into the holes at device.

The table below list the function of each of the connectors.

PCIE x 16 Socket

PCI Socket

12V Extral Power

SATA CON

SATA Power CON

5V Extral Power

FAN CON

Connectors

No. Item Function

1 SATAPWR1 SATA Power connector

2 SATA1 SATA connector

3 CPUFAN1 4 Pin FAN connector

4 PWR1 4 Pin Power connector (12V)

5 PWR2 4 Pin Power connector (5V)

6 PCI1/2/3 PCI Socket

7 PCIEx16_1 PCIE p2-x16 Socket

System Installation

MIC-7 series i-module can assemble with all MIC-7 series

IPC system.

1. Undo MIC-7 series system screws and remove the

bottom cover.

Simple Maintain Process

Jumpers and Connectors

Simple Maintain Process (Cont.)
