MIO-2364 Startup Manual 1

Before you begin installing your card, please make sure that

the following items have been shipped:

1. 1 x MIO-2364 SBC

2. 1 x Startup Manual P/N: 2046236400

3. 1 x SATA Cable P/N: 1700006291

4. 1 x Audio Cable P/N: 1700019584-01

5. 2 x COM Cable P/N: 1700030404-01

6. 1 x USB 2.0 Cable P/N: 1700030406-01

7. 1 x SATA Power Cable P/N: 1700027546-01

8. 1 x AT Power Cable P/N: 1700019705-01

9. 1 x Cooler for 15W CPU P/N: 1970005708T001

10. 1 x Heatsink for 12/6W CPU P/N: 1970005779T001

If any of these items are missing or damaged, please con-

tact your distributor or sales representative immediately.

Note 1: For detailed contents of MIO-5154, please refer

to the Advantech website for detailed informa-

tion.

Note 2:  AcrobatReaderisrequiredtoviewanyPDFle.

Acrobat Reader can be downloaded at: http://

get.adobe.com/reader (Acrobat is a trademark of

Adobe).

Intel® Core™ i3-N305, Intel® N-Series, and Intel®

Atom® x7000E Series Processor Pico-ITX SBC

(Code name: Alder Lake N)

Startup Manual

General

• CPU:

- Intel® Core™ i3-N305 Processor, 8 cores

- Max Frequency 3.8GHz

- Intel® N-Series Processor N97, 4 cores

- Max Frequency 3.6GHz

- Intel® x7000E Series Processor x7211E, 2 cores

- Max Frequency 3.2GHz

• System Memory: Single Channel, SODIMM DDR5-4800

MT/s, up to 16GB

• CPU TDP:

- Core™ i3-N305: 15W

- N-Series N97: 12W

- x7000E Series x7211E: 6W

• BIOS: AMI uEFI 256 Mbit

• Watchdog Timer: 0~6553 sec

• Battery: Lithium 3 V/210 mAH

• Audio: High-denitionaudio(HD),Line-in,Line-out,

Mic-in

Expansion Interface

• 1 x M.2 E-Key 2230

• 1 x M.2 B-Key 2242/3042/3052

Display

• Controller: Intel® UHD Graphics (SoC integrated)

• Maximum Resolution:

- LCD:

LVDS dual channel 12-/24-bit up to 1920 x 1200

- HDMI:

HDMI 1.4b, up to 3840 x 2160 x 24bpp@20-30Hz

• Multiple Displays:

Dual Simultaneous Display: LVDS + HDMI

Ethernet Interface

• Speed: 10/100/1000/2500 Mbps

• Controller: 1x Intel® i226LM

Mechanical and Environmental

• Dimensions: 100x72mm(3.9″x2.8″)

• Power Supply Type: ACPI support

• Power Requirement: +12 V ± 10% (Default supports

ATX 2x2-pin 90D, DC Jack by T-P/N)

• Operating Temperature:

0 ~ 60°C (32 ~ 140°F)

Specications Packing List

For more information on this and other Advantech

products, please visit our website at:

http://www.advantech.com

http://www.advantech.com/eplatform

For technical support and service, please visit our

support website at:

http://advantech.com/support

This manual is for the MIO-2364.

Part No. 2046236400

Printed in China

1st Edition

February 2024

2 MIO-2364 Startup Manual

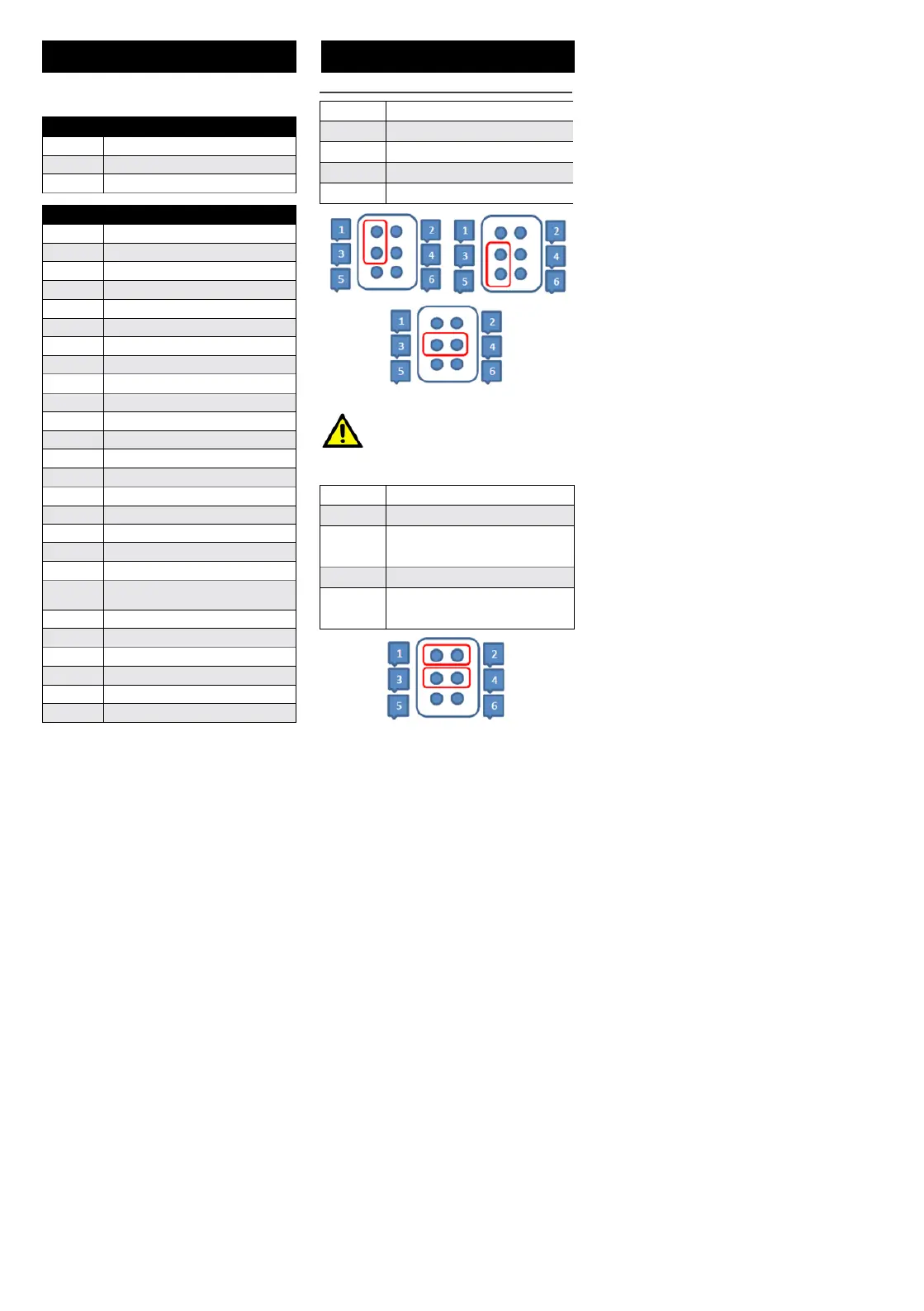

The board has a number of jumpers that allow you to con-

gureyoursystemtosuityourapplication.Thetablebelow

lists the function of each of the jumpers and connectors.

Jumpers

Label Function

VDD1 Panel Voltage Selection

J1 AT Mode / Load BIOS Default

Connectors

Label Function

U17 DDR5 SODIMM Slot

FAN1 Smart FAN

M2_1 M.2 E-Key Connector

CN3 EC_I2C Port

BAT1 RTC Battery Connector

COM1 COM Port Internal Connector 1

COM2 COM Port Internal Connector 2

CN1 Front Panel Internal Connector

CN2 GPIO Internal Connector

VDD1 Panel Voltage Selection Jumper

SIM1 NANO SIM

M2_B1 M.2 B-Key Connector

LVDS1 LVDS Connector

BL1 Panel Inverter Connector

J1 AT Mode / Load BIOS Default

USB2 USB 3.2 Internal Connector

HDMI1 HDMI Connector

LAN1 RJ-45 Connector

POE_

PWR1

POE Power Connector

CN4 DC Power Input Connector(180D)

CN5 DC Power Input Connector (90D)

SATA1 SATA Connector

USB1 USB 2.0 Internal Connector

AUDIO1 Audio Internal Connector

ESPI1 ESPI Debug Port

Jumpers and Connectors (Cont.)

Jumpers and Connectors

Jumper Settings

VDD1

Panel Voltage Selection

Setting

Function

(1-3)* Panel Voltage Setting : +V3.3 (Default)

(3-5) Panel Voltage Setting : +V5

(3-4) Panel Voltage Setting : +V12

Caution! The computer is provided with a battery-powered

real-time clock circuit. There is danger of explo

sion if the battery is incorrectly replaced. Replace

only with same or equivalent type recommended

by the manufacturer. Discard used batteries ac-

cording to the manufacturer’s instructions

AT Mode / Load BIOS Default

Setting

Function

(1-2)

AT_DET# (Default)

1-2 open: ATX mode

1-2 short: AT mode*

(3-4) NORMAL_BIOS (Default)

(5-6)

LOAD_BIOS_Default:

5-6 open: Normal*

5-6 short: Load BIOS Default
