MIO-5375 Startup Manual 1

Before you begin installing your board, please make sure

that the following items have been shipped:

• 1 x MIO-5375 SBC

• 1 x SATA cable 30cm (P/N: 1700006291)

• 1 x SATA power cable 35cm (P/N: 1700031583-01)

• 1 x USB2.0 cable 20cm (P/N: 1700030406-01)

• 1 x Audio cable 20cm (P/N: 1700019584-01)

• 2 x COM RS-232/422/485 cable 20cm (P/N: 1700030404-

01)

• 2 x COM RS-232 cable 20cm (P/N: 1700031582-01)

• 1 x Cooler (heatsink) (P/N:1970004884T001/

1970004794T001)

• 1 x Startup manual (P/N: 2046537500)

• 1 x Mini jumper (10pcs package)

• 1 x Screw kit (2 x sets screws and post for M.2 device & 4

setsofscrewsandstand-o󰀨)

• 1 x DeviceOn package

If any of these items are missing or damaged, please con-

tact your distributor or sales representative immediately.

General

• CPU:

- Intel

Core™ i7-1185G7E (Quad-Core, 4.40 GHz)

- Intel

Core™ i5-1145G7E (Quad-Core, 4.10 GHz)

- Intel

Core™ i3-1115G4E (Quad-Core, 3.90 GHz)

• Systemmemory: Dual Channel/SODIMM DDR4-3200

MT/s, up to 64 GB

• BIOS: AMI EFI 256Mbit

• Watchdogtimer:65536 level, 0~65535 sec

MIO-5375 3.5” MI/O-Compact SBC, 11th Gen.

Intel

Core™ U-series (i7/i5/i3/Celeron

)

Startup Manual

• TPM2.0

• iManager3.0:Yes

• Expansioninterface:

- M.2:

1 x E-Key 2230 (PCIe x1, USB2.0)

1 x B-Key 3042 (USB2.0) w/Nano-SIM

1 x M-Key 2280 (PCIe p1-x4 Gen.4 for PCIe SSD), optional

SATA

- MI/O Extension connector: 4 x PCIe x1, 1 x PCIe x4,

1 x USB 2.0, LPC, SMBus, Line-out, and 12V/5V Power

supply

• Battery:Lithium 3 V/210 mAH

• Audio:SupportsHighDenitionAudio(HD),line-in,line-

out, and Mic-in

Display

• Controller:

- Intel

SoC integrated for HDMI/DP/Type-C display output

- 48-bit LVDS display output

• Maximumresolution:

- LCD:

LVDS dual channel 48-bit up to 1920x1200

Optional: eDP 1.4 up to 4096x2304@60 Hz

- HDMI/DP:

 1 x Port HDMI 2.0 up to 4096x2160@60 Hz

1 x Port DP 1.4a up to 4096x2160@60 Hz

- USB Type-C:

1 x USB3.2 Gen. 2x2 20 Gbps, supports DP1.4a via alt.

mode

• Multipledisplay:Four simultaneous displays via 48-bit

LVDS/eDP+HDMI+DP+Type-C

EthernetInterface

• Speed:10/100/1000 Mbps

• Controller:GbE1 - Intel i219, GbE2 - Intel i210-AT

• Connector:RJ45 x 2

I/O

• InternalI/O:1 x SATA 6 Gb/s, 2 x USB 2.0, 2 x

RS232/422/485, 8-bit GPIO, Inverter, SMBus, CANBus

I2C*, HD audio, LVDS, and system fan.

• RearI/O: 4 x USB 3.2, HDMI, DP, USB type-C, 2 x RJ-45,

1 x DC-Jack (*optional).

• MI/Oexpansion:4 x PCIex1, 1 x PCIe x4, USB 2.0, LPC,

SMBus, line-out, and 12 V/5 V power supply.

• Powerconnectortype:Default support 2 x 2 pin ATX

power connector, DC jack is supported upon by request.

MechanicalandEnvironmental

• Dimensions(LxW): 146 x 102 mm (5.7 x 4 in)

• Powersupplytype:ACPI support for ATX only

• Powerrequirements: Vin: 12 V-24 V +/- 5%

Specications(Cont.)PackingList

For more information on this and other Advantech

products, please visit our website at:

http://www.advantech.com

http://www.advantech.com/eplatform

For technical support and service, please visit our

support website at:

http://support.advantech.com.tw/

This manual is for MIO-5375.

Part No. 2046537501

Printed in China

2nd Edition

Feb. 2024

Specications

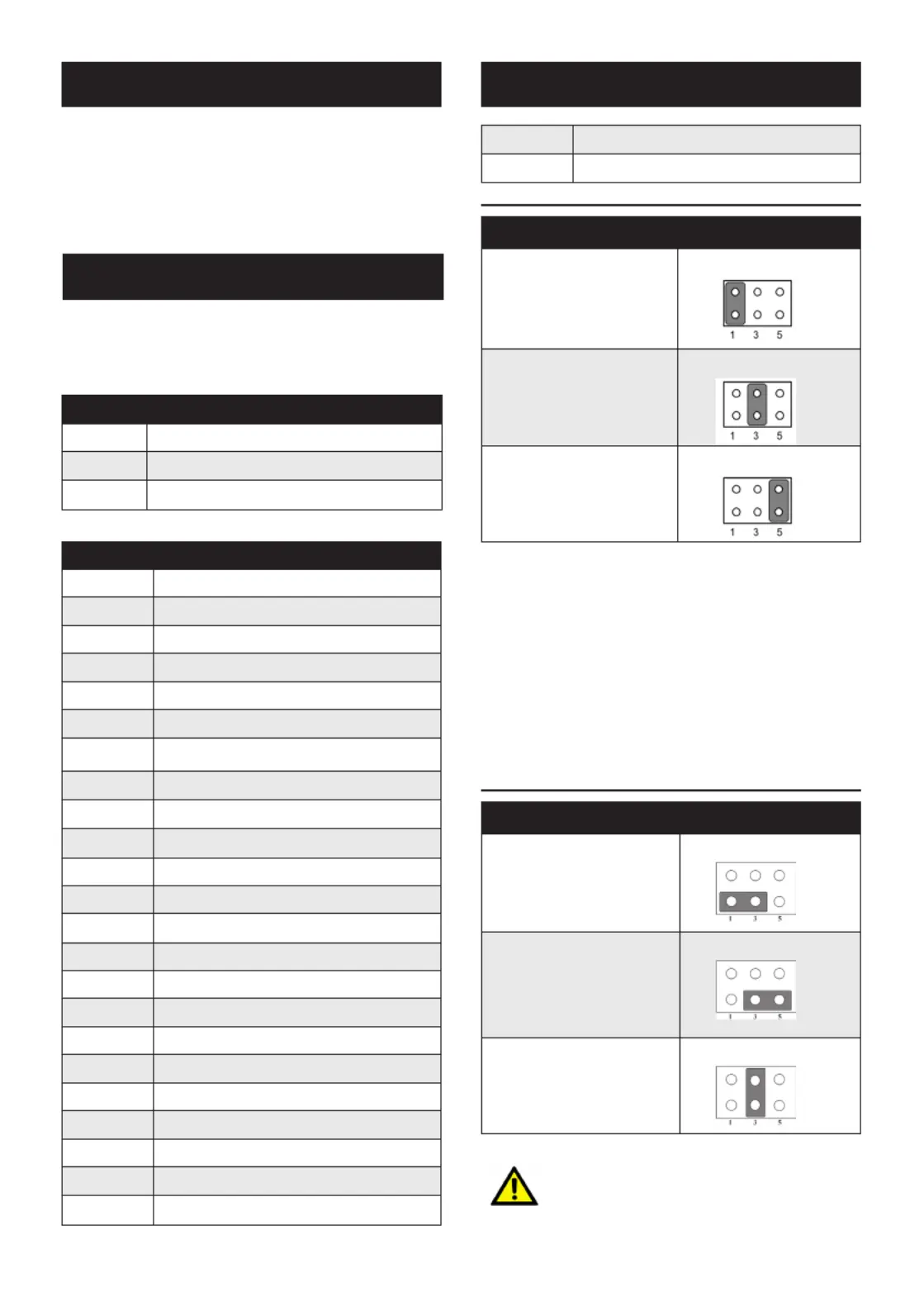

2 MIO-5375 Startup Manual

• Powerconsumption:

- Max: i7-1185G7E: 43.31 W (12 V)/46.78W (24 V)

- Typical: Idle mode in Windows 10.

i7-1185G7E: 16.56W (12 V)/19.2W (24 V)

• Operatingtemperature: 0 ~ 60 °C (32 ~ 140 °F)

• Weight:0.67 kg/1.47 lb (reference weight of total package)

The board has a number of connectors and jumpers that

allowyoutocongureyoursystemtosuityourapplication.

The table below lists the function of each of the jumpers and

connectors.

Jumpers

Label Function

AT mode /Load BIOS default

VDD1

LCD Power

Connector

Label Function

CN11 Power Input

DIMM1 SO-DIMM 9.2mm

DIMM2 SO-DIMM 5.2mm

Battery1 RTC Battery

CN4 CAN BUS

CN5 Front Panel

AUDIO1 Audio

CN8 I2C

COM1 COM1

COM2 COM2

COM3 COM3

COM4 COM4

CN7 GPIO

LAN1 RJ45_2x1_W/XFMR&LED

BL1 Inverter Power output

LVDS1 48 bit LVDS

EDP1 eDP/MIPI DSI

HDMI1 HDMI

DP1 DP

TYPEC1 TYPEC

M2_1 M.2 E-key

M2_2 M.2 M-key

M2_3 M.2 B-key

SIM NANO SIM

J3:ATmode/LoadBIOSdefault

Function JumperSetting

Auto Power On

(1-2)

Reserve

(3-4)

Short: Load BIOS default

Open: Normal

(5-6)

Toloadfactorydefaults,dothis:

Step1:Powero󰀨

Step 2 : Remove the Jumper (3-4) and add to (5-6), then

power on.

BIOS will load factory defaults (does not clear time or clear

CMOS), a message will remind user to shut down system

and restore Jumper (3-4)

Step 3 : Power on again.

If you want to Clear CMOS, remove battery (battery 1).

System will pop up a message...wait for 3 seconds. RTC

time will clear but keep the BIOS settings.

VDD1:LCDPower

Function JumperSetting

+3.3V

(1-3)

+5V

(3-5)

+12V

(3-4)

Caution! The computer is provided with a battery-powered

real-time clock circuit. There is a danger of explo-

sion if battery is incorrectly replaced. Replace

only with same or equivalent type recommended

by the manufacturer. Discard used batteries ac-

cording to manufacturer’s instructions.

Specications(Cont.)

JumpersandConnectors(Cont.)

JumpersandConnectors
