Side 1/4

MIO-5377 Startup Manual 1

Before you begin installing your card, please make sure that

the following items have been shipped:

1. 1 x MIO-5377 SBC

2. 1 x SATA cable 30 cm (p/n: 1700006291)

3. 1 x SATA power cable 35 cm (p/n: 1700031583-01)

4. 1 x USB 2.0 cable 20 cm (p/n: 1700030406-01)

5. 1 x Audio cable 20 cm (p/n: 1700019584-01)

6. 2 x COM RS-232/422/485 Cable 20 cm (p/n:

1700030404-01)

7. 2 x COM RS-232 cable 20 cm (p/n: 1700031582-01)

8. 1 x Cooler (p/n: 1970005512T001) or 1 x heatsink

(1970005548T001))

9. 1 x Startup manual (p/n: 2046537700)

10. 1 x Screw kit (3 x screws for M.2 device & 4 x screws

and stand-o󰀨s for heatsink/cooler)

11. 1 x DeviceOn Package

If any of the above items are missing or damaged, contact

your distributor or sales representative immediately.

Note1: For detailed contents regarding MIO-5377,

please refer to information on the support web-

site: http://support.advantech.com.tw/.

Note2: Adobe Reader is required to view any PDF le.

Adobe Reader can be downloaded at: http://get.

adobe.com/tw/reader/otherversions/. (Adobe is

the trademark of Adobe Systems Incorporated.)

MIO-5377 3.5” MI/O-Compact SBC, 12th Gen.

Intel

Core™ P/U-series (i7/i5/i3/Celeron

)

Startup Manual

• CPU:

- Intel

i7-1270PE (4P+8E Core, 1.80 GHz)

- Intel

i7-1265UE (2P+8ECore, 1.70 GHz)

- Intel

i5-1245UE (2P+8ECore, 1.50 GHz)

- Intel

i3-1215UE (2P+4ECore, 1.20 GHz)

- Intel

7305E (1P+4ECore, 1.00 GHz)

• SystemMemory:Dual Channel DDR5-4800 up to 64GB

• BIOS:AMI EFI 256 Mbit

• Watchdogtimer: 65536 level, 0~65535 sec

• TPM2.0

• iManager3.0:Yes

• Battery: Lithium 3V/210mAH

• Audio:Supports high denition audio (HD), line-in,

lineout, and mic-in

• ExpansionInterface:

- 1 x M.2 E-Key 2230 (PCIe x1, USB 2.0 to support

wireless module)

- 1 x M.2 B-Key 3042/3052 (PCIex1, SATA, USB2.0);

default with 3042 module length

- 1 x M.2 M-Key 2280 (PCIe p1-x4 Gen.4 for PCIe SSD)

Display

• Controller: Intel

SoC integrated Iris

Xe graphics

• Maximumresolution:

- LCD: Dual channel 18/24-bit, up to 1920 x 1200

- HDMI: 1 x HDMI 2.0b, up to 4096 x 2160 @60Hz

- DP: 1 x DP1.4a, up to 4096 x 2304 @60Hz

• Multipledisplay:Four simultaneous displays via LVDS,

HDMI, DP, Type-C Alt.DP

EthernetInterface

• Speed: 10/100/1000/2500 Mbps

• Controller: LAN1: Intel i219LM, LAN2: Intel i226

I/O

• InternalI/O:1 x SATA, 2 x USB 2.0, 2 x RS-232/422/485,

2 x RS-232 (4-wire), 3 x I2C, 8-bit GPIO, Inverter, HD

Audio, LVDS, 2x CAN, 1 x FAN, 1 x USB4

• RearI/O: 2 x RJ-45, 1 x HDMI, 1 x DP, 1 x USB Type-C, 4

x USB3.2, 1 x DC-Jack (optional)

• Powerconnectortype: Default supports 2 x 2-pin ATX

power connector (90D), DC jack is supported by request

• Optional: DC-IN Jack

MechanicalandEnvironmental

• Dimensions(LxW): 146 x 102 mm (5.7” x 4”)

• Powersupplytype: ACPI supports for ATX only

• Powerrequirement:Vin: 12V-24V +/- 10%

• Operatingtemperature:Standard: 0 ~ 60°C (32 ~

140°F)

• NetWeight:0.67 kg/1.47 lb (reference weight of total

package)

GeneralPackingList

For more information about this and other Advantech

products, visit our website at

http://www.advantech.com

http://www.advantech.com/eplatform

For technical support and customer service, visit our

support website at

http://support.advantech.com

This manual is for the MIO-5377 Series.

Part No. 2046537700

Printed in China

Edition 1

February 2023

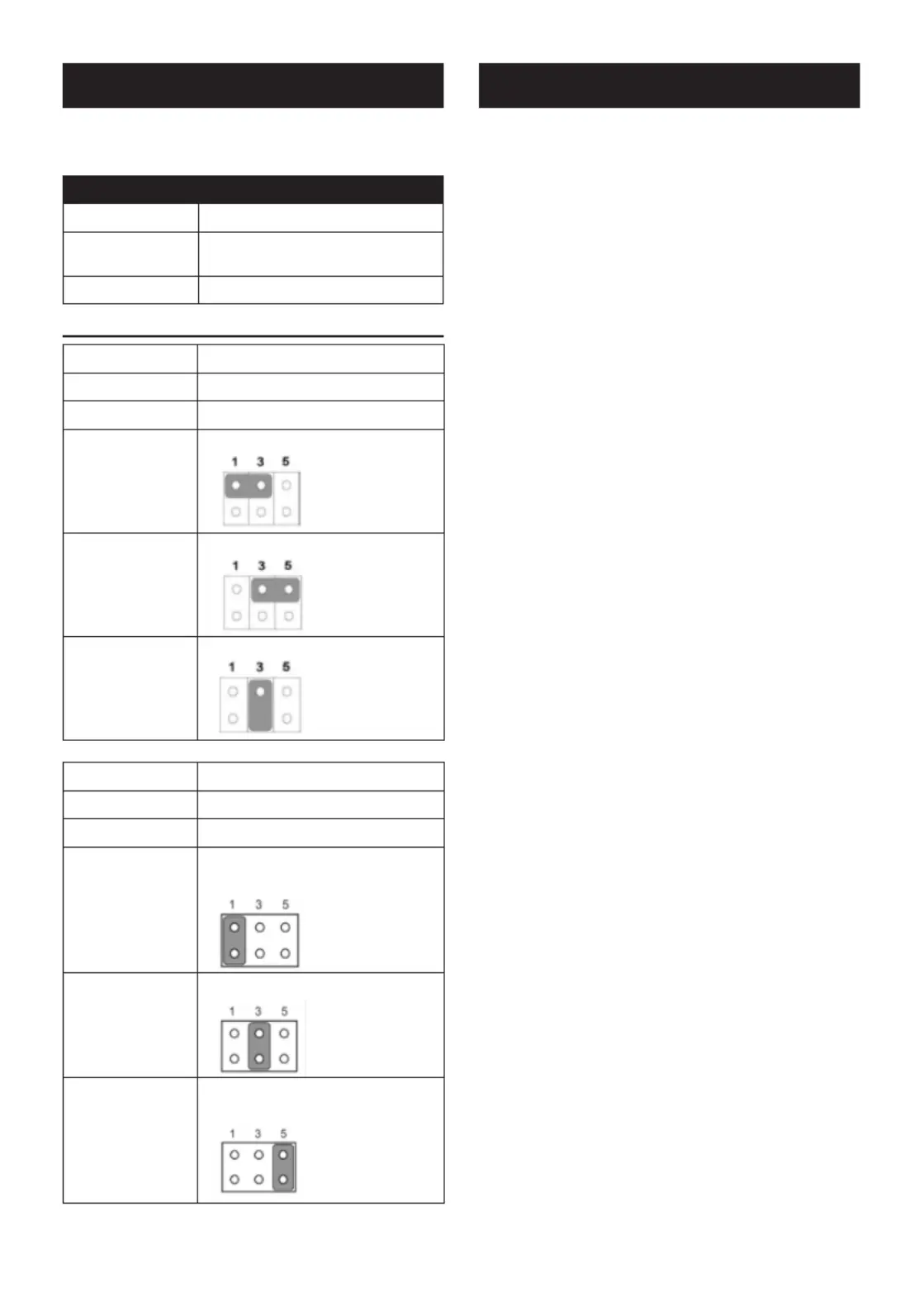

2 MIO-5377 Startup Manual

The board has a number of jumpers that allow you to con-

gure your system to suit your application. The table below

lists the function of each of the jumpers and connectors.

Jumpers

Label

Function

VDD1

LVDS Panel Voltage Selection

Jumper

J1 AT mode /Load BIOS default

JumperSetting

VDD1 PanelVoltageSelectionJumper

Setting Function

JumperShort PanelVoltage

1-3

+3.3V (Default)

3-5

+5V

3-4

+12V

J1 ATmode/LoadBIOSdefault

Setting Function

JumperShort PanelFunctional

1-2

1-2 open: ATX mode

1-2 short: AT mode(default)

3-4

Normal_BIOS (default)

5-6

5-6 open: Normal (default)

5-6 short: Load BIOS default

To load factory defaults, follow this:

1. Power o󰀨

2. Remove the Jumper (3-4) and add to (5-6), then power

on.

BIOS will load factory defaults (does not clear time or

clear CMOS), a message will remind the user to shut

down system and restore Jumper (3-4).

3. Power on again.

If you want to Clear CMOS, remove battery (battery 1).

System will pop up a message, then wait for 3 seconds.

RTC time will clear but keep the BIOS settings

Caution: The computer is provided with a battery-power

real-time clock circuit. There is a danger of explo-

sion if battery is incorrectly replaced.

Replace only with same or equivalent type

recommended by the manufacturer. Discard

used batteries according to manufacturer’s

instructions.

 JumpersandConnectors JumpersandConnectors(Cont.)
