PCE-SA01_AUDIO-HDB1E Startup Manual 1

Before you begin installing your card, please make sure that

the following items have been shipped:

PCA-AUDIO-HDB1E:

1. PCA-AUDIO-HDB1E Audio Extension Module x 1

2. HD Audio Cable x 1

3. 2 years quality warranty card x 1

4. Startup manual x 1

PCE-SA01:

1. PCE-SA01 I/O extension stack board x 1

2. Cooper stand-off x 2

3. Screw for cooper stand-off x 4

4. 2 years quality warranty card x 1

5. Startup manual x 1

If any of these items are missing or damaged, please con-

tact your distributor or sales representative immediately.

Mechanical

• Dimensions:

PCA-AUDIO-HDB1E: 68

mm x 125 mm

PCE-SA01:

68 mm x 125 mm

Supportmodels

• PCA-AUDIO-HDB1E:PCE-3029, PCE-4129, PCE-5029,

PCE-5129, PCE-7129

• PCE-SA01:PCE-3029, PCE-4129

Note: For more SBC support list, please visit our

website.

PCA-AUDIO-HDB1E Audio Extension Module

PCE-SA01 I/O Extension Stack Board

Startup Manual

PCA-AUDIO-HDB1E

Label Function Rear Jack Color

LINEO1 Line-out connector Green

MIC1 MIC-in connector Pink

LINEI1 Line-in connector Blue

SURR1

Surround-out con-

nector

Green

SPKO1 Speak-out Green

SPDIO1 S/PDIF pin-header

PWR1 Power connector

HDAUD1

Audio extension

module pin-header

PCE-SA01

Label Function Rear Jack Color

LINEO1 Line-out port Green

MIC1 MIC-in port Pink

DP2 Display port

USB1 USB3.0 port

USB2 USB3.0 port

SPDIO1 S/PDIF pin-header

MINIPCIE1 mini-PCIe socket

SIM1 SIM socket

PH_USB1 USB pin-header

PH_USB2 USB pin-header

LPC1

Low pin count module

expansion pin-header

EXPCIE1

mini-PCIe connector

to CPU card

PH_DP2 Display pin-header

HDAUD1

Audio extension

module connector

Jumpers and Connectors

Packing List

For more information on this and other Advantech

products, please visit our website at:

http://www.advantech.com

http://www.advantech.com/eplatform

For technical support and service, please visit our

support website at:

http://support.advantech.com

This manual is for the PCA-AUDIO-HDB1E/ PCE-

SA01 Series.

Part No. 2006SA0100

Print in China

1st Edition

December 2015

Specications

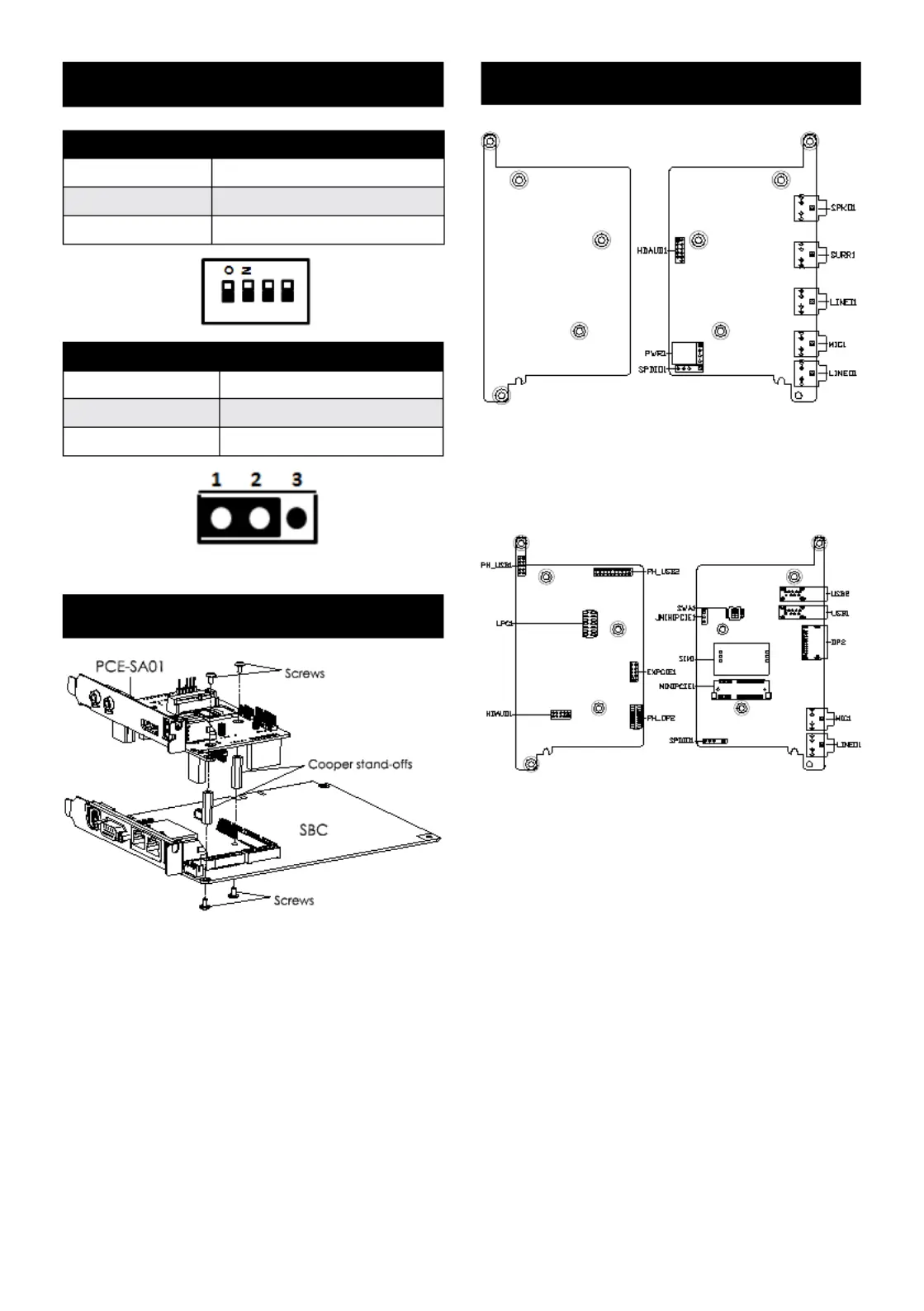

2 PCE-SA01_AUDIO-HDB1E Startup Manual

Board Layout

SWA1: MiniPCIe V1.1, V1.2 Selection

ON/OFF Result

1~4 ON V1.2 (Default)

1~4 OFF V1.1

JMINIPCIE1: MiniPCIe V1.1, V1.2 Selection

Closed Pins Result

1-2 pins Short V1.2 (Default)

2-3 pins Short V1.1

Figure 1: PCE-SA01 Installation Guide

Installation Guide

Figure 2: PCA-AUDIO-HDB1E Board Layout

Figure 3: PCE-SA01 Board Layout

Jumpers and Connectors (Cont.)
