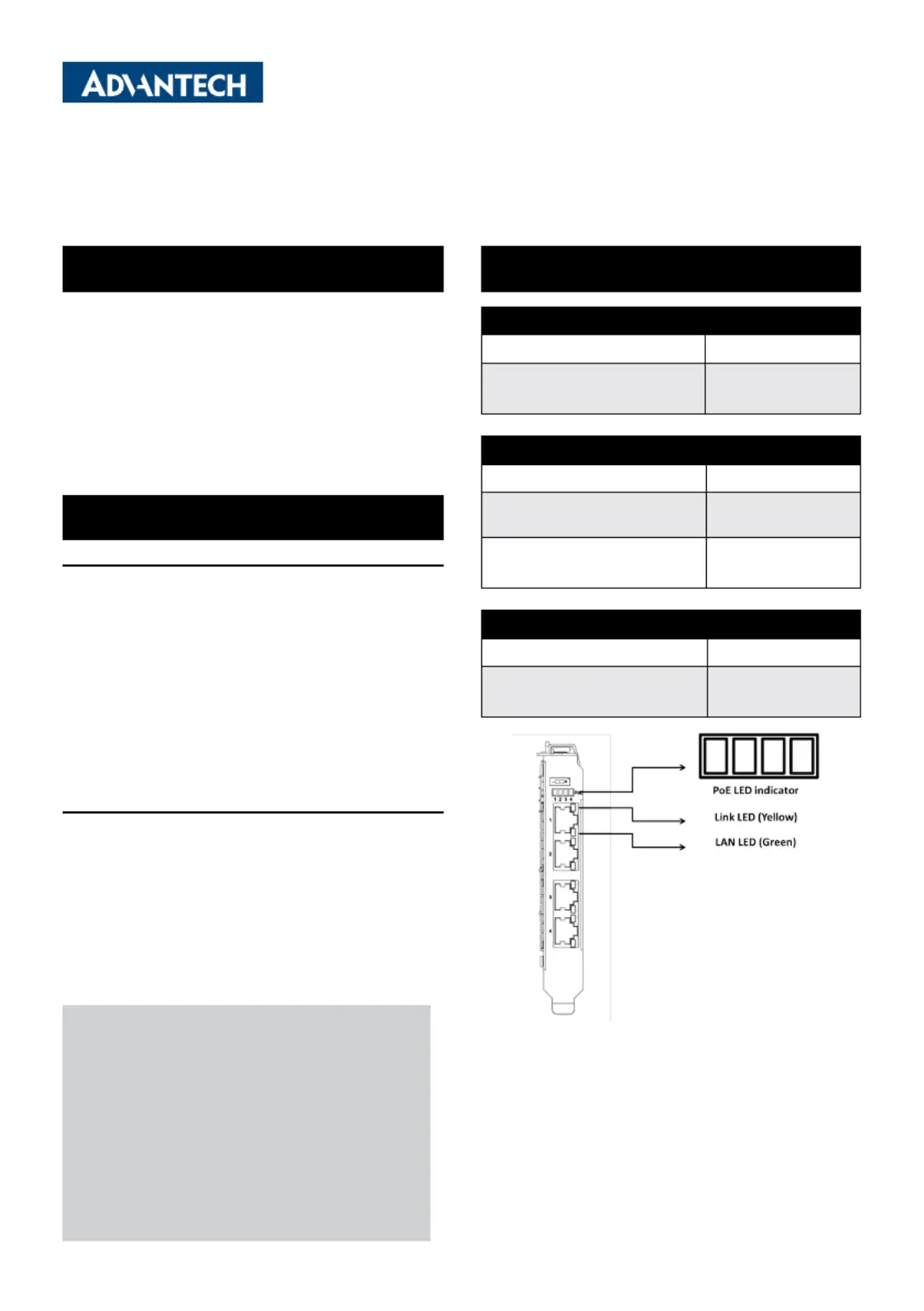

PCIE-1674/72E-BE Startup Manual 1

Before you begin installing your card, please make sure

that switch PoE o󰀨 if you are not connect to PoE device and

check the following items have been shipped:

1. PCIE-1674/72E-BE ports PCI Express PoE+ GigE Vi-

sion Frame Grabber

2. 170304015K Power cable

3. Startup manual

If any of these items are missing or damaged, please con-

tact your distributor or sales representative immediately.

General

• Chipset:

Intel I350 1G Ethernet Controller

Compliant with IEEE 802.3, IEEE 802.3u, IEEE802.3ab,

IEEE802.3x, IEEE802.3af, IEEE802.3at

* Windows 10 & 11 already build in the driver for the

Ethernet controller

• Interface:PCIE Gen 2 x 4

• DataTransferRate:1,000 Mbps

• Protection:

ESD: 8KV(Air), 6KV(Contact)

EFT: 2KV

Surge protection: 1KV

MechanicalandEnvironmental

• Dimensions(LxW):165 x 110 mm (5.8” x 3.9”)

• PowerRequirements:

12 VDC direct from PCIe slot, or with optional 12 V

AT/ATX power jack input

54 VDC PoE+ power output IEEE802.3af support, total

power budge 60W with maximum 25.4W per port and

protect by recoverable eFuse.

* The efuse will recover and card will back to functional

once disconnect the overload defect PoE device

• NetWeight: 256 g

PCIE-1674/72E-BE 4/2 ports PCI Express PoE+ GigE

Vision Frame Grabber

Startup Manual

MainBoardConnectors

Ports Function

RJ Port 1~4 (PICE-1674E-BE)

RJ Port 1~2 (PCIE-1672E-BE)

1 GigE ports 1~4

1 GigE ports 1~2

LEDindicatorsofRJ45(Lan)connector

LEDs Description

Lan LED (In the left of RJ45

connector)

Green: Ethernet con-

nected

Link LED (In the right of RJ45

connector)

Green: 1G

Yellow: 100 Mbps

BracketLEDindicators

LEDs Description

POE 1~4 (PCIE-1674E-BE)

POE 1~2 (PCIE-1674E-BE)

on : PoE power on

o󰀨 : PoE power o󰀨

Figure 1: Bracket LED Indicators

ConnectorsPackingList

For more information on this and other Advantech

products, please visit our website at:

http://www.advantech.com

For technical support and service, please visit our

support website at:

https://www.advantech.com/en/contact/service-

request-form?subject=technical%2bsupport

This manual is for the PCIE-1674/72E-BE.

Part No. 2042167400

Printed in China

1st Edition

August 2023

Specications
