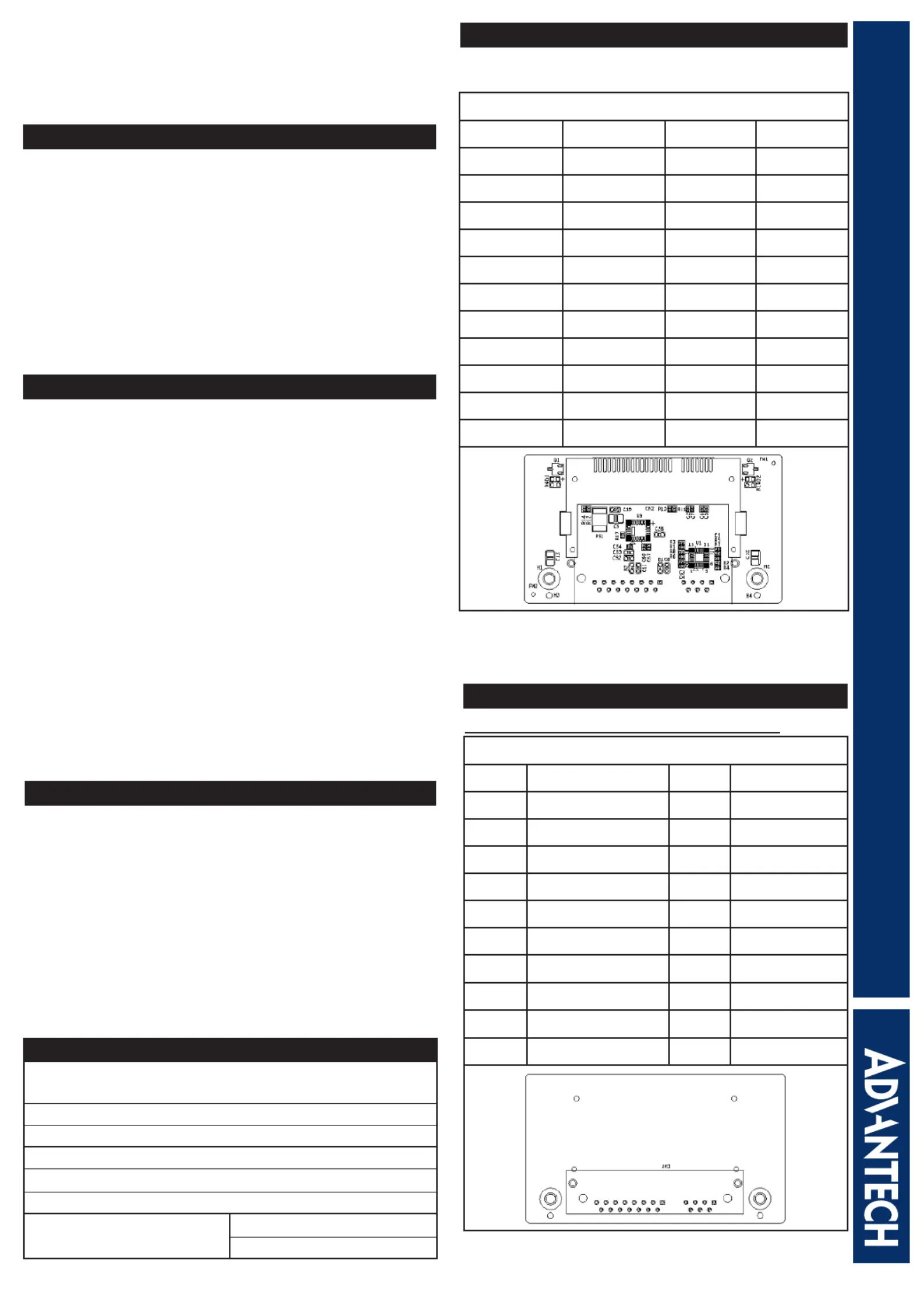

Side 1/2
Description of Pin Use — CN2, CFast Connector
PINS1
GND
PINPC6
NC
PINS2
SATA_TX+
PINPC7
GND
PINS3
SATA_TX-
PINPC8
NC
PINS4
GND
PINPC9
NC
PINS5
PINPC10
NC
PINS6
SATA_RX+
PINPC11
NC
PINS7
GND
PINPC12
NC
PINPC1
NC
PINPC13
3.3 V
PINPC2
GND
PINPC14
3.3 V
PINPC3
NC
PINPC15
GND
PINPC4
NC
PINPC16
GND
PINPC5
NC
PINPC17
NC
STARTUP MANUAL
1 Startup Manual
PCM-23C1CF
1 x CFast slot with cover protection
Packing List
Before installation, please ensure that the following items
have been included in your shipment:
1 x CFast I/O plate with 1 x iDoor bracket
1 x Startup manual
1 x Warranty card
If any of these items are missing or damaged, contact your
distributor or sales representative immediately.
Pin Assignment — Internal Connection
Notes
For more information about this or other Advantech
products, visit our website at
http://www.advantech.com
http://www.advantech.com/eAutomation
For technical support and service, visit
http://www.advantech.com.tw/eservice
This manual is for PCM-23C1CF
Part No: 200323C101 Edition 2
September 2017
The pin assignments for one of the I/O module
connectors are shown in the tables and gures below.
Pin Assignment
Documentation/Software Support Guide
Installation
The PCM-23C1CF module with iDoor technology
supports the following iAutomation computing platforms:
UNO-2000 standard mount series
UNO-1000 DIN rail mount series
UNO-3000 wallmount series
4:3 TPC-xx51T/xx82, TPC-5000 panel PCs
16:9 TPC-xx51WP/xx81WP, TPC-5000 panel PCs
*Note: An additional SATA cable may be required to
install the PCM-23C1CF module on a TPC
system.
Advantech’s PCM-23C1CF module is a SATAII (3G/s)
to CFast interface for storage applications and does not
require a driver.
Description of Pin Use — CN1
PINS1
GND
PINP5
GND
PINS2
SATA_TX+
PINP6
GND
PINS3
SATA_TX-
PINP7
5 V
PINS4
GND
PINP8
5 V
PINS5
PINP9
5 V
PINS6
SATA_RX+
PINP10
GND
PINS7
GND
PINP11
NC
PINP1
3.3 V
PINP12
GND
PINP2
3.3 V
PINP13
NC
PINP3
3.3 V
PINP14
NC
PINP4
GND
PINP15
NC
I/O Board CN1 SATA HDD Cable—

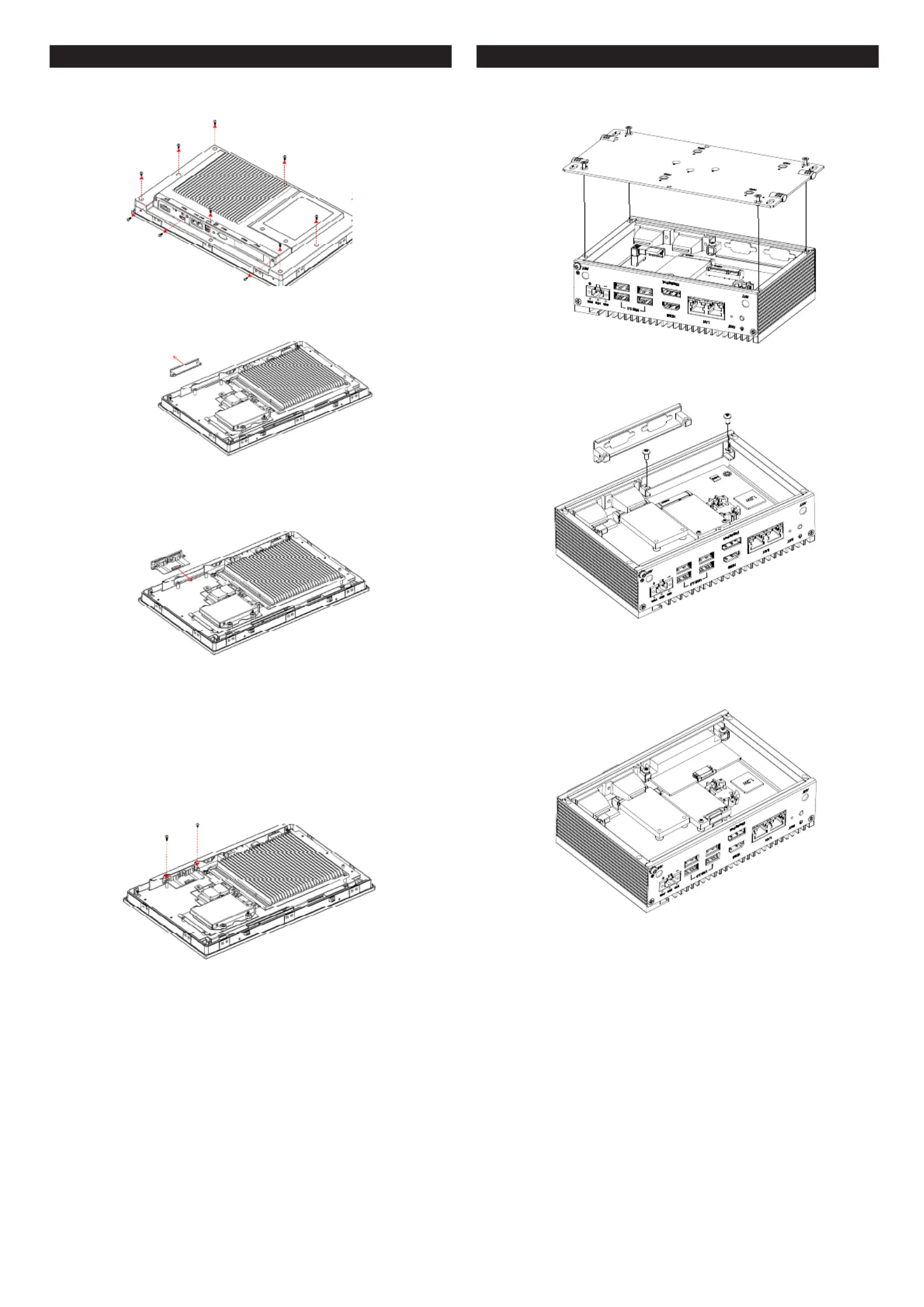

Startup Manual 2
TPC Panel PC Installation
1. Unscrew the backplate screws and remove the
backplate.
UNO Embedded Computer Installation
1. Unscrew the base plate screws and remove the
base plate.
2. Unscrew the blacking plate screws and remove the
blanking plate.
3. Insert the PCM-23C1CF module through the
blanking plate slot.
4. Secure the PCM-23C1CF module using the screws
removed from the blanking plate.
2. Unscrew the blacking plate screws to remove the
blanking plate.
5. Connect the PCM-23C1CF module to the SATA
connector on the motherboard using a SATA cable.
3. Insert the PCM-23C1CF module through the blanking
plate hole.
5. Connect the PCM-23C1CF module to the SATA
connector using a SATA cable.
4. Secure the PCM-23C1CF module using the screws
removed from the blanking plate.
