PCM-24R1TP-BE Startup Manual 1

Before installation, please make sure that you have:

• mPCIe Card with Controller x 1

• 1 x RJ45 I/O Plate with iDoor bracket x 1

• 1 x wired cable

• 1 x Startup Manual

• 1 x Warranty Card

If anything is missing or damaged, contact your distributor

or sales representative immediately.

The support documentation and drivers can be accessed

from Advantech website.

• Documentation

• Datasheet

PCM-24R1TP-BE

Intel I225, 2.5Gb/s, IEEE 1588, TSN, RJ45*1

Startup Manual

Internal Connection

IO Board & miniPCIE CN1

The Coaxial Cabling form IO board to mPCIe

Coaxial Connector(CN1)

PIN TYPE TYPE PIN

1 GND GND 22

2 PCIE_TXP SMBUS_DAT 23

3 PCIE_TXN SMBUS_CLK 24

4 GND GND 25

5 PCIE_RXP PERST#_CN 26

6 PCIE_RXN PCIE_CLKREQ# 27

7 GND GND 28

8 PCIE_CLK+ +V3.3 29

9 PCIE_CLK- +V3.3 30

10 GND PCIE_WAKE# 31

11 CON_USB2_DP +V3.3 32

12 CON_USB2_DN +V3.3 33

13 GND W_DISABLE# 34

14 CON_USB3_RXDP +V3.3 35

15 CON_USB3_RXDN +V3.3 36

16 GND NA 37

17 CON_USB3_TXDP +V3.3 38

18 CON_USB3_TXDN +V3.3 39

19 GND NA 40

20 NA GND 41

21 NA GND 42

LED Indication

Active/Connecting Speed

Side Right Left

Color Green Green/Orange/Dark

Color indication for speed.

2.5G 1G 100MB 10MB

Color Green Green Orange Dark

PIN Assignment Packing List

For more information on this and other Advantech

products, please visit our website at:

http://www.advantech.com

For technical support and service, please visit our

support website at:

http://support.advantech.com.tw/

This manual is for the PCM-24R1TP-BE.

Part No. 204324R101

Printed in China

1st Edition

January 2023

Documentation/Software Support

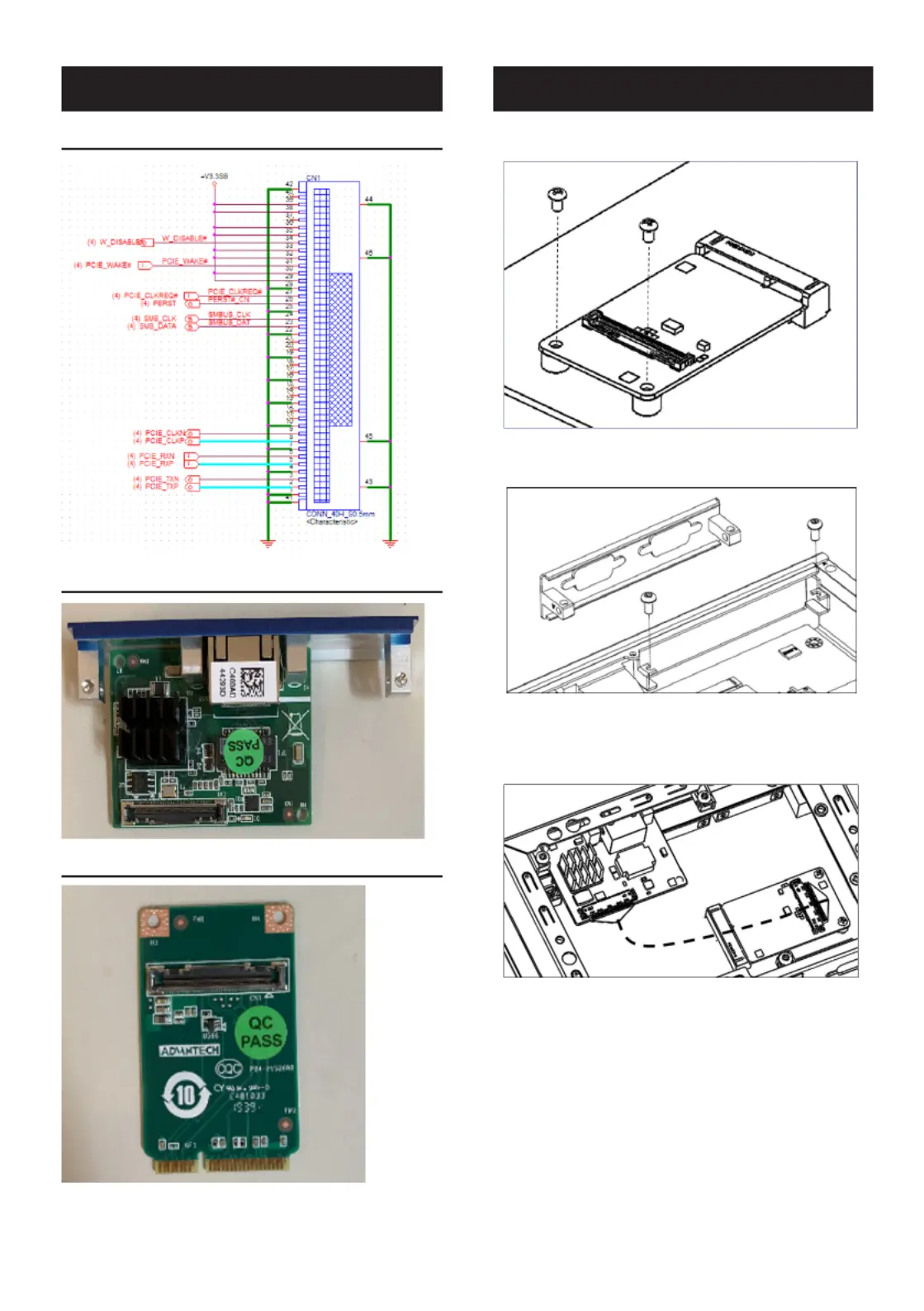

2 PCM-24R1TP-BE Startup Manual

PIN Assignment (Cont.)

IO Board & miniPCIE CN1

TSN IO Board 9693UD04000

miniPCIE 9693UM01000

1. Insert the mPCIe card and lock the screws.

2. Unscrew to remove the blank expansion plate.

3. Insert the PCM IO plate through the blank plate hole

and lock the screws. Connect IO plate to mPCIe card

with the cables.

Embedded Computer Installation
