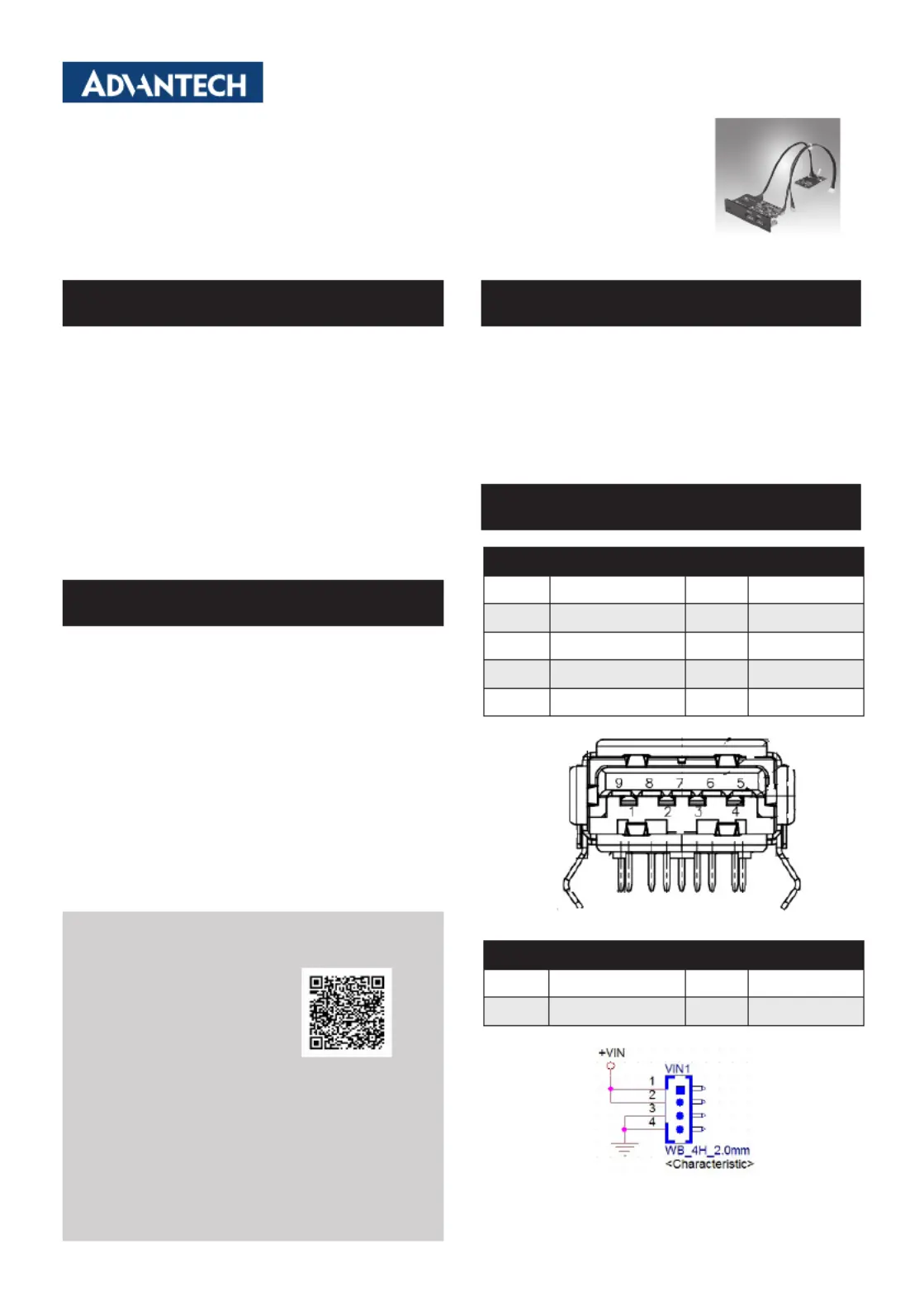

PCM-24U2U3 Startup Manual 1

Before installation, please make sure that you have:

1. 1 x mPCIe card with controller

2. 1 x 2-Port USB3.0 I/O plate with iDoor bracket

3. 1 x Wired signal cable

4. 1 x Wired power cable

5. 1 x Startup manual

6. 1 x Warranty card

If any of these items are missing or damaged, contact your

distributor or sales representative immediately.

PCM Module with iDoor technology supports following

iAutomation Computing Platforms:

• Embedded Automation PC UNO-2200/2300/2400 series

• Control DIN-Rail PC UNO-1200/1300/1400 series

• Control Cabinet PC UNO-3200/3300/3400 series

• Control Panel Computers TPC-xx81/xx82 series*

• Thin Client Panel Computers TPC-xx51 series*

* The platforms may require customized cable for use,

please contact with Advantech.

See the following page for installation in both UNO and TPC

Embedded Computers.

PCM-24U2U3

2-Port USB 3.0, mPCIe, USB-A type

Startup Manual

The support documentation and drivers can be accessed

from Advantech website.

• Documentation

- Datasheet

- StartUp

• Drivers

PIN Assignment of USB Type-A Connector (9-Pin)

Pin1 VBUS Pin2 D-

Pin3 D+ Pin4 GND

Pin5 SSRX- Pin6 SSRX++

Pin7 GND Pin8 SSTX-

Pin9 SSTX++

VIN1- Internal Power Cabling

Pin1 +VIN (5V~24V) Pin2 +VIN (5V~24V)

Pin3 GND Pin4 GND

Packing List

For more information on this and other Advantech

products, please visit our website at

http://www.advantech.com

For technical support and service:

https://rebrand.ly/searc2a14c

This manual is for PCM-24U2U3.

Part No. 204324U200

Printed in China

1st Edition

December 2018

Pin Assignments

Documentation/Software Support Guide

Installation

2 PCM-24U2U3 Startup Manual

CN3 - I/O Board to mPCIe Cabling

PIN1 GND PIN24 N/A

PIN2 USB3_RXDN2 PIN25 GND

PIN3 USB3_RXDP2 PIN26 N/A

PIN4 GND PIN27 N/A

PIN5 USB3_y_TXDN2 PIN28 GND

PIN6 USB3_y_TXDP2 PIN29 N/A

PIN7 GND PIN30 N/A

PIN8 USB3_RXDN1 PIN31 GND

PIN9 USB3_RXDP1 PIN32 N/A

PIN10 GND PIN33 N/A

PIN11 USB3_y_TXDN1 PIN34 GND

PIN12 USB3_y_TXDP1 PIN35 N/A

PIN13 GND PIN36 N/A

PIN14 USB2_DM1 PIN37 GND

PIN15 USB2_DP1 PIN38 N/A

PIN16 GND PIN39 N/A

PIN17 USB_DM2 PIN40 GND

PIN18 USB2_DP2 PIN41 GND

PIN19 GND PIN42 GND

PIN20 USB3_OC1 PIN43 GND

PIN21 USB3_OC2 PIN44 GND

PIN22 GND PIN45 GND

PIN23 N/A PIN46 GND

Pin Assignments (Cont.)

Simple Installation Process

1. Insert the mPCIe card and lock the screws.

2. Unscrew to remove the blank expansion plate.

3. Insert the PCM IO plate through the blank plate hole

and lock the screws. Connect IO plate to the mPCIe

card with the cables.

Overview - I/O Boards
