Side 1/4

1 PCM-3680 Startup Manual All product specifications are subject to change without notice.

STARTUP MANUAL

PCM-3680

2-Port CAN-bus PC/104 Module with Isolation Protection

Before installation, please make sure that you have:

• PCM-3680

• ICOM Series Driver CD with Advantech WDM

CAN Driver

• Startup Manual

If anything is missing or damaged, contact your

distributor or sales representative immediately.

FCC Class A

This equipment has been tested and found to comply with

the limits for a Class A digital device, pursuant to part 15 of

the FCC Rules. These limits are designed to provide reason-

able protection against harmful interference when the

equipment is operated in a commercial environment. This

equipment generates, uses, and can radiate radio frequency

energy and, if not installed and used in accordance with the

instruction manual, may cause harmful interference to radio

communications. Operation of this equipment in a residen-

tial area is likely to cause interference in which case the

user is required to correct interference at his expense

This product has passed the CE test for environmental spec-

ifications

when shielded cables are used for external wiring.

We recommend the use of shielded cables. This kind of

cable is available from Advantech. Please contact your local

supplier for ordering information.

PCM-3680 is a special purpose communication card

that brings the Control Area Network to your PC.

With the built-in CAN controller, the PCM-3680

provides bus arbitration and error detection with

automatic transmission repeat function. The onboard

CAN controllers are located at different positions

in the memory. You can run both CAN controllers

at the same time, independently. The PCM-3680

operates at baud rates up to 1 Mbps and can be

installed directly into the expansion slot of your PC.

• Operates 2 CAN networks simultaneously

• High speed transmission (up to 1Mbps)

• 16 MHz CAN controller frequency

• 4 KB address space, 40 base address adjustable in

steps from C800H up to EF00H

• Optical isolation protection of 2500 V

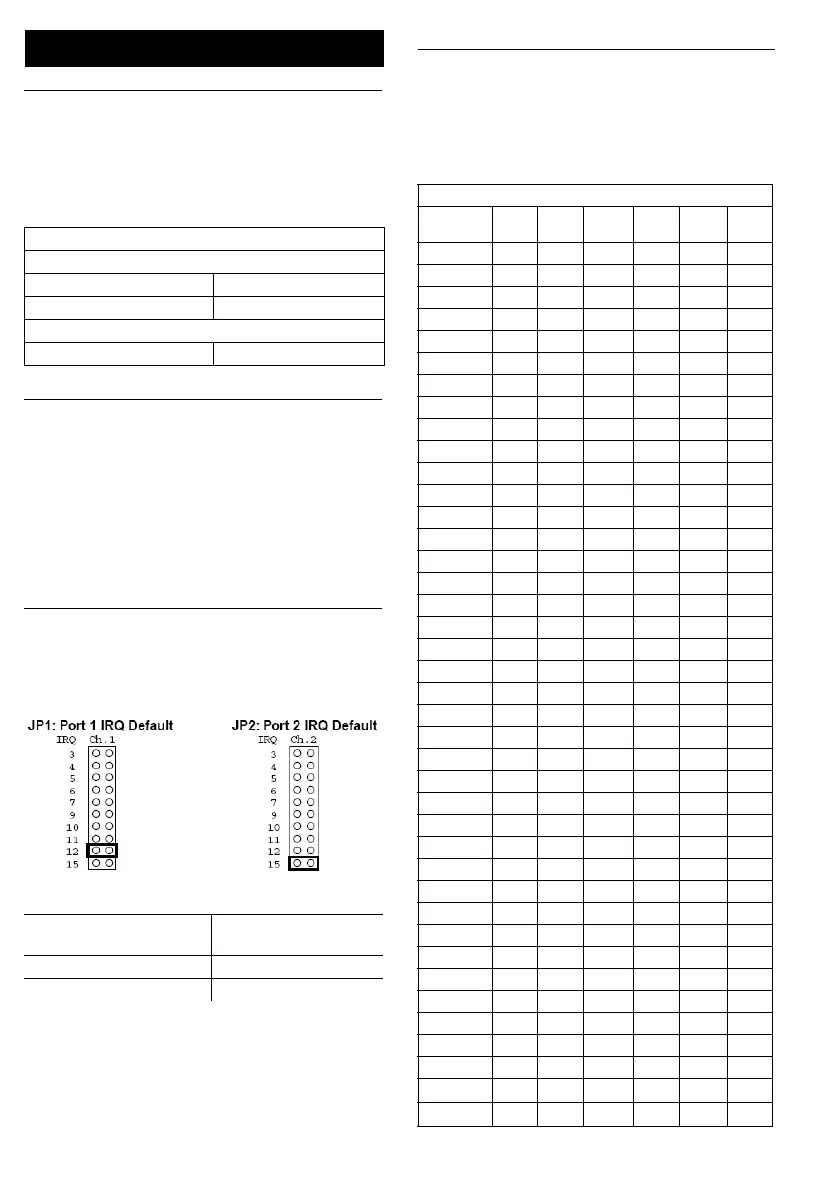

• Wide IRQ selection for each port includes:

IRQ 3, 4, 5, 6,7, 9, 10, 11, 12, 15

• LED indicates transmit/receive status on each port

• Direct memory mapping enables speedy access

• Supports 32/64-bit WinXP/Vista/Win7, WinCE

5.0/6.0 and Linux

• Ports: 2

• CAN Controller: SJA-1000

• CAN Transceiver: 82C250

• Signal Support: CAN-L, CAN-H

• Memory Address: From C800H to EF00H

• IRQ: 3, 4, 5, 6, 7, 9, 10, 11,12, 15

• Isolation Voltage: 2500 V

• Power Consumption: +5 V @ 400 mA typical,

950 mA max.

• Connectors: Dual DB-9 male connectors

• Operating Temperature: -40 ~ 85°C (-40 ~ 185°F)

• PC/104 Form Factor: 3.6" x 3.8" (90 x 96 mm)

• Shipping Weight: 0.485 lb (0.22 kg)

Packing List Features

Declaration of Conformity

Overview

Notes

For more information on this and other Advantech

products, please visit our websites at:

http://www.advantech.com/eAutomation

For technical support and service:

http://www.advantech.com/support/

This startup manual is for PCM-3680.

Part No. 2000368040 1st Edition

June 2011

Specifications

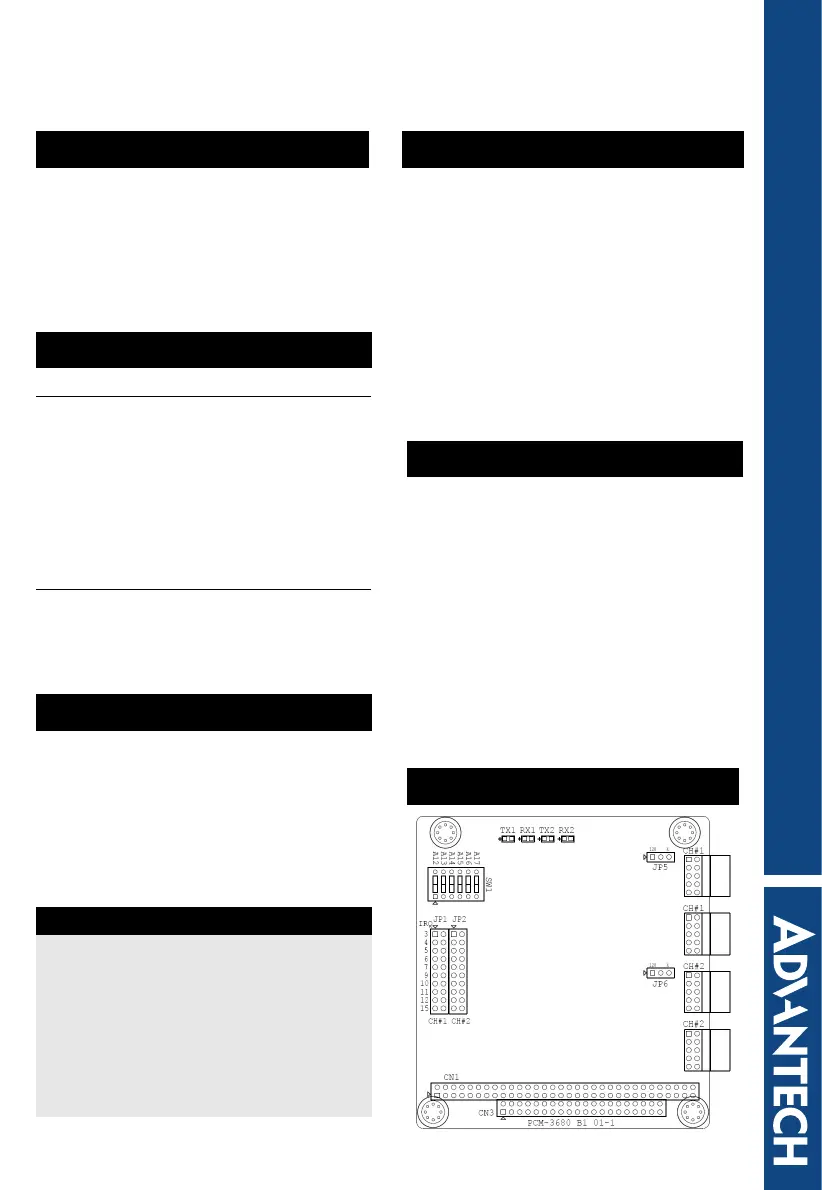

Jumper & Switch Locations
