SKY-MXM-2000A Startup Manual 1

Before you begin installing your card, please make sure that

the following items have been shipped:

1. SKY-MXM-2000A GPU card x 1

2. China RoHS Doc x 1

If any of these items are missing or damaged, please con-

tact your distributor or sales representative immediately.

Note:  AcrobatReaderisrequiredtoviewanyPDFle.

Acrobat Reader can be downloaded at: www.

adobe.com/Products/acrobat/readstep2. html

(Acrobat is a trademark of Adobe).

The SKY-MXM-2000A supports 3 x DP 1.4, with display

options port as shown below.

MXM Port DP_A DP_B DP_C

Advantech Link A Link B Link C

Link Display

Link A DisplayPort (DP++)*

Link B DisplayPort (DP++)*

Link C DisplayPort (DP++)*, HDMI (optional)

Link D Not supported

Link E N/A

* Dual-mode DP (DP++) support requires one of the follow

external DP-AUX device when driving an external connector

directly.

- DIODES PI3AUX221ZTAEX

- ANPEC APL3585

SKY-MXM-2000A

MXM 3.1 Type A NVIDIA ® Quadro® Embedded

2000 Ada with DP 1.4a

Startup Manual

Processor System

• GPU: Quadro

2000 Ada

• Graphic architecture: NVIDIA

Ada-Lovelace AD107-

975-A1

• CUDA parallel-processing cores: 3072 CUDA

cores

• RT cores: 24

• Tensor cores: 96

• GPU base/boost clock: 1635 MHZ/2115 MHZ

• FP32 performance: 12.99TFLOPS

• Bus: MXM3.1, PCI Express Gen4 x 8 support

• Max power consumption: 60 W

Memory

• Technology: GDDR6 8GB memory

• Interface width: 128-bit

• Bandwidth: 256 GB/s

Physical

• Dimensions: 82(W) x 70(D) mm

• Form factor: MXM 3.1 Type A

Environment

• Operating: 0 ~ 55° C

(Depend on CPU and cooler solution)

• Non-operating: -40° C ~ 85° C

Operating Systems

• Microsoft: Windows 10/11, 64-bit

• Linux: Linux Drivers, 64 bit

• Software support:

- CUDA toolkit 11.8 and higher

- CUDA compute version 8.9

- Direct3D 12 Ultimate supporting feature level 12.2

- Shader Model 8.9

- OpenCL™ 3.0

- OpenGL 4.6

- Vulkan 1.3

• Display port: 3 x 1.4a

For more information on this and other Advantech

products, please visit our website at:

http://www.advantech.com

For technical support and service, please visit our

support website at:

http://www.advantech.com/support

This manual is for the SKY-MXM-2000A series Rev.

A1.

Part No. 2041M20000

Printed in China

1st Edition

March 2024

Packing List Standard Functions

Graphics Options

2 SKY-MXM-2000A Startup Manual

GPU Core Clock throttles at temperatures(Tj) higher than those listed in below table, which lists the throttling temperature

and behavior. Thermal throttling is necessary to ensure that the hottest temperature on the die does not exceed the sense

temperature for prolonged periods of time.

Parameter SKY-MXM-2000A Units

Thermal Resistance (Junction to Case, RJC) 0.048 °C/W

Thermal Resistance (Junction to PCB Board, RJB) 1.450 °C/W

GPU Shutdown Temperature(OVERT)* 101 °C

GPU Slowdown Temperature (THERM_ALERT)** 91 °C

GPU Maximum Operating Temperature*** 89 °C

GPU Target Temperature 87 °C

Notes:

* OVERT assertion results in an 87.5% (÷8) hardware clock slowdown.

** THERM_ALERT assertion results in a 50%(÷2) hardware clock slowdown.

*** The GPU maximum operating temperature is the maximum GPU temperature at which the GPU is guaranteed to operate

at the target performance (Base Clock) under the total board power level.

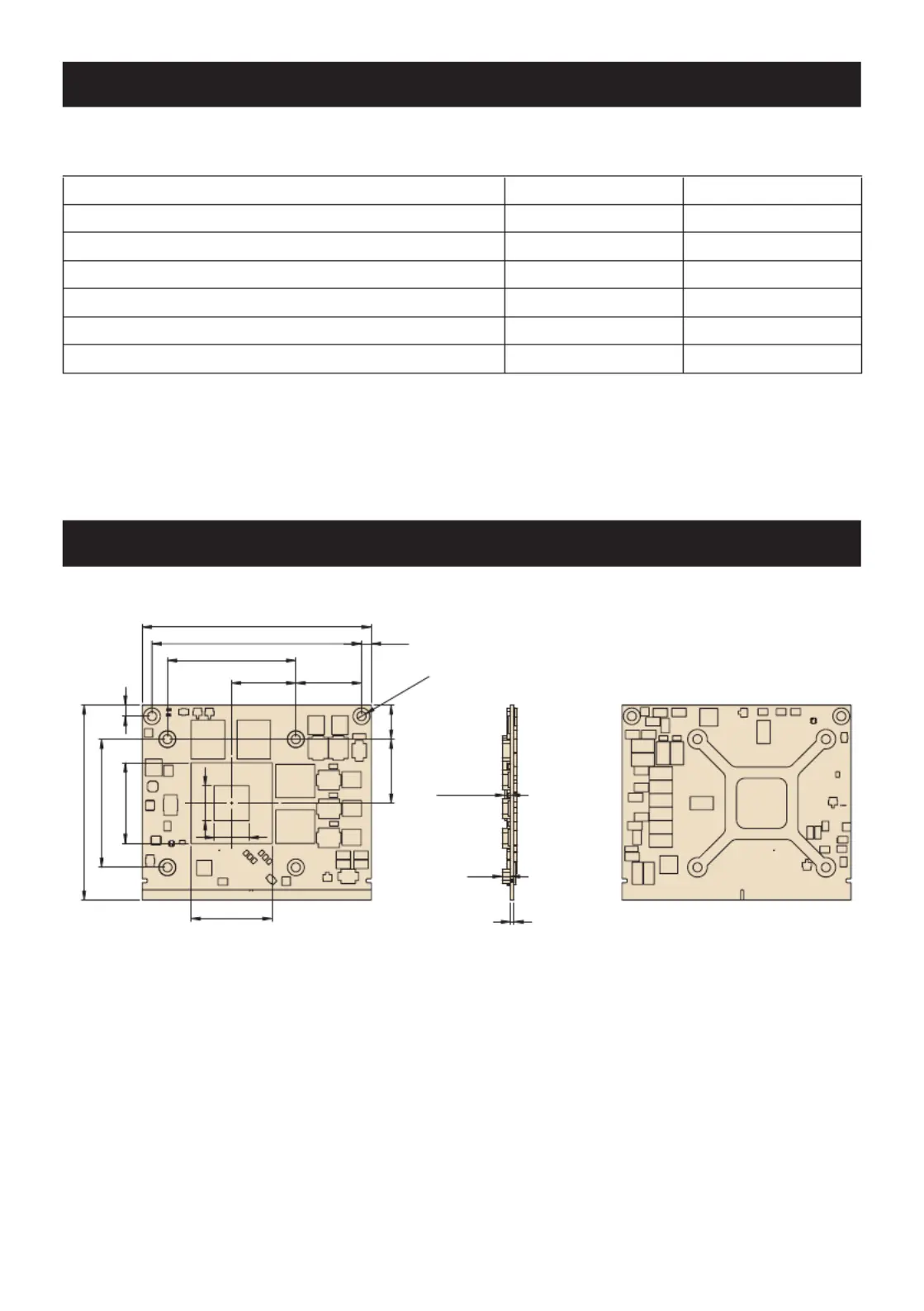

Unit: mm

82.00

75.00

4.00

3.50

Ø3.25

70.00

12.52

12.58

29.00

46.00

12.25

23.00

23.50

3.00

1.20

2.05 ±0.15

Dimensions

GPU Thermal Policy
