UNO-137 V2 Startup Manual 1

Before you begin installing your card, please make sure that

the following items have been shipped:

1. UNO-137 V2 (with DIN-rail mount)

2. 1 x 2x5 Plug-in block for COM port

3. 1 x 2x1 Plug-in block for power wiring

4. 1 x 2x10 Plug-in block for digital I/O wiring

5. 1 x M2x4L screws for mPCIe card installation

6. 1 x Earth-ground cable

7. Startup Manual

8. China RoHs sheet

9. Warranty card

If any of these items are missing or damaged, please con-

tact your distributor or sales representative immediately.

Note:  AcrobatReaderisrequiredtoviewanyPDFle.

Acrobat Reader can be downloaded at: get.

adobe.com/reader (Acrobat is a trademark of

Adobe)

UNO-137 V2

Small-Size Integrated DIN-Rail IPC with Intel®

Atom® x6413E and x6425RE

Startup Manual

Caution: DANGER OF EXPLOSION IF BATTERY IS

INCORRECTLY REPLACED. REPLACE ONLY

WITH THE SAME OR EQUIVALENT TYPE

RECOMMENDED BY THE MANUFACTURER,

DISCARD USED BATTERIES ACCORDING TO

THE MANUFACTURER’S INSTRUCTIONS.

Attention: DANGER D’EXPLOSION SI LA BATTERIE EST

INEXACTEMENT REMPLACÉE. REMPLACEZ

SEULEMENT AVEC LA MÊME CHOSE OU

LE TYPE ÉQUIVALENT RECOMMANDÉ PAR

LE FABRICANT, JETTENT LES BATTERIES

UTILISÉES INSTRUCTIONS DE S SELON

FABRICANT DES’.

Processor System

• Intel® Atom® x6413E, 1.5 GHz (up to 3.0 GHz)

• Intel® Atom® x6425RE, 1.9 GHz

Memory

• Built-in 8 GB DDR4, 3200 MHz (Up to 32 GB)

Graphics

• Intel® UHD Graphics for 10th Gen

Serial Ports

• 2 x RS-232/422/485 (terminal block)

50 bps ~115.2 kbps (isolation protection: 2500 VDC)

Ethernet

• Intel® i226-ITGbE, IEEE802.1AS, 802.3az

Storage

• 1 x M.2 M-Key 2242 SSD (PCIe p1-x2 / SATA signal)

Expansion

• 1 x Full-size mPCIe (PCIe/USB 2.0/SATA signal)

• 1 x M.2 (E-Key) 2230 Wi-Fi modules (PCIe 2x signal/

USB 2.0)

• 1 x Nano SIM card slot

External I/O

• Display: 2 x DP 1.2, up to 4096 x 2160 @ 60 Hz

• USB: 3 x USB 3.2 Gen2 (Type A), 1 x USB 2.0 (Type A)

• Serial: 2 x RS-232/422/485 (terminal block)

50 bps ~115.2 kbps (isolation protection: 2500 V

)

Power Requirement

• Power Type: ATX

• Power Input Voltage: 10 V ~ 36 V

• Power Connector: 1 x 2-pin terminal block

• Minimum Power Input: 12 V

5 A, 24 V

2.5 A

Specications

Packing List

For more information on this and other Advantech

products, please visit our website at:

http://www.advantech.com

For technical support and service, please visit our sup-

port website for UNO-137 V2 at:

months extra warranty for free at:

http://www.register.advantech.com

Part No. 2044013700 1st Edition

Printed in China August 2023

Packing List (Cont.)

2 UNO-137 V2 Startup Manual

ThisproductisintendedtobesuppliedbyaUL-certied

powersupplyorUL-certiedDCsourcerated19Vdc,4.74

Aminimum,TMA50°Cminimum(safetycerticateoperation

temperature 40°C), if you need further assistance, please

contact Advantech for further information.

Environment

• Operation Temperature:

CPU x6413e: -40°C ~ 70°C/-40°F ~ 158°F with 0.7m/s

airow,withwide-temperature(-40°C~85°C/-40°F~

185°F) peripherals

CPU x6425RE: -40°C ~ 60°C/-40°F ~ 140°F with 0.7m/s

airow,withwide-temperature(-40°C~85°C/-40°F~

185°F) peripherals

• Storage Temperature: -40°C ~ 85°C (-40°F ~ 185°F)

• Relative Humidity: 95% RH @ 40°C/104°F, non-

condensing

Physical Characteristics

• Dimensions (W x H x D): 35 mm x 105 mm x 150 mm

(1.4 in x 4.1 in x 5.9 in)

• Weight: 0.8 kg (1.7 lb)

The computer is supplied with a battery-powered realtime

clock circuit. There is a danger of explosion if the battery is

incorrectly replaced. Replace only with the same or equiva-

lent type recommended by the manufacturer. Discard used

batteries according to the manufacturer’s instructions.

This device complies with the requirements in Part 15 of

the FCC rules. Operation is subject to the following two

conditions:

1. This device may not cause harmful interference.

2. This device must accept any interference received,

including interference that may cause undesired opera-

tion.

Specications(Cont.)

Declaration of Conformity

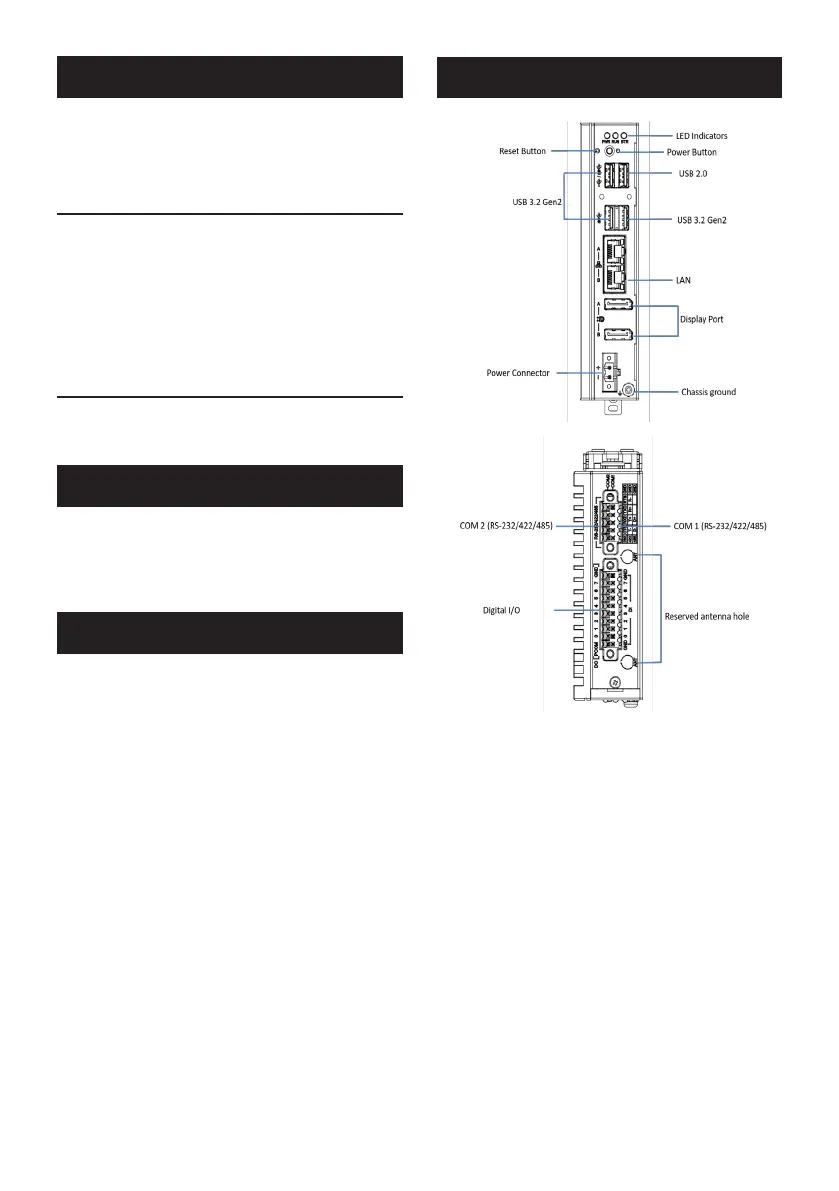

System I/O Interface

Battery
