IPW-10VC
INSTALLATION GUIDE
06/23
The IPW-10VC is an analog-to-IP converter kit that uses 2-conductor copper wire to connect IP intercom stations. The kit includes one
IPW-10VR rack-mount receiver module and ten IPW-1VT transmitter modules.
• Works with existing 2-conductor copper wire
• Provide PoE to door stations up to 1000 feet away
• Connects up to ten door stations with a single network port
• Rack mountable
• LED status indicators
Features
The IPW-10VR is congured out of the box to provide power
and network connection on all ten of the PoU (Power over
UTP wire) ports.
For each station connected to the IPW-10VC, use two of
the 2-wire to RJ45 converters. One will plug into a port
on the IPW-10VR, and the other will go into the IPW-1VT
transmitter module. Use a small Phillips-head screwdriver to
loosen and tighten the converters to connect the 2-conductor
wires to both sides.
The four provided screws allow the IPW-10VR receiver module
to be installed in a 1U server rack space.
The IPW-10VR is powered from a wall outlet, and is connected
to the network by one of the two ethernet ports.
Installation and Conguration
Package Contents

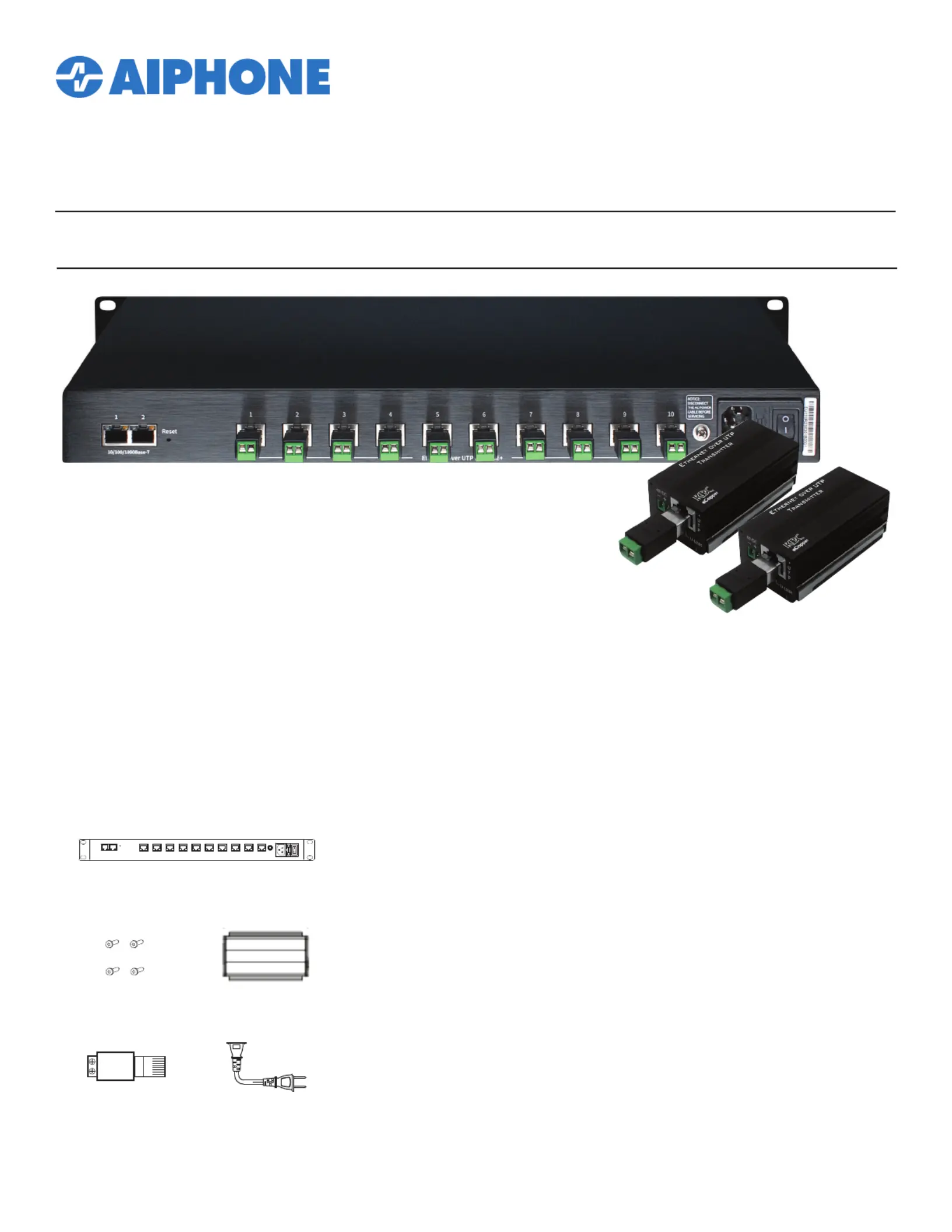

IPW-10VR Rack Mount
Receiver Module
4 M5 Screws
10 IPW-1VT Transmitter
Modules
Outlet Plug
20 2-wire to RJ45
converters

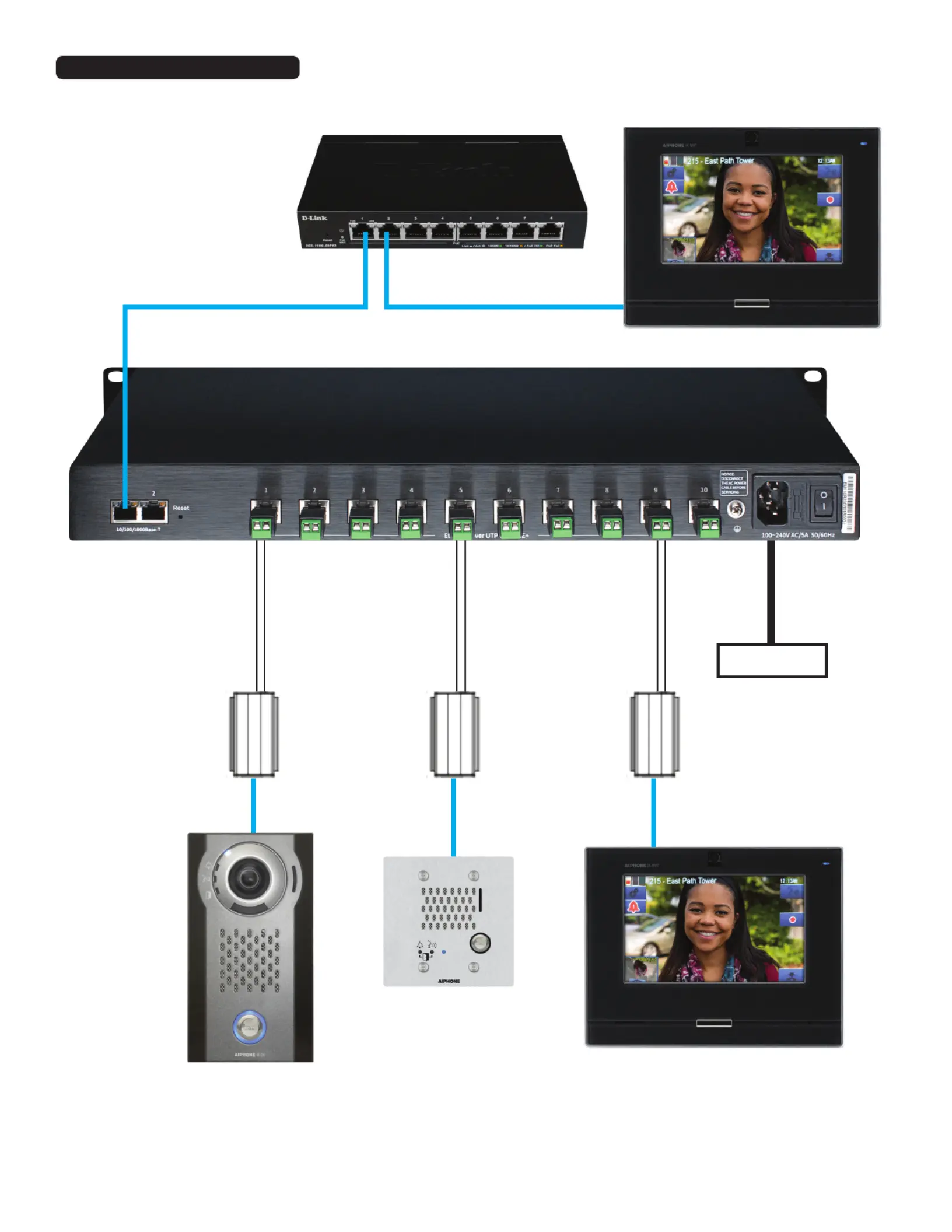

Sample Wiring Diagram
206/23
Wall Outlet
Cat-5e/6
2-Conductor
Wire
IPW-1VT
Transmitter
IX-DV
Cat-5e/6
2-Conductor
Wire
IPW-1VT
Transmitter
Cat-5e/6
2-Conductor
Wire
IPW-1VT
Transmitter
IX-MV7
IX-SS-2G
PoE Switch
Cat-5e/6Cat-5e/6
IX-MV7
IPW-10VR
