www.airkinglimited.com6728092 Rev. E 4/22 1 of 12

SAVE THESE INSTRUCTIONS

WARNING: TO REDUCE THE RISK OF FIRE,

ELECTRIC SHOCK AND INJURY TO PERSON,

OBSERVE THE FOLLOWING:

a) Use this unit only in the manner intended by the manufacturer. If you have

questions, contact the manufacturer.

b) Before servicing or cleaning the unit, switch power off at service panel

and lock the service disconnecting means to prevent power from being

switched on accidentally. When the service disconnecting means cannot

be locked, securely fasten a prominent warning device, such as a tag, to

the service panel.

WARNING: TO REDUCE THE RISK OF FIRE,

ELECTRIC SHOCK AND INJURY TO PERSON,

OBSERVE THE FOLLOWING:

a) Installation work and electrical wiring must be done by qualified person(s)

in accordance with all applicable codes and standards, including fire-

related construction.

b) Sufficient air is needed for proper combustion and exhausting of gases

through the flue (chimney) of fuel burning equipment to prevent back

drafting. Follow the heating equipment manufacturer’s guideline and

safety standards such as those published by the National Fire Protection

Association (NFPA) and the American Society for Heating, Refrigeration,

and Air Conditioning Engineers (ASHRAE), and the local code authorities.

c) When cutting or drilling into wall or ceiling, do not damage electrical

wiring and other hidden utilities.

CAUTION: FOR GENERAL VENTILATING USE ONLY.

DO NOT USE TO EXHAUST HAZARDOUS OR EXPLOSIVE

MATERIALS AND VAPORS.

d) This unit must be grounded.

e) To avoid motor bearing damage and noisy and/or unbalanced impellers,

keep drywall spray, construction dust, etc. off power unit.

f) Read all instructions before installing or using exhaust fan.

g) For residential installations only.

h) Must use suitable weather hood with insect screen to protect air intake.

WARNING: TO REDUCE THE RISK OF FIRE,

REMOVE ANY SHIPPING MATERIAL THAT MAY BE

PRESENT INSIDE THE UNIT.

WARNING: TO REDUCE THE RISK OF FIRE,

ELECTRIC SHOCK, DO NOT USE THIS FAN WITH ANY

SOLID-STATE SPEED CONTROL DEVICE.

WARNING: DO NOT USE IN KITCHENS.

WARNING: THE DUCTING FROM THIS FAN TO THE

OUTSIDE OF THE BUILDING HAS A STRONG EFFECT ON THE

AIR FLOW, NOISE AND ENERGY USE OF THE FAN. USE THE SHORTEST,

STRAIGHTEST DUCT ROUTING POSSIBLE FOR BEST PERFORMANCE,

AND AVOID INSTALLING THE FAN WITH SMALLER DUCTS THAN

RECOMMENDED. INSULATION AROUND THE DUCTS CAN REDUCE

ENERGY LOSS AND INHIBIT MOLD GROWTH. FANS INSTALLED WITH

EXISTING DUCTS MAY NOT ACHIEVE THEIR RATED AIRFLOW.

READ AND SAVE THESE INSTRUCTIONS

READ CAREFULLY BEFORE ATTEMPTING TO ASSEMBLE, INSTALL, OPERATE OR MAINTAIN

THE PRODUCT DESCRIBED. PROTECT YOURSELF AND OTHERS BY OBSERVING ALL SAFETY

INFORMATION. FAILURE TO COMPLY WITH INSTRUCTIONS COULD RESULT IN PERSONAL

INJURY AND/OR PROPERTY DAMAGE!

RETAIN INSTRUCTIONS FOR FUTURE REFERENCE.

GENERAL SAFETY INFORMATION

When using electrical appliances, basic precautions should

always be followed to reduce the risk of fire, electric shock and

injury to person, including the following:

Inline Fan

MQFAM, MFAS

IMPORTANT INSTRUCTIONS - OPERATING MANUAL

www.airkinglimited.com6728092 Rev. E 4/22 2 of 12

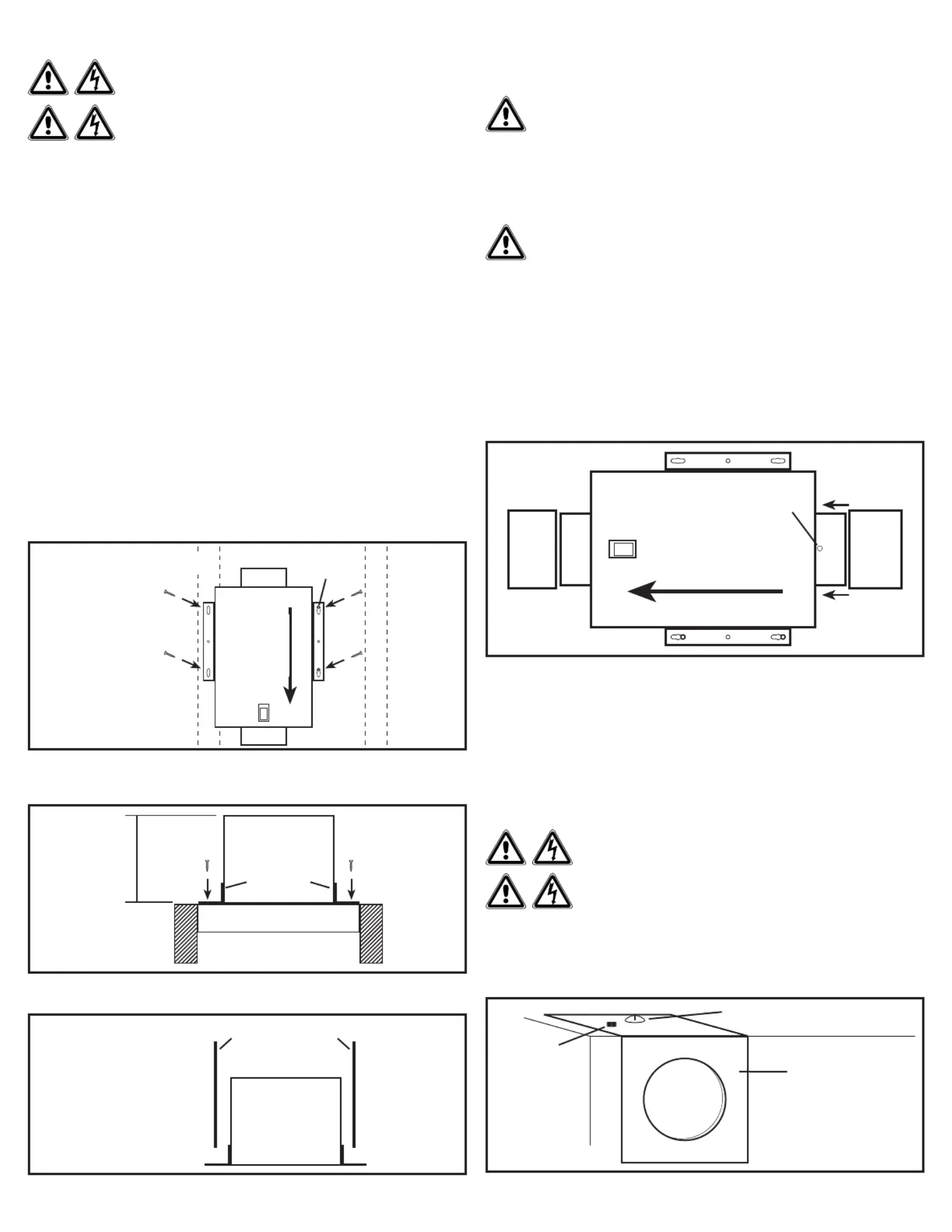

INSTALLATION INSTRUCTIONS

CAUTION: MAKE SURE POWER IS SWITCHED OFF AT

SERVICE PANEL BEFORE STARTING INSTALLATION.

WARNING: TO REDUCE THE RISK OF FIRE, REMOVE ANY

SHIPPING MATERIAL THAT MAY BE PRESENT INSIDE THE UNIT.

SECTION 1

Preparing the Fan

1. Unpack fan from the carton and confirm that all pieces are present. In addition to the fan

you should have:

2 - Collar Assembly (attached) 1 - Controller (attached) (MQFAM only)

2 - Mounting Brackets (attached) 1 - Instruction/Safety Sheet

2. Choose the location for your fan. To ensure the best air and sound performance, it is

recommended that the length of ducting and the number of elbows be kept to a minimum,

the radius of each elbow be as large as possible for the installation, and that insulated hard

ducting be used. This fan will require at least 10" of clearance in the ceiling or wall. The

fan mounts using the provided mounting brackets or can be surface mounted to a wall or

ceiling.

NOTE: The fan must be installed into a location that can be easily accessed once installed.

3. No additional vibration deadening materials are needed for this fan.

SECTION 2

Mounting the Fan

1. Confirm the fan is positioned so the air flow is in the correct direction.

2a. Surface Mounting: Locate at least one stud or joist. Place the fan in position so that the

mounting bracket is centered on the stud or joist and make the location for the four (4)

holes. Remove the fan and install properly rated wall/ceiling anchors for the holes that do

not go directly into a joist or stud. Position fan in place and secure with screws (not

included) (Figure 1).

2b. Mounting to a Joist: Install two - 2 x 4 headers (not included) between the joists. Position

the fan housing on top of the headers and secure the mounting brackets with screws (not

included) to the header .(Figure 2)

2c. Hanging Bar Mounting: Lift unit up onto the threaded rods and secure in place using

appropriate hardware (not included) (Figure 3).

Figure 1

Screws

Stud/Joist Anchor

Air Flow

Figure 2

Joist

2 x 4 Header

Bracket

Figure 3 Bracket

Housing

Threaded Rod

SECTION 3

Ducting

NOTE: 6" OR LARGER RIGID DUCT IS RECOMMENDED FOR BEST PERFORMANCE.

CAUTION: ALL DUCTING MUST COMPLY WITH LOCAL AND NATIONAL

BUILDING CODES.

NOTE: The ducting from this fan to the outside of the building has a strong effect on the air

flow, noise and energy use of the fan. Use the shortest, straightest duct routing possible for

best performance, and avoid installing the fan with smaller ducts than recommended. Insulation

around the ducts can reduce energy loss and inhibit mold growth. Fans installed with existing

ducts may not achieve their rated air flow.

WARNING: MAKE SURE THE FRESH AIR INTAKE PORT COMPLIES WITH

ALL LOCAL AND NATIONAL CODES AND IS LOCATED AT LEAST 6 FEET AWAY

FROM SOURCES OF CONTAMINATION SUCH AS BUT NOT LIMITED TO: DRYER,

FURNACE OR CENTRAL VACUUM EXHAUSTS, GAS APPLIANCES SUCH AS BBQ GRILLS,

GARBAGE BINS OR OTHER EXHAUST PORTS.

NOTE: To ensure quiet operation of in-line and remote fans, each fan shall be installed using

sound attenuation techniques appropriate for the installation. For bathroom and general

ventilation applications, at least 8 feet of insulated flexible duct shall be installed between the

exhaust or supply grille(s) and the fan.

1. Connect the ducting to the fan’s duct collar Seal ducting to housing with (Figure 4).

appropriately rated tape. Use screws or suitable clamps to secure in place. Make sure the

fresh air intake is connected to a properly installed intake port that is a suitable weather

hood with insect screen to protect air intake. It is recommended that low restriction

termination fittings be used.

2. Ensure duct joints and exterior penetrations are sealed with caulk or other similar material

to create an air-tight path to minimize building heat loss or gain and to reduce the potential

for condensation. Place/wrap insulation around duct and/or fan in order to minimize

possible condensation buildup within the duct, as well as building heat loss or gain.

NOTE: At the base of the duct adapter, there is a small diameter test port hole covered with a

plastic cap. Make sure the test port is not covered up with the ducting so that it can be accessed

for pitot tube testing. To access the port, remove the port cover and insert tube.

SECTION 4

Wiring

CAUTION: MAKE SURE POWER IS SWITCHED OFF AT

SERVICE PANEL BEFORE STARTING INSTALLATION.

CAUTION: ALL ELECTRICAL CONNECTIONS MUST BE MADE

IN ACCORDANCE WITH LOCAL CODES, ORDINANCES, OR NATIONAL

ELECTRICAL CODE. IF YOU ARE UNFAMILIAR WITH METHODS OF INSTALLING ELECTRICAL

WIRING, SECURE THE SERVICES OF A QUALIFIED ELECTRICIAN.

NOTE: This unit includes a side access panel for wiring that does not require the removal of the

fan’s blower assembly.

1. Remove the wire compartment cover screw and place cover in a secure place (Figure 5).

Figure 4

Air Flow

Intake

Ducting

Outlet

Ducting

Test Port

Figure 5

Screw

Wire

Compartment

Cover

Ground

Screw
