Unpack the activator and place it on a table or other suitable at surface.
The activator is equipped with adjustable feet so it can be leveled on the table top.
Make sure the plate locator supplied with the activator is attached to the metal housing. There are
two screws in the rear of the activator that hold the plate locator in place. These can be removed
so the locator can be taken off for cleaning.
For the plate activator model AIPH1, plug the activator into a 120 Volt, 15 Amp, Single Phase,

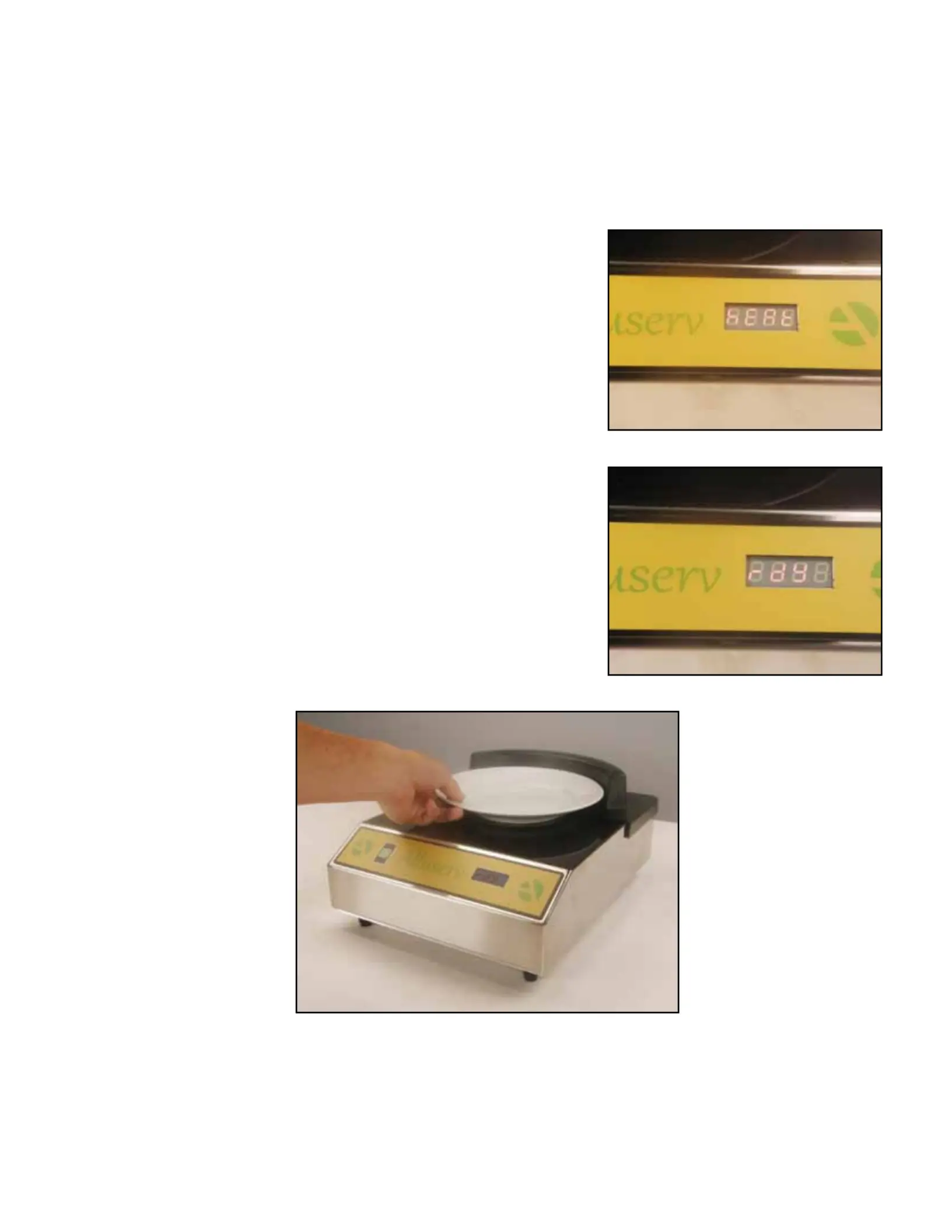

2. Place the plate on top of the activator making sure to push it
completely back into the plate locator. This will center the plate
on the activator insuring the most even heating. The digital dis-
play will read hEAt, indicating that the plate is being heated.
3. When heating is complete (approximately 20 seconds) the
digital display will show , indicating that the heating cycle rdy
is complete and the plate is hot, ready to be removed from the
activator, and have food placed on it.
4. Once a hot plate is removed from the activator the digital dis-
play will again show Ld, and the next plate can be loaded.
The double induction plate activator model AIPH2, has two heating areas that operate
independently of each other. Each side has its own power switch and digital display.
Plug the activator into a 120 Volt, 20 Amp, Single Phase, grounded receptacle, NEMA 5-20R.
The power switch for each side must be pressed to activate that side before it will heat.
Each side will operate as previously described in the instructions for the single plate activator.
The two sides can be operated as instructed independently of each other.
1. Press the green power button on the front panel. The digital
display should light and read Ld. This indicates the activator is
ready for a plate to be loaded.
