Side 1/4

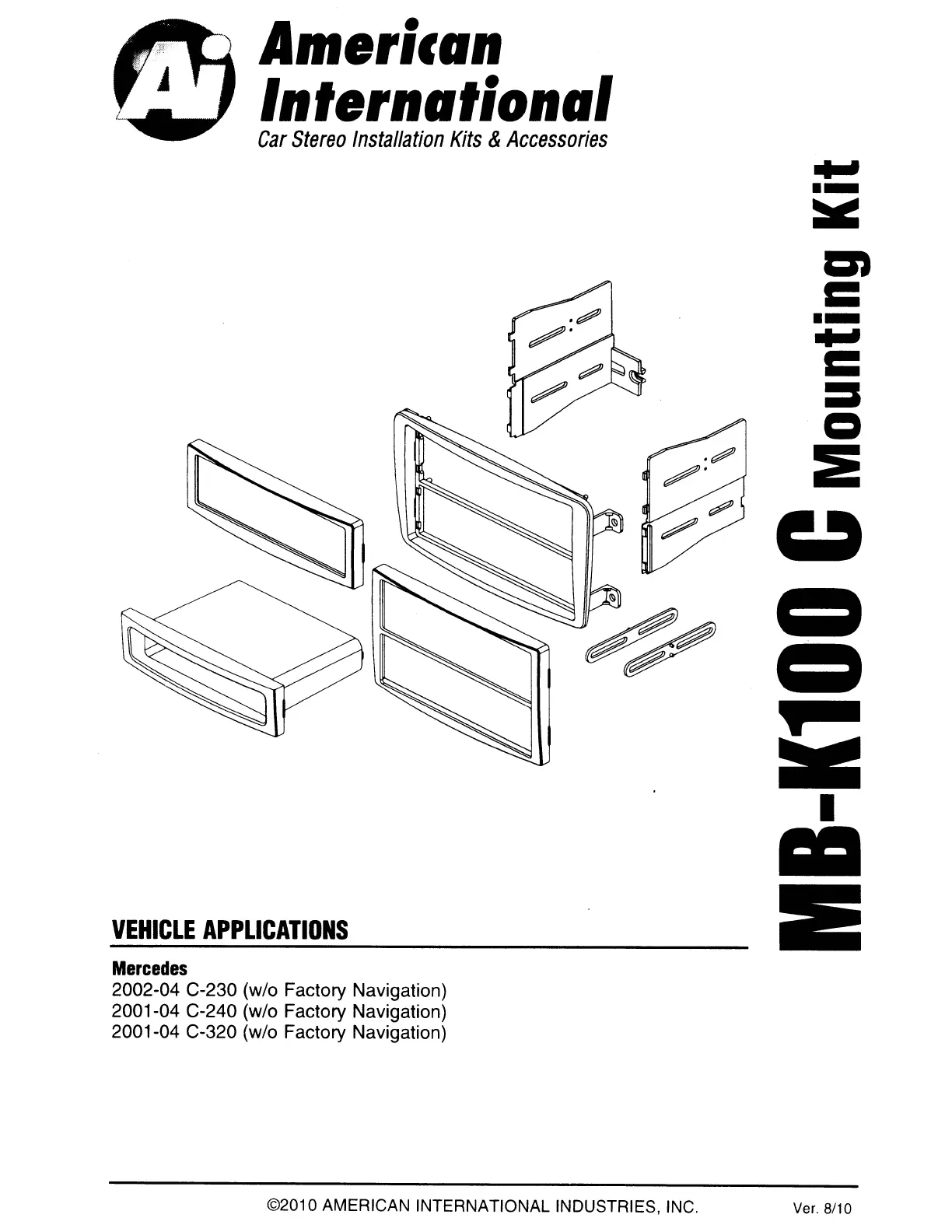

JImeriean
'nfernafiona'
Car
Stereo
Installation
Kits
&
Accessories
VEHICLE
APPLICATIONS
Mercedes
2002-04 C-230 (w/o Factory Navigation)
2001-04 C-240 (w/o Factory Navigation)
2001-04 C-320 (w/o Factory Navigation)
..
.-
=--=
=
c:::
.-
..
c:::
:::I
Q
:E
e.:t
=
=
;;
I
III
E
©2010 AMERICAN INTERNATIONAL INDUSTRIES, INC. Ver.8/10

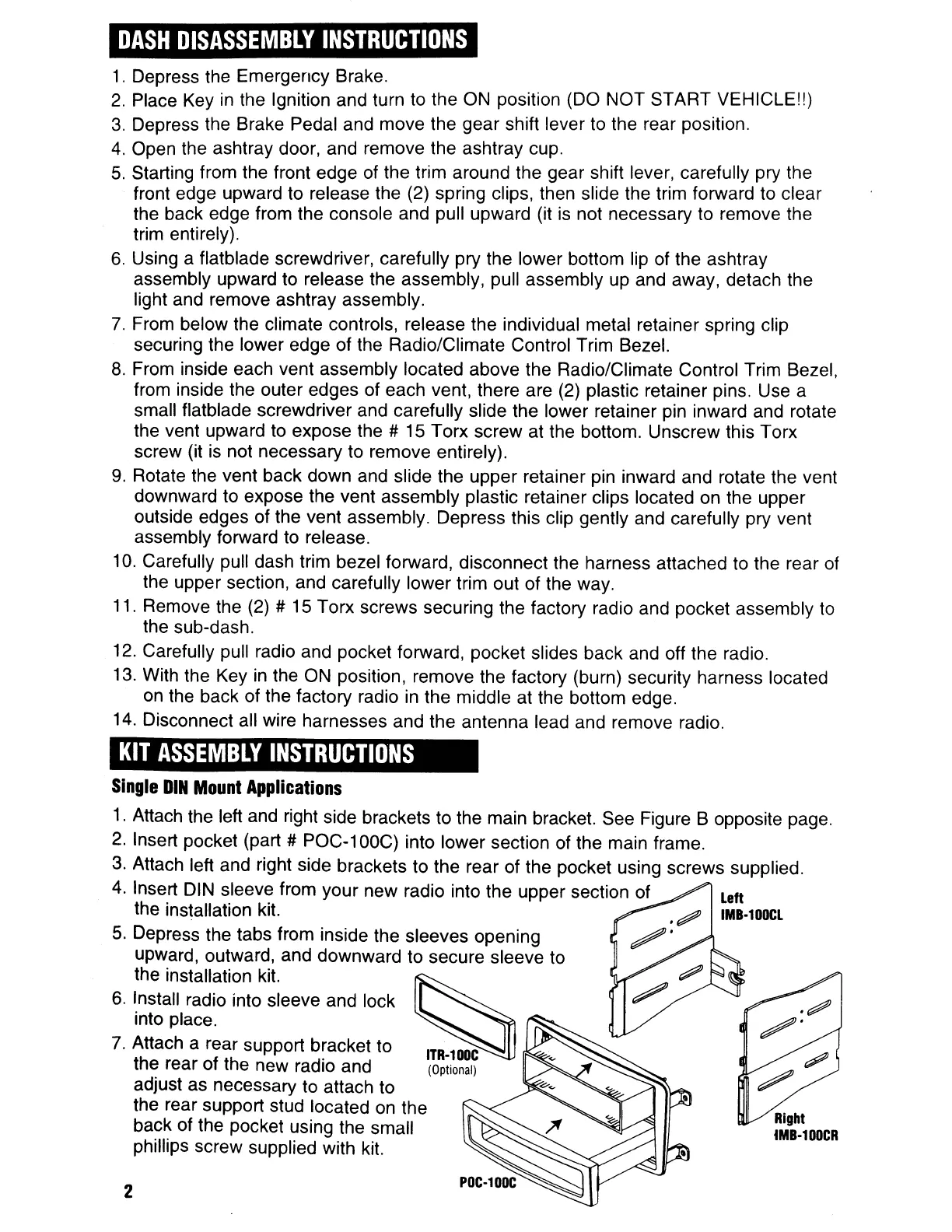

1.
Depress the Emergency Brake.
2.
Place Key
in
the Ignition and turn
to
the
ON
position (DO NOT START VEHICLE!!)
3.
Depress the Brake Pedal and move the gear shift lever
to
the rear position.
4.
Open the ashtray door, and remove the ashtray cup.
5.
Starting from the front edge of the trim around the gear shift lever, carefully pry the
front edge upward to release the (2) spring clips, then slide the trim forward to clear
the back edge from the console and pull upward (it
is
not necessary to remove the
trim entirely).
6.
Using a
f1atblade
screwdriver, carefully pry the lower bottom
lip
of the ashtray
assembly upward to release the assembly, pull assembly
up
and away, detach the
light and remove ashtray assembly.
7.
From below the climate controls, release the individual metal retainer spring clip
securing the lower edge of the Radio/Climate Control Trim Bezel.
8.
From inside each vent assembly located above the Radio/Climate Control Trim Bezel,
from inside the outer edges of each vent, there are
(2)
plastic retainer pins. Use a
small
f1atblade
screwdriver and carefully slide the lower retainer pin inward and rotate
the vent upward
to
expose the #
15
Torx screw at the bottom. Unscrew this Torx
screw (it
is
not necessary
to
remove entirely).
9.
Rotate the vent back down and slide the upper retainer pin inward and rotate the vent
downward to expose the vent assembly plastic retainer clips located
on
the upper
outside edges of the vent assembly. Depress this clip gently and carefully pry vent
assembly forward
to
release.
10.
Carefully pull dash trim bezel forward, disconnect the harness attached to the rear of
the upper section, and carefully lower trim out of the way.
11.
Remove the
(2)
#
15
Torx screws securing the factory radio and pocket assembly
to
the sub-dash.
12.
Carefully pull radio and pocket forward, pocket slides back and off the radio.
13.
With the Key
in
the
ON
position, remove the factory (burn) security harness located
on
the back of the factory radio
in
the middle
at
the bottom edge.
14.
Disconnect all wire harnesses and the antenna lead and remove radio.
KIT
ASSEMBLY
INSTRUCTIONS
Right
fMB·100CR
Single
DIN
Mount
Applications
1.
Attach the left
and
right side brackets
to
the main bracket. See Figure B opposite page.
2.
Insert pocket (part # POC-100C) into lower section of the main frame.
3.
Attach left and right side brackets to the rear of the pocket using screws supplied.
4.
Insert DIN sleeve from your new radio into the upper section of
the installation kit.
5.
Depress the tabs from inside the sleeves opening
upward, outward, and downward to secure sleeve to
the installation
kit.
~
6.
Install radio into sleeve and lock
into place.
7.
Attach a rear support bracket to
ITR.100C
the rear of the new radio and
(Optional)
adjust
as
necessary
to
attach
to
the rear support stud located
on
the
back of the pocket using the small
phillips screw supplied with
kit.
2
