Installation Guide

CC-NIRC NetLinx IR Emitter Cable

For full warranty information, refer to the AMX Instruction Manual(s) associated with your Product(s).

8/12

AMX reserves the right to alter specifications without notice at any time.

3000 RESEARCH DRIVE, RICHARDSON, TX 75082 • 800.222.0193 • fax 469.624.7153 • technical support 800.932.6993 • www.amx.com

REV: B93-0011-11

Overview

The CC-NIRC (FG10-000-11) is an IR emitter cable used with NetLinx

controllers to control your equipment either from IR emitters or a hand-held

remote control. Utilizes a 2-pin, 3.5 mm Phoenix connector on one end and

a single LED emitter (flasher) on the other end.

One black adhesive backed IR window shield is included. With this shield

surrounding the internal emitter, you can restrict IR reception through the

device’s control window by blocking any interference or IR signals

produced by sources other than the internal emitter. Without this shield,

any incoming IR signal can pass through to the IR control window and

overlap signals sent via the emitter. See for details.Shielded Configuration

Note: Clean the surface of the IR window of your equipment and make

sure it is free of any residue or contaminants before attaching the IR

emitter.

Pass-Through Configurations

This method allows IR signals generated from hand-held remotes to easily

pass through the opaque red shell/cover. The internal IR LED can be

oriented to either face towards or away from the shell, depending on its

output configuration.

• Use the low-output configuration when device is being saturated by an

IR signal.

• Use the high-output configuration when the device isn’t receiving

enough of an IR signal and requires more strength. The side with the

round “bump” is the high-output side.

Removing the Factory-Installed Shell

The factory-installed shell is easily removed by carefully separating the two

halves with a sharp-edged tool.

The IR LED can then be reversed or removed when the shell is separated.

Once the IR emitter and/or shield installations have been completed, the

housing can be re-assembled by pressing the two halves firmly together.

Shielded Configuration

Use this configuration to prevent interference from fluorescent lights or

other IR sources. The metallic shield prohibits passage of external IR

signals and ensures proper IR signals will be received from the emitter.

1. Remove the IR LED from the factory-installed shell.

2. Test fit the location and size of the IR shield on the target device. If

necessary, use scissors to trim the shield to fit the opening of the IR

window.

3. Remove the adhesive backing from the IR shield and carefully place

the IR LED into the recessed area using the correct orientation. Make

sure the wires attached to the IR LED are not shorted together.

4. Flip the shield-emitter combo back over and begin to carefully position

the shield over the IR control window so that it covers the entire sur-

face. This keeps any other signal from coming through.

5. Press firmly on the shield surface to activate the pressure-sensitive

adhesive.

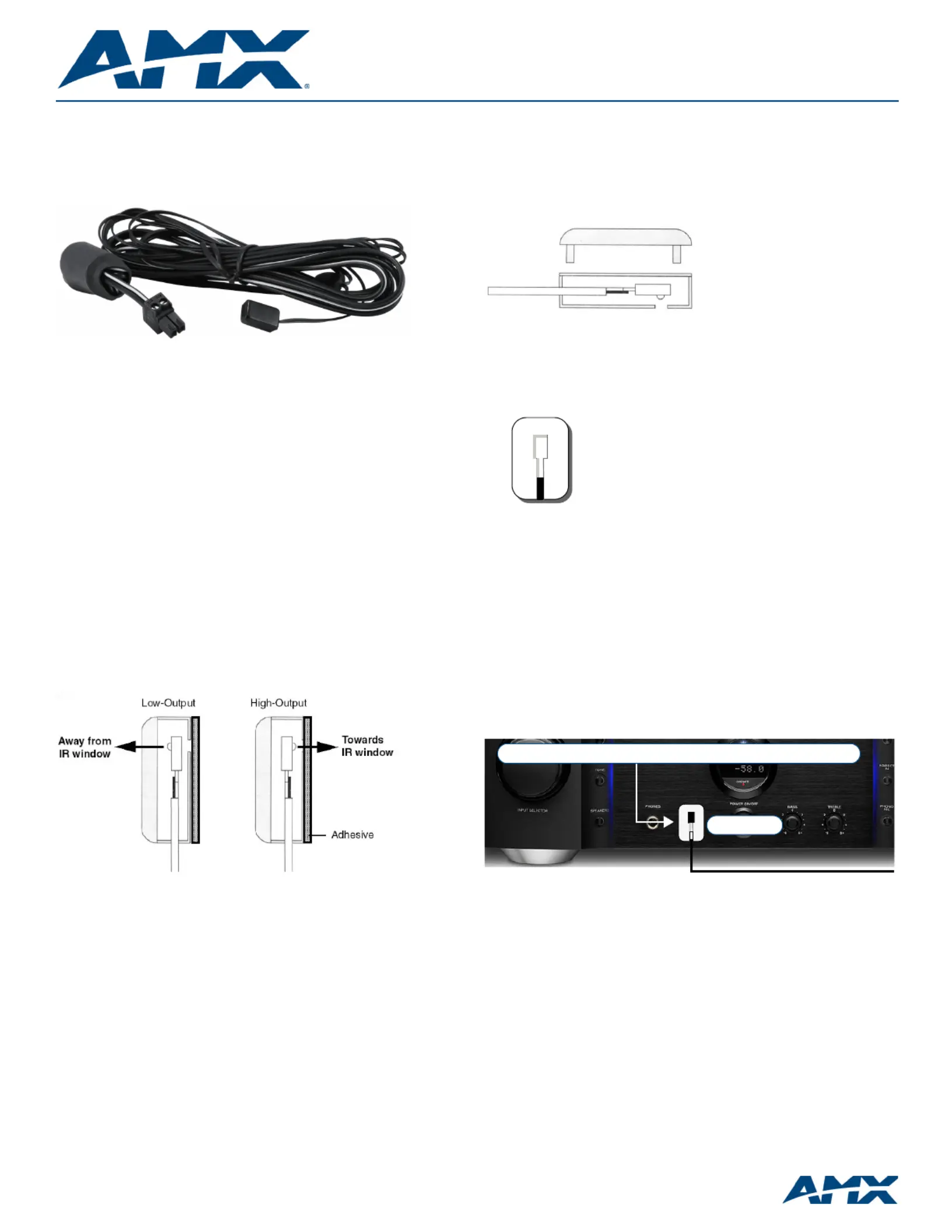

FIG. 1 CC-NIRC

FIG. 2 Low-Output and High-Output sides

FIG. 3 Removing the Factory-Installed Shell

Opaque IR Window Shell

Example CC-NIRC Installation

Opaque IR Window Shield

CC-NIRC Cable

IR Emitter Shield covering the IR Window on Controlled Device

CC-NIRC
