Installation Guide

CP-RC01, IR Remote

For full warranty information, refer to the AMX Instruction Manual(s) associated with your Product(s).

11/10

AMX reserves the right to alter specifications without notice at any time.

3000 RESEARCH DRIVE, RICHARDSON, TX 75082 • 800.222.0193 • fax 469.624.7153 • technical support 800.932.6993 • www.amx.com

93-1302-70 REV: A

Overview

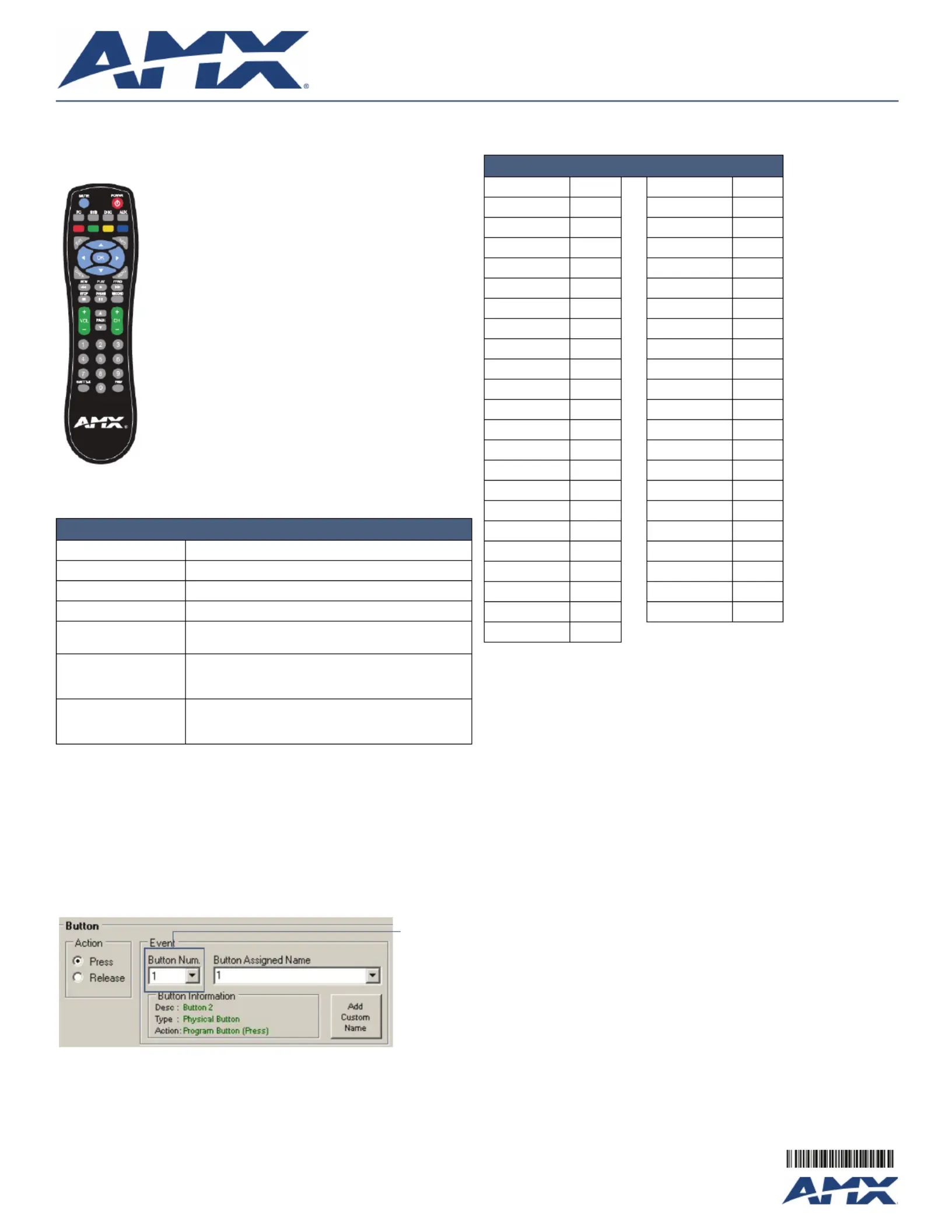

The CP-RC01 IR Remote ( ) (FIG. 1) provides local control ofFG1302-70

CP-3008 and CP-3017 series ControlPads.

Product Specifications

Button Functions

You can create a CP-3000 script for each button on the remote to perform a

specific task when pressed. The buttons can be programmed by using AMX

DCS software to program a virtual button. Each button has a corresponding IR

remote code. See the section for a list of IR remote codes.IR Remote Codes

To program a button function, write a script for a virtual button numbered with

the corresponding IR remote code for the button on the remote plus 100. For

example, if you want to program the Power button on the remote, you should

write a script for virtual button 109 (9+100). Select the virtual button from the

Button Num menu in the Button Event area of the AMX DCS window.

For more information about scripting and using AMX DCS, consult the NOVARA

3000-Series ControlPads Operation/Reference Guide.

IR Remote Codes

The following table lists the IR codes for the CP-RC01 remote.

FIG. 1 CP-RC01 IR Remote

CP-RC01 IR Remote

Dimensions (HWD): 8” x 2” x 1” (20 cm x 5.5 cm x 2.8 cm)

Weight: Without batteries: 0.208 lbs (94.34g)

Battery: 2 AAA Batteries

Power Consumption: Approximately 50mA at IR transmit

IR Transmit

Frequency:

38 KHz

Range: 20-30ft (6-9m) Standard

Note: Range can be affected by factors such as angle of

incidence and LED graph brightness.

Operating

Environment:

• Storage temperature range: -40° - 158° F (-40° - 70° C)

• Operating temperature range: 41° - 104° F (5° - 40° C)

• Relative humidity: 10% to 90%, non-condensing

FIG. 2

Button Event area of the AMX DCS window

Select a

virtual

button

from this

menu.

IR Remote Codes

Button Code Button Code

Mute 26 Record 8

Power 9 Pause 2

PC 30 Stop 3

STB 31 Volume Up 24

Disc 32 Volume Down 25

Aux 33 Page Up 106

Red 71 Page Down 107

Green 72 Channel Up 22

Yellow 73 Channel Down 23

Blue 74 1 11

Exit 50 2 12

Info 101 3 13

Up 45 4 14

Down 46 5 15

Left 47 6 16

Right 48 7 17

OK 49 8 18

Guide 105 9 19

Menu 44 0 10

Rewind 5 Subtitle 100

Play 1 Prev 81

Fast Forward 4
