QUICK START GUIDE

RMBK-1001 10.1” AMX RoomBook Scheduling Touch Panel

Overview

The RMBK-1001 10.1" AMX RoomBook Scheduling Touch Panel (FG2265-40) is a standalone

scheduling panel that integrates directly with popular room scheduling software without

additional system hardware requirements.

Product Specifications

Supported Scheduling Systems

AMX RoomBook Scheduling Panels support Microsoft Exchange, Office 365 and Google

Calendar. The following versions of each scheduling system are tested and verified:

RMBK-1001 Installation

The RMBK-1001 can be installed via several mounting options: Use the included clear plastic

Backbox to attach the panel to most standard wall materials. Other optional AMX mounting

solutions include the MSA-MMK2-10 Multi Mount Kit, the MSA-AMK2-10 Any Mount Kit, and

the CB-MXSA-10 Rough-In Box. Refer to the Quick Start Guide included with each mounting kit

for instructions.

Power Over Ethernet

Power for the RMBK-1001 is supplied via Power Over Ethernet (PoE), utilizing an AMX-

certified PoE injector such as the PS-POE-AF-TC PoE Injector (FG423-83). Connect the

incoming Ethernet cable to the RJ-45 port on the RMBK-1001.

Plastic Backbox

The RMBK-1001 comes with a clear plastic Backbox. This Backbox can be used to mount the

touch panel into most standard wall materials. The Backbox can also used to mount the panel

into other mounting options.

STEP 1: Install the Plastic Backbox

Use the included Installation Template to determine the placement of the Backbox in the

mounting surface. The outside edges of the template are the same dimensions as the touch

panel, which allows you to troubleshoot possible conflicts with wall edges, doors, and other

potential obstacles.

1. After ensuring proper placement, cut an opening in the mounting surface for the

Backbox, using the included Installation Template as a guide.

Note: Consider making the actual cutout opening slightly smaller than the provided

dimensions. This provides a margin of error if the opening needs to be expanded. Too little

wall material removed is always better than too much.

2. Thread the incoming cables (Ethernet and Micro-USB) from their terminal locations

through the surface opening, leaving enough slack in the wiring to accommodate any re-

positioning of the panel.

3. Remove the Backbox knockouts and thread incoming cables through the knockout

holes.

4. Gently push the Backbox into the mounting surface.

• This Backbox uses four Locking Tabs to secure the Backbox to the wall. For typical

mounting surfaces, such as drywall, the locking tabs are the primary method for

securing the Backbox to the wall.

• To ensure a stable installation, the thickness of the wall material must be a minimum of

.50 inches (1.27cm) and a maximum of .875 inches (2.22cm). The mounting surface

should also be smooth and flat. For thin walls or solid surfaces, use mounting screws

(not included) - see FIG. 2.

5. Extend the Locking Tabs by tightening the Locking Tab screws until snug (FIG. 3):

CAUTION: The maximum recommended torque to screw in the locking tabs on the plastic

Backbox is 5 IN-LB [56 N-CM]. Excessive torque on the tab screws can strip out the

locking tabs or damage the Backbox.

• Extend the Locking Tabs only AFTER the Backbox is inserted into the wall.

• When installing the Backbox, make sure that it is positioned correctly.

• The Backbox is clear to allow visual confirmation that the tabs have been extended and

are gripping the wall, as well as in assisting with removal if necessary.

STEP 2: Insert Connectors on the Touch Panel

1. Before installing the touch panel into the Backbox, connect the Ethernet and USB cables

to the rear of the panel.

2. Remove power at the terminal end before continuing with the installation.

Note: Do not disconnect the connectors from the touch panel. The panel must be installed

with the attached connectors before being inserted into the mounting surface.

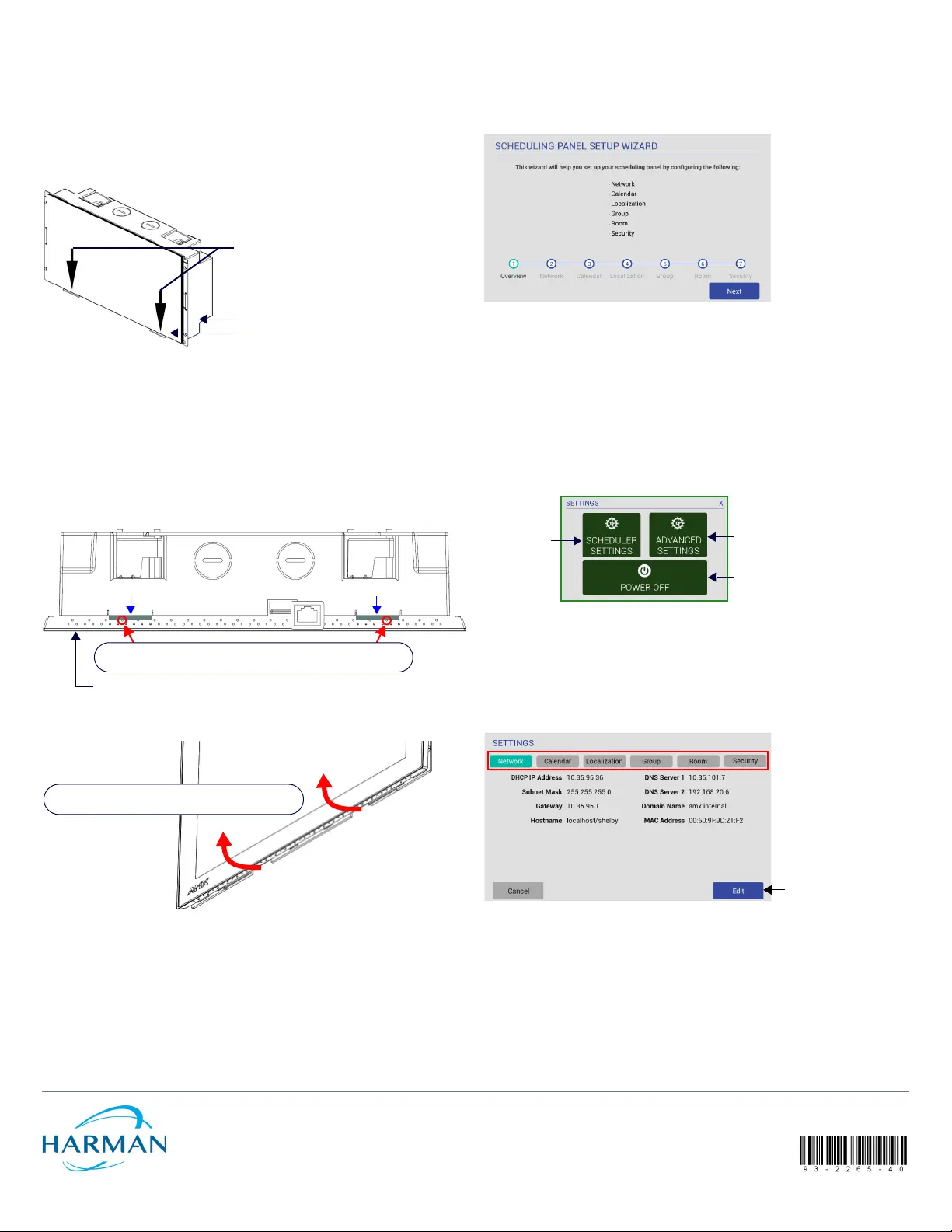

STEP 3: Secure the Touch Panel To the Backbox

The Backbox uses notches and tabs on the front edges (top and bottom) to secure the panel

into place. Follow the steps below to install the panel into the Backbox, starting the upper edge

of the touch panel:

UPPER TABS FIRST

1. Center the top edge of the touch panel against the upper outside edge of the Backbox

and latch the top of the panel onto the Backbox top-hooks (FIG. 4):

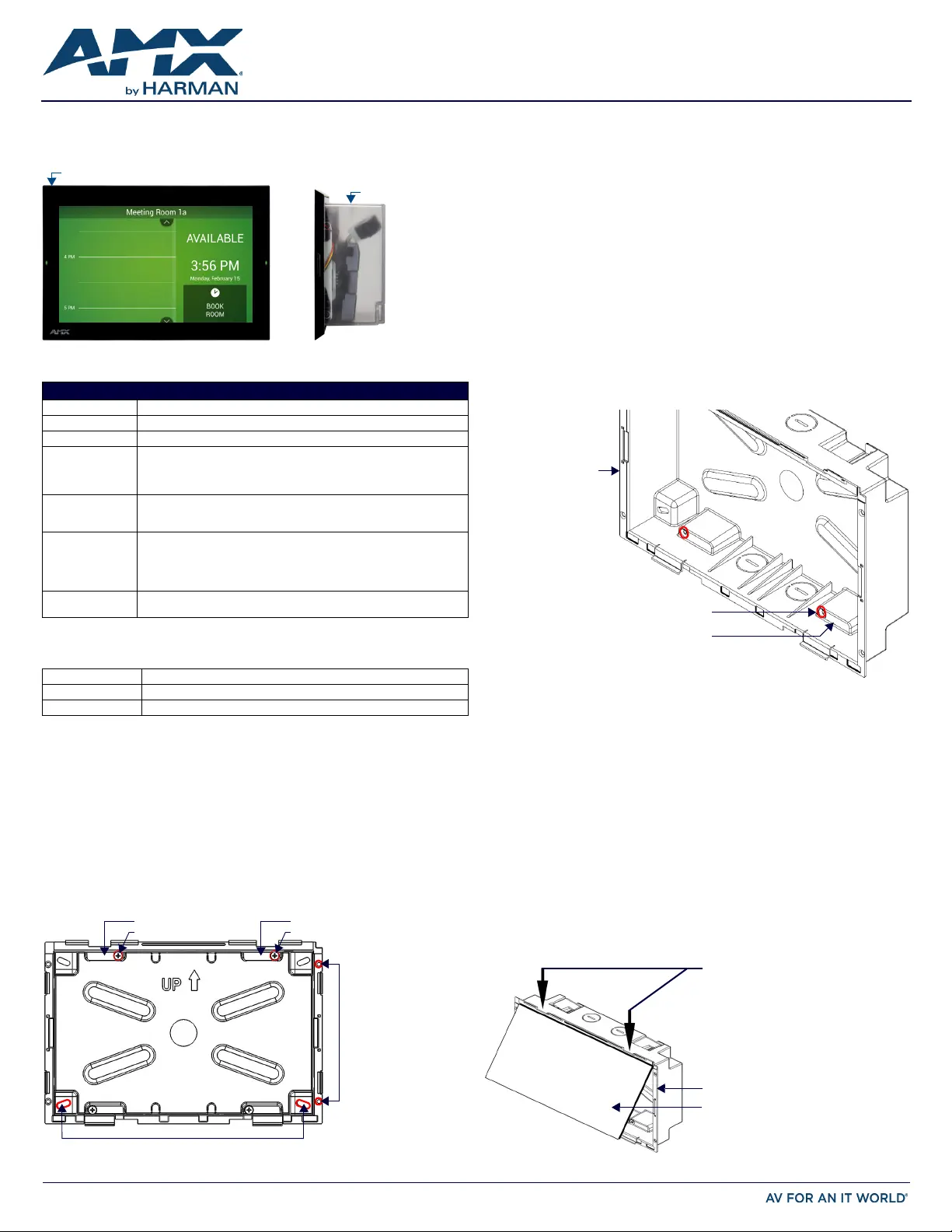

FIG. 1 RMBK-1001

RMBK-1001 SPECIFICATIONS

Dimensions (HWD) 6 13/16" x 10 1/16" x 2" (174 mm x 255 mm x 51 mm), with Backbox

Weight 1.95 lbs (.885 Kg), with back box, 1.5 lbs (.680 Kg), without back box

Power Consumption Full-On: 14.5W (max), Typical: 7.5W, Standby: 4.7W, Shutdown: 0.8W

External Power

Supply Required

Optimal performance requires use of one of the following AMX PoE power

supplies (not included):

• PS-POE-AF-TC, PoE Injector, 802.3AF Compliant (FG423-83)

• NXA-ENET8-2POE, Gigabit PoE Ethernet Switch (FG2178-63)

Certifications • FCC Part 15 Class A

• C-Tick CISPR 22 Class A

• CE EN 55022 Class A and EN 55024

• IEC/EN-60950

• UL 60950-1

•RoHS/WEEE compliant

Environmental • Temperature (Operating): 32°F to 104°F (0°C to 40°C)

• Temperature (Storage): 4°F to 140°F (-20°C to 60°C)

• Humidity (Operating): 20% to 85% RH

• Humidity (Storage): 5% to 85% RH

• Heat Dissipation: On: 22.2 BTU/hr, Standby: 14.3 BTU/hr

Included

Accessories

• Installation Template 10.1" S Modero S (68-2265-03)

• Backbox, Wall Mount, 10.1" (60-2265-19)

Microsoft Exchange Exchange 2010 SP3, Exchange 2013 CU11, Exchange 2016 RTM

Office 365 Office 365 Business Premium and Exchange Online (Plan 1)

Google Calendar Google Apps for Work

FIG. 2 10.1" BACKBOX (FRONT VIEW)

Backbox

(side view)

Pushbutton

Locking Tab (X4)

Locking Tab screw (x4)

Mounting holes (X4) for installing the Backbox into a Rough-In Box (screws not included)

Mounting holes (X4)

for use with mounting

screws (not included)

Use these mounting holes

to install the Backbox into

thin walls (less than 0.5”

Locking Tab (X4)

Locking Tab screw (x4)

thick) or solid surfaces

FIG. 3 10.1” BACKBOX - LOCKING TAB AND LOCKING TAB SCREW (X4)

FIG. 4 ENGAGING THE TOP EDGE OF THE PANEL WITH THE TOP HOOKS ON THE BACKBOX

Locking Tab screw (x4) - tighten to extend

each of the four Locking Tabs

(max torque = 5 IN-LB)

Locking Tab (x4)

10.1” Wall Mount Backbox

Use the top-hooks on the top edge of the

Plastic Backbox

RMBK-1001 Touch Panel

Backbox to latch the top of the touch

panel into place
