Installation Guide

IS-PLAYER-200 Inspired Player Server

Overview

The IS-PLAYER-200 (FG1230-08) is a self-contained solution for Inspired Signage

software that delivers content to each display (FIG. 1). The IS-PLAYER-200 (“Player”)

runs the Babel and Player applications.

Features

• High-definition video output at 1080p 60HZ

• 2.13 GHz Intel® Core™2 Duo processor with 2MB cache

• 1 GB RAM (2 x 512MB)

• Performance graphics card - DirectX 9c compliant

• SATA 3.0Gb/s Hard Drive 80 GB

Additional Documentation

For more detailed instructions on configuring the IS-PLAYER-200, refer to the

IS-PLAYER-200/LM Installation/Reference Guide (available at www.amx.com).

Important Safety Markings

Note: Power supply cords shall have conductors with cross-sectional areas sufficient

for the rated current of the equipment. Conductors shall be sized based on the

requirements in the National Electrical Code, ANSI/NFPA 70, and the Canadian

Electrical Code, Part I, CSA C22.1. The length of a power supply cord shall not

exceed 4.5 m.

Product Specifications

Rack Mounting the IS-PLAYER-200

The Player is designed to be installed in an equipment rack, using the supplied Rack

Mount Ears. The Player requires 2 rack-units in a standard 19” equipment rack.

IMPORTANT NOTES

• The Player requires adequate ventilation. Before rack-mounting the

Player, please read the IS-PLAYER-200/LM Rack Mounting

Installation Guide (included with the Player).

• Before installing the Player in the rack, write down the MAC address

which is indicated on a label on the rear of the unit (FIG. 3). You’ll need

this information later, and once the PC is rack-mounted it may be

difficult to view the label.

1. Use the supplied mounting screws to attach the Rack Mount Ears to both sides

of the Player chassis (FIG. 2).

2. Secure the Player to the mounting rails in the rack.

Connections and Wiring

FIG. 3 describes the rear panel connectors:

Once the Player has been installed, and all cabling connections are complete, turn it

on and wait for content to appear on the screen before continuing to the next step.

This may take several seconds.

Network Configuration

To ensure connectivity between the Inspired Composer application and the Player, it is

important that the IP address of the Player does not change.

The Player is configured to obtain its address automatically, from a DHCP server.

Therefore, we recommend that you use a DHCP server that can preserve the binding

between the Player’s MAC address and IP address. If this is not possible, the Player

can be allocated a static IP address as described in the following section.

Please consult your network administrator for advice on the best approach for your

network scenario.

• If you know your Player’s IP address (example: http://10.0.0.1:25001), you can

direct your web browser to port 25001 on the Player.

• If you do not configure your DHCP server to allocate a predefined IP address to

the Player, you will not know which IP address your Player has been allocated.

In this case, you can use Apple’s Bonjour Client software.

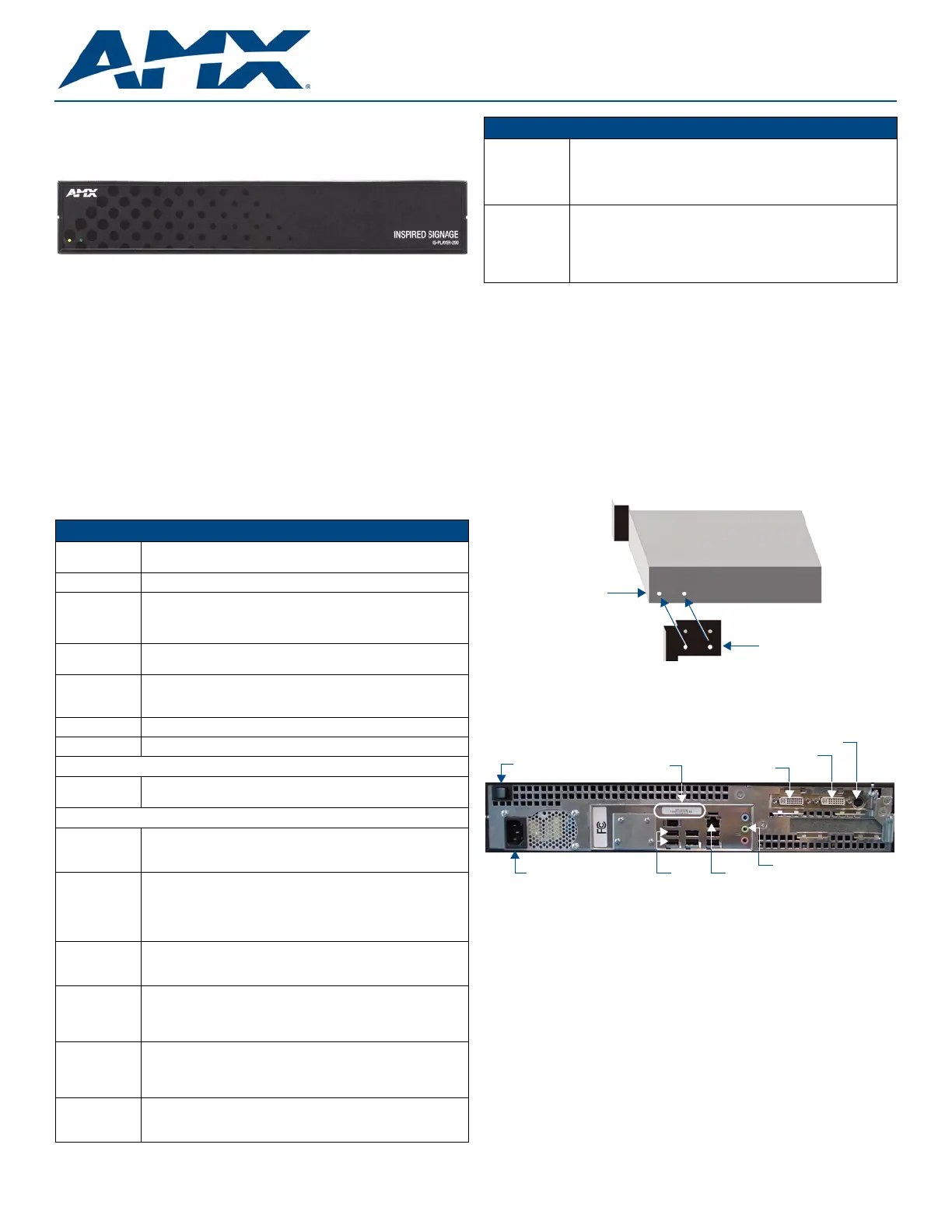

FIG. 1 IS-PLAYER-200 - Front Panel

IS-PLAYER-200 - Product Specifications

Dimensions

(HWD)

• 2.8" x 16.25" x 12" (7.11 cm x 41.27 cm x 30.48 cm)

• 2 RUs

Weight 13.75 lbs (6.24 kg)

Environment • Operating Temperature: 0° C to 40° C (32° F to 104° F)

• Storage Temperature: -10° C to 70° C (14° F to 158° F)

• Operating Relative Humidity: 5% - 85% non-condensing

Power • 100-240VAC, 5-3A, 50/60Hz

• Internal: 270W FLEX ATX Power Supply

AC Current

Draw

• Input Current: Max 5A @115Vac, 3A @230Vac

• Max output - 270 (50ºC) (+3.3V & .5V=130W)

• DC output - +3.3V

Enclosure Metal with black matte finish

OS WEPOS

Front Panel Components

Status • Green LED indicates power

• Yellow LED indicates disc activity

Rear Panel Components

Power Switch Turns power on/off.

Note: This is a "soft switch": flipping the switch while the Player is run-

ning issues a shutdown request.

Power connector IEC connector for AC power cable (included)

• Connect only to AC power supplied according to appropriate national

requirements. Contact your AC power Provider for National

Requirements.

• Isolate IT Power System Connection.

USB Ports 6 Type-B USB Ports for connecting USB mouse and keyboard.

Note: The Player is designed to be used without a keyboard and

mouse; they are not required for normal operation.

Ethernet Port RJ-45 Ethernet port provides Gigabit Ethernet communication between

the Player and the Controller PC (which runs the Inspired Composer

application).

Connect the Ethernet port to the LAN

Audio Out Provides stereo audio output to the display, via a mini-stereo-to-RCA

cable (not included).

Note: The Audio in (blue) and Microphone (red) connectors are not

used.

DVI Video Out

(1 & 2)

Provides HD resolution DVI out via DVI cable.

Note: There are 2 DVI video outputs provided, but only one is used.

Either DVI output port can be used to deliver video to the display.

IS-PLAYER-200 - Product Specifications (Cont.)

Certifications • FCC Class B

• cTÜVus

• CE Mark

• CB Report

• RoHS compliant

Included

Accessories

• One set Rack Mount Ears

• One power cable

• DVI to VGA adapter

• Component adapter for Graphics Card

• IS-PLAYER-200/LM Rack Mounting Installation Guide

• IS-PLAYER-200 Installation Guide (this document)

FIG. 2 Installing the Rack Mount Ears to the Player Chassis

FIG. 3 IS-PLAYER-200 - Rear panel

front rear

Use the bottom two holes on

the Rack-Mount Ears to secure

to the IS-PLAYER-200 chassis

Use these two holes located

on the left and right sides of

the chassis for mounting the

Rack Mount Ears

Rack Mount Ear

IS-PLAYER-200 chassis

IEC Power cord connector

Power switch

Audio Out

DVI Video Out 1

DVI Video Out 2

S-VIdeo Out

EthernetUSB

MAC Address Label

For full warranty information, refer to the AMX Instruction Manual(s) associated with your Product(s).

5/10

AMX reserves the right to alter specifications without notice at any time.

3000 RESEARCH DRIVE, RICHARDSON, TX 75082 • 800.222.0193 • fax 469.624.7153 • technical support 800.932.6993 • www.amx.com

93-1230-08 REV: B

Bonjour (Zero-Configuration) Client

You can use a zero-configuration client to determine the IP address of the Player.

There are many zero-configuration clients available. However, for the purposes of this

document, we will refer to Bonjour for Windows. It is free and widely available for

download. If you don’t already have it installed on your PC, download and install

Bonjour for Windows before you begin.

Connecting In a Network With a DHCP Server

Using the Bonjour for Windows plug-in utility, the Player can be installed and

configured on the network without the need to pre-configure each device before

installation. You will match the MAC Address (provided on a decal placed on the rear

panel of the Player enclosure - see FIG. 3) to the MAC Address that is displayed in the

Bonjour browser pane.

1. Launch Internet Explorer with the Bonjour plug-in.

2. Once power is applied to the device, the Bonjour plugin displays the Player as

shown in FIG. 4:

Notice that the MAC Address is appended to the name of the service.

3. Double-click on the Player to access the main configuration page (FIG. 5).

4. This requires valid login information - the browser will prompt you for User ID

and Password before displaying the configuration pages for the selected device.

• Default Username = admin

• Default Password = admin

At this point, the Player can be configured (changing IP settings, User settings, etc)

via the configuration pages.

Player Configuration

Specify Time Zone and Date/Time Settings

Use the options in the MachineManager configuration page to access the Time Zone

and current Time settings for the Player:

1. In the main configuration page, click the Config button under Machine

Manager to open the Inspired Signage MachineManager [Default]

Configuration page.

2. Click on Date Time Configuration at the top of the page to access the Date

Time Configuration page.

3. Select the appropriate time zone from the Time zone drop-down menu, and

click Set Time Zone.

4. Use the Time drop-down menus to select the current Hour, Minute and

Second.

5. Use the Date drop-down menus to select the current Year, Month and Date.

6. Set Date and Time (to set the Date only, click on Set Date only).

Note: Although the directions on this page indicate that all changes require a Player

Application restart, in this case you do not have to restart the Player, as you will restart

the Player later. Note however, that changing the time will cause the screen to go

black.

Specify Screen Resolution, Aspect Ratio and Rotation

Use the options in the Player configuration page to access the Screen Resolution

settings for the Player:

1. To return to the main configuration page, click the Applications button at the top

of the page (FIG. 6).

2. In the main configuration page, click the Config button under Player.

This opens the Inspired Signage Player [Default] Configuration page:

3. Click on the Player Configuration button at the top of the page. This invokes

the Player Configuration page.

4. Select an output resolution from the standard resolution options provided in the

Output Resolution drop-down menu. The default setting is 1024 x 768.

To specify a custom output resolution, select Custom from the menu. With Cus-

tom selected, the Custom Width and Custom Height fields are enabled. Enter

the desired resolution (width and height in pixels).

5. Select an output aspect ratio from the standard aspect ratio options provided in

the Aspect Ratio drop-down menu. The default setting is 16 x 9.

To specify a custom aspect ratio, select Custom from the menu. With Custom

selected, the Custom X and Custom Y fields are enabled. Enter the desired

aspect ratio.

6. To rotate the output display, select the desired degree of counter-clockwise rota-

tion from the Rotation (Counterclockwise) drop-down menu. The default set-

ting is zero (no rotation).

To specify a custom rotation, select Custom from the menu. With Custom

selected, the Custom Rotation field is enabled. Enter the desired rotation

(degrees, in counter-clockwise direction).

7. Click Apply Settings to save your changes.

Restart The Player

After having set the Time Zone, Date/Time and Resolution settings, it is necessary to

restart the Player:

1. To return to the main configuration page, click the Applications button at the top

of the page.

2. In the main configuration page, click on the button in the Player options.Stop

3. The program will prompt you to verify this action - click OK to proceed.

4. Click on the Start button in the Player options.

Specify a Device Name and TCP/IP Settings for the IS-PLAYER-200

Use the options in the MachineManager configuration page to access the Device

Name and TCP/IP settings for the Player:

1. In the main configuration page, click the Config button under Machine Manager.

This opens the Inspired Signage MachineManager [Default] Configuration page:

2. Click on TCP/IP And Name Configuration at the top of the page. This invokes

the TCP/IP And Name Configuration page.

3. Enter a name for this Player in the Device Name field.

The Device Name is returned to Bonjour, to make it easy to identify Players

when using Bonjour.

4. By default, is enabled for the IS-PLAYER-200, in which case all of the DHCP

TCP/IP fields are disabled. To manually configure these settings, de-select

DHCP and enter the desired Machine IP, SubnetMask, DefaultGateway and Pri-

mary/Secondary DNS values in the respective fields.

5. If the static IP address of the Player is changed, then the web browser must be

closed and re-opened to re-discover the devices.

Networking

To be fully operational, the Player requires the following permanent network

connections:

• To the PC on which the Inspired Composer application is installed, for content

updates

• To the Internet, for News & Weather updates (optional)

• To a PC on the network, for automated creation of Image Slideshows (optional)

The location of the IS-PLAYER-200 in the network topology and the choice of a PC to

install Composer should be determined accordingly.

FIG. 4 Bonjour device listing for the IS-PLAYER-200

FIG. 5 IS-PLAYER-200 - Main Configuration page

FIG. 6 Applications button

Produkt Specifikationer

Mærke:	AMX
Kategori:	Softwarelicens og udvidelse
Model:	IS-COMP4-SERV

Har du brug for hjælp?

Hvis du har brug for hjælp til AMX IS-COMP4-SERV stil et spørgsmål nedenfor, og andre brugere vil svare dig

Dit navn*

Din email*

Skriv dit spørgsmål her

Softwarelicens og udvidelse AMX Manualer

AMX V2-LICENSE-LIVEUSER Manual

27 August 2024

AMX TPC-ANDROID Manual

27 August 2024

AMX IS-COMP4-SERV Manual

27 August 2024

AMX IS-COMP4-DESK Manual

27 August 2024

Softwarelicens og udvidelse Manualer

Nyeste Softwarelicens og udvidelse Manualer

ESET PROTECT Entry Manual

25 Februar 2025

Steinberg Nuendo Live Manual

31 December 2025

Steinberg Nuendo Live 2 Manual

31 December 2025

Avid Torq 2.0 Manual

27 December 2024

Steinberg Cubase Artist 9.5 Manual

14 December 2024

Steinberg Cubase Elements 9 Manual

8 Oktober 2024

Steinberg Dorico Manual

3 Oktober 2024

Corel PaintShop Photo Pro X3 Manual

2 Oktober 2024

Sony Acid Music Studio 7.0 Manual

14 September 2024

Adobe Media Encoder CS5.5 Manual

7 September 2024
