Installation Guide

MVP-WDS-9 Wall/Flush Docking Station

Overview

While charging the MVP-9000i, the Power-over-Ethernet MVP-WDS-9 Wall/

Flush Mount Docking Station provides fast, reliable wired Ethernet

communication to the touch panel. In addition, the MVP-WDS-9 employs a

unique, anti-theft locking mechanism to keep the touch panel safe and secure.

With a push of a button, the panel glides forward for simple removal and

transport.

The Wall/Flush Docking Station is available in either white (FG5967-13) or black

(FG5967-12).

The features of the MVP-WDS-9 include:

• Touch panel password feature for security

• Integrated docking alignment guides for easy docking

Specifications

The MVP-9000i panel remains locked in the MVP-WDS-9 until unlocked by the

user. This may be done by pressing the Security Release button and then

entering an appropriate password (please refer to the MVP-9000i Operation/

Reference Guide, available from www.amx.com, for more information). The

station ejects the MVP-9000i device top first (FIG. 2).

The device uses two neodymium rare-earth magnets to secure the MVP-9000i to

the cradle when the touch panel is angled forward.

Unlocking the Touch Panel

Once placed within the Wall Docking Station, the MVP-9000i remains secured

until the user unlocks it. To release the touch panel from the Wall Docking

Station:

1. Press the Security Release button.

2. A password keypad will pop up on the MVP-9000i screen. Enter a 

password in the password keypad and press Enter.

3. Wait for the Wall Docking Station to pivot the touch panel away from the

wall.

4. The device will remain in the ejected position until the MVP-9000i is

removed. Wait until the device’s ejection door has completely withdrawn

before re-installing the MVP-9000i.

Recharging

To recharge the MVP-9000i:

1. Slide the device into the Wall Docking Station cradle bottom-first and make

sure the device is fully seated in the Docking Station.

2. Press the top of the MVP-9000i back until it clicks. The touch panel is now

locked into the Docking Station, and the station will automatically charge

the device’s battery.

3. To release the touch panel, press the Security Release button, enter the

password (if activated), and wait for the Wall Docking Station to pivot the

touch panel away from the wall.

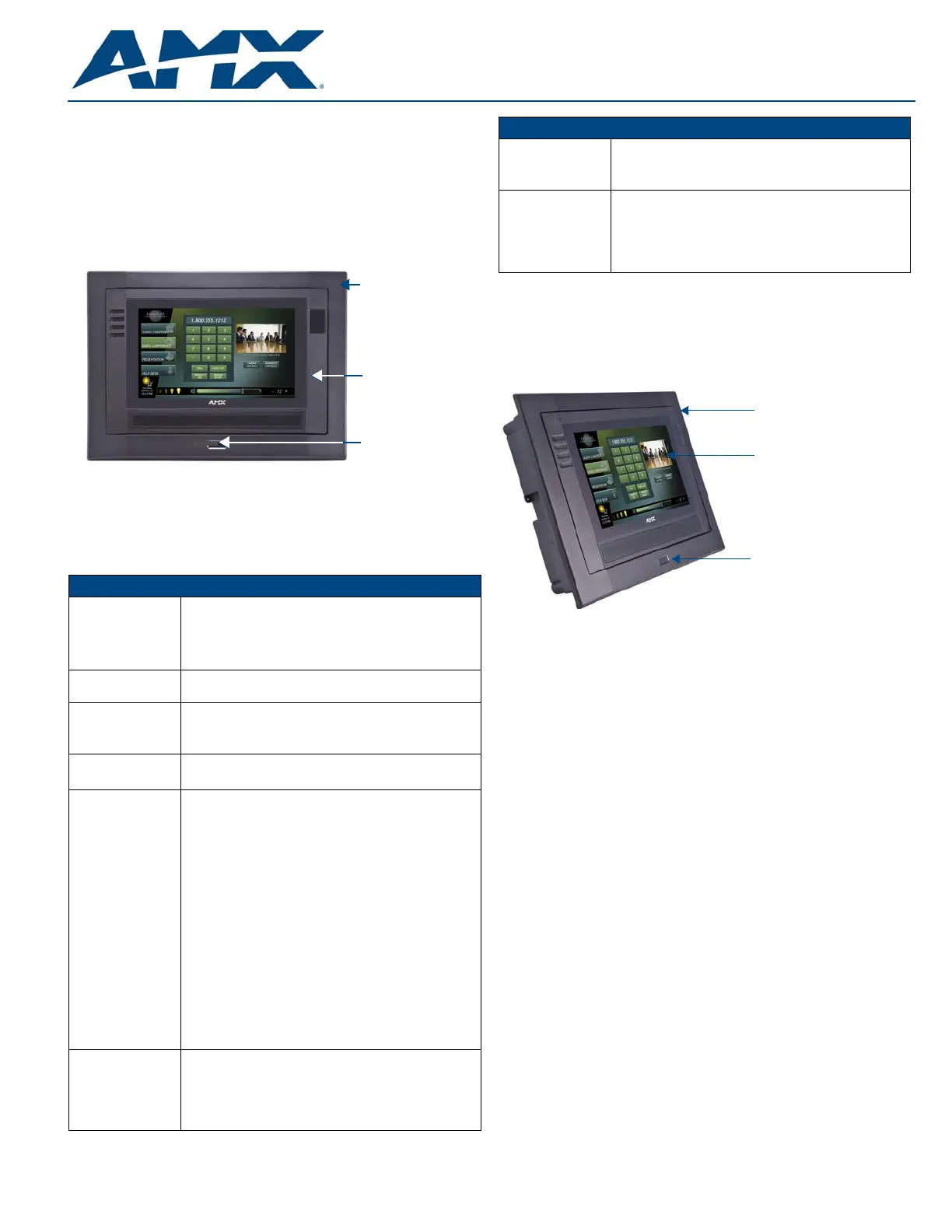

FIG. 1 MVP-WDS-9-GB Wall Docking Station - Front

MVP-WDS-9 Specifications

Dimensions (HWD): • 9.75" x 12.50" x 2.13" (24.77cm x 31.75cm x 5.40cm)

Note: Always use the cutout/installation dimensions for the

MVP-WDS-9 when installing this unit into various surfaces.

A cutout template is included with the device for ease of

installation.

Power 





Requirements:

• 30 W (Class II listed power supplemented), supplied via

the PS-POE-AT High-Power PoE Injector.

Startup Power 





Requirements:

• Cradle and panel (not charging): 16 W

• Cradle and panel (charging): 23 W

• Ejection: 23 W

Weight: • Without back box: 1.50 lbs (0.68 kg)

• With back box: 2.40 lbs (1.09 kg)

Front Panel 





Components:

• Securing Magnets: Secures MVP touch panel during

ejection.

• Security Latch: Adds the primary layer of security when

mounting an MVP touch panel. When the device is

inserted, this latch grabs onto the rear of the touch panel

and secures it to prevent it from inadvertently being

removed.

• Interface Connector: A set of contacts that connect to the

underside MVP connector strip. This connection provides

both communication and power between the touch panel

and the MVP-WDS-9.

• Support Cradle: This retractable mechanism supports a

resting MVP panel and allows a user to either insert or

remove a connected MVP panel.

• Security Release pushbutton: Located on the front of the

unit, this pushbutton toggles an on-screen security keypad

if security is enabled.

- Entering the correct release code allows the MVP-WDS-9

to release the touch panel from the security latch.

Operating/Storage





Environments:

• Operating Temperature: 0° C (32° F) to 40° C (104° F)

• Battery Charging Temperature: 0° C (32° F) to 30° C 

(86° F)

• Operating & Battery Charging Humidity: 20% to 85% RH

• Storage Temperature: -10° C (-14° F) to 60° C (140° F)

• Storage Humidity: 5% - 85% RH

Security Release

MVP-9000i-GB

MVP-WDS-9

button

MVP-WDS-9 Specifications (Cont.)

Included 





Accessories

• Snap-On Ferrite (04-0007)

• MVP-WDS-9 Wall Docking Station Template (68-5967-01)

• PS-POE-AT High Power PoE Injector (FG423-81)

Other AMX 





Equipment:

• MVP-9000i-GB, Black (FG5967-01)

• MVP-9000i-GW, White (FG5967-02)

• MVP-TDS-9-GB, Black (FG5967-10)

• MVP-TDS-9-GW, White (FG5967-11)

• CB-MVP-WDS9 Rough-In Box (FG038-13)

FIG. 2 MVP-WDS-9-GB Wall Docking Station - Side View

MVP-9000i

Wall Docking Station

Security Release button

For full warranty information, refer to the AMX Instruction Manual(s) associated with your Product(s).

11/11

AMX reserves the right to alter specifications without notice at any time.

3000 RESEARCH DRIVE, RICHARDSON, TX 75082 • 800.222.0193 • fax 469.624.7153 • technical support 800.932.6993 • www.amx.com

93-5967-12 REV: E

Note: Charging Lithium Polymer batteries at high temperature will reduce the

battery life. Industry guidelines dictate that batteries should not be charged at

temperatures above 45° C (113° F). The temperature is determined by a

combination of the ambient temperature where the panel is located, plus

temperature increases normally occurring inside electronic devices containing

batteries. AMX has implemented battery temperature monitoring features to

maximize the rate of battery charging, while staying within industry temperature

guidelines.

Battery charge times will increase in installations where the room temperature

is above 25° C (77° F), and may be temporarily suspended at room

temperatures above 30° C (86° F). Battery charging will automatically resume

once the temperature has fallen to appropriate levels. Minimizing the display

backlight intensity and turning off the backlight during periods of non-use will

also yield faster charge times.

Installing the MVP-WDS-9

Since the Wall Docking Station is intended to be affixed to a wall or other

permanent structure, care must be taken to ensure its proper installation to

prevent potential damage to the MVP-9000i placed within. The device may be

installed into existing walls, but the optional metal rough-in box must be

installed before installation of drywall or other paneling.

Note: Other than wall installation tools, the only tool required for this installation

is a #2 Phillips screwdriver.

Installing the Wall Docking Station and Plastic Back Box

The Plastic Back Box has two pairs of knockouts at the top of the box and four

(4) lockdown wings attached to the box with Phillips-head screws. For ease of

installation, the interior of the box contains an “UP” arrow pointing to the

knockouts.

Note: The optional CB-MVP-WDS9 Metal Rough-In Box is not required for

installation of the supplied Plastic Back Box, but it offers an extra level of

support.

To install the Plastic Back Box:

1. Cut a hole into the wall or surface intended to hold the back box. The

back box is sized 12 1/16 inches (30.64 cm) long and 8 11/16 inches

(22.07 cm) high. Use the included MVP-WDS-9 Wall Docking Station

Template (68-5967-01) as an aid for hole placement and measurement.

WARNING: Make sure to measure the size of the intended hole before starting

to cut it. Cutting the hole slightly smaller than the dimensions to allow for

adjustments is highly recommended.

2. Select the knockout to be removed from the top of the back box. The box

has two pairs of knockouts, at the top left and the top right (FIG. 3).

Note: To assist with wiring, and to avoid mechanical stresses on the wire

and the mechanism of the Wall Docking Station, the top left knockout,

when viewing the device from the rear, is preferred for use for



Ethernet installation. Use the top right knockout for USB cable



connection.

3. Connect the PS-POE-AT High-Power PoE Injector to a power source.

Connect the PS-POE-AT to an Ethernet switch on the network via one

length of Ethernet cable and insert one length of Ethernet cable for 

connection to the Wall Docking Station.

4. Run the Ethernet cable through the knockout into the back box. Pull out

about six inches (15.25cm) of cable into the back box to facilitate 

installation of the MVP-WDS-9.

5. Slide the plastic back box into the hole, being careful not to twist or pinch

the cable, and set it flush with the wall. Make sure that all of the lockdown

wings are folded into their slots before attempting to insert the box. For

ease of installation, the inside of the box has the direction "UP" labeled for

reference.

6. Extend the wings on the sides of the back box by tightening the screws

inside the box, taking care not to overtighten. Not all of the wings must be

extended to lock the back box in place, but extending a minimum of two

wings on opposite sides of the box is required. Apply enough pressure to

the screw head to keep the box flush with the wall: this ensures that the

wing will tighten up against the inside of the wall.

WARNING: Make absolutely certain that the back box is in its intended

position. Once the back box lockdown wings are extended, removing the back

box will be extremely difficult without damaging the wall in the process.

Note: The maximum recommended torque to screw in the wings on the plastic

back box is 5 IN-IBS [5(NI-CM)]. Applying excessive torque while tightening the

wing screws, such as with powered screwdrivers, can strip out the wings or

damage the plastic back box.

7. Attach the included snap-on ferrite to the Ethernet cable, as close to the

RJ-45 connector as possible. Attach the cable to the Ethernet Port

(FIG. 3).

8. Firmly seat the device against the back box. Make sure that the tab 

connectors at the bottom of the device are locked into the back box.

9. Insert the two installation screws from the MVP-WDS-9 Installation Kit

into the screw holes in the interior compartment of the device and tighten

them to anchor the device to the back box.

Note: For ease of installation, put each screw on a neodymium magnet in the

device’s interior compartment to keep them on hand until they are needed.

10. Take a rubber pad and remove its adhesive backing. Put the foot, adhe-

sive-side down, in the slot surrounding the screw hole in the Wall Docking

Station. Press down firmly to remove any air bubbles from underneath the

foot.

11. Install an MVP-9000i device by placing it into the interior compartment

bottom-first. Press the top of the touch panel until it is flush with the Wall

Docking Station. The neodymium magnets will hold it in place.

12. To remove the MVP-9000i, press the Security Release button and wait for

the touch panel to pull away from the Wall Docking Station. Once it has

been released, grip it by the top of the device, and pull it free from the

Docking Station.

For additional installation information, please refer to the MVP-9000i Modero

ViewPoint Touch Panel Operation/Reference Guide, available online at

www.amx.com.

FIG. 3 Back of MVP-WDS-9 Wall Docking Station

Ethernet port

Recommended

Ethernet cable

path

Knockout placement

in back box

Ferrite installation

position

Recommended

USB installation

Recommended

Ethernet installation

Produkt Specifikationer

Mærke:	AMX
Kategori:	Andet computertilbehør
Model:	MVP-WDS-9-GW

Har du brug for hjælp?

Hvis du har brug for hjælp til AMX MVP-WDS-9-GW stil et spørgsmål nedenfor, og andre brugere vil svare dig

Dit navn*

Din email*

Skriv dit spørgsmål her

Andet computertilbehør AMX Manualer

AMX MVP-WDS Manual

27 August 2024

AMX MVP-WDS-9-GW Manual

27 August 2024

AMX MVP-TDS Manual

27 August 2024

Andet computertilbehør Manualer

Nyeste Andet computertilbehør Manualer

Kensington SD5780T Manual

3 April 2025

WyreStorm USB-HUB4 Manual

3 April 2025

ATen UH3240 Manual

1 April 2025

Rocstor Y10P003-B1 Manual

12 Marts 2025

20 Februar 2025

20 Februar 2025

20 Februar 2025

20 Februar 2025

20 Februar 2025

PureLink VL-SD200 Manual

12 Februar 2025
