Hello! Thank you for choosing Anthro.

Before beginning assembly of your Adjusta Unit, take a moment to review the parts listed on the next page

to verify that your shipment is complete. Please review the assembly instructions of all Anthro products you

purchased and are planning to include in this installation, prior to beginning this assembly.

30”/36”/48” wide Adjusta Unit

Assembly Instructions

1-800-325-3841

To make the assembly of your Adjusta Unit even easier, we have included all of the required tools. The handy

Hex Driver Bit can be used in your electric drill in place of the Hex Driver. Your Adjusta Unit is heavy! A second

person will make this assembly procedure much easier.

Hex Driver 5/32” ............................................................ 375-5000-00

Hex Driver Bit 5/32” ..................................................... 375-5003-00

Hex Key 5/32” ................................................................. 375-5016-00

Hex Key 3/16” ................................................................. 375-5028-00

3-Way Wrench ............................................................. 225-5196-03

8 oz. Rubber Mallet ..................................................... 375-5022-00

Anthro Corporation Technology Furniture® 10450 SW Manhasset Drive Tualatin, Oregon 97062 1-800-325-3841 anthro.com

01–ﬁt Adjusta Fixed Worksurface Qty. 1 ....................... (see below)

30” Wide Fixed Worksurface (FAJ30zz/xx3) ....100-6454-00

36” Wide Fixed Worksurface (FAJ36zz/xx3) ....100-6455-00

48” Wide Fixed Worksurface (FAJ48zz/xx3) ....100-6456-00

02–ﬁt Adjusta Caddy Worksurface Qty. 1 ....................... (see below)

30” Wide Caddy Worksurface (FAJ30zz/xx3)..100-6458-00

36” Wide Caddy Worksurface (FAJ36zz/xx3) ..100-6459-00

48” Wide Caddy Worksurface (FAJ48zz/xx3) ..100-6460-00

03– Adjusta Mechanismﬁt ...............Qty. 1 ....................... (see below)

(The Adjusta Mechanism is packaged separately & requires assembly)

30” Wide Adjusta Mechanism (FAJ30zz/xx3) ...225-5545-00

36” Wide Adjusta Mechanism (FAJ36zz/xx3) ...225-5546-00

48” Wide Adjusta Mechanism (FAJ48zz/xx3) ...225-5547-00

04– Small Support Bracket X .............Qty. 1 ...................225-2014-00

05– 24.875” Vertical Legs .................Qty. 4 ...................125-5230-00

06– Adjusta Base Tubes ......................Qty. 2 ..................125-5276-00

07– Cross Tubes ....................................Qty. 2 ....................... (see below)

30” Wide Cross Tube (FAJ30zz/xx3) ...................125-5219-00

36” Wide Cross Tube (FAJ36zz/xx3) ...................125-5220-00

48” Wide Cross Tube (FAJ48zz/xx3) ...................125-5214-00

08– Insert Screws .................................Qty. 4 ...................325-5052-00

09– 2.0” Large End Caps ...................Qty. 4 ...................175-5157-00

10– Caster Inserts ...............................Qty. 4 ...................525-5032-00

11– 3” Locking Casters ......................Qty. 2 ...................150-5053-00

12– 5/16-18 Boltsﬁt ..............................Qty. 8 ...................325-5194-00

13– Tube Washersﬁt .........................Qty. 8 ..225-2050-00 or 225-3522-00

14– 3” Non-Locking Casters ........... Qty. 2 ...................150-5052-00

15– 3/4” Wood Screws ........................Qty. 42 ................325-5106-00

16– Back Trough .................................... Qty. 1 ....................... (see below)

30” Wide Back Trough (F3029zz/xx3) ................225-2290-00

36” Wide Back Trough (F3629zz/xx3) ................225-2291-00

48” Wide Back Trough (F4829zz/xx3) ................225-2292-00

17– Support Screws ............................Qty. 8 ...................325-5010-00

18– Small Support Bracket Y ............Qty. 1 ...................225-2015-00

19– 1/4-20 Button Head Screws ......Qty. 4 ...................325-5003-00

20– 1.5” Small Caps .............................Qty. 4 ...................175-5156-00

All Fastener quantities listed here are the minimum needed

for your Adjusta Unit assembly. There may be a few extra

Fasteners included, which are not counted in the Parts List.

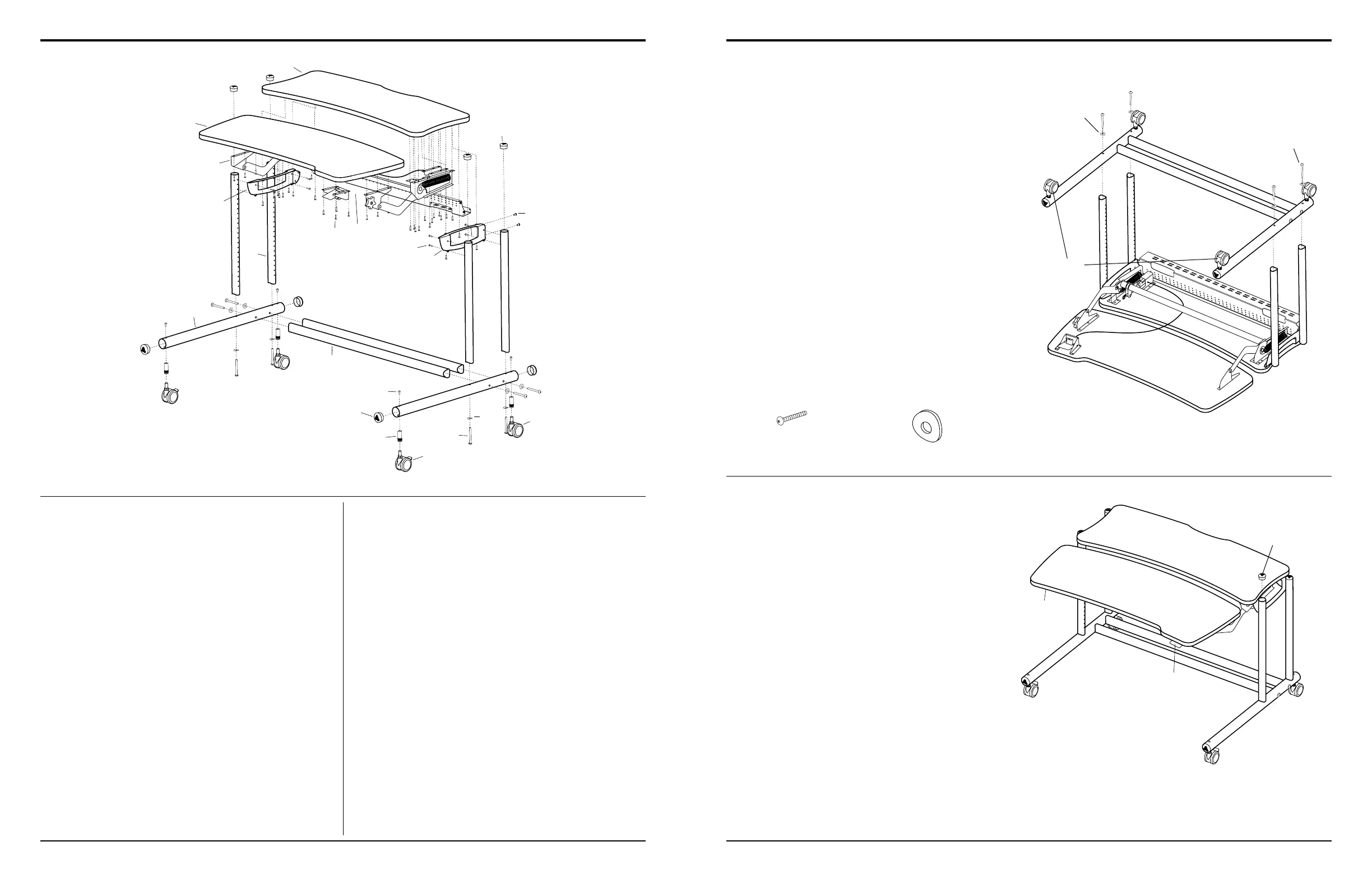

Component list for part #’s FAJ30zz/xx3, FAJ36zz/xx3 & FAJ48zz/xx3

NOTE: Detailed views of all Hardware are provided with each Assembly Step.

10 12

09 13 14

15 16

Step 12

Align the Base Assembly on the Vertical Tubes as shown.

Secure the Base Assembly by inserting a Bolt through a ﬁt

Tube Washer. Then insert the Bolt through the Base Tube

and carefully thread it into the Vertical Tubes.

Repeat for the remaining three Bolts and tighten all Bolts.

(5/16-18 X 3.5”) Boltﬁt

325-5194-00

ﬁt Tube Washer

225-2050-00 or 225-3522-00

Locking Casters

ﬁt Bolt

ﬁt Tube

Washer

1.5” Small

End Cap

Rotate Knobs

to adjust

Caddy angle.

Squeeze Paddle

to adjust Caddy height.

Step 13

Insert the four 1.5” Small End Caps into the Vertical Legs.

Congratulations! Your assembly is complete.

Please return the enclosed Registration Card to receive

our product updates, new catalogs, and sale ﬂyers.

Thank you for choosing Anthro!

Adjust the Caddy Worksurface height by:

1. Squeezing and holding the Paddle.

2. Reposition the Caddy to the desired location.

3. Release the Paddle.

Adjust the Caddy Worksurface angle by:

1. Rotating the Knobs counterclockwise.

2. Reposition the Caddy to the desired angle.

3. Rotate the Knobs clockwise.
