Side 1/2

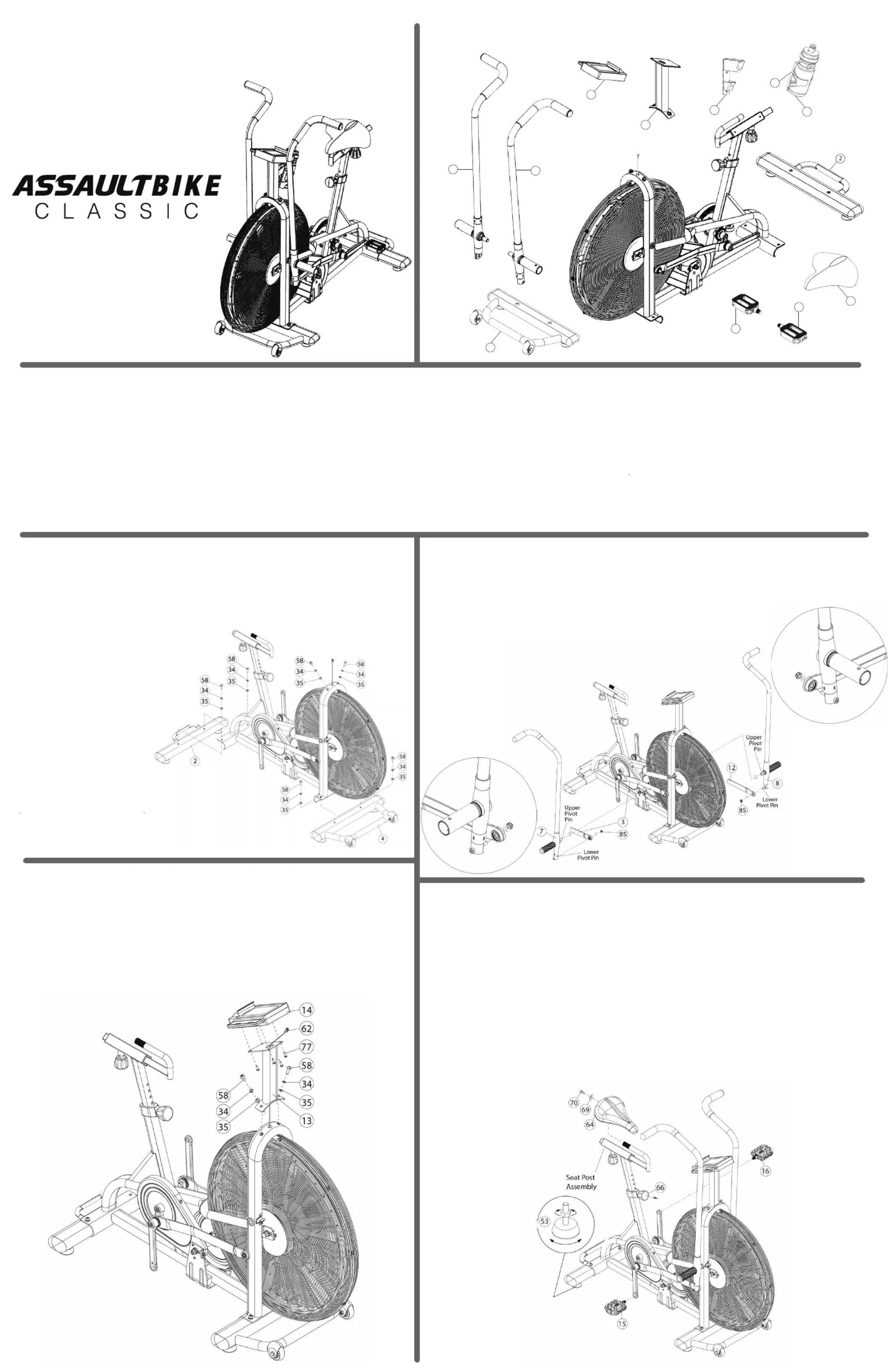

CARTON CONTENTS

Assembly Step One: Front & Rear Stabilizer Installation

•Remove and dispose of the temporary hardware and metal tubes from the frame.

•Remove the six (6) pre-installed sets of M8 screw (58), lock washer (34) and at washer (35) from the stabilizers.

•Align the front stabilizer (4) with the receiver on the main frame, and re-install the two screw, lock washer and at

washer assemblies (58, 34 & 35) with the supplied 6mm hex wrench.

•Repeat steps for the rear stabilizer (2).

Assembly Step Two: Console and Console Mast

•If you are installing the optional water bottle holder, please follow the instructions that are provided with the user

manuals moving to the next steps.before

•Inspect the console cable (62) for damage before threading it through the bottom side and out the top of the

console mast (13)

•Install the button head screw, lock washer and at washer assemblies (58, 34 & 35) through the console mast base (13)

and into the main frame.

•Plug the console wire (62) into the back side of the console (14) and carefully tuck the cable into the console mast (13).

Do not pinch the cable.

•Insert the four screws (77) through the console mast (13) and into the back of the console (14).

Assembly Step Four: Seat, Pedals, & Leveling the Unit

•Remove the hex screw (70) and at washer (69) from the end of the Seat Post Assembly.

•Loosen the seat clamp assembly that is pre-installed onto the rails of the seat (64) and slip the assembly onto the knurled portion of the

seat slide (5). Ensure the seat is level with the ground and x both nuts rmly and evenly.

•Reinstall the at washer (69) and hex screw (70) into the end of the seat post assembly.

•Loosen the pop pin (66) by grasping and rotating the knob counter-clockwise. Pull the pop pin outward, insert the seat post assembly

into the frame, and release the pop pin when the seat is at the desired height. To ensure the pop pin is fully engaged, lift upward on the

seat post assembly. Tighten the pop pin to secure.

•Loosely thread the left pedal. (16) into the left crank arm by hand.

NOTE: The threads are reversed; rotate the axle counterclockwise when viewed the outboard end of the pedal to install.

Use the provided 6mm Hex wrench to rmly x the pedal. Repeat this process for the right pedal (15).

NOTE: The right pedal axle will be rotated clockwise to install.

Level your AssaultBike Classic by adjusting the four feet (53). The feet may come from the factory tightened in the lowest position. •

When viewed from above, place a wrench on the nut and rotate to loosen. Adjust the foot to the desired height and tighten the locknut

in a counterclockwise direction.

ASSEMBLY STEPS

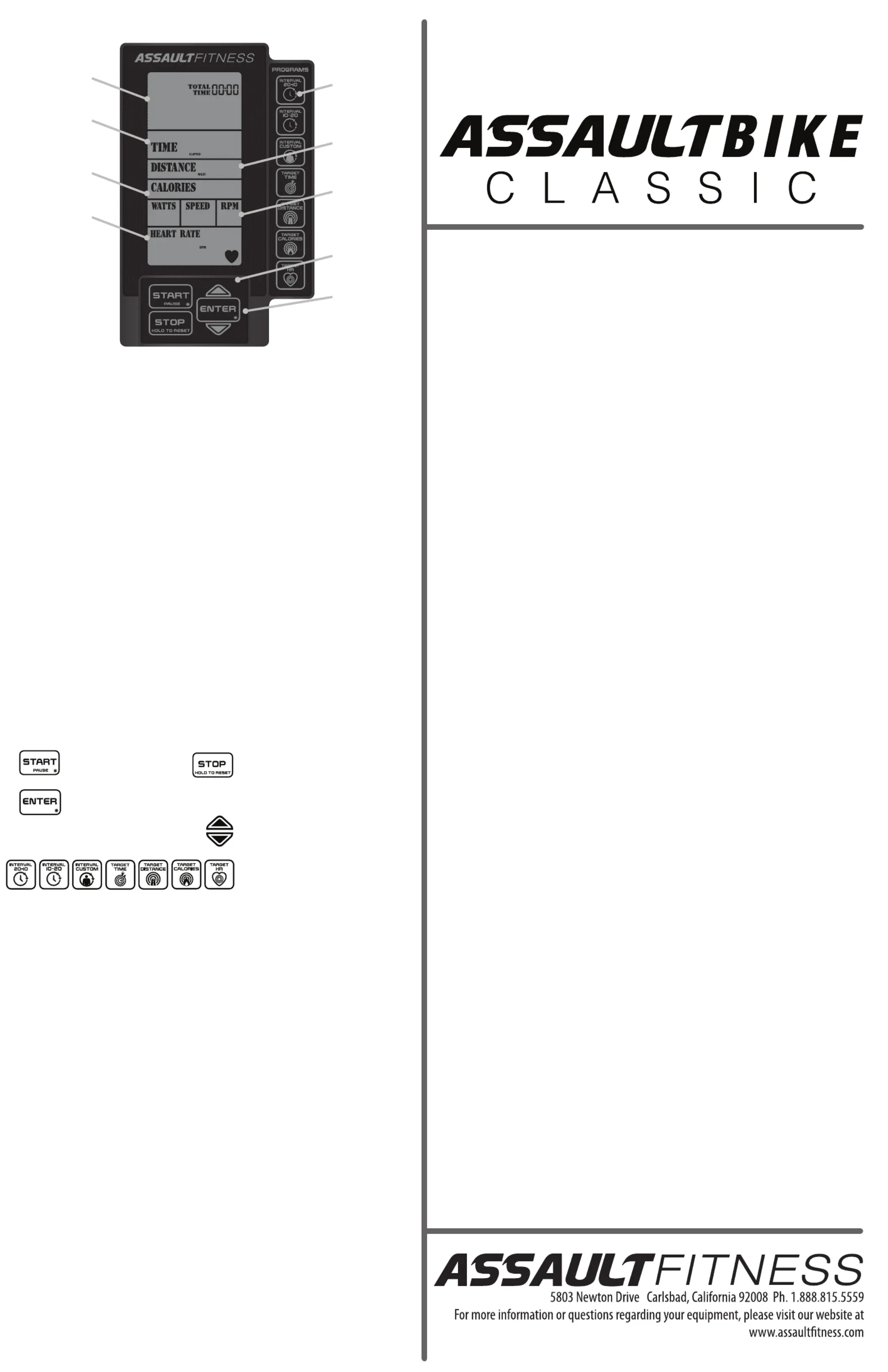

QUICK START GUIDE

ASSEMBLY INSTRUCTIONS & WARNINGS

Please read the entire owner’s manual before operating the unit. Save this manual for future reference.

Assembly of Technical Items

Assembly of the AssaultBike Classic should be performed by a qualied technician. A signicant amount of technical knowledge is required for the safe and complete assembly of the unit. Many retailers will oer delivery and assembly as part of the sales

agreement. If this unit was sold unassembled (in the carton) and you do not feel you can perform the assembly successfully, please call the dealer for service. Service calls for improper assembly are not covered by the Warranty Policy and any associated charges

will be the responsibility of the owner.

Warnings – To Reduce the Risk of Injury to Yourself and Others

To ensure proper functioning of your unit, do not install attachments or accessories not provided with the AssaultBike Classic. Always wear proper clothing and shoes when exercising. Keep children away from the unit. Hands and feet may become entangled

with the moving parts and cause serious injury. The unit is intended for indoor use only. Place the unit on a solid, level surface. Always adjust the leveling feet before using the bike. Ensure all adjustment knobs and levers are fastened securely before using the

unit and after making an adjustment. The unit is heavy. Do not attempt to move alone. Never operate the unit if it is damaged or broken.

Contact your local Authorized Fitness Dealer for service.

Part # 23-AS-100

Assembly Step Three: Handlebars

•Place the right handlebar assembly (7) on the oor extending forward and away from the right linkage arm (3). Remove and set aside the

locknut (85) and lock washer.

•Slide the right linkage arm (3) onto the Lower Pivot Pin and re-install the lock washer and locknut (85) with the provided 13mm box

wrench and 6mm Allen wrench.

•Raise the right handlebar (7) into a vertical position and align the inside of the Upper Pivot Pin with the

threaded mount on the main frame. Ensure that the large lock washer is on the threads of the upper

pivot pin and thread into the frame by hand, then tighten with the supplied 22/19mm wrench.

•Repeat steps for the left side assembly.
