A-STSWW-A Page 1 of 5

Installation Instructions

Wall Mounted

Sit-to-Stand Workstation - Antimicrobial

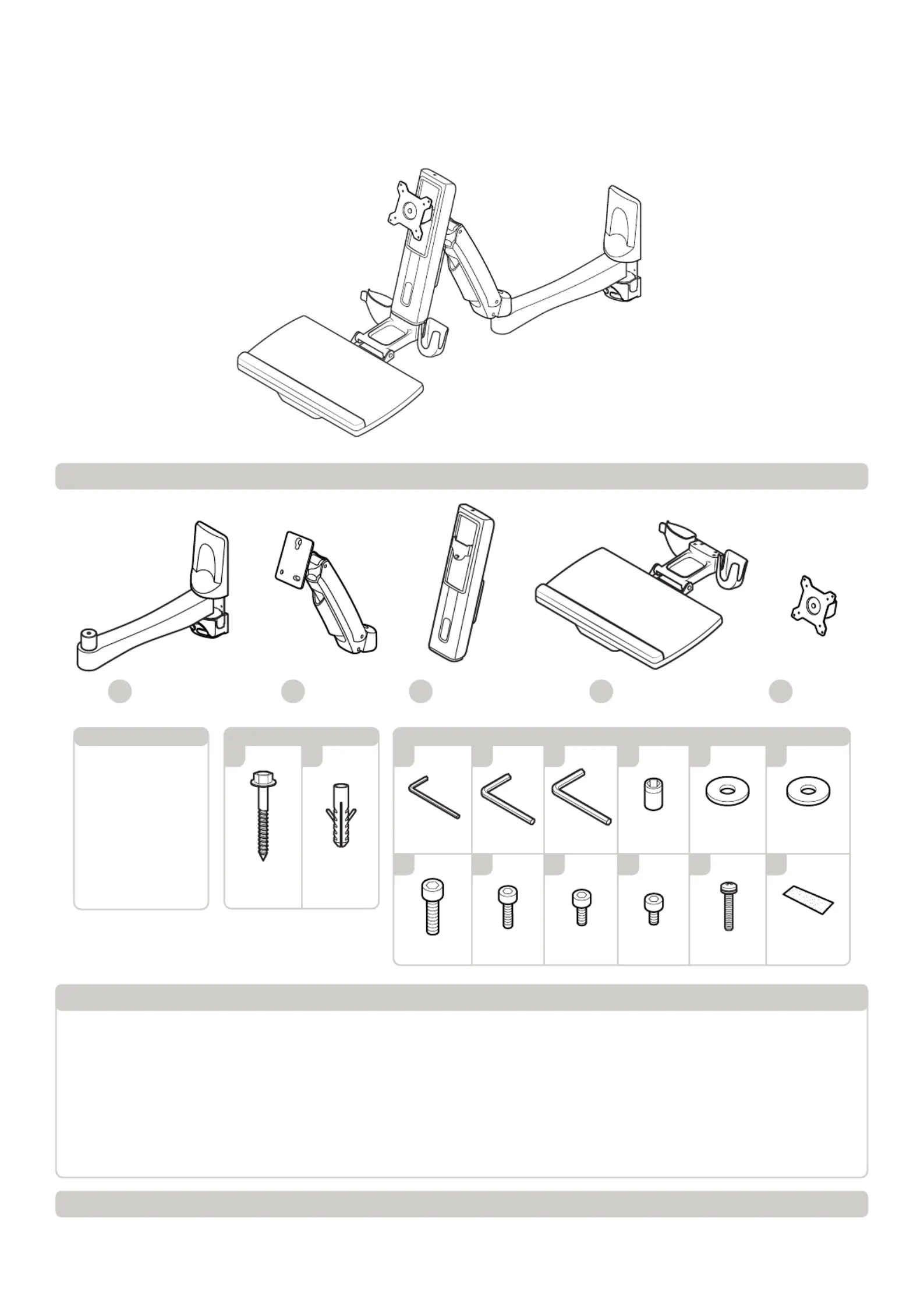

Component Checklist

Step 1. Check Components

AB C D E

Lower Arm Upper Arm Vertical Screen

Slider Keyboard Tray Tilt Head

A-STSWW-A

• 8mm wrench

• Drill

• 10mm masonry bit

• 4.5mm drill bit

• Ratchet

• Spirit Level

• Stud Finder

• Pencil

5mm Allen 6mm Allen2.5mm Allen

M6X8 (x1) M4x10 (x4)M6X12 (x4)M8X20 (x1)

8mm

¼” Drive

Velcro

Strip (x2)

H J K L M N

PO Q R S T

Tools Required

Plastic

Washer (x1)

Coach

Screw (x6) Nylon

Anchor (x6)

Metal

Washer (x1)

M6X10 (x3)

Hardware

F G

Wall Mounting Hardware

Check that you have received all parts against the Component Checklist.

! IMPORTANT - Install as per Installation Instructions

! The manufacturer accepts no responsibility for incorrect installation.

! This product supports a maximum load 8Kg (17.6lbs.)

! The wall mount can be installed on vertical, at, solid concrete or brick walls, or timber stud walls only.

! The wall should be strong enough to sustain a weight of at least four times that of the display and wall mount bracket combined.

If in doubt, consult a structural engineer.

! Check wall anchors and screws every 3 months from the time of installation to ensure the workstation is rmly xed to the wall.

! Tighten all screws (do not exert excessive force to avoid breaking the screws or damaging their thread)

IMPORTANT INFORMATION

A-STSWW-A Page 2 of 5

2.3

2.4

2.5

Wall Plate

Remove top and

bottom covers from

the wall plate.

Push nylon

anchors into

each hole.

Fix wall plate to

the wall using 6

coach screws

10mm

55mm

Wall 2.1

2.2

Spirit

Level

2.3

2.4

Wall Plate

Remove top and

bottom covers from

the wall plate.

Fix wall plate to

the wall using 4

coach screws

4.5mm

55mm

Stud

2.2

2.1

Spirit

Level

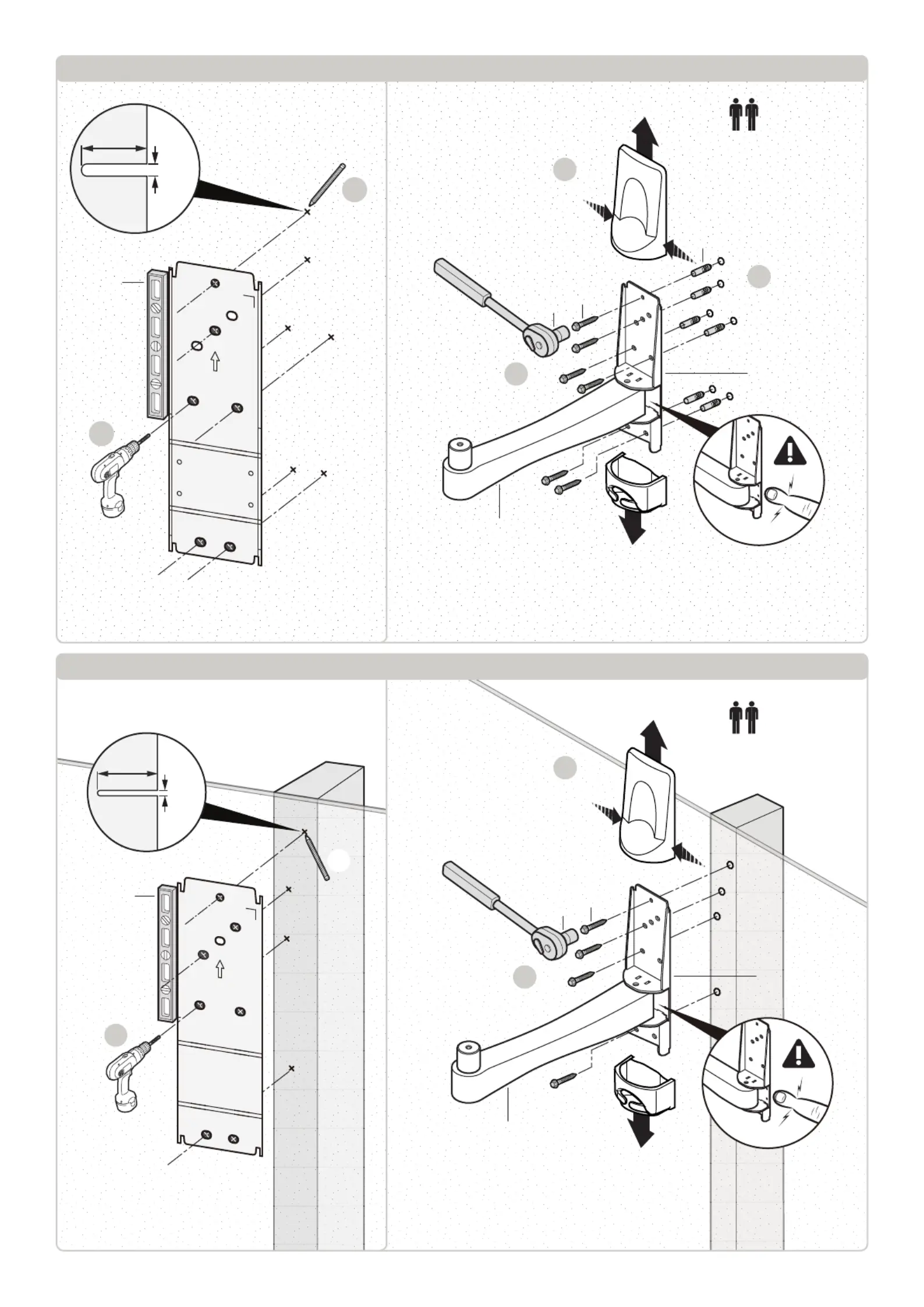

Step 2. Option B - Stud wall installation

Tip: Screw in the top coach screw rst.

Use the supplied template

to mark and drill 4 holes

into the wall.

Two people

required

Note: Use a stud nder to ensure

all holes are drilled into the stud.

Step 2. Option A - Masonry or cement wall installation

Tip: Screw in the top coach screw rst.

Use the supplied template

to mark and drill 6 holes

into the wall.

Two people

required

Note: For optimum performance, use a spirit

level to ensure straight installation.
