No portion of this document or any artwork contained herein should be reproduced in any way

without he express written consent of Atdec Pty Ltd. Due to continuing product development, t

the manufacturer

r 20171013Aeserves the right to alter specifications without notice. ©

AC-GC Page 1 of 4AC-GC Page 4 of 4

Installation Guide

AC-GC

Grommet Clamp

Installed Position

Step 4.

Step 3.

ATDEC AWM-P

Go to Page 2

ATDEC

A -F

Go to Page 4

TDEC AWM- DB A

Go to Page 3

IMPORTANT INFORMATION

!IMPORTANT - Install Atdec Grommet Clamp as per Installation Instructions.

! The manufacturer accepts no responsibility for incorrect installation.

! This product is compatible with Atdec products F posts, P posts,A - AWM-

AWM- DBA, APM range, VFS range posts, SD-DP range posts.

! The product is compatible with grommet hole sizes from 60-80mm

! The product is compatible with desk thicknesses from 18-36mm

COMPONENT CHECKLIST

TOOL REQUIRED

Clamp Plate Clamp Bar

M8 Stud

M8x30mm

screw

M8x1 mm6

screw

M4x12mm

Screw (x2) 5mm Allen key M8 Nut 13mm Spanner

Phillips Head

Screwdriver

INS ALL TION WITH POSTT A ATDEC AF-

Step .Step . 21

atdec.com | atdec.co.uk | atdec.com.au

AC-GC Page 3 of 4AC-GC Page 2 of 4

Step 2. Install Grommet Clamp on desk Install Grommet Clamp on deskStep 2.

Installed Position Installed Position

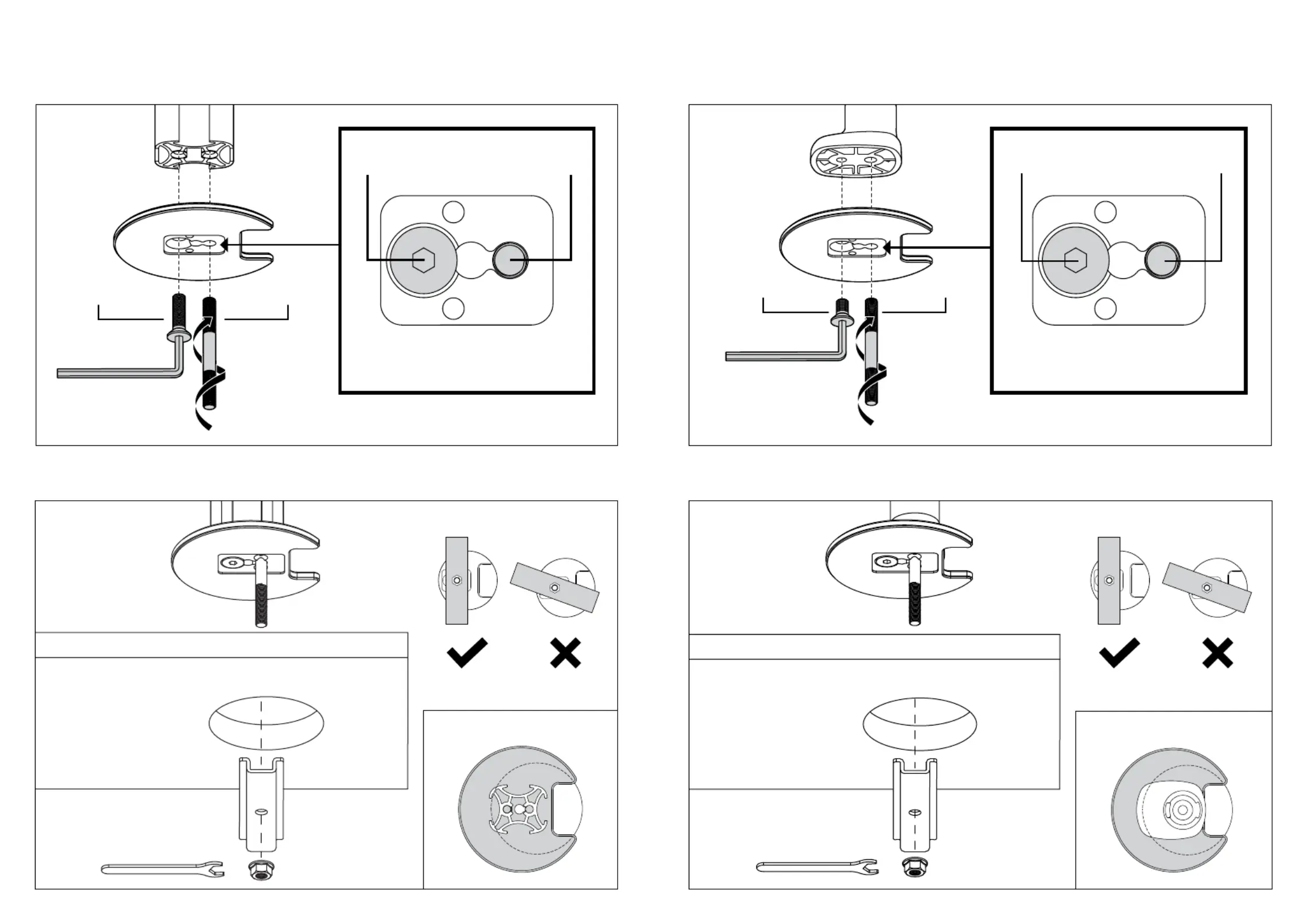

INSTALLATION WITH ATDEC AWM-P Posts

Step 1. Assemble Post to Grommet Clamp

INSTALLATION WITH ATDEC AWM- DBA

Step 1. Assemble Base to Grommet Clamp

Produkt Specifikationer

Mærke:	Atdec
Kategori:	Ikke kategoriseret
Model:	AC-GC-B
Antal pr. pakke:	1 stk
Produktfarve:	Sort
Produkttype:	Grommetring klemme
Pakkedybde:	317.5 mm
Pakkebredde:	317.5 mm
Husmateriale:	Stål
Kapabilitet:	AWM-ADB base, AWM-P posts, AF- posts, APM- range, SD-DP range posts, VFS range posts
