Side 1/4
AF-AT-NBC Page 1 of 4
COMPONENT CHECKLIST
A
Notebook tray
assembly
(x1)
E
Primary arm
cable cover
(x1)
F
Secondary arm
cable cover
(x1)
N
Self adhesive
hook & loop
(x4 sets)
B
Monitor
arm
(x1)
C
Pole
assembly
(x1)
D
Rotation
limitor
(x1)
P
Screw
M8 x 30mm
(x1)
K
Pole
top cap
(x1)
L
Bolt through
base
(x1)
M
5mm
Allen key
(x1)
R
Mounting
screws
M4 x 10mm
(x4)
S
Mounting
screws
M4 x 12mm
(x4)
T
Mounting
screws
M4 x 16mm
(x4)
Q
Security
Screw
M4 x 16mm
(x1)
H
Steel
washer
(x1)
I
Cable
stop
(x2)
O
Screw
M8 x 60mm
(x1)
G
Desk clamp
assembly
(x1)
J
Cable
clip
(x1)
U
VESA
head
(x1)
Installation Guide
AF-AT-NBC
Notebook Monitor Arm
Combo Mount
IMPORTANT INFORMATION
! Please ensure this product is installed as per these installation instructions.
! The manufacturer accepts no responsibility for incorrect installation.
REQUIRED TOOLS
WEIGHT RANGE
• Power Drill
• Drill Bit
• Phillips Head Screwdriver
0 - 8kg
(0 - 17.6lbs)

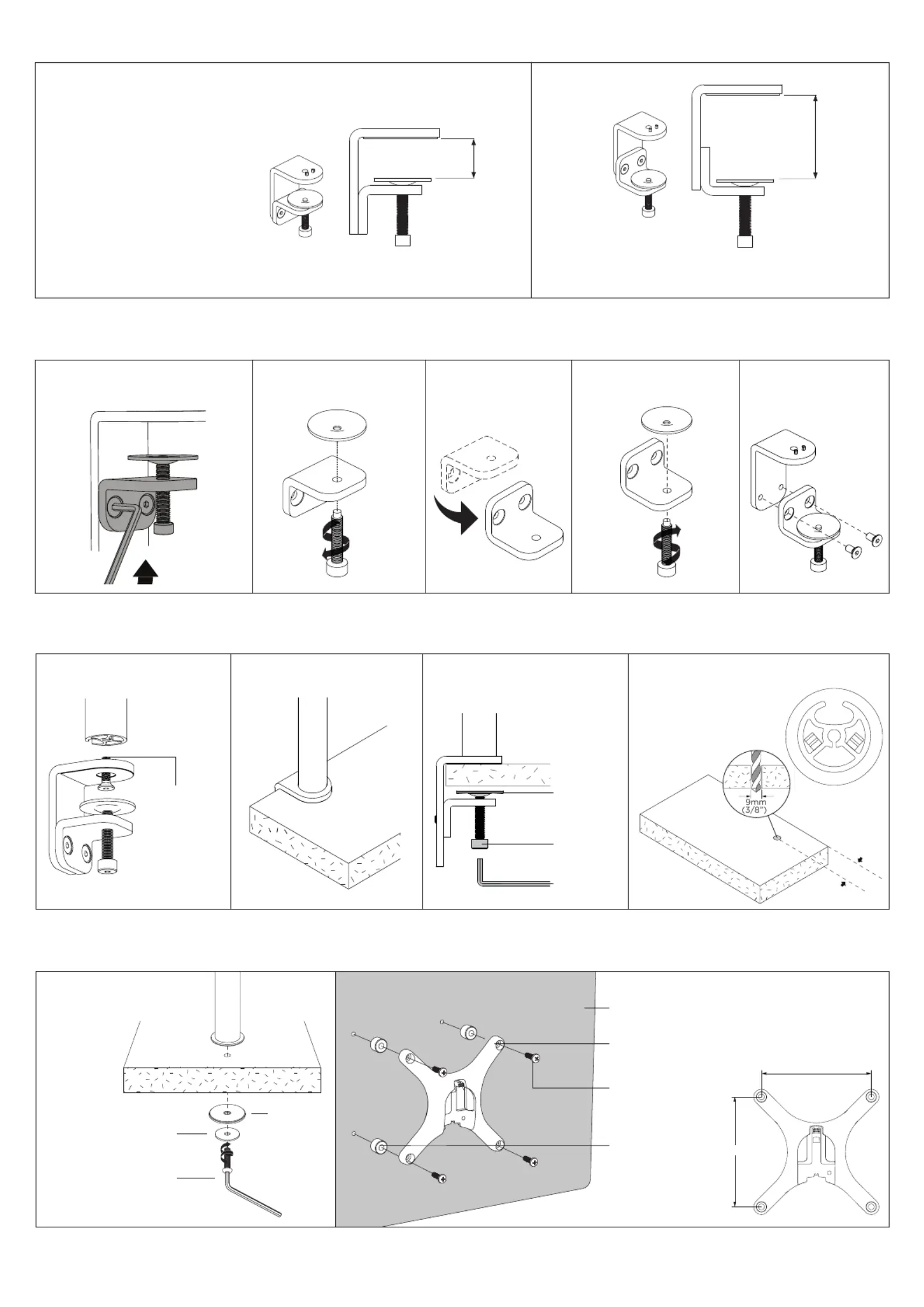

AF-AT-NBC Page 2 of 4
1. Desk overview
The desk clamp bracket
can be repositioned to
suit different mounting
surface thicknesses.
1.1 1.2 Default Inverted
2. How to reconfigure desk clamp
2.1 Remove screws
(M8 x 16mm Countersunk screw)
2.2 Remove clamp plate Invert bracket Replace clamp plate Reattach bracket2.3 2.4 2.5
Pressure
Plate
M10 Desk
Clamp Screw
5mm Allen
Key
M8 x 30mm
Countersunk
screw Tighten
firmly
3.2 Place in desired location Screw pressure plates 3.3
in and .tighten firmly
Drill 9mm hole in desired post
position on work surface.
3.1 Attach clamp to post
3. Post mount configuration Bolt through4.
9mm
(3/8”)
25mm
offset
MIN THICKNESS - 0mm (0”)
MAX THICKNESS - 39mm (1.5”)
MIN THICKNESS - 35mm (1.4”)
MAX THICKNESS - 76mm (3”)
5. Installing bolt through
5.1 Attach plate to post
Align rear hole with
hole on desk
5mm
Allen key
M8x60mm
Screw
Bolt
through
plate
6. Install VESA monitor head
Optional Spacers
(may be required
for recessed and
uneven surfaces)
VESA monitor
head
Screen
M4x10/12/16mm
Phillips head
mounting screws
6.1 Install VESA monitor head as shown.
100mm
100mm
