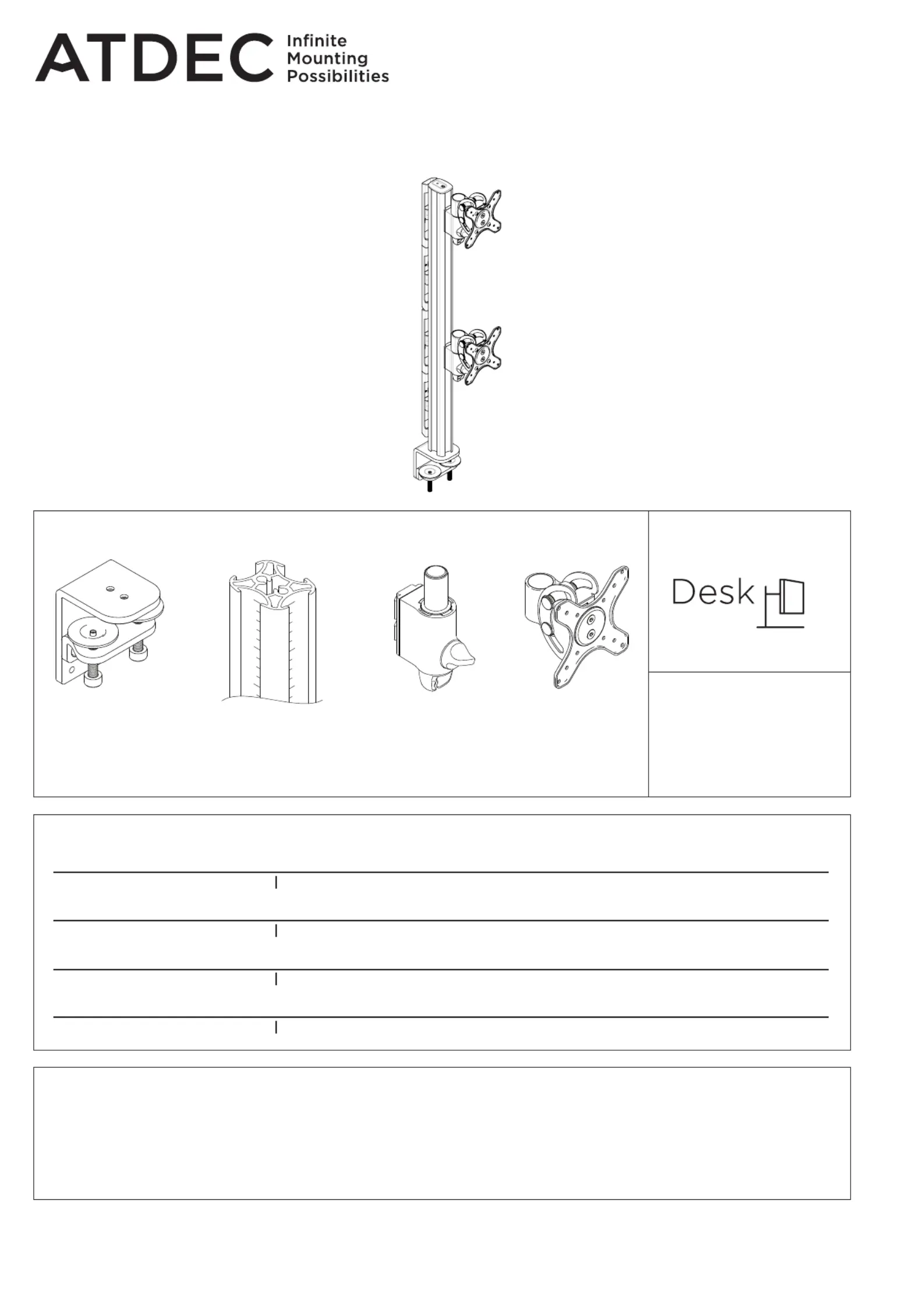

AWM-2-LTH75-H Page 1 of 6
Installation Guide
AWMS-2-LTH75-H
Dual Vertical Heavy Duty Mount with
Heavy Duty F Clamp
IMPORTANT INFORMATION
! Please ensure this product is installed as per these installation instructions.
! Do not remove/ throw away the plastic cap on channel clamp.
! This product is compatible with Atdec AWM Series products.
! Curved monitors, deep devices (such as all-in-one PCs) and offset VESA locations exert additional leverage that can exceed
the capacity of the mount even though the monitor weight may be within the stated range.
! The manufacturer accepts no responsibility for incorrect installation.
CONTENTS
Heavy Duty F Clamp
Page 2
750 Post with Guide Marks
Page 3
Channel Clamp
Page 4
Heavy Duty Tilt Head
Page 5
AWM-FH
Component Checklist + Clamp Installation
AWM-P75G
Component Checklist + Post Installation
AWM-LC
Component Checklist + Clamp Installation
AWM-LTH
Component Checklist + Head Installation
COMPONENT CHECKLIST RANGE
AWM-LC
Channel
Clamp
(x2)
AWM-LTH
Heavy Duty
Tilt Head
(x2)
AWM-FH
Heavy Duty
F Clamp
(x1)
AWM-P75G
750 Post with
Guide Marks
(x1)
• Phillips Head
Screwdriver
REQUIRED TOOLS
AWM-2-LTH75-H Page 2 of 6

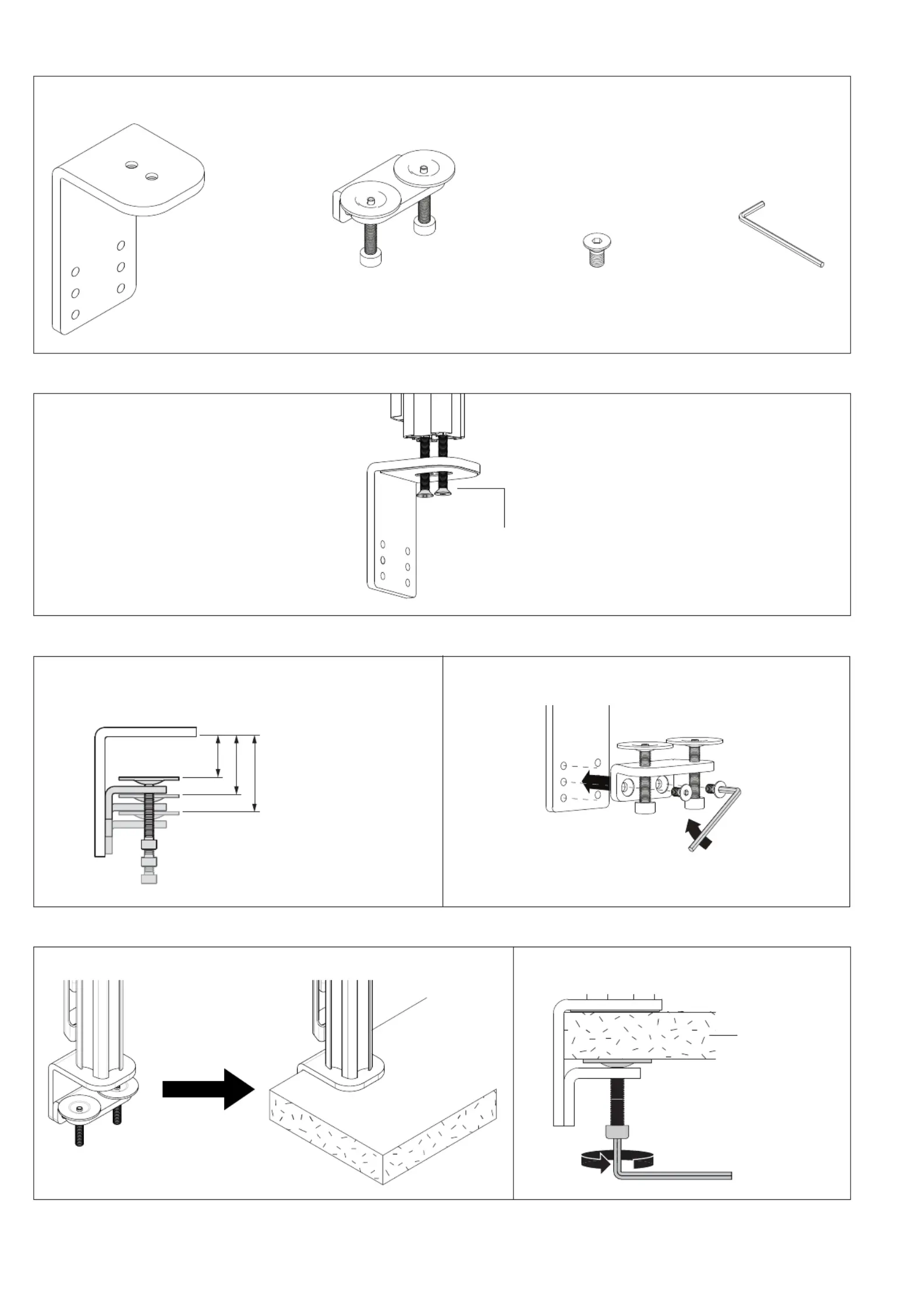

1. Attach post to upper clamp
Fasteners
supplied
with post
NOTE: Post packaged separately
3. Fit xing to work surface
3.1 Place in desired location on worksurface 3.2 Screw in both pressure plates and
tighten evenly and rmly
Mounting
surface
5mm
allen key
2. Attach lower clamp to upper clamp
2.2 Attach lower clamp to upper clamp in the suitable
position using the two provided screws
2.1 Measure the worksurface thickness and
choose the suitable lower clamp position
NOTE: If there is only a small gap behind the
worksurface, perform Step 3.1 before this step.
T M B
Top
Middle
Bottom
0 - 38mm (0.00 - 1 ”) ½
11 - 53mm ( - 2 ””)
25 - 68mm (1” - 2 ”)
AWM-FH
Heavy Duty F Clamp
COMPONENT CHECKLIST
D
5mm Allen key
(x1)
B
Lower Clamp
(x1)
A
Upper Clamp
(x1)
C
Screw M8 x 16mm
(x2)
