Adjusting the Display
Component Checklist
Installation Instructions
SPACEDEC ACROBAT
SWING ARM
Single Arm
Swing Arm
Assembly (x1)
Base Casting (x1)
Cable Wrap
Applicator (x1)
Top Cap Tool (x1)
2.5mm Allen
Key (x1)
Spacer Tube
(x2)
Washer (x1)
M8 Interscrew (x1)
M8 Nyloc Nut (x1)
Cable Tube
Manager Clip (x1)
Cable Clip
(x2)
M4x16mm
Countersunk
Screw (x3)
Extension
Clip (x4)
Desk Clamp Box
Desk Clamp
Bracket (x1)
5mm Allen
Key (x1)
M8 Desk Clamp
Screw (x1)
Pressure
Plate (x1)
Component Checklist
A
Check you have received all parts against the Component Checklist above.
Bits Box
Assembling the Arm
B
Top Cap and
Threaded Rod
Arm Assembly
Internal Tube Post
Spacer
Tube
Spacer
Tube
Cable Manager
Tube Clip
H
As LCD Manufacturers are constantly releasing new monitor models, Atdec does not accept responsibility if the mounting hole pattern does not comply with the
international VESA standards. Due to continuing product development, the manufacturer reserves the right to alter specifications without notice.
Published: 12.04.07
Installation Complete

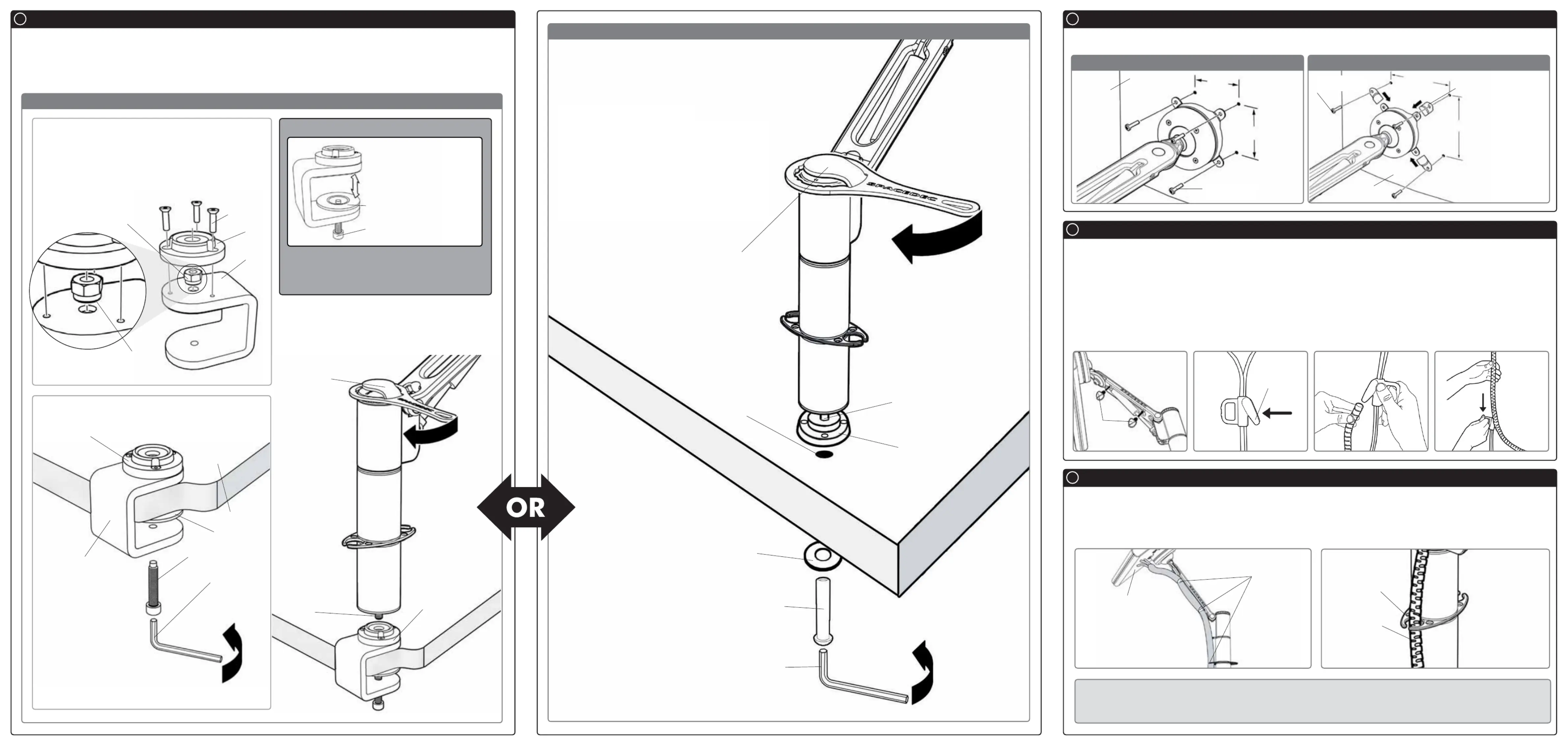

B.1. Disassemble the Tube Assembly
B.2. Assemble the Swing Arm
You will need to disassemble the Tube
Assembly before assembling the Swing Arm
Top Cap and
Threaded Rod
Internal
Tube Post
Spacer
Tube (x2)
Assemble the Swing Arm as shown:
Mounting Fasteners
M4x10mm
Screw (x4)
M4x12mm
Screw (x4)
M4x16mm
Screw (x4)
Threaded Rod
and Top Cap
(x1)
Inner Tube Post
16mm Cable
Wrap (x1)
H.1. Adjusting the Ball Joint Resistance
The Acrobat Swing Arm comes factory set to support 6kg displays. Adjust the arm to suit the weight of your
display as shown in the following steps:
Depending on the weight of the monitor, it may
be necessary to make adjustments to the Ball Joint
Mechanism. If the monitor doesn’t hold its position or
is too resistant, adjust the four tension screws located
around the Ball Joint (see diagram on the right) using
the supplied 2.5mm Allen Key.
Check the display, and then adjust again if necessary.
NOTE: Be sure to adjust screws evenly.
Tighten
Loosen
Tension
Screws (x4)
Ball Joint
2.5mm
Allen Key
H.2. Adjusting the Pivot Head Resistance
It is possible to control the amount of resistance in the
Pivot Head to suit your display.
To increase the resistance of the Pivot Head to suit
heavier displays, use the 5mm Allen Key supplied in the
Desk Clamp Box to tighten the interscrew in a clockwise
direction.
To decrease the resistance of the Pivot Head to suit
lighter displays, loosen the interscrew in an
anti-clockwise direction.
NOTE: It is recommended the Pivot Head be
left at the factory setting for best performance.
Pivot Head
Interscrew
5mm Allen Key
Loosen
Tighten
H.3. Adjusting the Swing Arm/Gas Strut Resistance
3kg
Monitor
9kg
Monitor
Raise Gas
Strut to suit
lighter display
Arm
5mm
Allen key
Gas Strut
Lighter
Heavier
Lower Gas
Strut to suit
heavier
display
H.3.1. Depending on the weight of the monitor, it
may be necessary to adjust the arm. This can be
done by using the 5mm Allen Key supplied in the
Desk Clamp Box.
H.3.2. If the arm tends to automatically rise
or fall when the display is attached, it will be
necessary to make small adjustments to the gas
strut. (see diagram on the right)
H.3.3. If the arm tends to rise, the gas strut
position should be raised. If the arm tends to fall,
the gas strut position should be lowered.
Ergonomic Guidelines
G
Ergonomists recommend that the optimal position of your screen should be slightly below eye level.
When looking at the screen’s centre the user should have a downward visual angle of approximately
10°-20°. As a guide, the height (h) of your display should approximately be as follows:
Tall Male (Max): 560mm (22”) Tall Female (Max): 520mm (20
1
/
2”)
Short Male (Min): 368mm (14
1
/
2”) Short Female (Min): 356mm (14”)
For visual comfort, a viewing distance (d) between 500mm (19
1
/
2”) to 750mm (29
1
/
2”) is
recommended.
Angular adjustments to reduce reflection on your monitor should range between 5° forward tilt to 15°
backward tilt.
Desk Clamp
15°
5°
HORIZONTAL SIGHT LINE (d)
CENTRE OF SCREEN
10°-20°
Recommended Viewing Distance / Height
Recommended Mounting Position
50mm
(2”)
When mounting the Spacedec Acrobat Swing Arm, ensure the correct focal distance can be achieved
for ultimate visual comfort (Refer to Recommended Viewing Distance / Height below)
Desk Clamp Bolt Through
(h)
13mm (
1
/
2
”) hole
Base Casting
