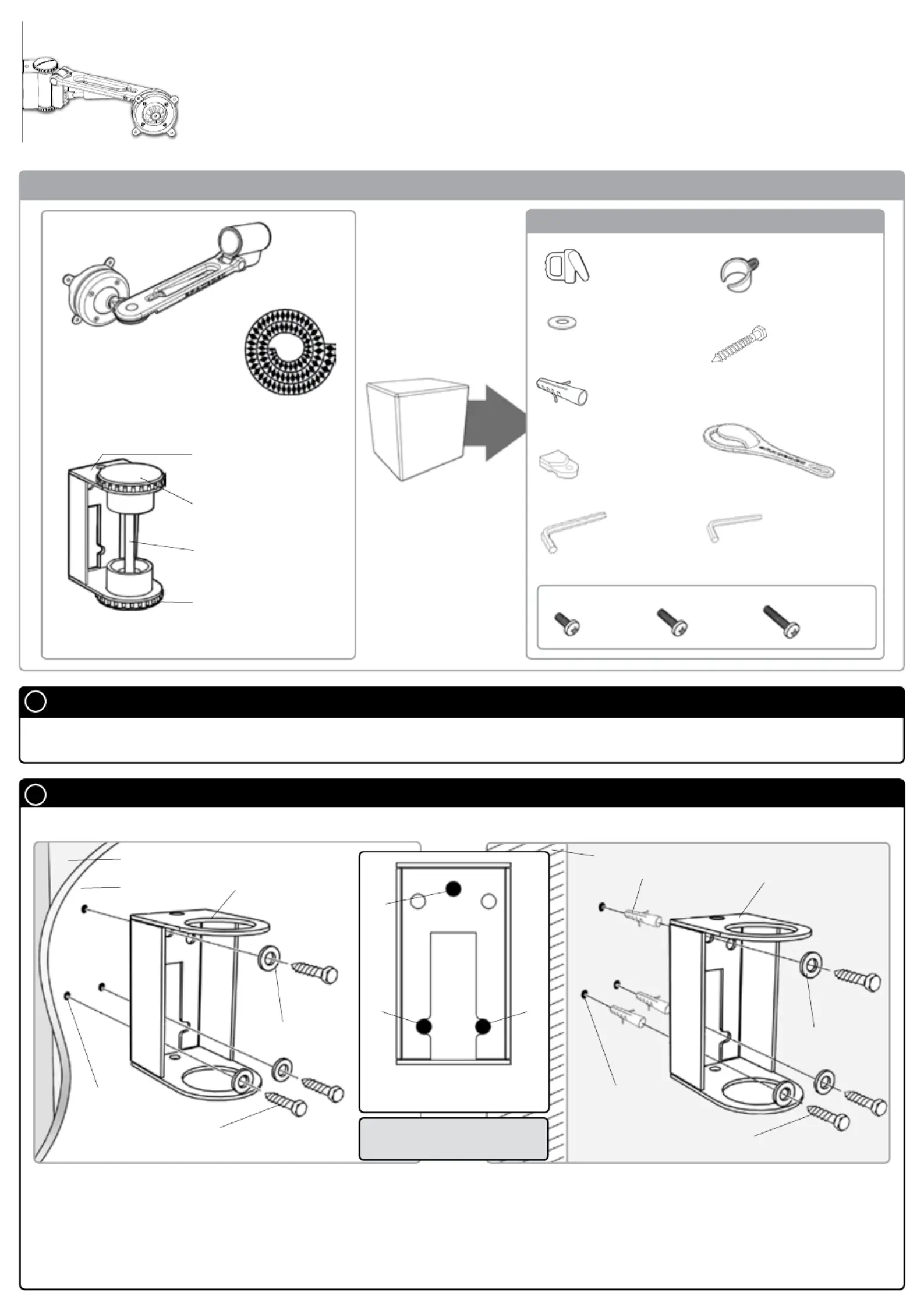

Component Checklist

Installation Instructions

SPACEDEC ACROBAT

SWING ARM WALL

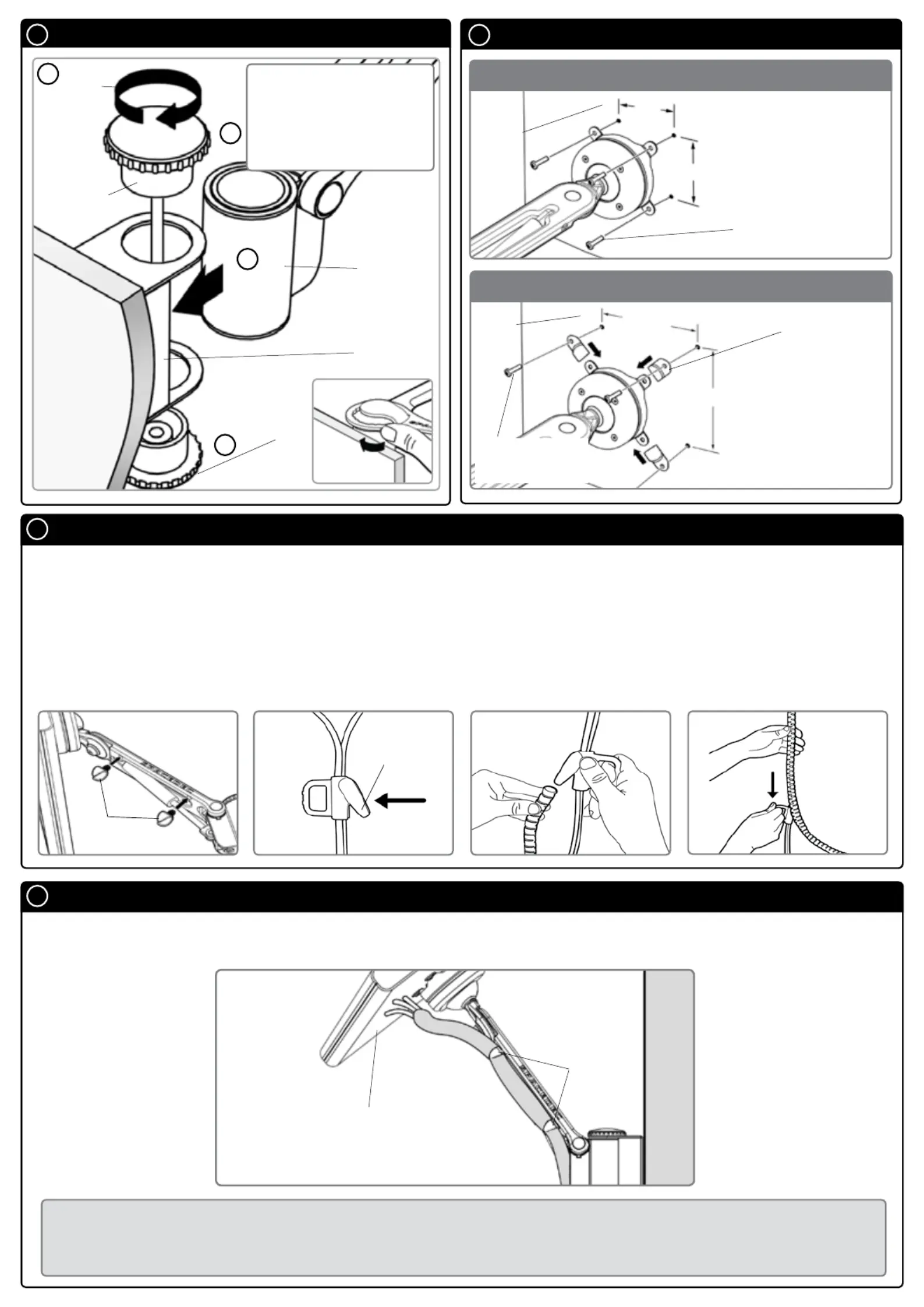

Swing Arm

Assembly (x1)

Cable Wrap

Applicator (x1)

Top Cap Tool (x1)

2.5mm Allen

Key (x1)

Cable Clip

(x2)

Extension

Clip (x4)

Component Checklist

Check you have received all parts against the Component Checklist above.

Bits Box

Mounting Fasteners

M4x10mm

Screw (x4)

M4x12mm

Screw (x4)

M4x16mm

Screw (x4)

16mm Cable

Wrap (x1)

M6 Washer (x3)

Direct Wall Mount

Bracket Assembly (x1)

Top Cap

Threaded Rod

Bottom Cap

Direct Wall Mount

Bracket

5mm Allen

Key (x1)

Nylon Anchor

Plugs (x3)

M6x40mm

Coach Screw (x3)

Direct Wall Mount

Timber Stud

Wall

Direct Wall Mount

Bracket

4mm Hole

M6 Washer

M6 Coach Screw

Direct Wall Mount

Bracket

8mm Hole

M6 Washer

M6 Coach Screw

B.2.1.B.1.2.

B.1. For Timber Stud Mounting - Use the Direct Wall

Mount Bracket to mark out the location of the required

three holes (see diagram B.1.1.). Drill 3x4mm holes deep

enough to receive the M6 Coach Screws, insert the screws

and secure the bracket to the wall (see diagram B.1.2.)

B.2. For Masonry Mounting - Use the Direct Wall Mount

Bracket to mark the location of the required three holes (see

diagram B.1.1.). Using an 8mm masonry drill bit, drill 3 holes

41mm deep. Insert the Nylon Anchors and then secure the Bracket

to the wall using the M6 Coach Screws (see diagram B.2.1.).

S8 Nylon Anchor

Refer to Ergonomic guidelines overleaf to determine best position to mount wall bracket.

Front View of the Direct Wall

Mount Bracket

B.1.1.

Note: Ensure Bracket is

mounted Vertically

Brick or Concrete Wall

Produkt Specifikationer

Mærke:	Atdec
Kategori:	Ikke kategoriseret
Model:	SD-SA-DW-BK
Dybde:	350 mm
Produktfarve:	Sort
Montering:	VESA 4"x4" & VESA 3"x3"
Skærmstørrelse kompatibilitet:	12/24 "
Maksimal vægtkapacitet:	9 kg
Drejevinkel:	40 °
