Side 1/2

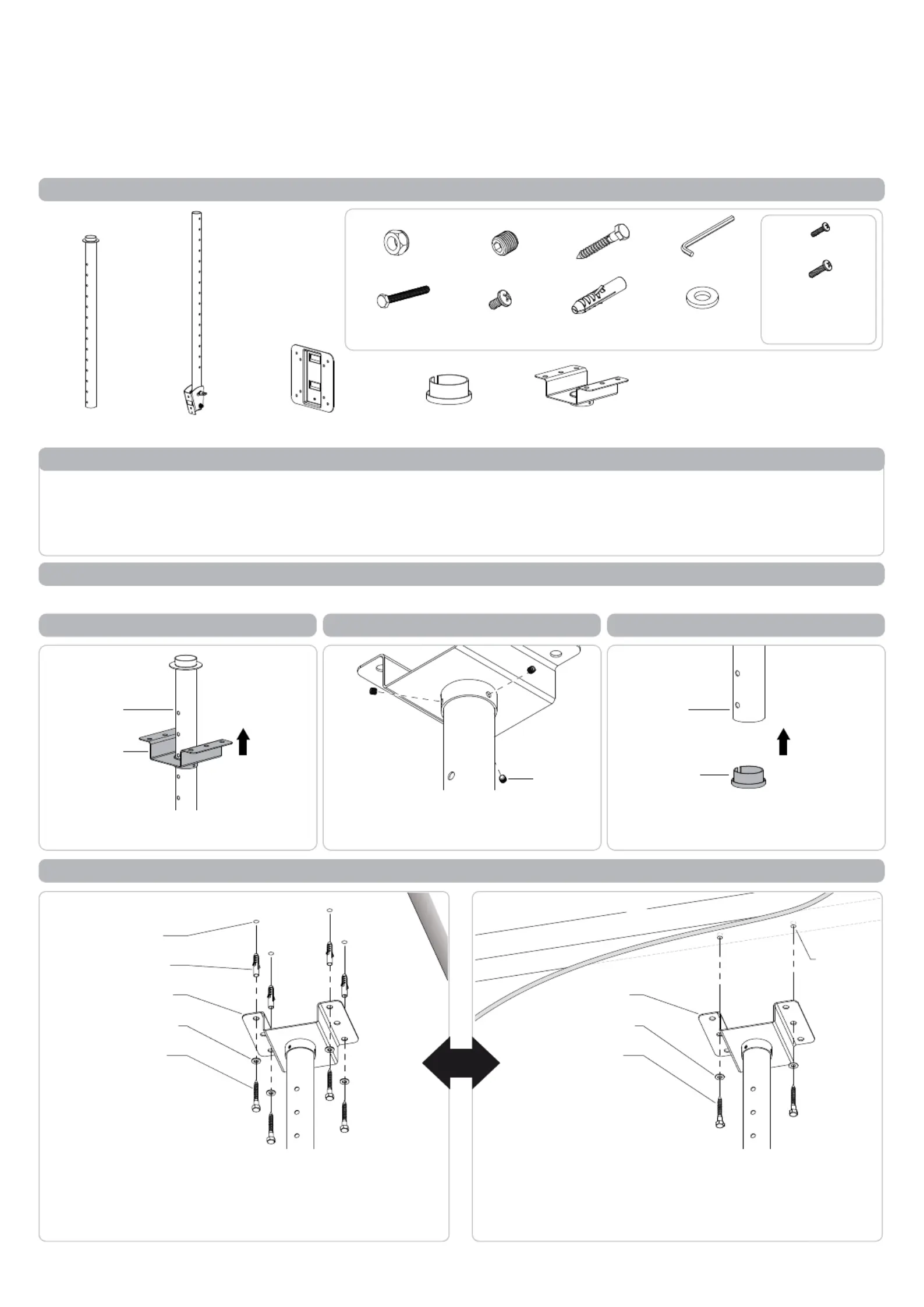

Component Checklist

Coach Screw (x4)

Nylon Anchor (x4)

Washer 8.5mm(x6)

Washer 4.5mm(x4)

3mm Allen Key

M4x12mm/20mm

M5x12mm/20mm

TH-1026-CT

Ceiling Tilt Mount

IMPORTANT INFORMATION:

Step 1. Check Components

! IMPORTANT - Install 1026 Ceiling Tilt Mount per Installation Instructions.

! This product supports a maximum load of 15kg (33lbs).

! This product supports VESA mounting hole configurations 75x75mm and 100x100mm.

! The manufacturer accepts no responsibility for incorrect installation.

Display Mounting

Screw (x4 each)

Hardware

Tools Required:

Power drill

•

4.5mm (0.18”) drill bit

•

10mm (0.39”) masonry drill bit

•

Phillips head screw driver•

12mm (0.47”) socket wrench or shifter

•

Step 2. Slide Ceiling Mount

Upper Pole Lower Pole Screen Mount Ceiling MountUpper Pole Bush

Timber Stud CeilingMasonry Ceiling

Hex-Head Screw

M8x55mm (x2)

Nyloc Hex Nut (x2)

SLIDE INSERT

Ceiling Mount

Upper Pole

Upper Pole Bush

Upper Pole

Insert Bush to the Upper Pole.

Set Screw (x3)

Set Screw

Step 3. Fix Upper Pole

Check you have received all parts against the Component Checklist and Hardware above.

Step 4. Insert Bush

Slide Ceiling Mount on to the Upper

Pole.

Drilled Hole

Nylon Anchor

Ceiling Mount

Washer 8.5mm

Coach Screw

Ceiling Mount

Washer 8.5mm

Coach Screw

- Drill four 10mm (0.39”) diameter holes, 61mm (2.4”) deep.

- Secure the mounting plate to the ceiling using the Coach

Screws and Nylon Anchors supplied.

- Drill two 4.5mm (0.18”) diameter holes, 61mm (2.4”) deep.

- Secure the mounting plate to the ceiling using the Coach

Screws supplied.

NOTE: Use a stud finder to accurately locate the centre

of the stud. Ensure that all screws fix securely into stud.

Fix Upper Pole to Ceiling Mount with

three Set Screws. Tighten using supplied

Allen Key.

M5x6mm

Security Screw

Step 5. Install Ceiling Mount to the Ceiling

Drilled Hole

13mm (0.51”) socket wrench or shifter

HG L E,I

K M A B

C D

No portion of this document or any artwork contained herein should be reproduced in any way without the express written consent Atdec Pty Ltd.

Due to continuing product development, the manufacturer reserves the right to alter specifications without noticed. Published 19.04.12 ©

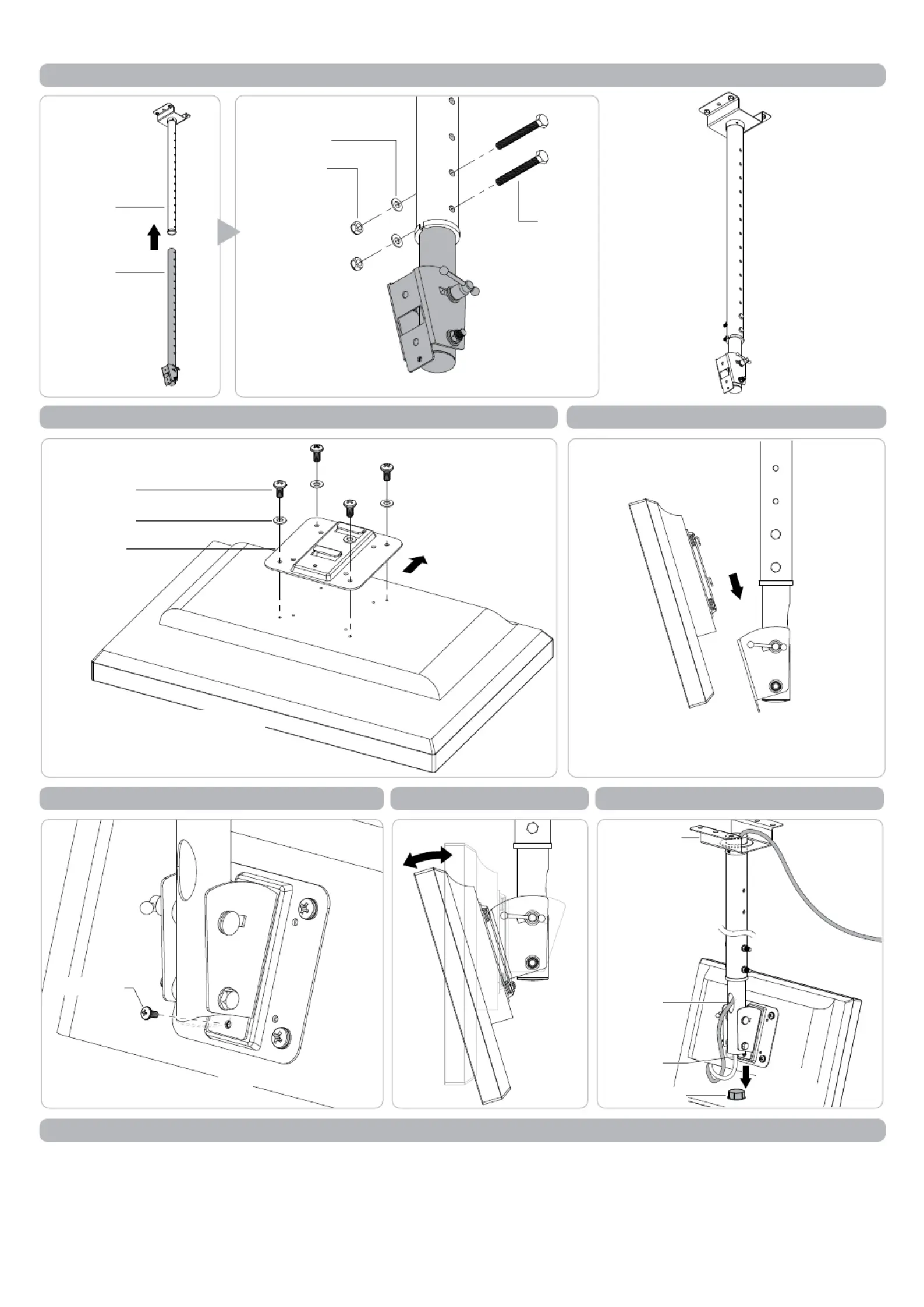

Step 6. Slide Lower Pole up inside Upper Pole and fix to desired height

Step 7. Attach Screen Mount to Display

Step 9.

Fix Display with Security Screw

SLIDE

Upper Pole

Lower Pole

Hex-Head

Screw

Washer 8.5mm

Nyloc Hex Nut

Slide Lower Pole up

inside Upper Pole.

Fix Lower Pole at desired

height using two hex-head

screws, two washers and two nuts.

TOP OF

DISPLAY

Back of Display

Mounting Screw

Washer 4.5mm

Screen Mount

HOOK

Step 8.

Attach Display to Lower Pole

The screen mount supports VESA

mounting hole configurations

75x75mm and 100x100mm.

Step 10.

Tilt Adjustment

Security Screw

Fix Display with supplied Security Screw

using a phillips head screw driver.

Back of Display

Step 11. Cable Management

0-15°

Installation Complete

REMOVE

Lower Pole Cap

Option 1

Option 2

Ceiling Mount

(for Option 2)
