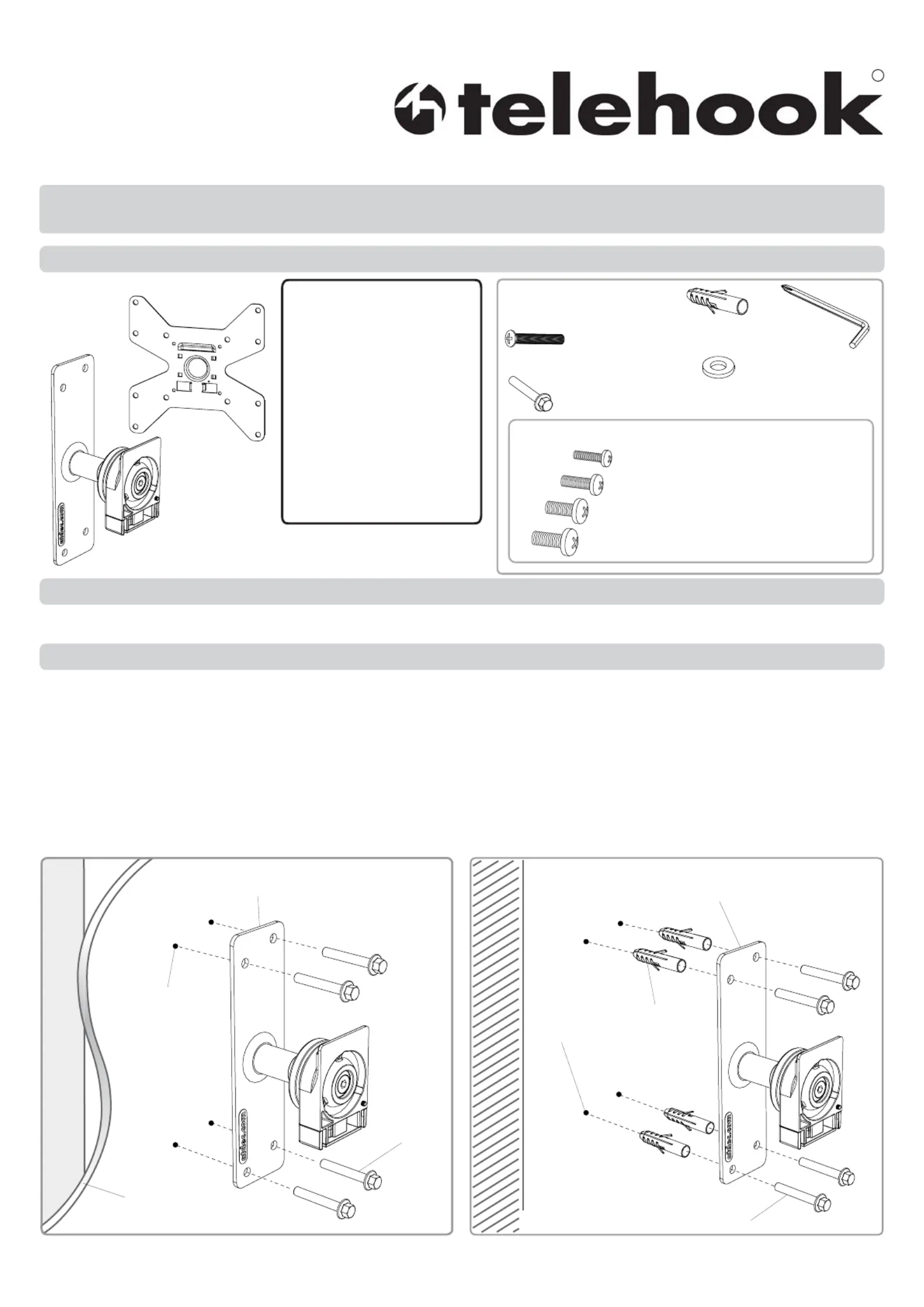

Component Checklist

Step 1. Component Checklist

Check you have received all parts against the Component Checklist above.

Mounting Fasteners

Wall Mount

Assembly (x1)

Step 2. Installing the Wall Mount Assembly (choose from one of the following options)

For mounting Telehook to a Timber Stud Wall - Using the Wall Mount Assembly Bracket, mark

the location of the 4 holes and drill using a 4mm drill bit. Secure the bracket to the wall using the M6 Coach

Screws as shown in diagram A.

For mounting Telehook to a Masonry Wall - Using the Wall Mount Assembly Bracket, mark

the location of the 4 holes and drill using an 8mm masonry drill bit. Secure the bracket to the wall using the M6

Coach Screws and Nylon Anchors as shown in diagram B.

A. Timber Stud Wall

B. Masonry Wall

Note: This product will suit VESA compliant displays with 100x100mm, 200x100mm, and 200x200mm hole patterns only.

It will support up to a maximum weight of 25kg (55lbs).

Installation Instructions

Flat Screen Wall Mount / Tilt

TH-2040-VTR

TOOLS REQUIRED:

• Power Drill

• Phillips-head Screwdriver

• 4mm (

”) Drill Bit

• 8mm (

”) Masonry Drill Bit

• 8mm (

”) Socket Wrench

or Shifter

Combined 3mm

Allen Key and

Phillips-head

Screwdriver (x1)

Hardware

(Optional)

Security

Screw (x1)

M6 Coach

Screws (x4)

Nylon

Anchor (x4)

VESA

plate (x1)

Wall Mount Assembly

Bracket

M6 Coach

Screw

4 x 4mm

Holes

Wall Material

Stud

Wall Mount Assembly

Bracket

M6 Coach Screw

4 x 8mm

Holes

Masonry Wall

Nylon Anchor

M4x16mm / M4x25mm Screw (x4 each)

M5x16mm / M5x25mm Screw (x4 each)

M6x16mm / M6x30mm Screw (x4 each)

M8x16mm / M8x30mm Screw (x4 each)

M4/5

Washer (x4)

No portion of this document or any artwork contained herein should be reproduced in any way without the express written consent of Atdec Pty Ltd.

Due to continuing product development, the manufacturer reserves the right to alter specifications without notice. Published: 23.10.15 ©

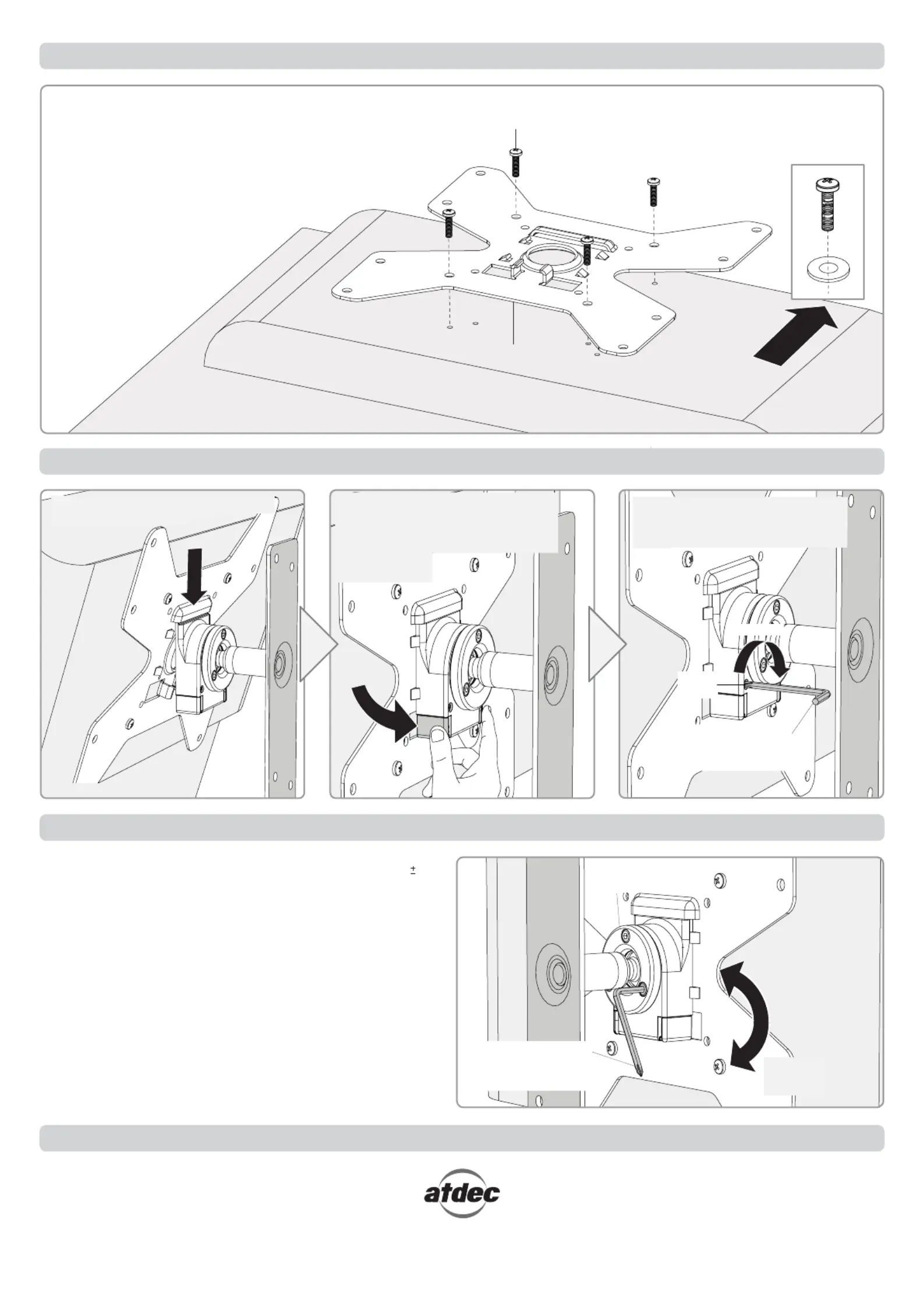

Step 4. Attach your Display to the Wall Mount Assembly

Step 5.

Adjust the VESA Ball Mount

Installation Complete

Combined Phillips-head

Screwdriver/Allen Key

supplied

Step 3. Attach the VESA plate to your Display

Position your Display to the desired viewing angle, using the 20°

angular movement allowed by the VESA Ball Mount.

Depending on the weight of the display, it may be necessary to make

adjustments to the VESA Ball Mount. If the display does not hold its

position, or is too resistant, adjust the Tension Plate located at the

rear of the VESA Ball Mount (see diagram right).

To make any adjustments tension evenly using the 3mm Allen Key

supplied. Apply half a turn at a time to each screw on the Tension

Plate to adjust evenly.

Check the display, and then adjust again if necessary.

Tension

Plate

Loosen

(-Kg)

Tighten

(+Kg)

(Optional) Insert the Security Screw

supplied and tighten using a

Phillips-head Screwdriver.

Press and hold the Release Buttons.

Gently insert bottom of VESA Plate

into Quickshift Mount. Release

Buttons to lock

in place.

Security

Screw

Combined Phillips-head

Screwdriver/Allen Key

supplied

Hook the top of the VESA Plate onto

the VESA Ball Mount.

Back of Display

There are three mounting hole configurations:

• 100mm x 100mm

• 200mm x 100mm

• 200mm x 200mm

Choose appropriate Mounting Screws

from the Hardware supplied to suit

your Display.

Back of Display

Top of

Display

Mounting Screws (x4)

Use M4/M5

Washers

where required

VESA plate

TIGHTEN
