Side 1/2

Display Mounting

Screws

Note:

Use a stud finder to accurately locate the centre of

the stud. Ensure that all screws fix securely into the stud.

Hardware

TH-3060-UF

Component Checklist

Wall Plate

Right Mounting

Bracket

IMPORTANT INFORMATION

! IMPORTANT - Install 3060 Wall Mount as per Installation Instructions.

! This product supports a maximum load of 50kg (110lbs).

! This product only supports displays with mounting hole configurations from 100mm wide x 100mm

high up to 600mm wide x 400mm high.

! The manufacturer does not accept responsibility for incorrect installation.

! Before installing this product, please check the display ventilation requirements with your

LED/LCD manufacturer.

Step 1. Check Components

Step 2. Mounting the Wall Plate

Tools Required:

Power Drill

•

Tip: Use the built-in spirit level to ensure wall plate is horizontal

Masonry Wall

Timber Stud

Check you have received all parts against the Component Checklist and Hardware above.

Nylon Anchor (x4)

M6 Washer (x4)

M5/M6 Spacer (x4)

M8 Spacer (x4)

Coach Screw (x4)

Left Mounting

Bracket

Nylon Anchor

Coach Screw

Wall Plate

M6 Washer

Timber Stud

Wall Plate

Coach Screw

M6 Washer

Multi-washer (x4)

M4x16/25/30mm (x4 each)

M5x14mm (x4 each)

M6x14/30mm (x4 each)

M8x 20/30mm (x4 each)

Flat screen wall mount | Fixed

5mm ( ”) drill bit

•

Phillips Head screwdriver •

10mm

( ”)

masonry drill bit

•

10mm

( ”)

Socket Wrench or Shifter•

0.2

0.39

10mm

( ”)

hole

depth: 55mm (2.2”)

0.39

5mm

( ”)

hole

depth: 55mm (2.2”)

0.2

Installation Instructions

WALLWALL

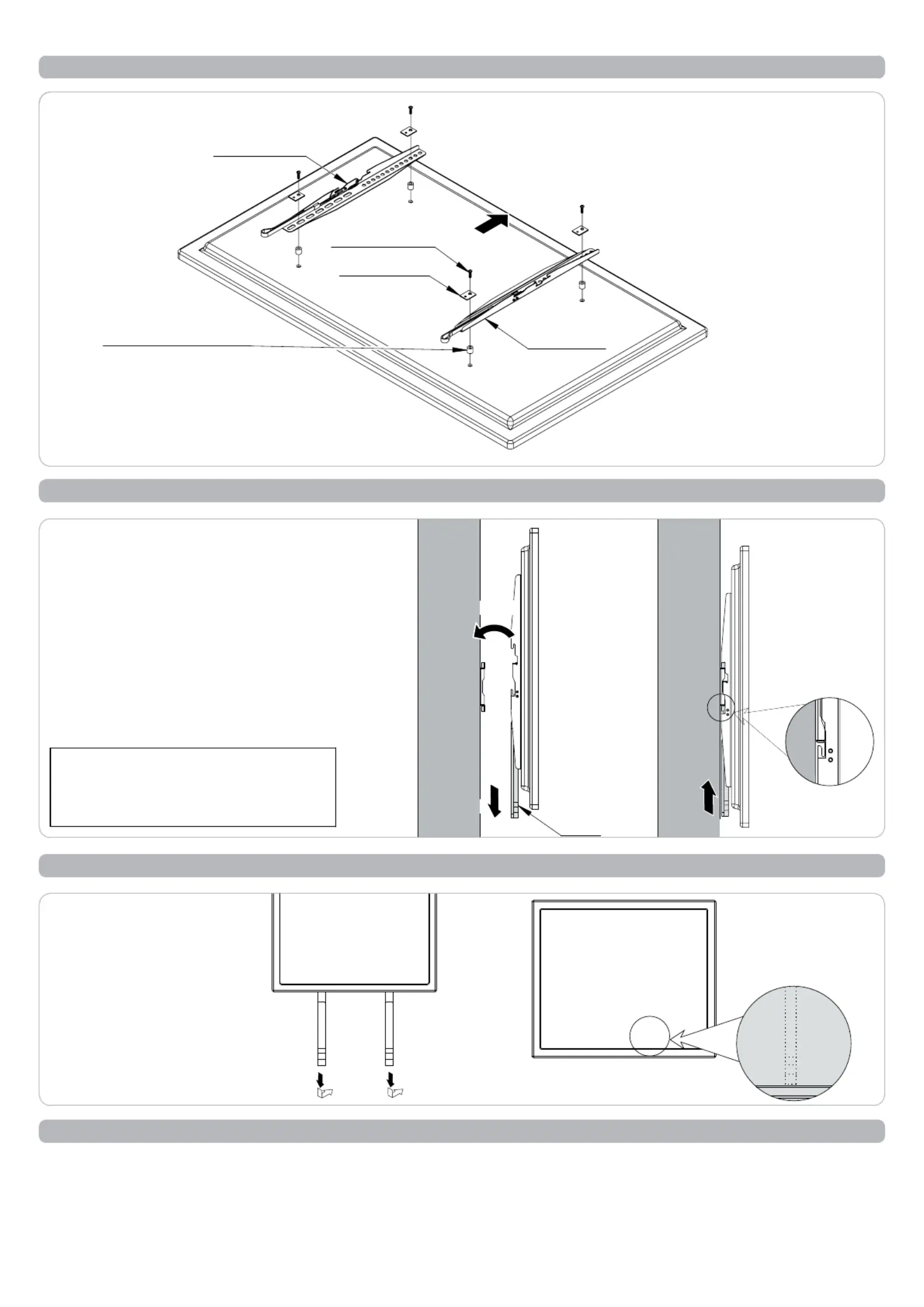

Step 3. Attaching Brackets to Display

No portion of this document or any artwork contained herein should be reproduced in anyway without the express written consent Atdec Pty Ltd.

Due to continuing product development, the manufacturer reserves the right to alter specifications without notice. Published

/09/2015

Lift your Display, hooking the Mounting

Brackets over the top of the Wall Plate Rail.

Pull down on the two Straps, and gently push

the bottom of the Display towards the Wall.

Release the Straps to engage the locking

mechanism, safely securing the Brackets to

the Wall Plate.

Step 4. Attaching/Detaching Display to Wall Plate (2 people required)

Step 5. Hide Straps

Installation Complete

Detaching Display from Wall Plate:

Pull down on both Straps to disengage the

locking mechanism. At the same time lift

the Display away from the Wall Plate.

Spacer

(optional, use only for

recessed mounting holes)

Mounting Screw

Multi-washer

Left Mounting

Bracket

Right Mounting

Bracket

Straps

PULL

SECURE

RELEASE

Note: Make sure the TV is correctly hooked before

releasing the Display.

If necessary, shorten

the length of the Straps

using the hook-and-loop

fastener strip, so that

they cannot be seen.

TOP

HOOK

Produkt Specifikationer

Mærke:	Atdec
Kategori:	Ikke kategoriseret
Model:	TH-3060-UF
Produktfarve:	Sort
Panel montering grænseflade:	200 x 100,200 x 200,300 x 300,400 x 400,600 x 400 mm
Monteringstype:	Væg
Maksimal vægtkapacitet:	50 kg
Montering interface kompatibilitet (min.):	200 x 100 mm
Montering interface kompatibilitet (maks.):	600 x 400 mm
