Flat Screen Wall Mount | Tilt

TH-3065-LPT

Component Checklist

IMPORTANT INFORMATION

Step 1. Check Components

! IMPORTANT Install Telehook TH-3065-LPT Wall Mount as per the Installation Instructions

! This product supports a maximum load of 40Kg (88 lbs).

! This product only supports displays with mounting hole conﬁ gurations from 100mm x 100mm (min.) to 600mm x 400mm (max.).

! The manufacturer does not accept responsibility for incorrect installation.

! Before installing this Telehook product, please check the display ventilation requirements with your LED/LCD manufacturer.

Check you have received all parts by comparing supplied parts against the Component Checklist and Hardware lists above.

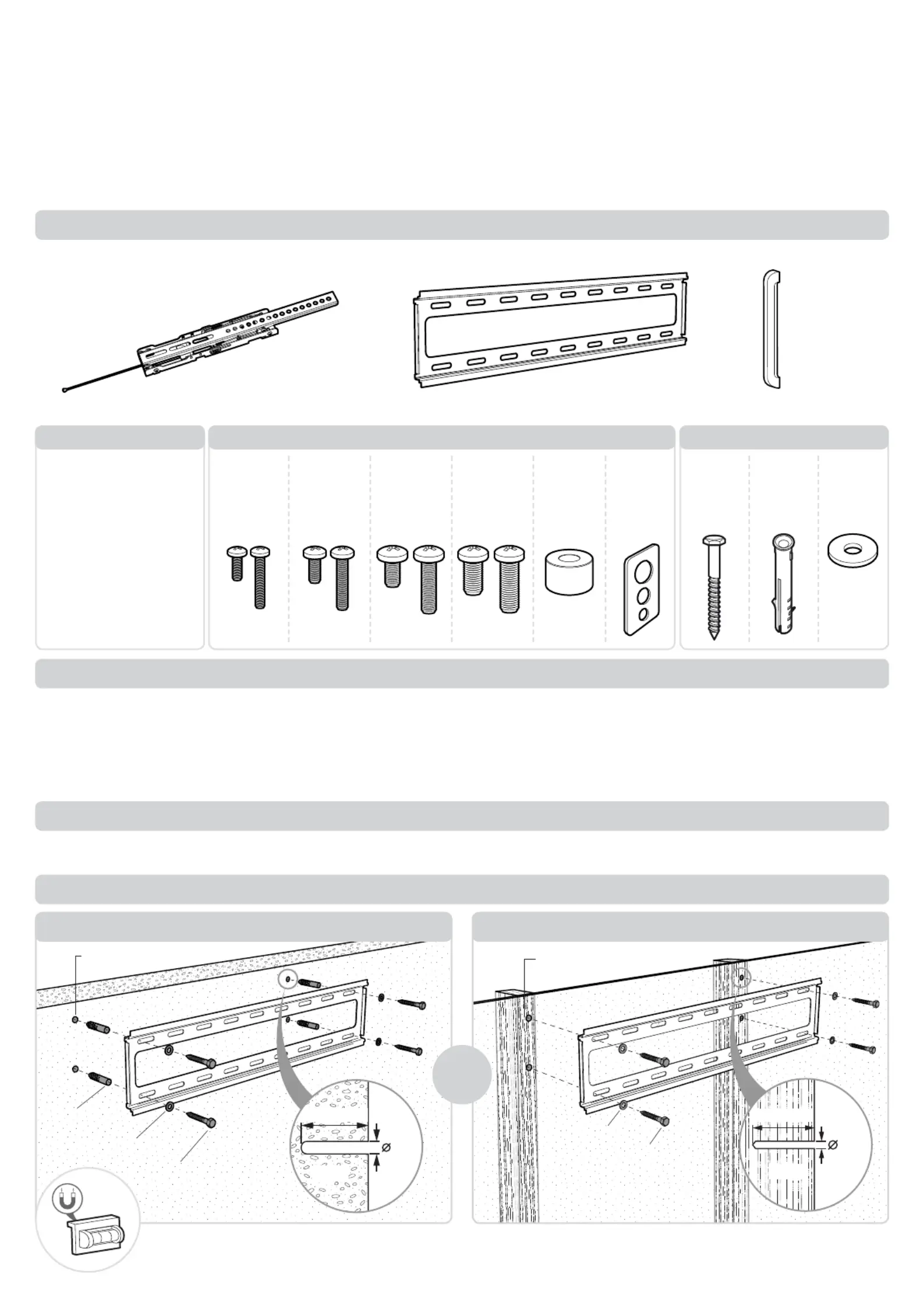

Tilt Bracket (x2)

Wall Plate

End Cap (x2)

M4x12/25

(x4 each)

M5x12/25

(x4 each)

M6x12/25

(x4 each)

M8x16/25

(x4 each)

Spacer

(x4 each)

Multi

Washer

(x4 each)

Coach

Screw

(x4 each)

Nylon

Anchor

(x4 each)

Washer

(x4 each)

Wall Mounting HardwareTools Required Display Mounting Hardware

• Power Drill

• Phillips Head

Screwdriver

• 5mm (

”) Drill Bit

• 10mm (

”)

Masonry Drill Bit

• 13mm (

”) Socket

Wrench or Shifter

Masonry Wall Timber Stud

5mm

(

”

)

50mm (2”)

Stud

10mm

(

”)

58mm

(2.3”)

Wall

Tip: Use the supplied magnetic bubble level

to ensure wall plate is horizontal.

Note: Use a stud ﬁ nder to accurately locate the centre of each

stud. Ensure that all four screws are ﬁ xed securely into the studs.

10mm (

”) hole

5mm (

”) hole

Step 2. Mount the Wall Plate

Installation Instructions

Click!

Push

Rear View of Screen

TOP

Pull



max

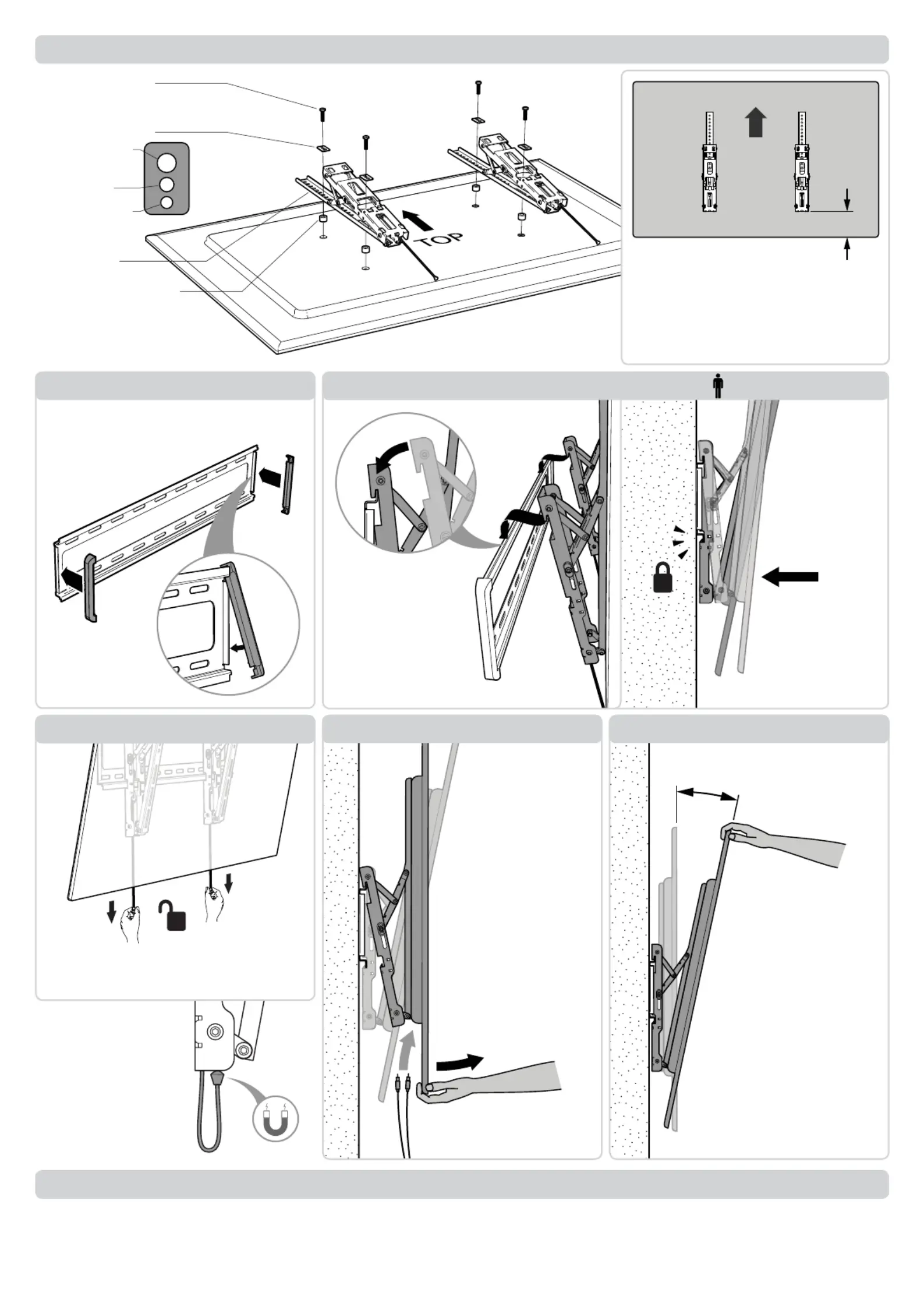

Step 3. Attach Tilt Brackets to Screen

Step 7. Cable Management

Step 6. Unlocking Screen

Step 8. Set Screen Tilt

Installation Complete

A5 Spacer (optional)

Use for recessed

mounting holes only.

Use longer mounting

screws with spacers.

Note: If dimension ‘A’ is larger than

195mm (7.68“) the maximum tilt

shown in will be reduced.Step 8

A6 Multi-washer

Tilt Bracket

A1 A2 A3 A4| | |

Mounting Screw

For M5 &

M6 Screws

For M4 Screws

For M8 Screws

Step 4. Attach End Caps

Step 5. Attach Screen to Wall Plate

(two people required)

Push each of the End Caps

onto the tabs at each end

of the wall plate.

5.1 Hook the Tilt

Brackets onto the

top edge of the

Wall Plate.

Unlock the Tilt

Brackets from

the wall plate.

Pull the bottom

of the screen out

from the wall to

provide access for

connecting cables

to the screen.

Once cables are

connected, lock

screen to Wall Plate

as in .Step 5.2

5.2 Lock the

screen to the

Wall Plate by

gently pushing

the bottom of

the screen.

Pull down both strings to unlock the Tilt

Brackets from the Wall Plate.

TIP: Hide strings by

sticking magnetic

pendants onto the

Tilt Brackets behind

the screen.

Once the brackets

are locked, set the

screen tilt by gently

pulling or pushing

the top edge of the

screen.

No portion of this document or any artwork contained herein should be reproduced in any way without the express written consent of Atdec Pty Ltd.

Due to continuing product development, the manufacturer reserves the right to alter specifications without notice. Published 18.08.15 ©

Produkt Specifikationer

Mærke:	Atdec
Kategori:	Ikke kategoriseret
Model:	TH-3065-LPT
Produktfarve:	Sort
Panel montering grænseflade:	100 x 100,100 x 150,100 x 200,120 x 120,120 x 180,200 x 100,200 x 200,200 x 150,200 x 300,200 x 400,280 x 150,300 x 200,300 x 400,300 x 300,300 x 100,360 x 304,400 x 200,400 x 400,400 x 100,400 x 300,400 x 600 mm
Husmateriale:	Stål
Monteringstype:	Væg
Højdejustering:	Ingen
Maksimal vægtkapacitet:	40 kg
Maksimal skærmstørrelse kompatibilitet:	65 "
Minimal skærmstørrelse kompatibilitet:	32 "
Montering interface kompatibilitet (min.):	100 x 100 mm
Montering interface kompatibilitet (maks.):	400 x 600 mm
