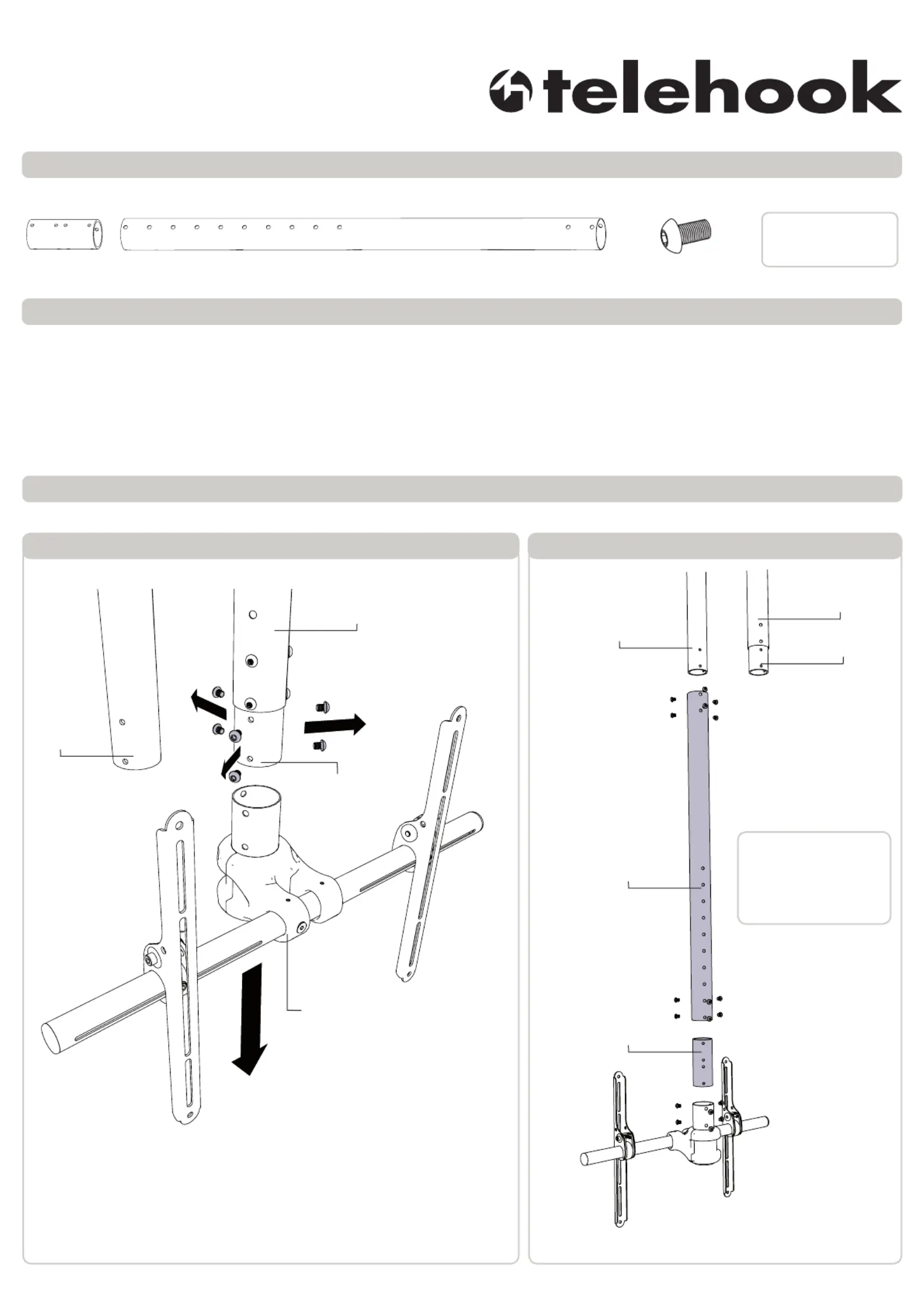

Step 2. Remove display mount

Step 1. Check Components

Component Checklist

Step 3. Add extension to set-up

Add new extension

hanger and collar

joiner to set-up as

shown

Remove Display mount from existing set-up by

undoing the screws with a 5mm allen key.

Note: retain screws for further use with extension

M8 x 10mm Screw

x12

Tools Required:

5mm allen key

Flat Panel Ceiling Mount | 1 Metre Extension

TH-3070-CTW-EXT-1M

IMPORTANT INFORMATION

! IMPORTANT - Install Telehook Flatpanel ceiling mount 1m extension as per Installation Instructions

! The Telehook Flat panel ceiling mount plus the 1metre extension supports a maximum of 91kg (200lbs).

! The installers should satisfy themselves that the ceiling is strong enough to support the Telehook Flat panel ceiling

mount unit of 14kgs (31lbs) and the 1m extension unit of 3kgs (6.6lbs) plus the maximum allowable monitor weight

of 91kgs (200lbs). Total of 108kgs (238lbs).

! The Manufacturer recommends the use of guy wires when adding the 1metre extension to an existing set-up

! The Manufacturer accepts no responsibility for incorrect installation.

Check you have received all parts against the Component Checklist and Hardware.

1Metre Extension hanger

Collar Joiner

Extension hanger

New

Collar Joiner

Extension hanger

New 1 Metre

Extension hanger

Collar Joiner

Installation Instructions

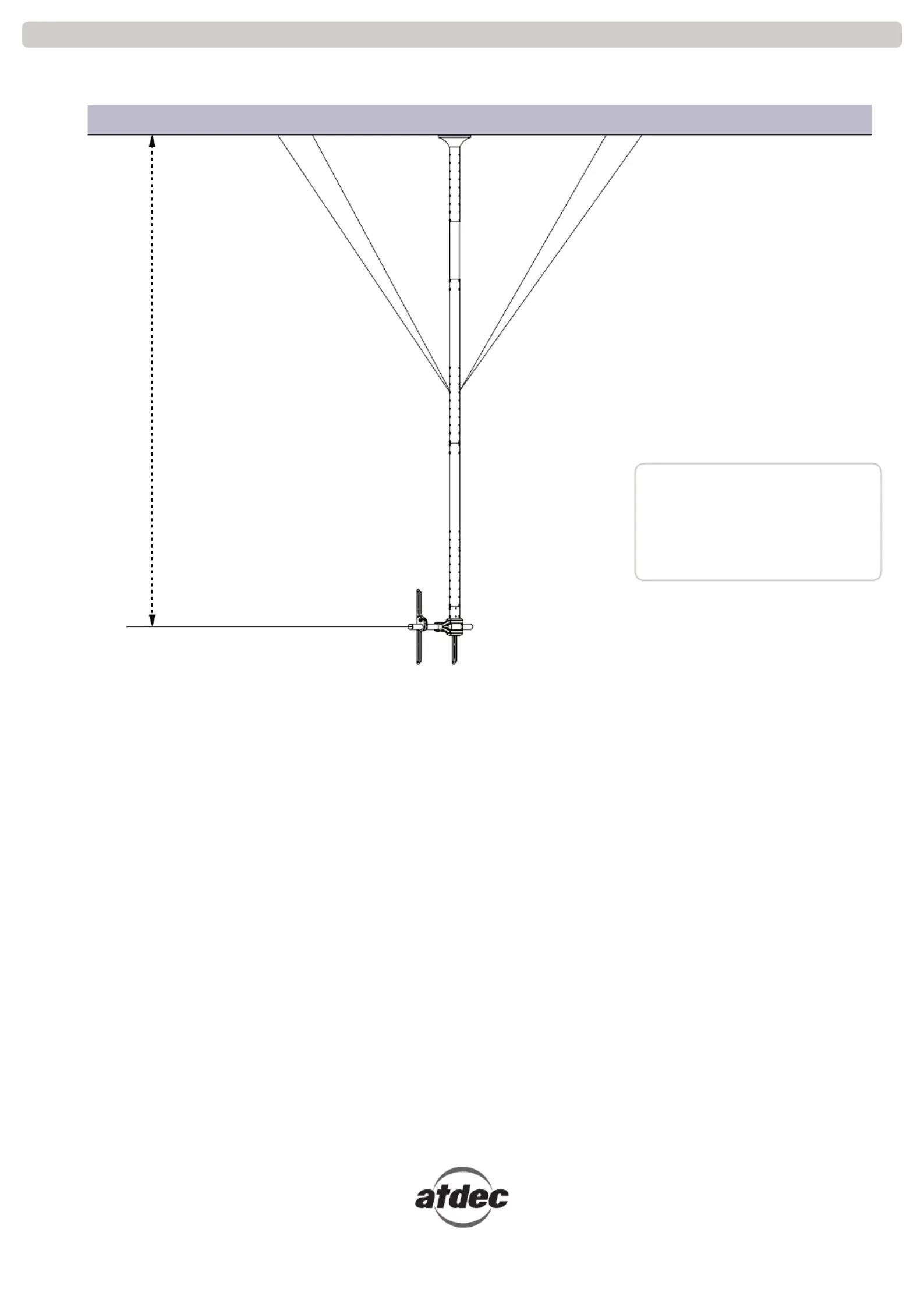

Step 3. Using Guy wires

ATDEC RECOMMENDS

the use of guy wires when

adding the 1metre extension

to an existing set-up

Ceiling

3 Metre

(118.1”)

Maximum

Extension

No portion of this document or any artwork contained herein should be reproduced in any way without the express written consent of Atdec Pty Ltd.

Due to the continuing product development, the manufacturer reserves the right to alter specifications without notice. Published 09.07.12 ©
