Installation Instructions

TH-3070-UFL

Component Checklist

Large-Medium TV Articulated Arml

Tools Required:

• Power Drill

• 3mm(0.12”) Drill Bit

• 10mm(0.39”) Masonry Drill Bit

• Phillips head screw driver

• 13mm(0.5”) Socket Wrench or Shifter

! IMPORTANT - Install Telehook 3070 Large-Medium TV Articulated Arm Mount as per installation instruction.

! This product supports a maximum load of 60kg (132lbs.).

! This product has a universal mounting hole pattern that suits a broad range of TV’s:

From 200-800mm in width and 200-400mm in height.

! The manufacturer accepts no responsibility for incorrect installation.

IMPORTANT INFORMATION:

Step 1. Check Components

Check you have received against the component checklist and hardware above.

Step 2. Install Arm/Wall Mount to the Wall

Step 3. Attach Wall Mount Covers Step 4. Attach Mounting Brackets to Display

Arm/Wall Mount

Right Mounting

Bracket

Left Mounting

Bracket

Allen Key

Wall Mount

Cover Left (x2)

Wall Mount

Cover Right (x2)

Coach Screw (x6)

Nylon Anchor (x6)

M8 Washer (x6)

M6.5 Washer (x4)

M8 Spacer (x4)

Hardware

M6x12 (x4 each)

M6x30mm (x4 each)

M8x16mm (x4 each)

M8x30mm (x4 each)

Display Mounting

Screws

Masonry Wall Timber Stud Wall

Coach

Screw (x4)

M8 Washer (x4)

Arm/Wall Mount

Ø5mm(0.2”)

Drilled Hole

Nylon Anchor (x6)

Coach

Screw (x6)

M8 Washer (x6)

Arm/Wall Mount

Ø10mm(0.4”)

Drilled Hole

Note: Use a stud finder to

accurately locate the center of

the stud. Ensure that all screws

fix securely into the stud.

Tip: Use a spirit level to ensure

wall plate is horizontal.

Wall Mount

Cover Left

Wall Mount

Cover Right

Wall Mount

Cover Right

TOP

Mounting Screw

Left Mounting

Bracket

Right Mounting

Bracket

Washer

Timber Studs

Ensure locking

screw is in inside.

Spacer

(optional, use only

for recess mounting

holes)

Wall Mount

Cover Left

Wall Mount

Cover Centre

Wall Mount

Cover Centre

Wall Mount Cover

Centre (x2)

Installation Complete

No portion of this document or any artwork contained herein should be reproduced in any way without the express written consent of Atdec Pty Ltd.

Due to continuing product development, the manufacturer reserves the right to alter specifications without notice. Published 02.11.12 ©

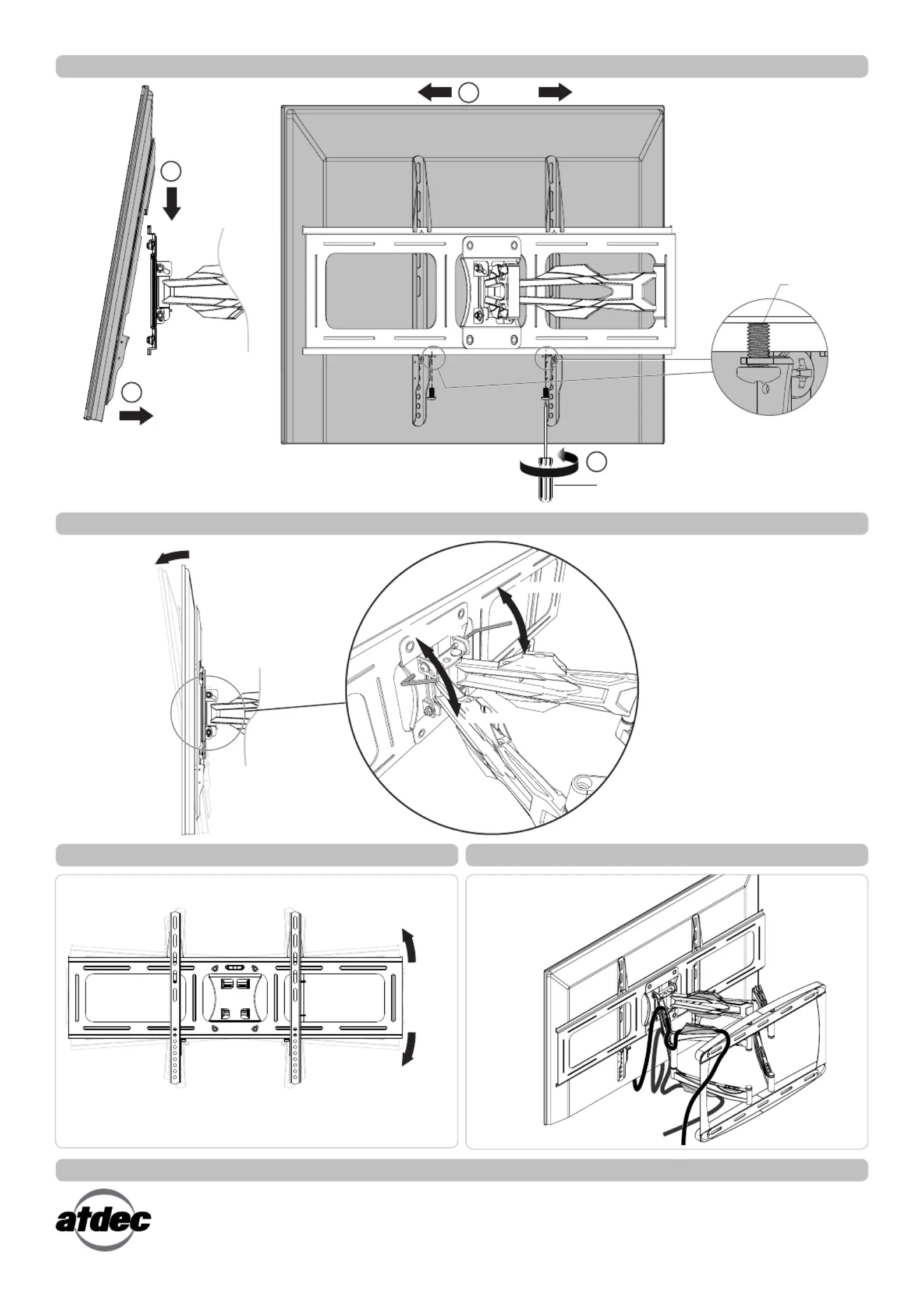

Step 5. Attach Display to the Arm/Wall Mount

Step 6. Tilt Adjustment

Step 7. Horizontal Adjustment Step 8. Cable Management

1. Hook the display to the mounting

plate.

2. Push the bottom of the display.

3. Ensure display is positioned in the

center of the mounting plate.

4. Tighten the locking screws using a

phillips head screw driver.

10°

Depending on the weight of your display,

you may need to use the supplied allen

key to tighten and loosen the screws for tilt

tension adjustment.

+2°

-2°

TIGHTEN

LOOSEN

1 HOOK

2 PUSH

Phillips Head Screw Driver

3 CENTER

Locking Screw

4 TIGHTEN

Insert cables into the four clips

provided.

LOOSEN

TIGHTEN

Produkt Specifikationer

Mærke:	Atdec
Kategori:	Ikke kategoriseret
Model:	TH-3070-UFL
Produktfarve:	Sort
Husmateriale:	Aluminium, Steel
Monteringstype:	Væg
Hældningsvinkelområde:	0 - 10 °
Panoreringsområde:	0 - 90 °
Maksimal vægtkapacitet:	60 kg
Maksimal skærmstørrelse kompatibilitet:	45.3 "
Minimal skærmstørrelse kompatibilitet:	- "
Montering interface kompatibilitet (min.):	800 x 200 mm
Montering interface kompatibilitet (maks.):	800 x 200 mm
Afstand til væggen (min.):	42 mm
Afstand til væggen (maks.):	515 mm
