Side 1/2

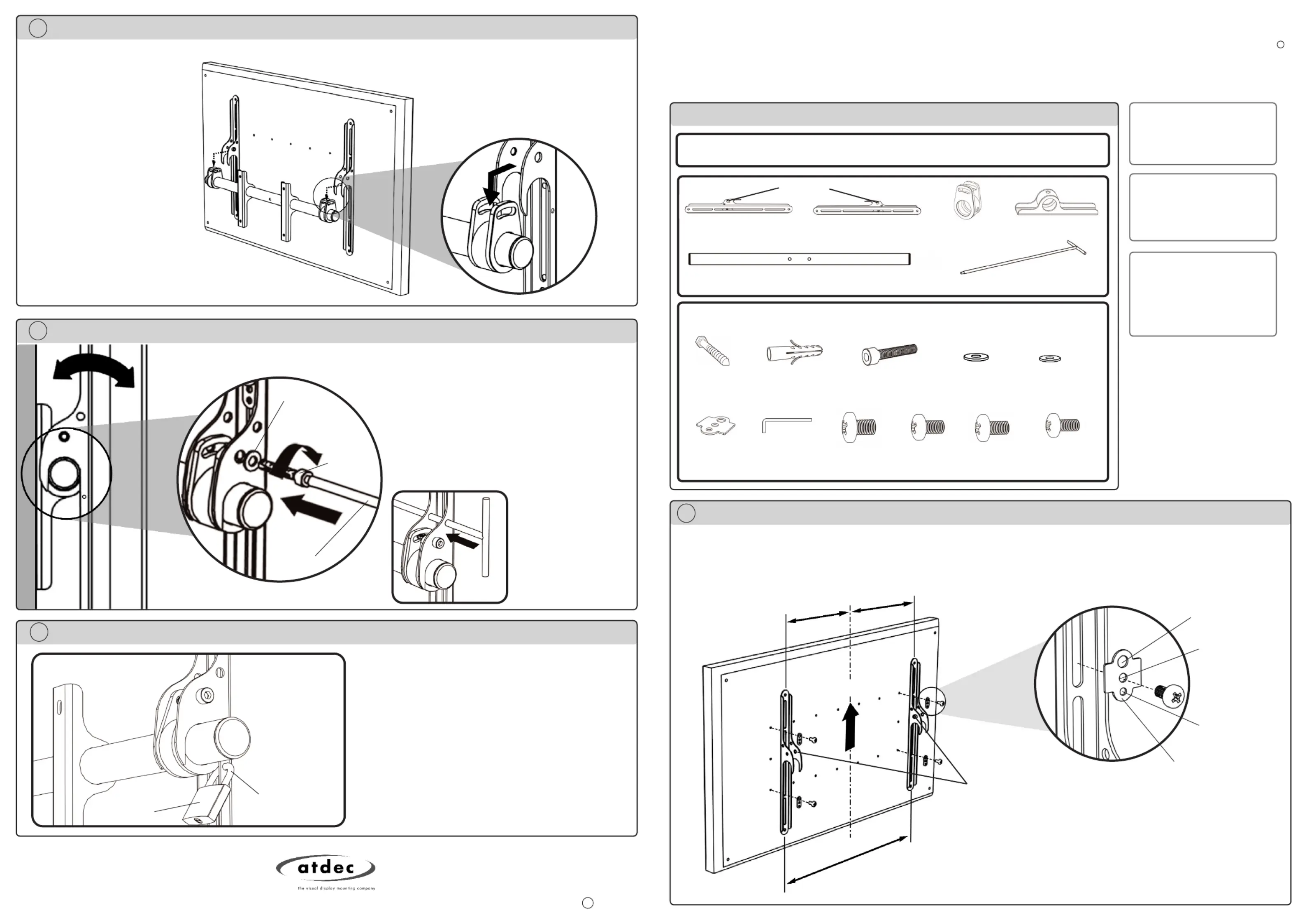

Component Checklist

Due to continuing product development, the manufacturer reserves the right to alter specifications without notice. Published: 24.11.06 c

E Mounting the Display

Installation Instructions

TELEHOOK

31-55 Tilt Wall

31-55” Horizontal Bar

Wall Mount (x2)

31-55” Bracket (Left)

31-55” Bracket (Right)

Slider (x2)

Hex Tool

5mm

Allen Key

M8 Small

Washer (x2)

Wall Plug (x4)

M8 Large

Washer (x4)

M8 x45mm

Screws (x2)

Multi

Washer (x6)

M5 x 16mm

Screw (x6)

M6 x 16mm

Screw (x6)

M8 x 16mm

Screw (x6)

M8 Coach

Screw (x4)

M4 x 16mm

Screw (x6)

M8 Screw Hole

M6 Screw Hole

M5 & M4

Screw Hole

Step 2

Use the supplied Multi Washer as shown

above. Ensure that the tightest fitting hole in

the washer is used for the specific sized screw.

Note distance X, for use in the

following steps

Note: This operation may

require two persons.

Now that the horizontal bar is

attached to the wall with the

Sliders in place, lift the Display

with brackets attached and

hook the Brackets over the

Sliders. Let the display rest

against the wall.

Step 1

Fit two M8x45mm locking screws into brackets

behind Display. Adjust the Tilt angle of the

Display. Tighten two locking screws with Hex

Tool provided.

WARNING: Do not attempt to adjust

tilt angle without firstly loosening

locking screws. Doing so may damage

product.

M8 Small

Washer

M8x45mm

Screw

Hex Tool

Tighten

-5° to 10° Tilt

TOP

Step 2

Store the Hex Tool

behind the display

Bit Box

Clinch Nuts

Multi Washer

Step 1

Attach left and right brackets to the rear of your display. Select M4, M5, M6 or M8 fasteners to suit your display. Ensure

a minimum of two fasteners are used per bracket. Clinch nuts must be positioned as shown (internally).

Note: The brackets should

rest on the horizontal bar

with the slider between the

bracket.

For added security you may choose to attach a padlock

to one or both brackets to prevent the theft of the

display. It is recommended that the padlock should

have a shackle diameter of 5mm (

”).

Padlock

5mm (

”)

diameter shackle

NOTE:

The manufacturer does

not accept responsibility

for incorrect installation.

Telehook 31-55 Tilt

Wall supports a

maximum weight of

60kgs (132lbs)

TOOLS REQUIRED:

zPower Drill

z12mm (1/2”) Drill Bit

z8mm (5/16”) Drill Bit

zAdjustable wrench

IMPORTANT:

Ensure you have received all parts against the component checklist prior to installing.

A Attaching the Brackets to the Display

G Security Option

Clinch Nuts

F Fix the Tilt angle of the Display

Produkt Specifikationer

Mærke:	Atdec
Kategori:	Ikke kategoriseret
Model:	TH-31-55-TCB-PK
Produktfarve:	Sort
Monteringstype:	Loft
Hældningsvinkelområde:	-5 - 25 °
Rotationsvinkel:	360 °
Maksimal vægtkapacitet:	64.8 kg
