Side 1/2

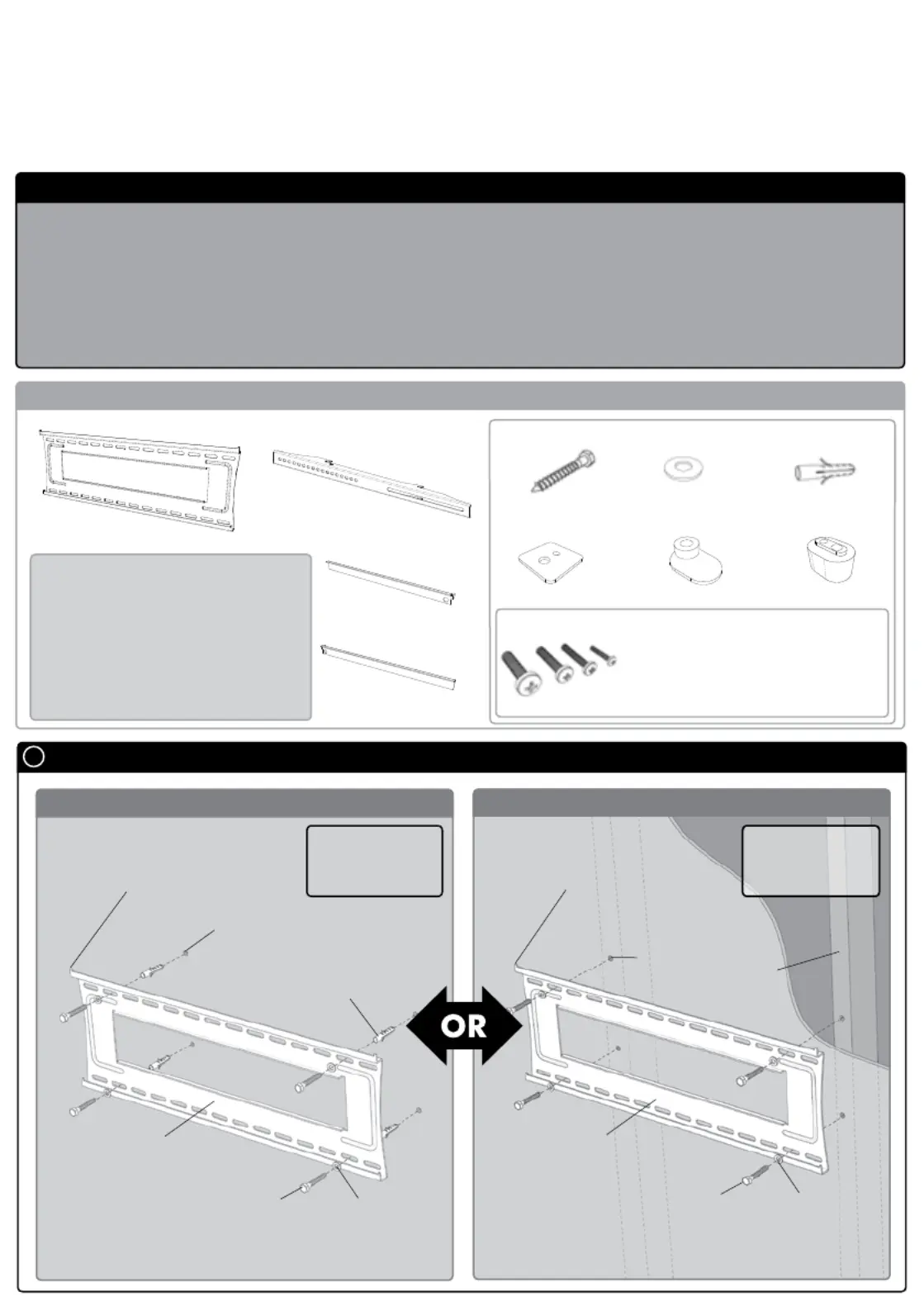

Component Checklist
Bits Bag
Installation Instructions
TELEHOOK
32”-60WALL FIXED
Mounting the Wall Plate
A
Timber Stud Wall
Display Bracket (x2)
Wall Plate
Coach Screw (x4)
Masonry Wall Plug (x4)
Washer (x4)
Recessed Hole Bush (x4)
Washer
Masonry
Wall Plug
Wall Plate
12mm (
1
/
2
”)
Hole
TIP: Use a spirit
level to ensure the
wall plate is
horizontal
Note: Ensure the Wall Plate
is mounted with the folded
tabs pointing upwards.
Coach Screw
8mm (
5
/
16
”)
Hole
Important Notes
TOOLS REQUIRED:
l
Power Drill
l
12mm or 8mm Drill Bit
l
Phillips Head Screw Driver
l
Spirit Level
l
17mm (
11
/
16
”) Socket Wrench
or Shifter
l
The Telehook 32-60 Wall Fixed supports LCD and Plasma Flat Panel Displays from 32” (81cm)
to 60(152cm) and supports a maximum load of 91kgs (200lbs).
l
This product suits displays with mounting hole patterns from 180mm to 740mm wide (7”-29”) by 93mm to
500mm high (3
11
/
16
-20”).
l
The manufacturer does not accept responsibility for incorrect installation.
Security Bracket (right)
Security Bracket (left)
Multi Washer (x4)
Spacer Bush (x4)
Mounting Screws
M8x15mm / M8x35mm / M8x45mm (x4 each)
M6x15mm / M6x35mm / M6x45mm (x4 each)
M5x15mm / M5x35mm / M5x45mm (x4 each)
M4x15mm / M4x35mm / M4x45mm (x4 each)
Cross Recess Screws
TIP: Use a spirit
level to ensure the
wall plate is
horizontal
Note: Ensure the Wall Plate
is mounted with the folded
tabs pointing upwards.
Wall Plate
Coach Screw
Washer
Timber
Stud
Recessed Mounting Holes
B
C
D
Due to continuing product development, the manufacturer reserves the right to alter specifications without notice. Published: 06.12.07 ©
Multi
Washer
M6 & M8
Screw Hole
M4 & M5
Screw Hole
Mounting
screw

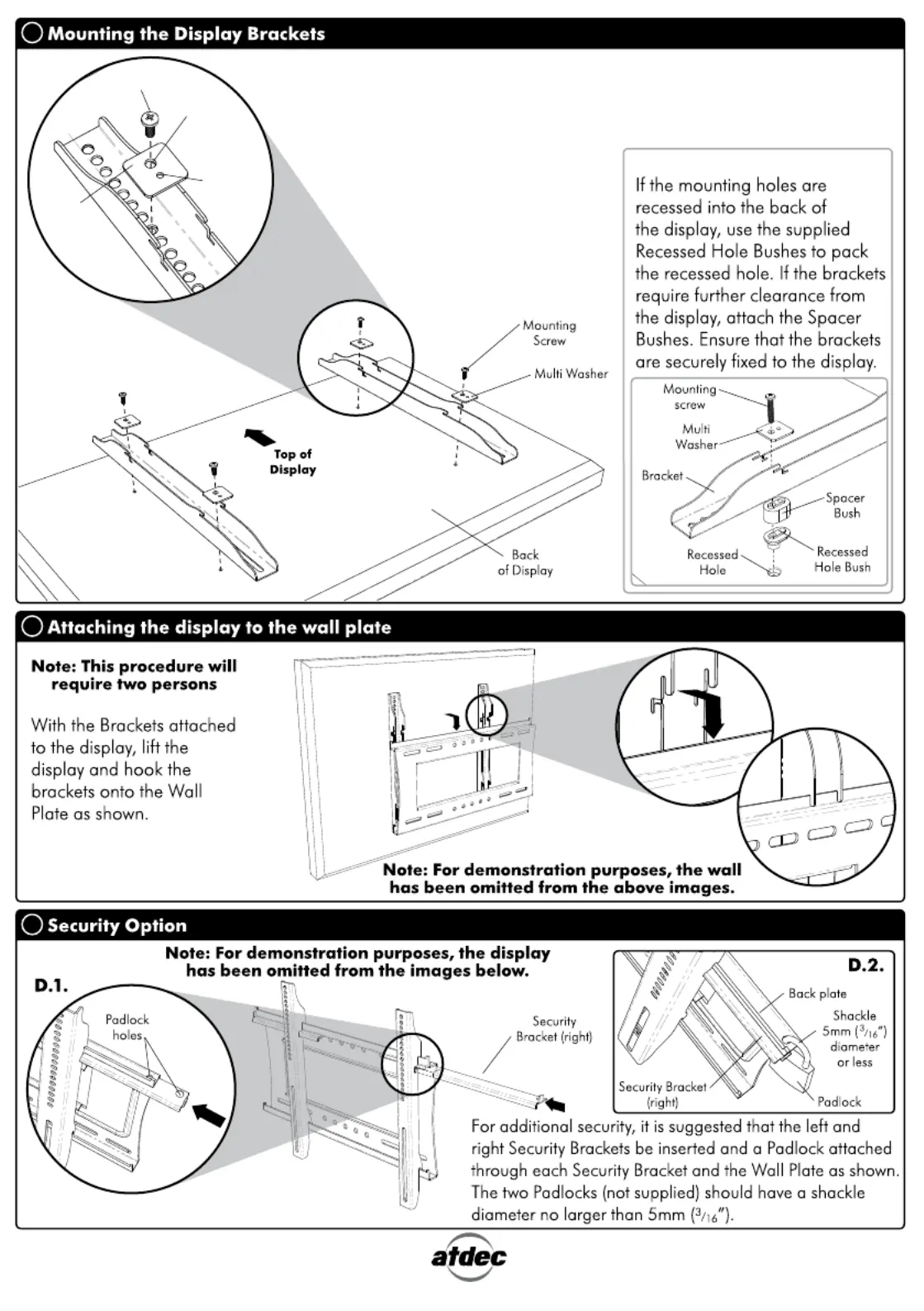

When attaching the Brackets to the
display ensure that both
brackets are vertically aligned.
Ensure that the tightest fitting hole in
the multi washer is used
when attaching the mounting
screw to the display.
