Side 1/2

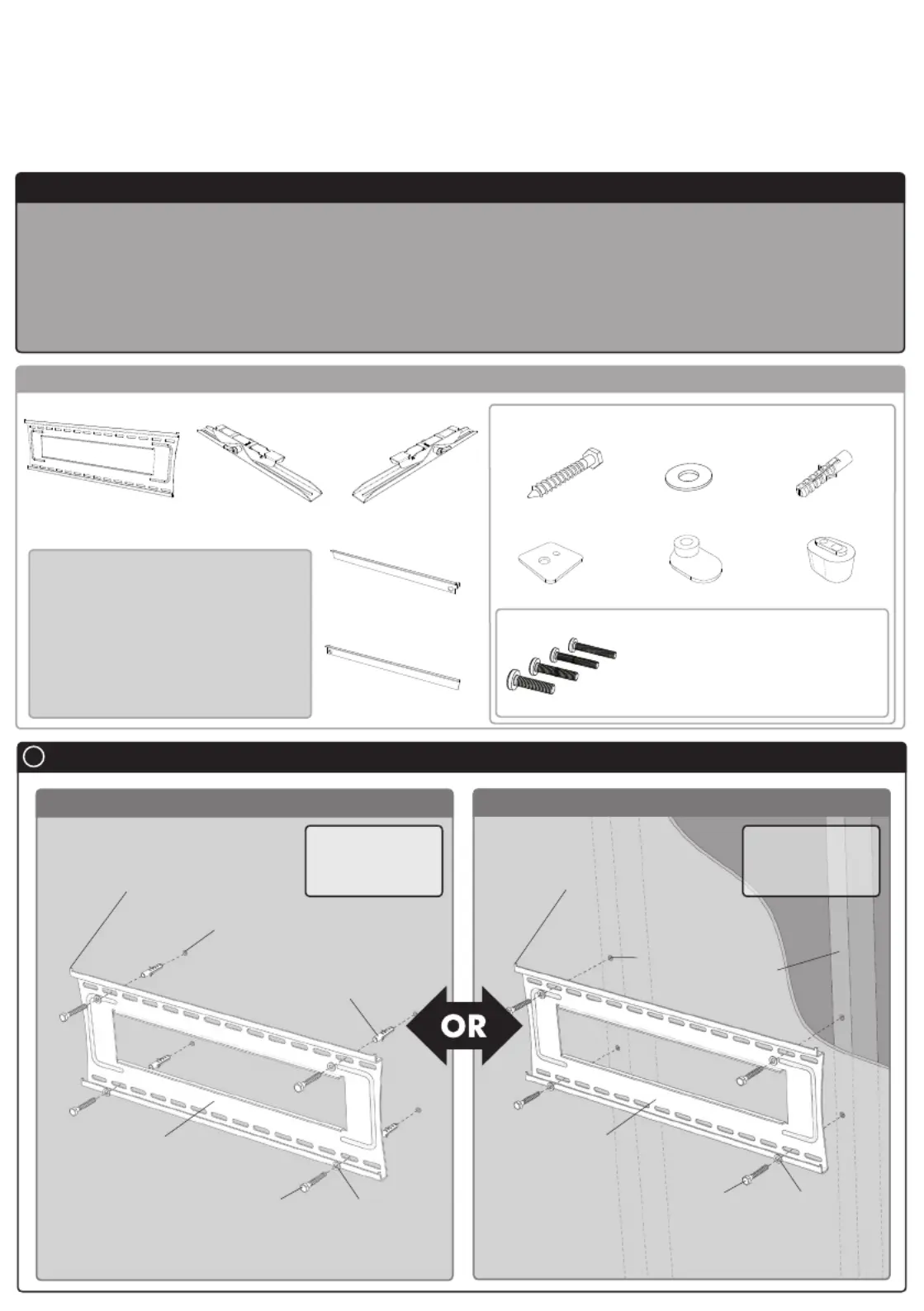

Component Checklist

Bits Bag

Installation Instructions

TELEHOOK

32”-63” WALL TILT

Mounting the Wall Plate

Timber Stud Wall

Masonry Wall

Display Bracket (left)

Wall Plate

Coach Screw (x4)

Masonry Wall Plug (x4)

Washer (x4)

Recessed Hole Bush (x4)

Washer

Masonry

Wall Plug

Wall Plate

12mm (

”)

Hole

Note: Ensure the Wall Plate

is mounted with the folded

tabs pointing upwards.

Coach Screw

8mm (

”)

Hole

Important Notes

TOOLS REQUIRED:

Power Drill

12mm (

) or 8mm (

) Drill Bit

Phillips Head Screw Driver

Spirit Level

17mm (

”) Socket Wrench or

Shifter

The Telehook 32-63 Wall Tilt supports LCD and Plasma Flat Panel Displays from 32” (81cm)

to 63” (160cm) and supports a maximum load of 91kgs (200lbs).

This product suits displays with mounting hole patterns from 180mm to 740mm wide (7”-29”) by 100mm to

500mm high (4”-20”).

The manufacturer does not accept responsibility for incorrect installation.

Security Bracket (right)

Security Bracket (left)

Multi Washer (x4)

Spacer Bush (x4)

Mounting Screws

M8x15mm / M8x35mm / M8x45mm (x4 each)

M6x15mm / M6x35mm / M6x45mm (x4 each)

M5x15mm / M5x35mm / M5x45mm (x4 each)

M4x15mm / M4x35mm / M4x45mm (x4 each)

Cross Recessed Screws

TIP: Use a spirit

level to ensure

that the wall plate

is horizontal

Note: Ensure the Wall Plate

is mounted with the folded

tabs pointing upwards.

Wall Plate

Coach Screw

Washer

Timber

Stud

Display Bracket (right)

TIP: Use a spirit

level to ensure

that the wall plate

is horizontal

Attaching the display to the wall

plate

Multi

Washer

M6 & M8

Screw Hole

M4 & M5

Screw Hole

Mounting

screw

Markings

When attaching the Brackets

to the display, use the markings on

the brackets to ensure that both

brackets are vertically aligned.

Ensure that the markings are

positioned towards the top of the

display and that the tightest fitting

hole in the multi washer is used

when attaching the mounting

screw to the display.

Recessed Mounting Holes

If the mounting holes are

recessed into the back of

the display, use the supplied

Recessed Hole Bushes to pack

the recessed hole. If the brackets

require further clearance from

the display, attach the Spacer

Bushes. Ensure the brackets are

securely fixed to the display.

With the brackets attached to the display, lift the

display and hook the brackets onto the Wall Plate

as shown.

Note: For demonstration purposes, the wall

has been omitted from the above images.

Note: For demonstration purposes, the display

has been omitted from the images below.

Adjusting Tilt

For additional security, it is suggested that the left and right Security

Brackets be inserted and a Padlock attached through each Security

Bracket and the Wall Plate as shown. The two Padlocks (not supplied)

should have a shackle diameter no larger than 5mm (

”)

-5° to 15°

tilt adjustment

TIGHTEN

LOOSEN

Note: For demonstration purposes, the display

has been omitted from the above images.

To adjust the angle of the display, loosen the Tilt Lever

located on each bracket then adjust to desired angle. Once

in position, tighten each lever firmly.

Tilt Lever

To adjust the Tilt Lever position

without tightening or loosening

the lever, pull the lever as shown

to dis-engage the ratchet

mechanism and rotate the lever

into the desired position.

Tilt Lever

PULL

ADJUST

Ensure both Tilt

Levers are facing

outwards.

Due to continuing product development, the manufacture reserves the right to alter specifications without notice. Published: 08.10.07©

Note: This procedure will require two persons

D.1.

D.2.

E.2.

E.1.

Back of

display
